Kit - Trident Trike Stowaway

This Trident Stowaway–specific conversion system turns your Trident Trike Stowaway into an electric-assisted tadpole trike using a 500W internally geared rear hub motor and an optional 48V 15Ah lithium-ion battery pack.

• Special parts tailored for the Trident Stowaway platform
• Top speed up to approximately 26 mph
• Estimated 15–45 mile range depending on rider, terrain, and input
• Supports pedal-assist and throttle-on-demand operation

The 500–1000W geared motor uses a 5:1 internal planetary reduction and clutch, providing zero-drag pedaling when the motor is not engaged. Compared to a direct-drive motor, it offers improved efficiency, stronger low-speed torque, better hill-climbing performance, and a smaller, more discreet form factor.

Who’s it for? Riders who want the best balance of performance, efficiency, low weight, and stealth on a Trident Stowaway frame. Recommended for total system loads up to 300 lb (trike + rider + cargo).

Trident Stowaway–Specific Extras:

• Pedal-assist extension cable
• Locking parking brake levers

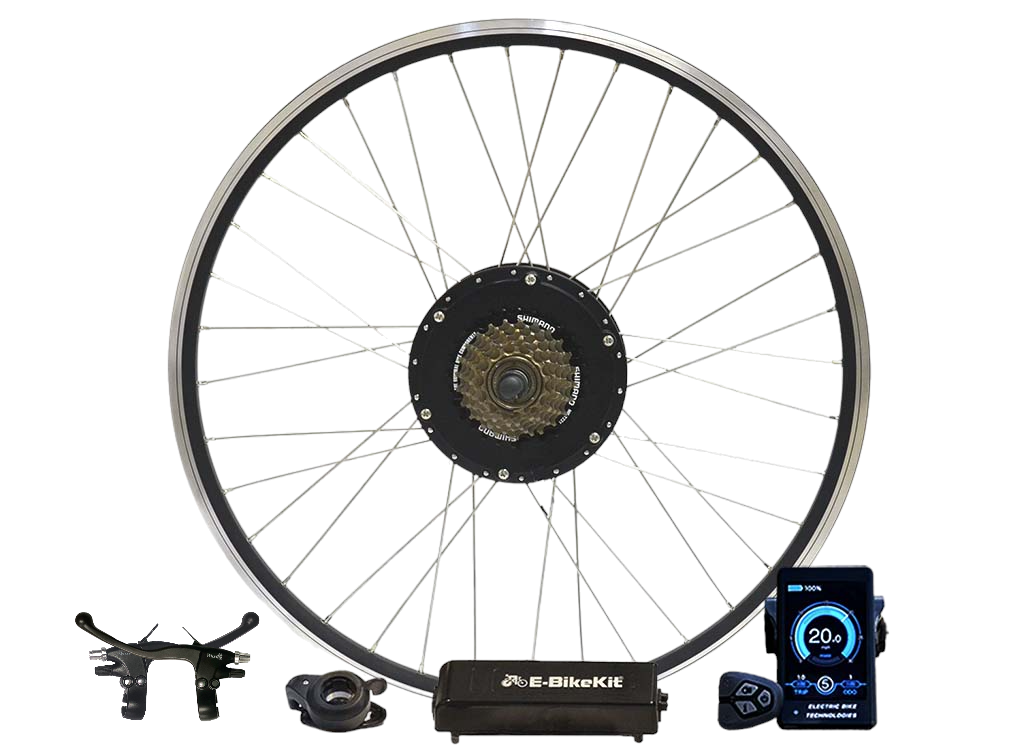

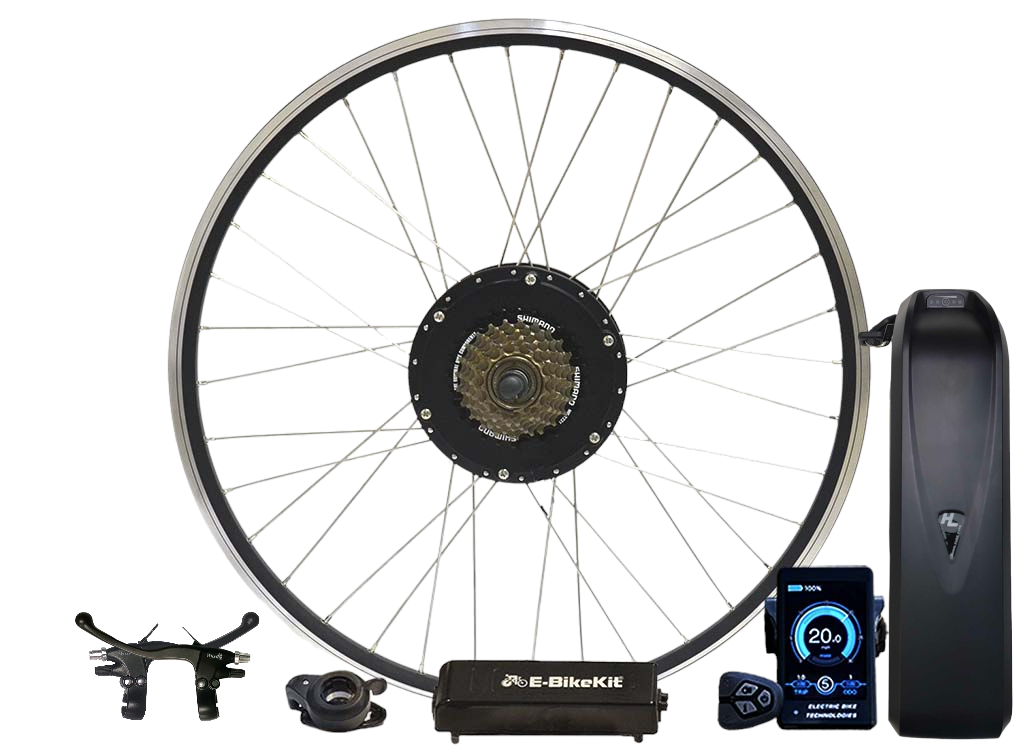

Core Conversion Kit Components:

• USA hand-built rear wheel with 500W geared hub motor (disc-brake compatible)
• 48V compatible 22A 12FET controller
• Programmable LCD dashboard
• 12-magnet PAS split disc
• PAS sensor – left-side mount (right-side available by request)

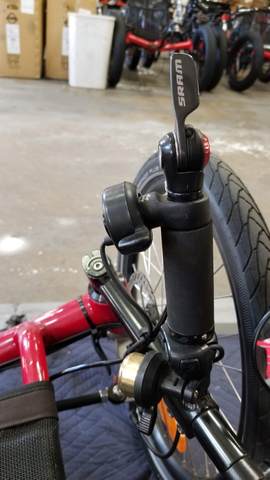

• Thumb throttle
• Left & right locking e-brake levers
• Main motor cable
• 4-to-1 accessory cable
• Battery wire harness (included only when no battery is ordered)
• Freewheel
• Battery & charger (only when ordered)
• Zip ties, C-washers, and torque arms

Battery Mount: A universal battery mount is not included with this specialty system. Mounting solutions can vary by frame; a separate battery mount may be required for your installation.

Motor Specifications

• Brand: EBikeKit LLC
• Type: Internally geared, brushless, disc-brake compatible
• Power: 500W nominal / >1000W peak @ 48V
• Max Torque: 84Nm @ 48V (up to 48V with ~300 lb max load)
• Max RPM: ~320 @ 48V
• Cable: 8″ axle exit, 3-phase / 5 Hall sensors
• Connector: Round 8-pin (10.4 mm)
• Motor Weight: ~9.4 lb (4.26 kg)
• Rear Dropout Requirement: 135 mm
• Total System Load Limit: ~300 lb
• Note: Geared 500W “Performance” motors feature an internal clutch, which prevents speed/mileage reading when coasting under pedal-only power.

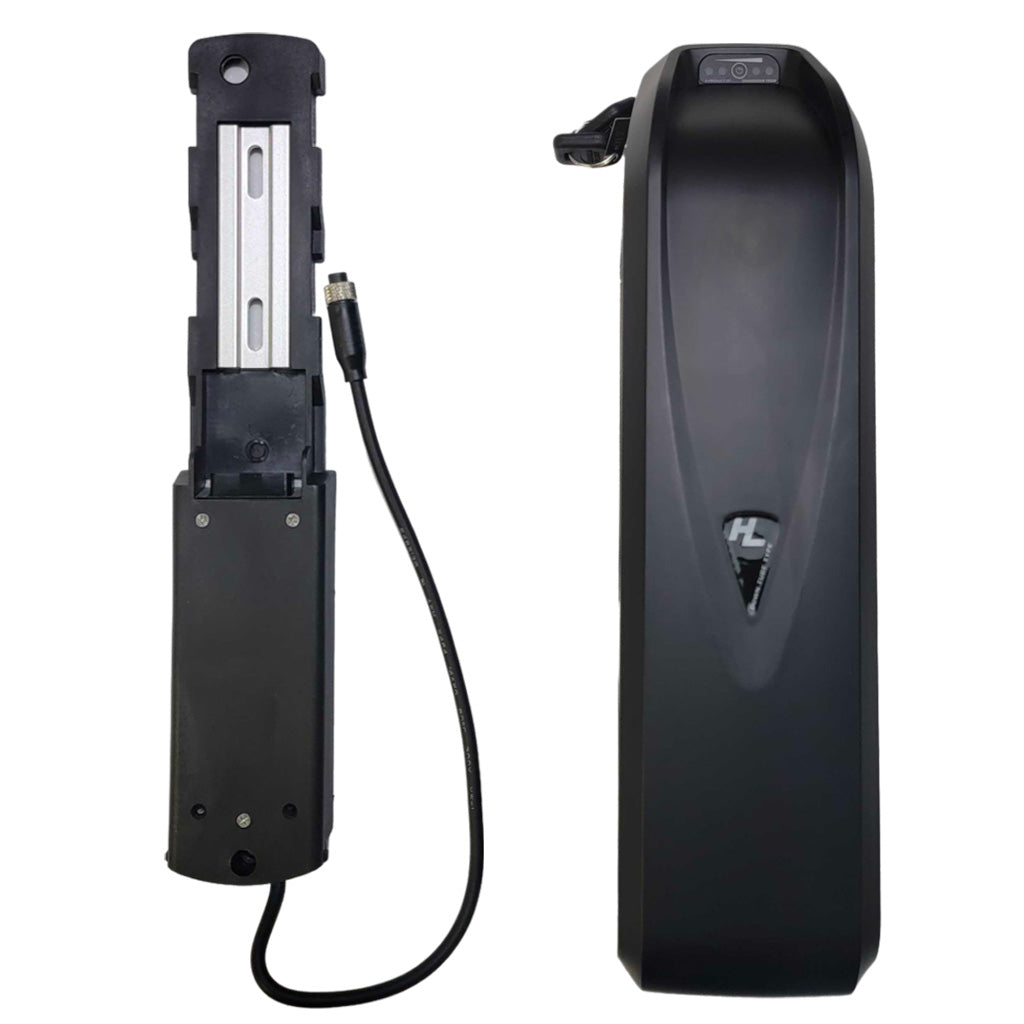

This kit may be ordered with or without a 48V 15Ah lithium-ion battery pack.

• Range: 15–45 miles depending on rider, terrain, and assist level
• Charge Time: ~5 hours with a 3A charger
• Nominal Voltage: 48V
• Nominal Capacity: 15Ah (0.2C)
• Energy: ~720Wh
• Dimensions: ~14″ × 3.5″ × 5″ (356 × 89 × 127 mm)
• Total Weight: ~10.1 lb (4.6 kg)
• Cell Assembly: 18650-3.6V, 13S4P
• Life Cycles: ~500–800
• Max Continuous Discharge: 16A
• BMS Protection Current: 20A
• Discharge Cut-Off Voltage: ~37.5V
• Max Charge Voltage: 54.6V
• Internal Resistance: ≤230 mΩ
• Operating Temp (Charge): 0°C–113°F
• Operating Temp (Discharge): −68°F–140°F
• Storage Temp: 0°C–104°F (59–77°F recommended)
• Case Material: Plastic
• Certifications: UN38.3, MSDS, UL-listed cells

This Trident Stowaway conversion system has been installed successfully many times by dealers and is a proven configuration for this trike platform.

Dealer Support Commitment:

• Real-time installation support via text, phone, and email
• Direct access to system builders and wheel technicians
• Guidance on PAS selection and setup for square-taper vs. external-bearing cranksets
• Advice on cable routing, torque-arm placement, and battery mounting on Trident frames
• Fast responses to shop-floor questions to keep installations moving smoothly

If you need model-specific guidance:
Contact us with details and photos of the Stowaway you’re working on. We’ll help you confirm the best PAS configuration, mounting approach, and any additional parts needed.

Our mission:
To make every dealer’s Trident Stowaway installation clean, reliable, and backed by expert support.

This kit is designed specifically for the Trident Trike Stowaway tadpole trike.

Bottom Bracket & PAS Compatibility:

• Default configuration: left-side PAS for square-taper bottom brackets
• Newer Stowaway models with external-bearing bottom brackets require special PAS parts (PAS 12-magnet split 64/74 BCD disc + right-side PAS sensor)
• Right-side PAS sensors may require trimming the mounting legs to improve clearance

General Compatibility Notes:

• Rear dropout spacing: 135 mm
• System is not suitable for frames using IGH (internal geared hubs) or rear thru-axles

If you’re unsure which PAS or configuration is required, send photos of the crankset and rear dropouts and we’ll help you confirm compatibility.

This Trident Stowaway kit installs with common bike tools and includes everything needed for most standard frames.

• Rear motor wheel installs into 135 mm rear dropouts
• Controller, LCD, and wiring use plug-matched connectors

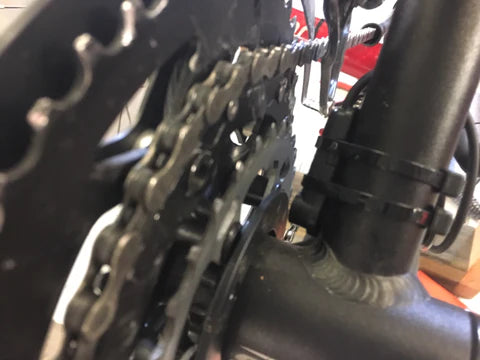

• PAS sensor and split disc mount at the crank — type and side depend on crank style (square-taper vs. external-bearing)
• Locking parking-brake levers replace stock brake levers
• Torque arms must be installed and axle nuts torqued properly
• Battery must be securely mounted; configuration may vary depending on frame and battery style

Proper torque-arm installation, secure cable routing, and correct PAS setup are critical to safe, reliable operation.
