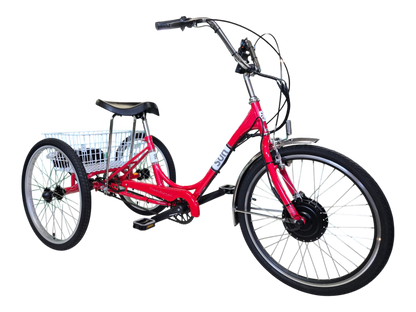

Kit - Traditional Tricycle

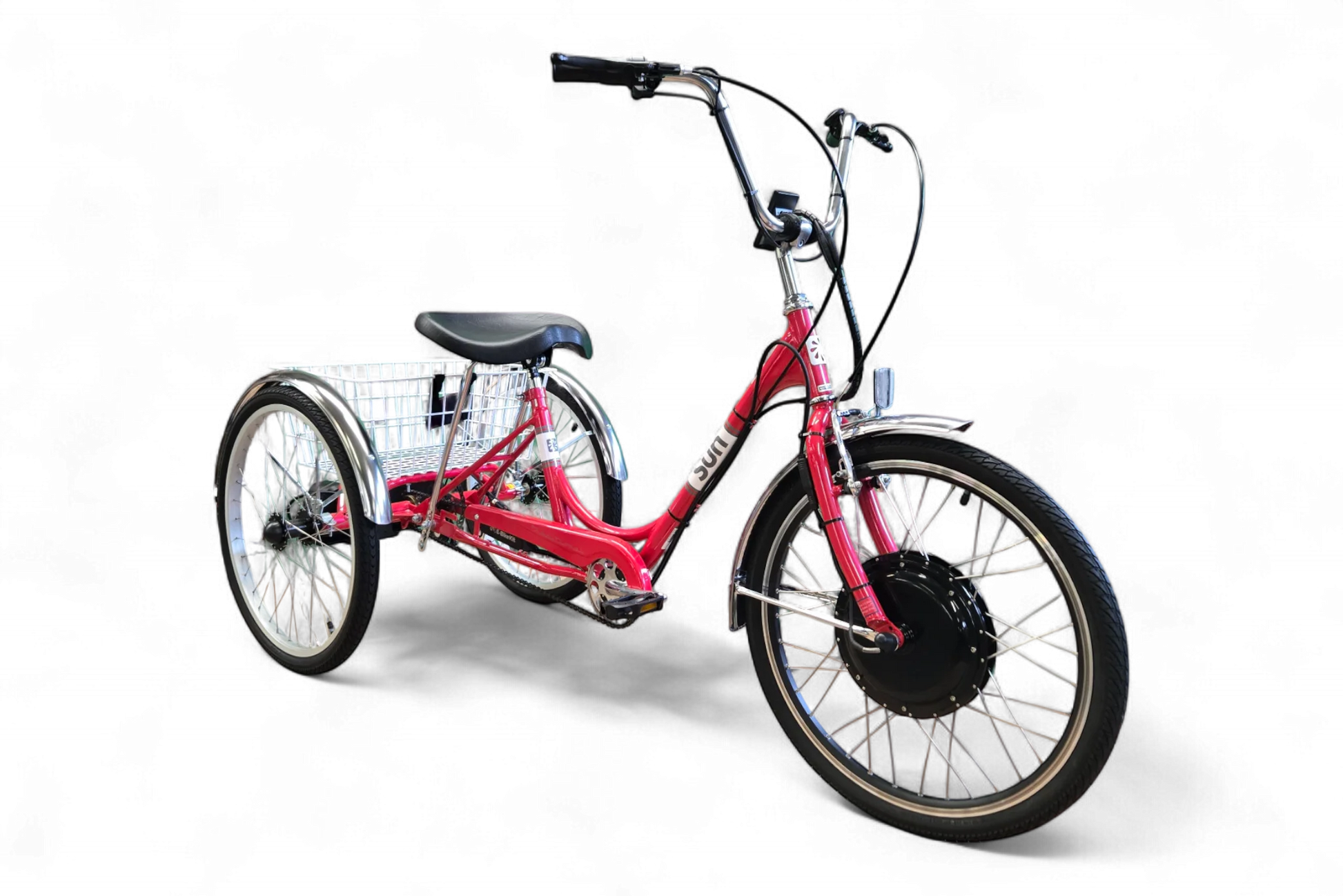

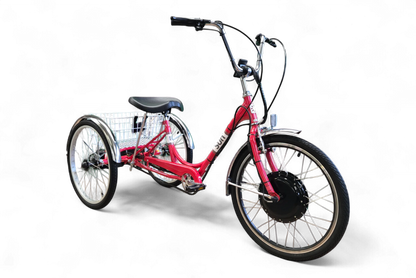

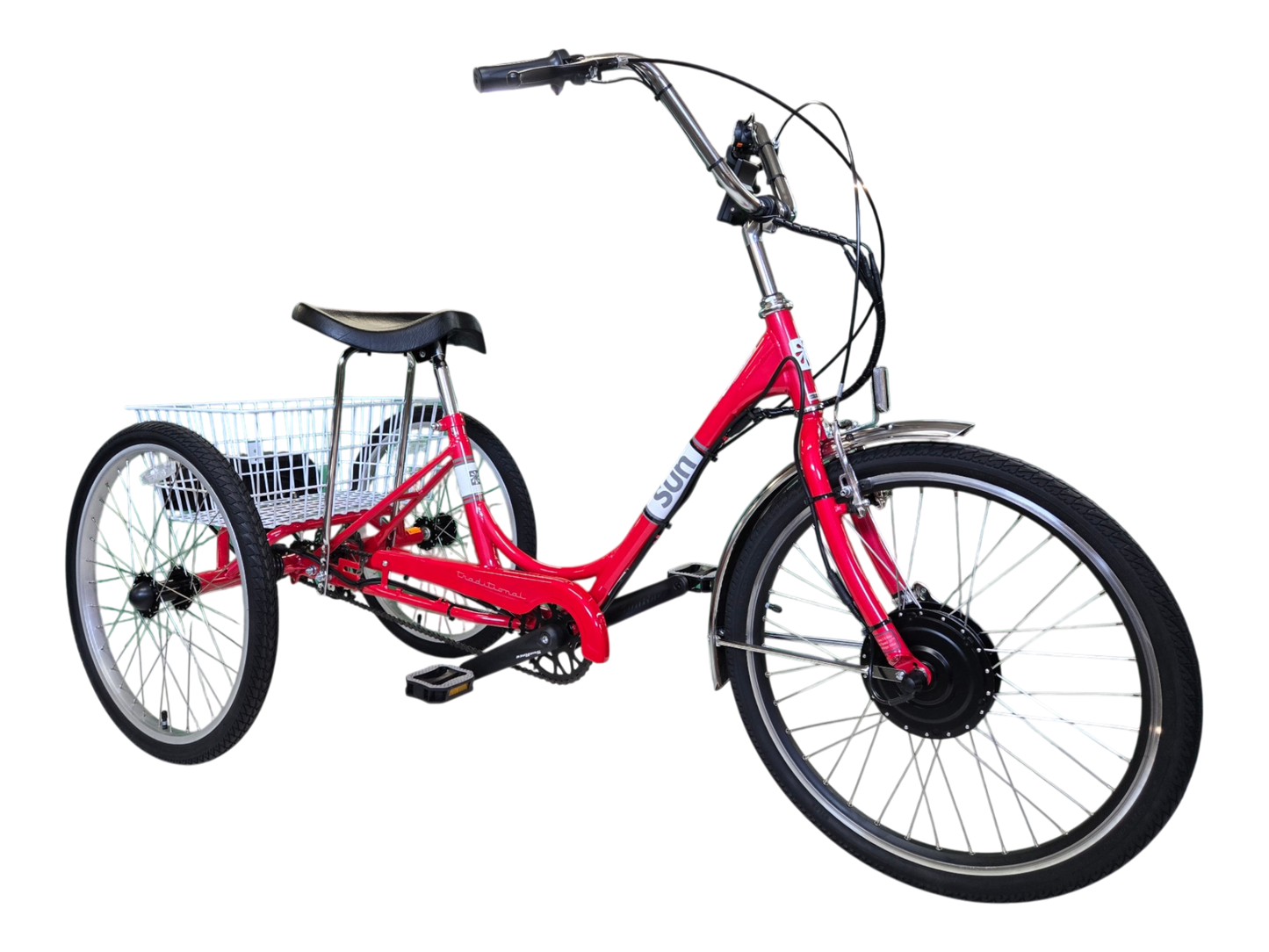

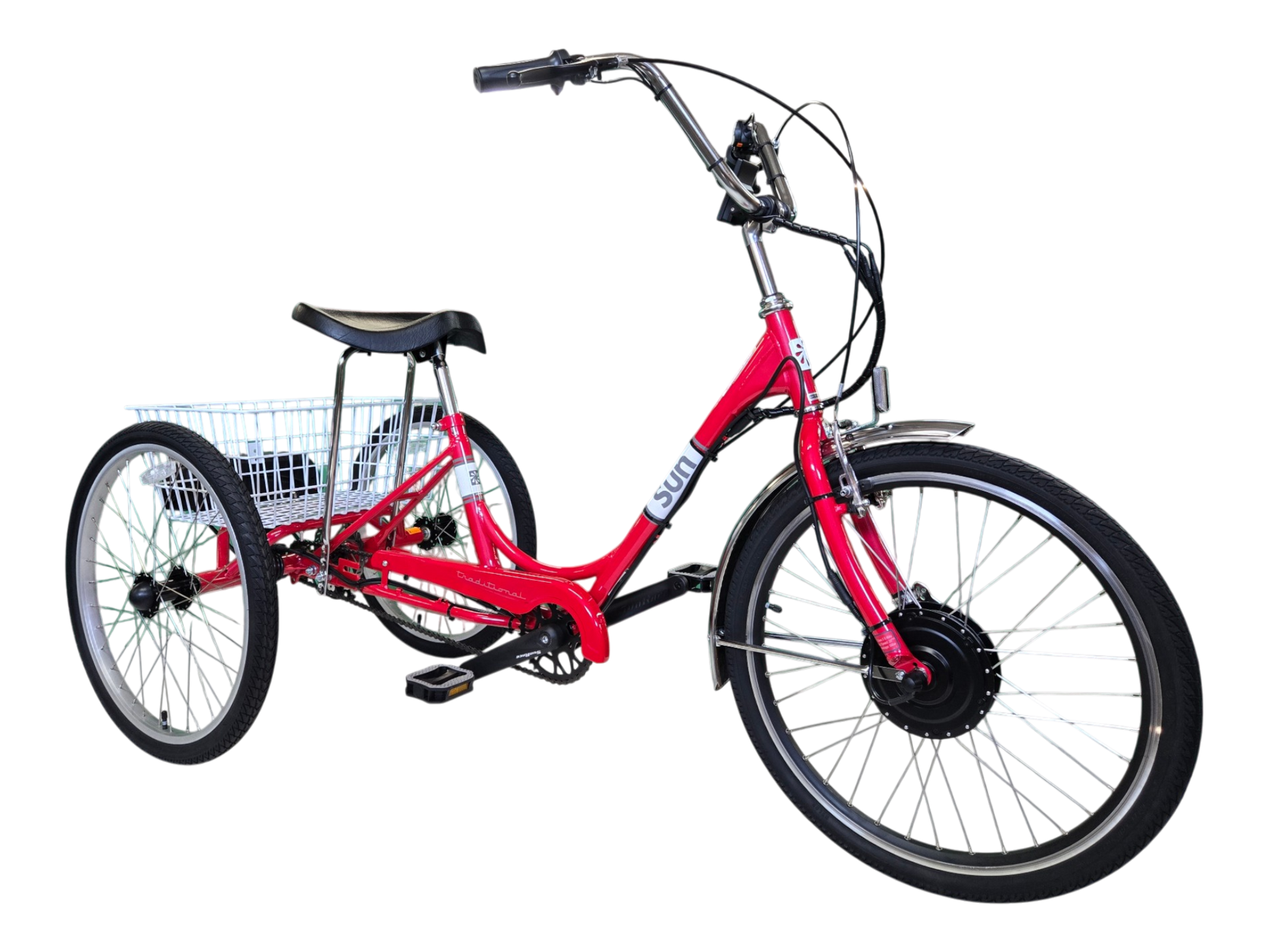

This Traditional Tricycle–specific E-BikeKit conversion system is designed to convert compatible upright adult tricycles into smooth, efficient, and responsive electric trikes.

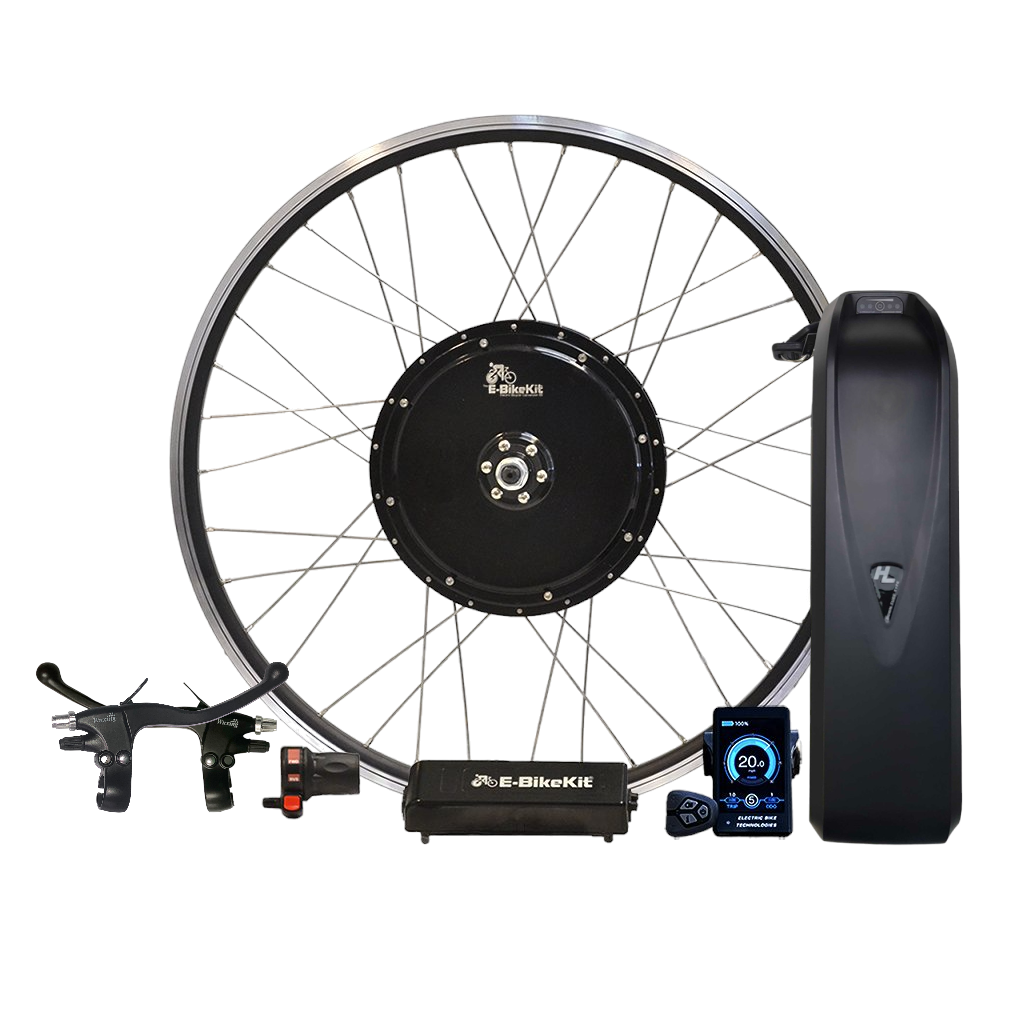

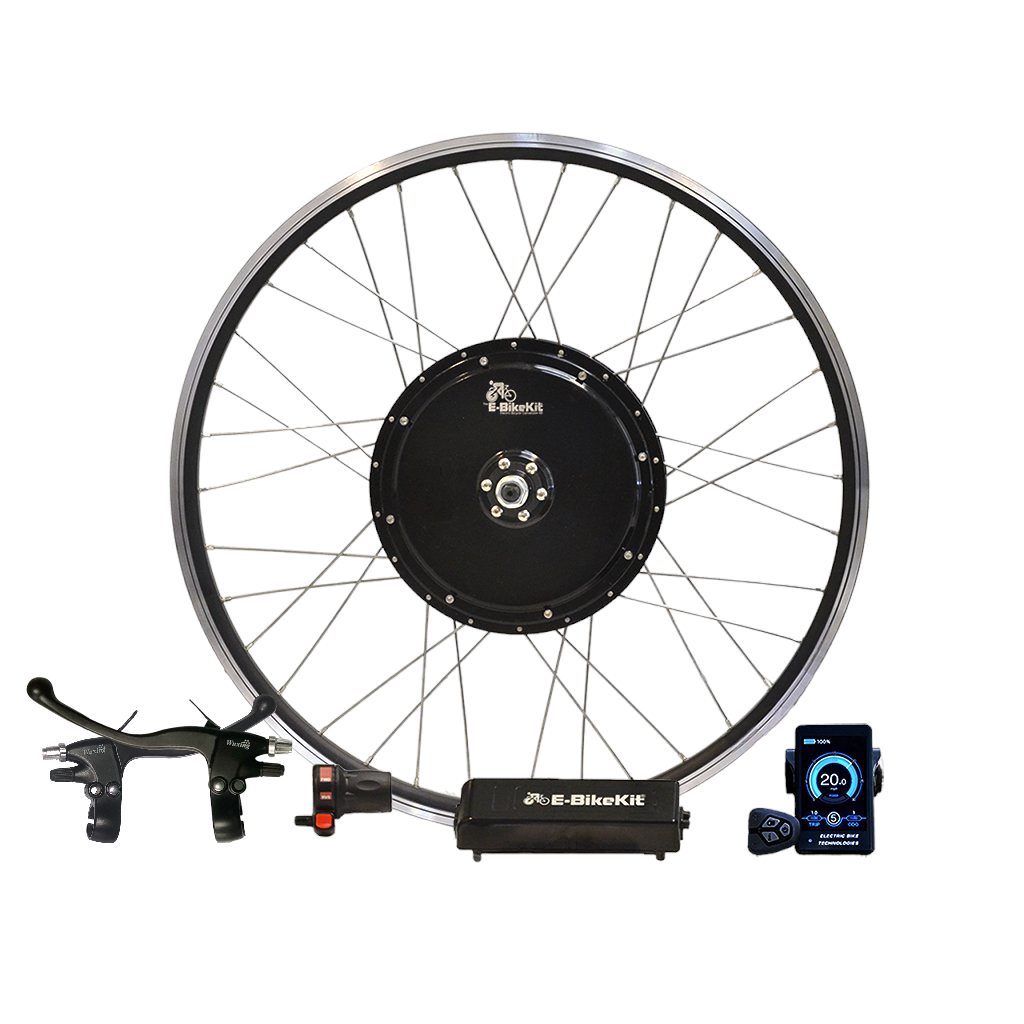

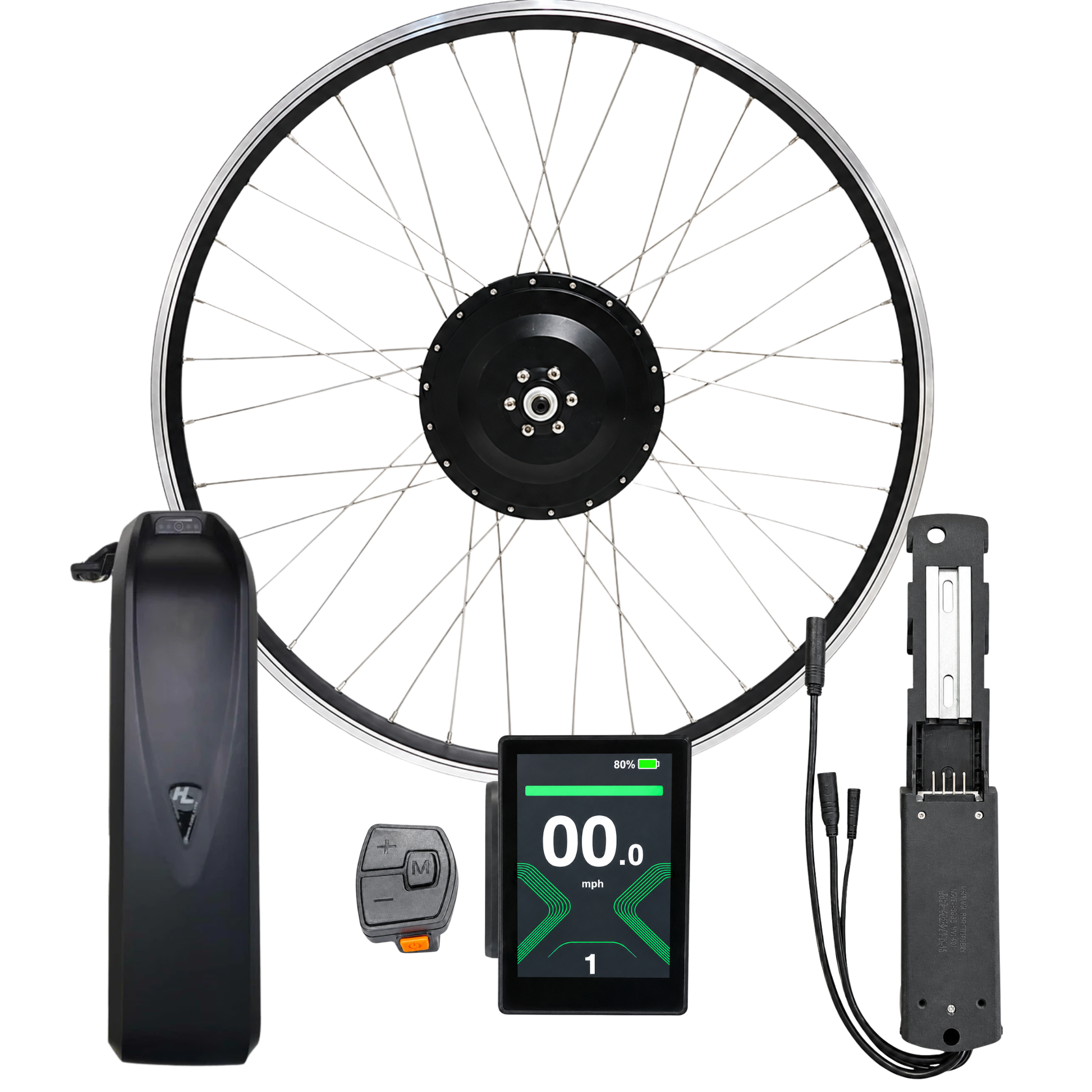

The system includes a USA hand-built rear motor wheel, integrated SINET™ controller, 3.5″ color SINET™ LCD with USB charging port, 48V 15Ah lithium-ion battery, 3A charger, integrated-controller battery cradle, Traditional trike battery mounting plate and hardware, thumb throttle, locking e-brake levers, matched wiring, torque arm, and installation components.

• Configuration developed specifically for traditional upright adult tricycles
• Available in 20″, 24″, and 26″ rear wheel sizes
• Wheel-size selection does not change the price
• Integrated SINET™ controller housed in the battery cradle
• 48V 15Ah battery and 3A charger included
• Battery mounting plate and mounting hardware included
• Choice of cadence pedal assist or bottom bracket torque sensing
• Throttle-on-demand included with either pedal-assist option
• Estimated range of approximately 15–45 miles depending on conditions
• Recommended for total loads up to approximately 300 lb

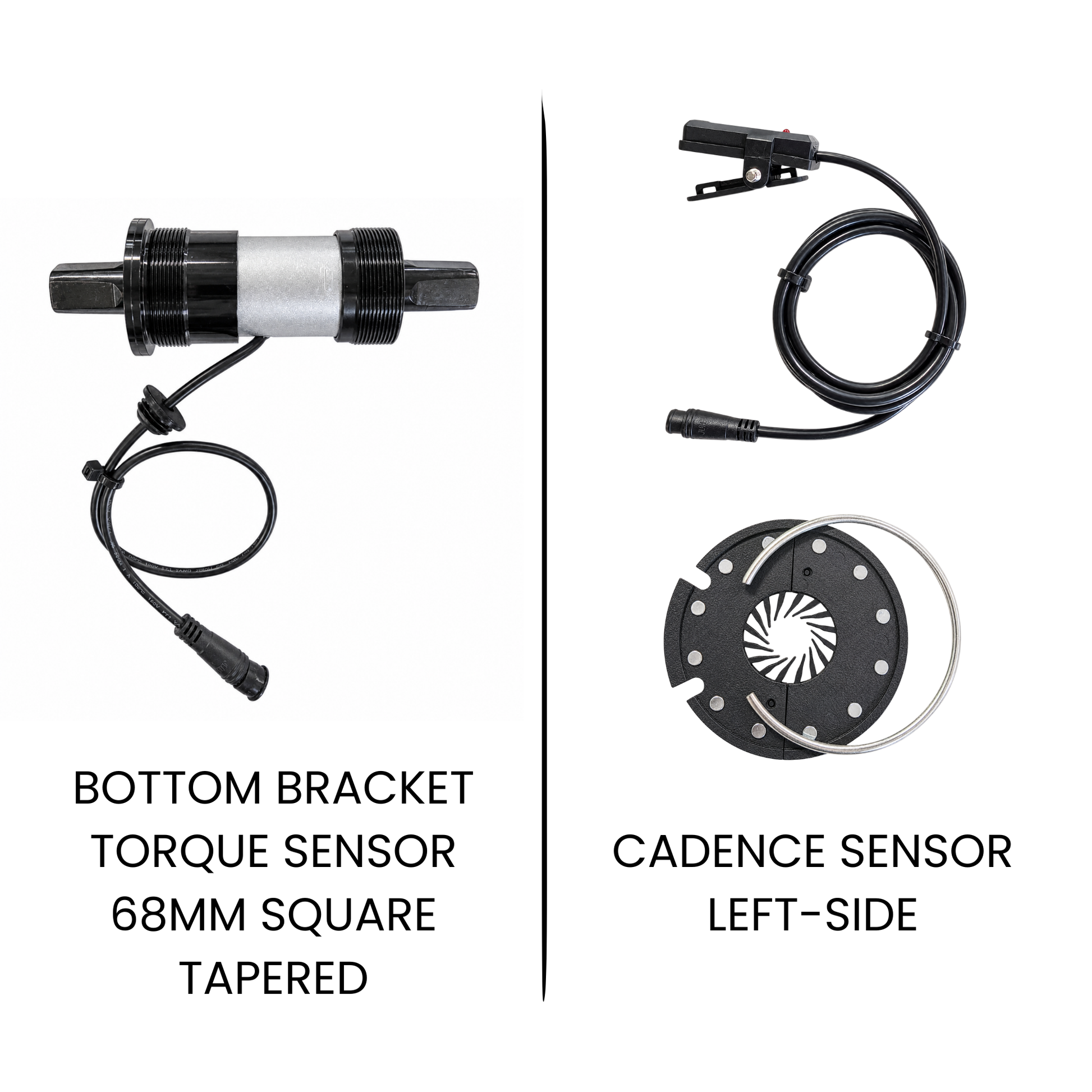

Choose your pedal-assist system:

• Cadence Sensor: Activates motor assistance when crank rotation is detected.
• Bottom Bracket Torque Sensor: Measures rider effort and provides a smoother, more natural, proportional level of motor assistance.

Important Torque-Sensor Package Note: Many traditional adult tricycles use a single-piece crank configuration. When the Bottom Bracket Torque Sensor option is selected, the system automatically includes the additional parts required to convert the trike to a compatible two-piece crank configuration:

• Bottom bracket adapter set
• Compatible crankset
• Matching pedal set

These components are included automatically with the torque-sensor option and are shown in the product images.

The required selections are wheel size and pedal-assist type. The motor wheel, integrated controller, battery, charger, battery cradle, battery mounting plate, LCD, throttle, wiring, e-brake levers, and installation hardware are included with every Traditional conversion system.

Reverse Function: This geared hub motor system does not include reverse functionality.

Who’s it for? Riders and dealers looking for a complete conversion system for upright adult tricycles with matched SINET™ components, a professionally built motor wheel, and direct technical support.

This system includes the battery, charger, integrated controller, selected rear motor wheel, battery mounting plate, and matched SINET™ components.

Traditional Tricycle Conversion System Components:

• USA hand-built rear motor wheel in the selected 20″, 24″, or 26″ size
• Integrated SINET™ controller housed in the battery cradle

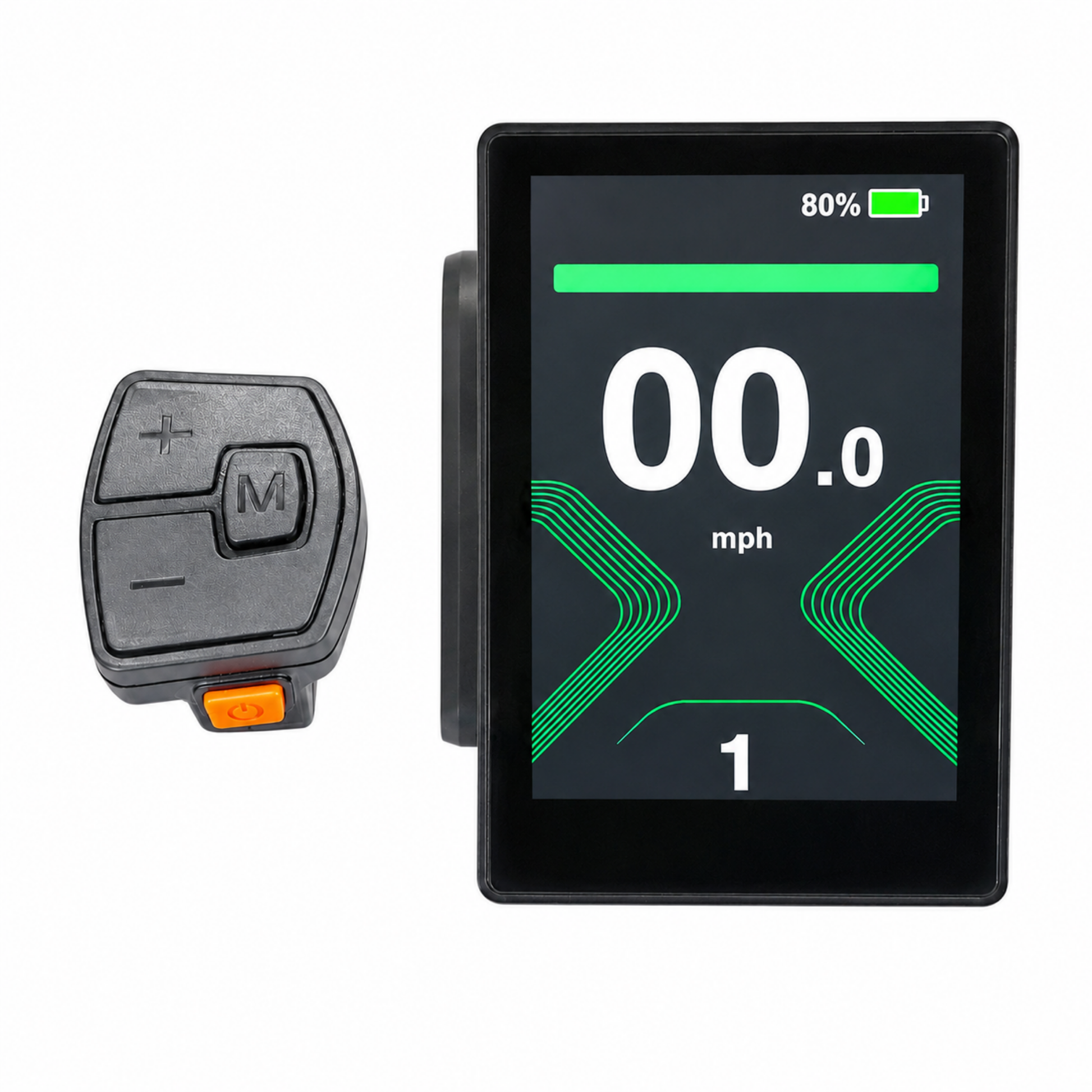

• 3.5″ color SINET™ LCD with USB charging port

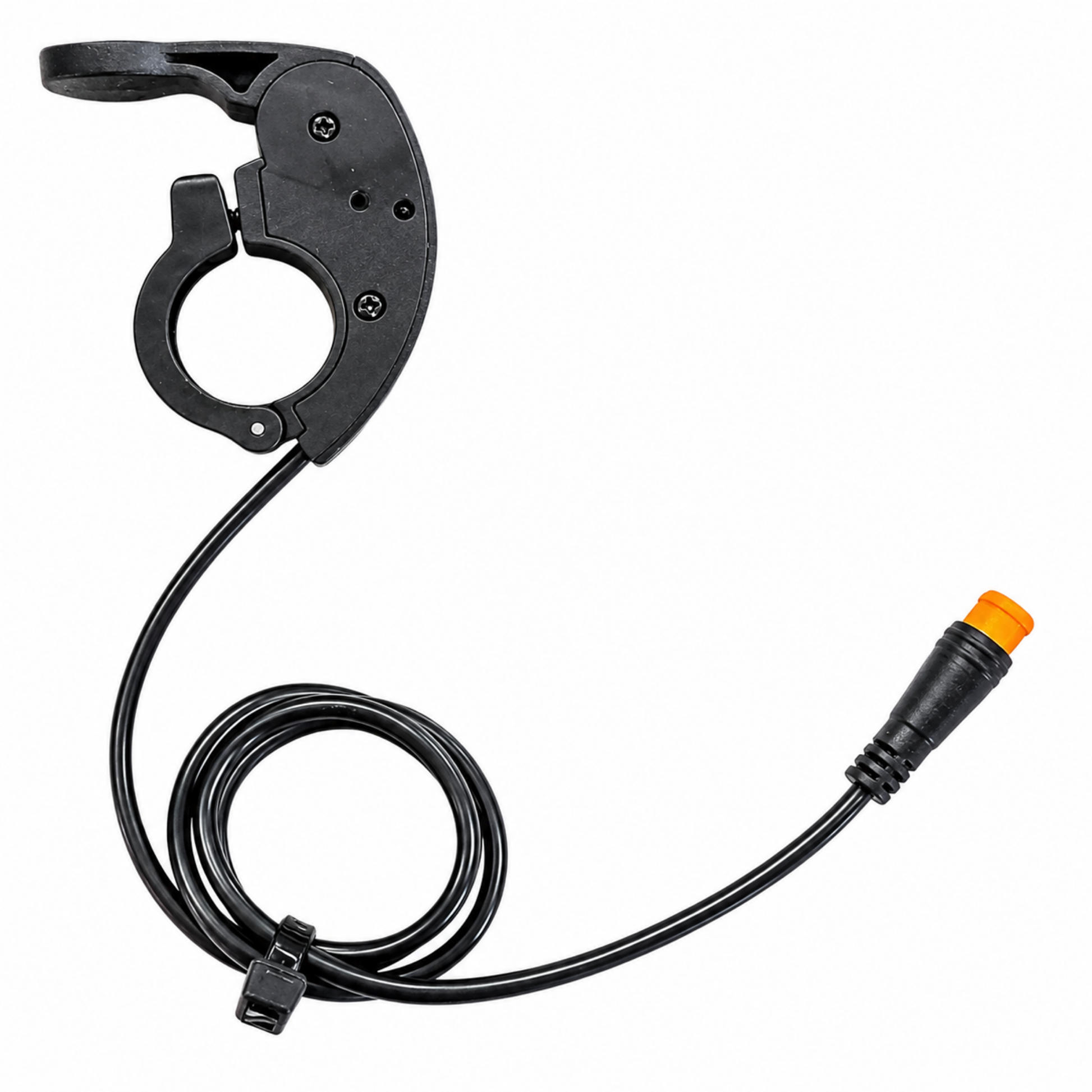

• Thumb throttle

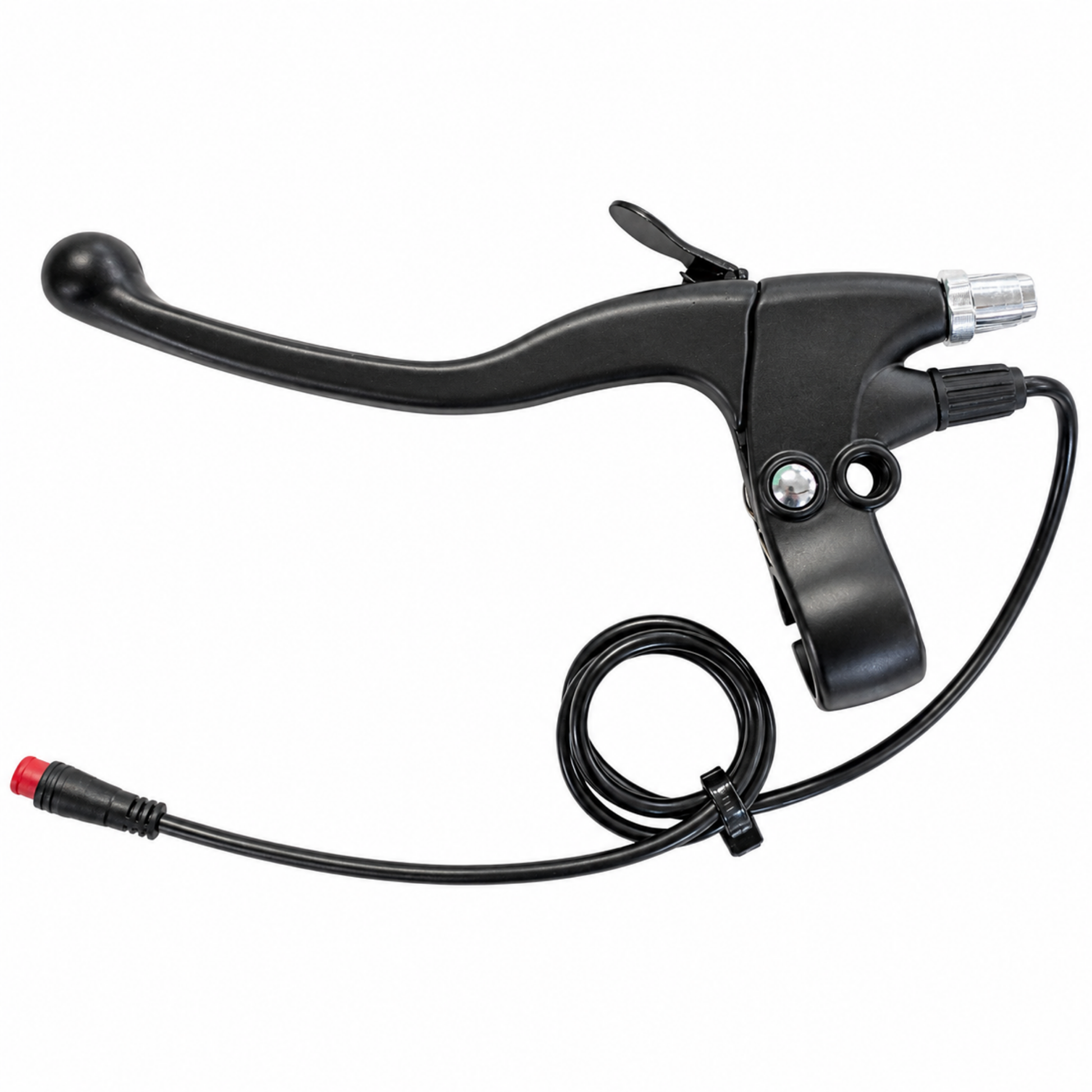

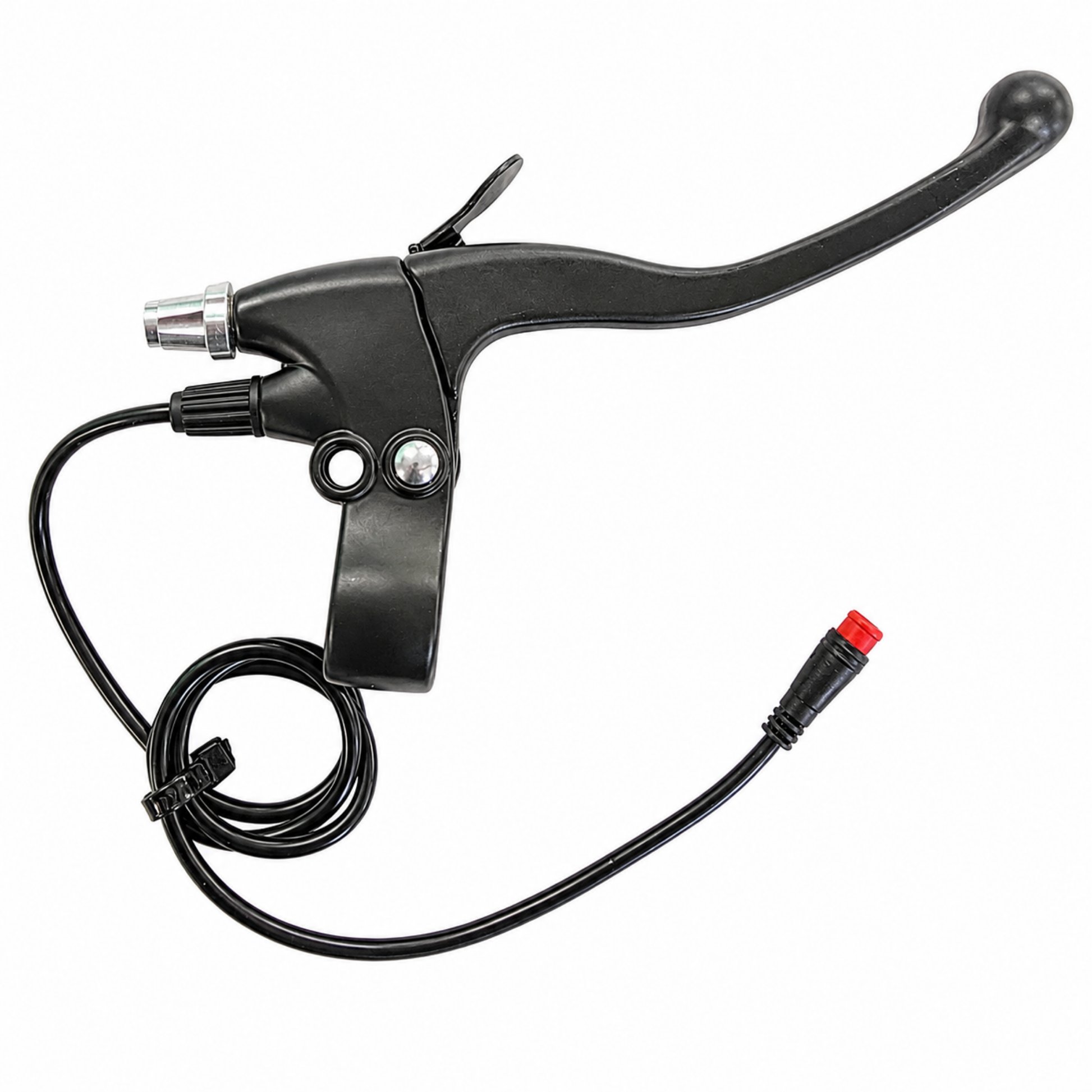

• Left and right e-brake levers with motor cutoff

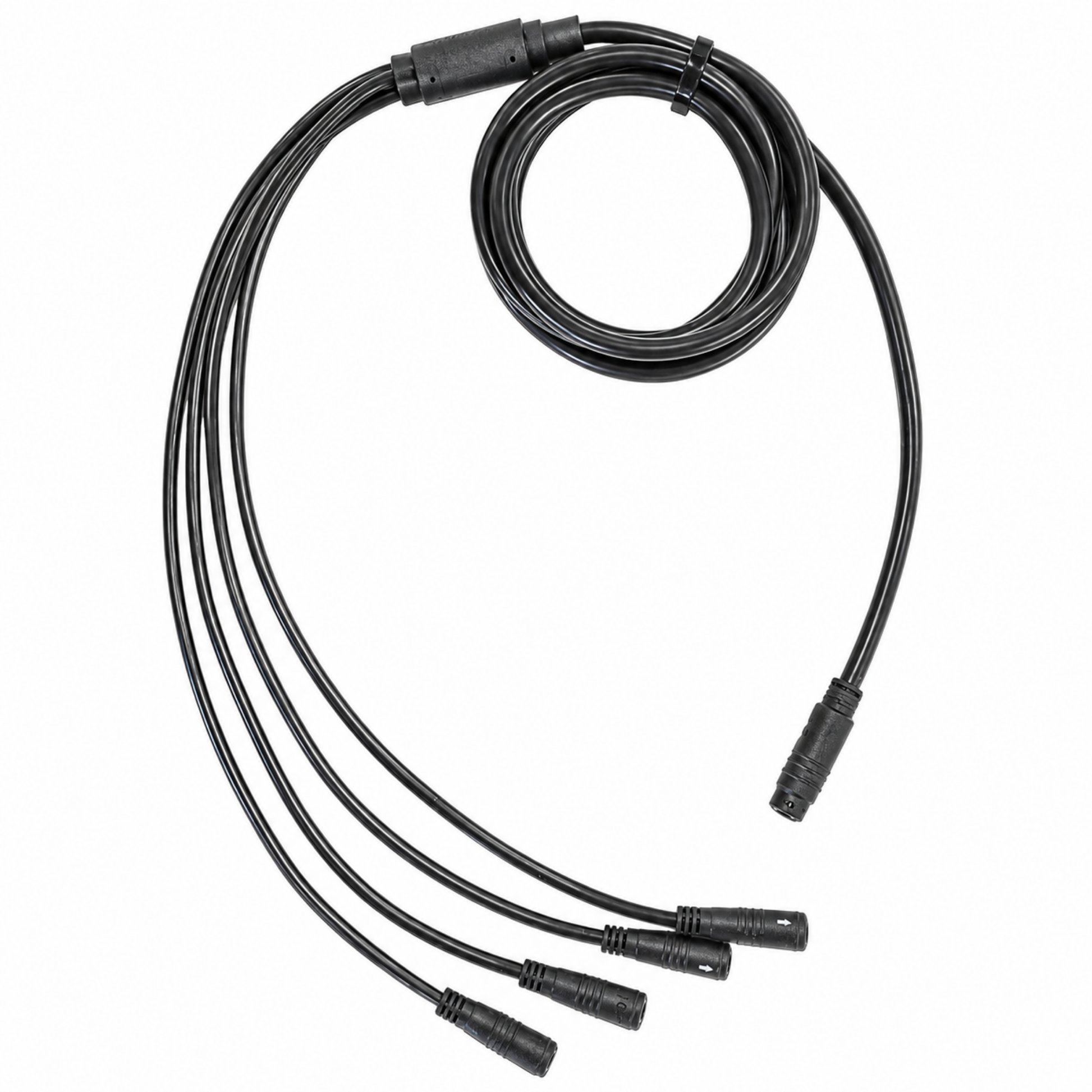

• Main SINET™ wiring harness

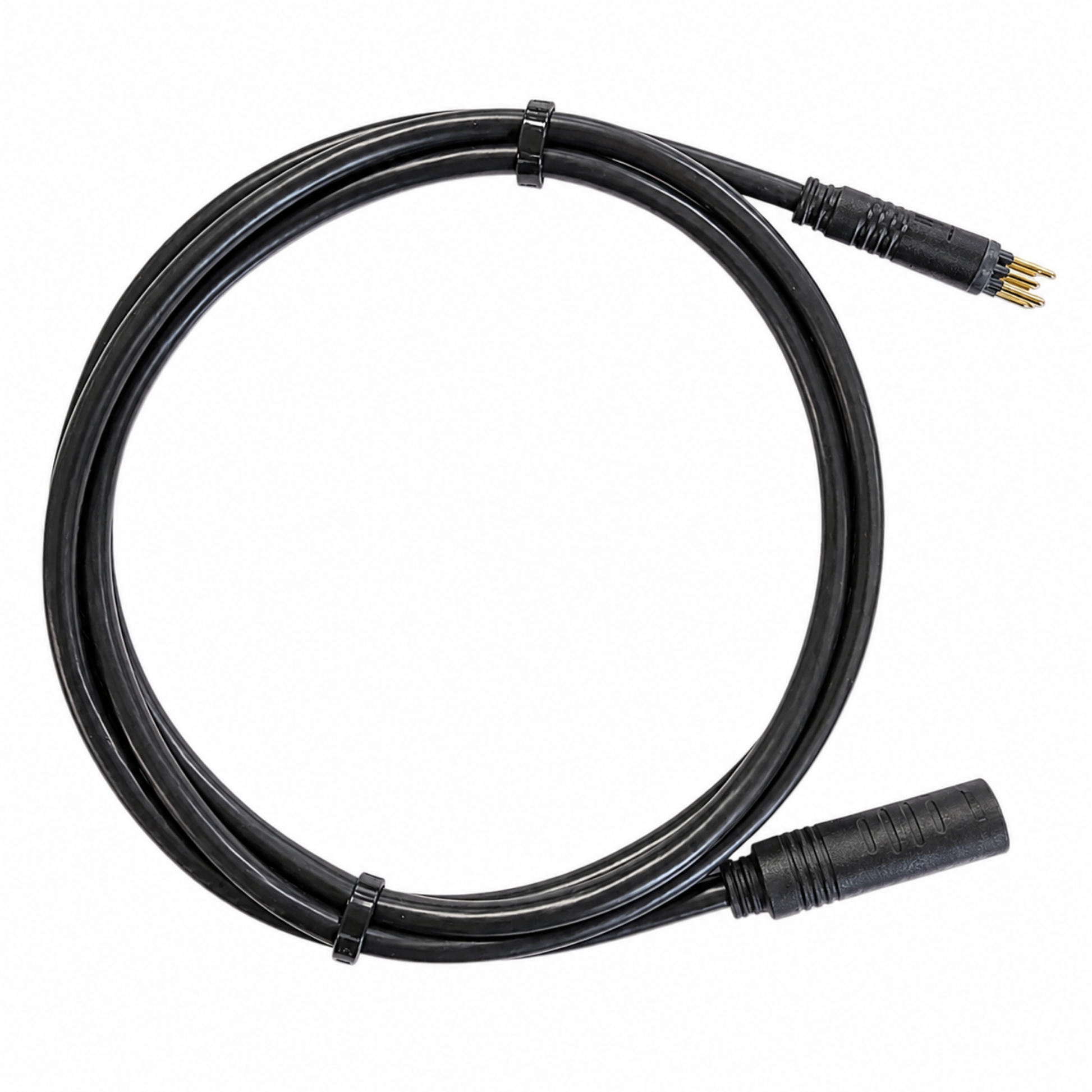

• Motor cable
• Pedal-assist extension cable when required
• Torque arm
• C-washers, axle hardware, installation hardware, and zip ties
• 48V 15Ah lithium-ion battery
• 3A battery charger

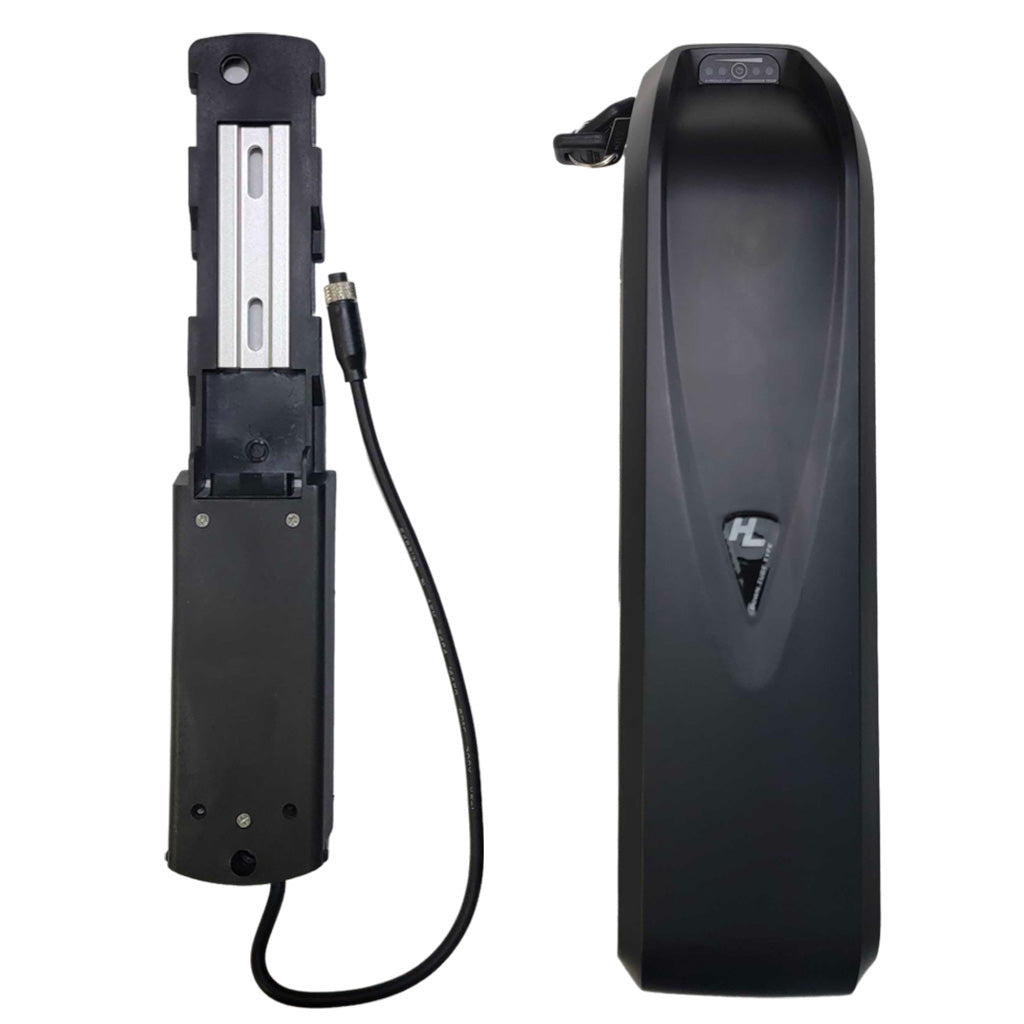

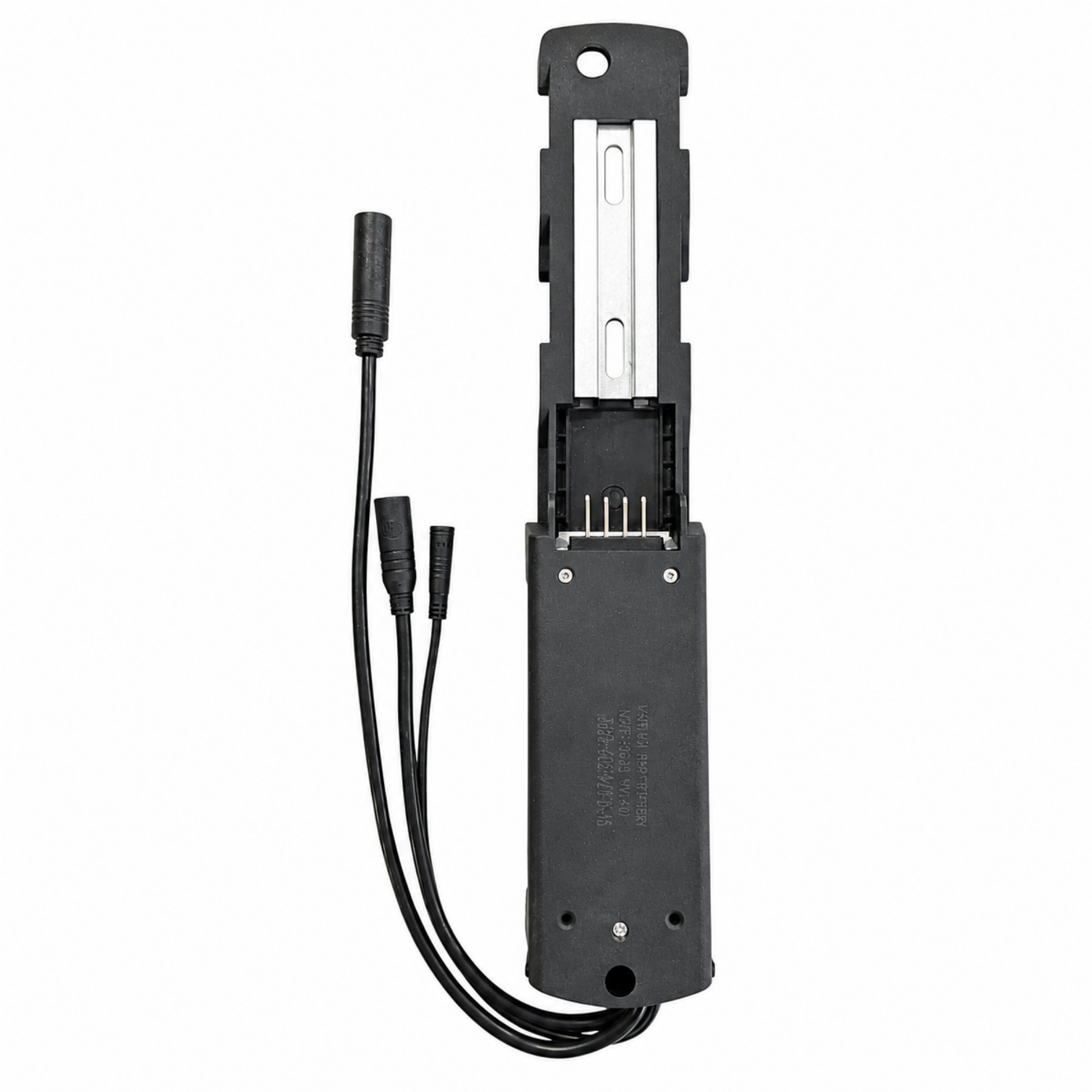

• Integrated-controller battery cradle

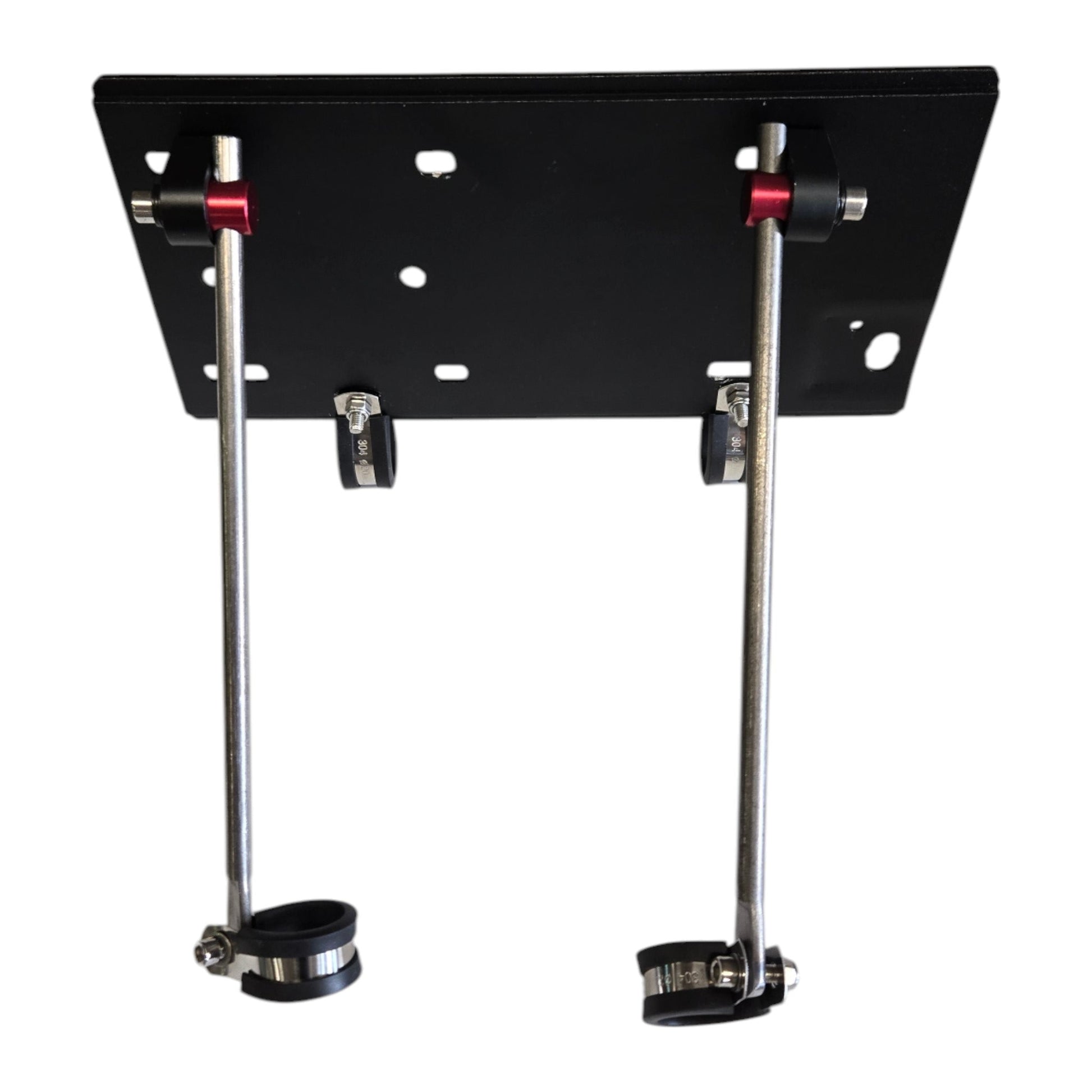

• Traditional trike battery mounting plate and mounting hardware

Pedal-Assist Selection:

• Cadence Sensor: Split-disc cadence sensor and pickup sensor
• Bottom Bracket Torque Sensor: Torque-sensing bottom bracket with the required extension cable

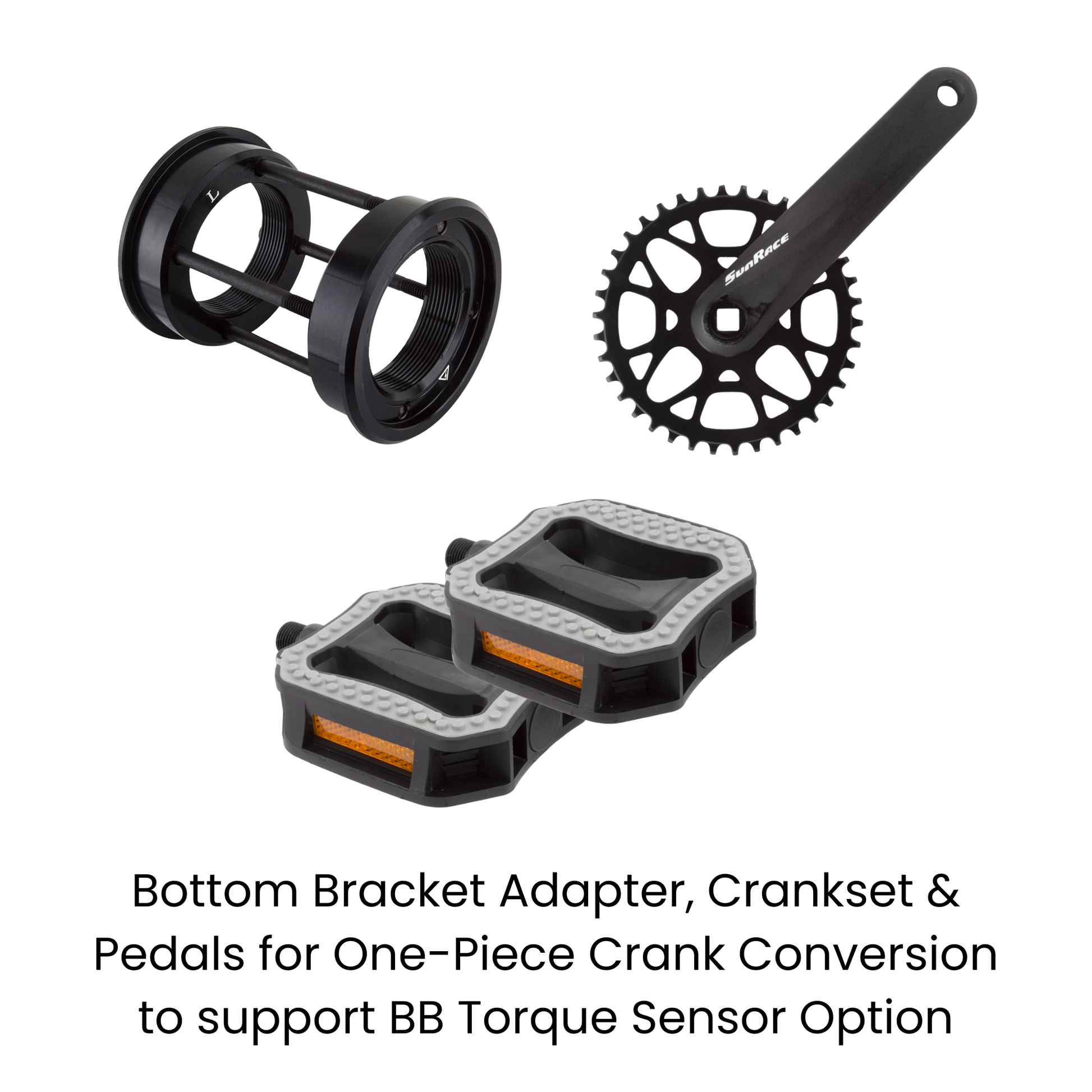

Additional Parts Included With the Bottom Bracket Torque Sensor Option:

• Bottom bracket adapter set for converting a single-piece crank configuration
• Compatible two-piece crankset
• Matching pedal set

These parts are automatically included when the Bottom Bracket Torque Sensor option is selected. Refer to the product images to view the complete torque-sensor conversion package.

The motor wheel includes a rim strip. Tire and tube are not included.

This Traditional Tricycle system requires two selections so the system can be configured correctly.

• Wheel Size: 20″, 24″, or 26″
• Pedal Assist: Cadence Sensor or Bottom Bracket Torque Sensor

Wheel-size selection does not change the price.

Selecting the Bottom Bracket Torque Sensor automatically adds the bottom bracket adapter set, compatible crankset, matching pedals, torque sensor, and required extension cable.

The SINET™ system combines the controller, display, pedal-assist input, throttle, brake cutoffs, motor connection, and battery interface into one matched electrical platform.

• Integrated controller housed within the battery cradle
• 3.5″ color SINET™ LCD with clear system and ride information
• USB charging port built into the LCD
• Matched waterproof electrical connectors
• Cadence and torque-sensing pedal-assist compatibility
• Throttle-on-demand operation
• Motor cutoff through both e-brake levers
• Battery interface integrated directly into the controller-equipped cradle

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD quick-start guide for display operation, setup, programming, and system settings.

Download the SINET™ LCD Quick-Start Guide (PDF)

Motor Wheel

• Wheel Position: Rear
• Wheel Sizes: 20″, 24″, or 26″
• Construction: USA hand-built motor wheel
• Motor Type: Brushless internally geared rear hub motor
• Power: 500W nominal with higher peak output at 48V
• Approximate Top Speed: Varies by wheel size, programming, rider weight, terrain, and conditions
• Brake Compatibility: Disc-brake compatible motor
• Rim Strip: Included
• Tire and Tube: Not included
• Reverse Function: Not included

Electrical System

• System Voltage: 48V
• Controller: Integrated SINET™ controller
• Controller Location: Battery cradle
• Display: 3.5″ color SINET™ LCD
• USB Charging Port: Included
• Throttle: Thumb throttle
• Brake Cutoffs: Left and right e-brake levers
• Torque Arm: Included
• Total Recommended Load: Approximately 300 lb, including trike, rider, and cargo

Pedal Assist

• Cadence Option: Split-disc cadence sensor
• Torque Option: Bottom bracket torque sensor with extension cable, bottom bracket adapter set, compatible crankset, and matching pedals

Every Traditional conversion system includes the 48V 15Ah lithium-ion battery, integrated-controller battery cradle, battery mounting plate, mounting hardware, and 3A charger.

• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Estimated Range: Approximately 15–45 miles
• Charger: 3A charger included
• Approximate Charge Time: Approximately 5 hours
• Maximum Charge Voltage: 54.6V
• Cell Structure: 18650, 13S4P
• Estimated Cycle Life: Approximately 500–800 cycles
• Battery Weight: Approximately 10.1 lb
• Certifications: UN38.3, MSDS, and UL-listed cells

Actual range varies based on rider weight, terrain, wheel size, speed, temperature, tire pressure, pedal input, assist level, throttle use, and total system load.

This conversion system is designed for compatible traditional upright adult tricycles.

• Available with 20″, 24″, or 26″ rear motor wheels
• Includes a battery mounting plate and mounting hardware
• Includes an integrated-controller battery cradle
• Recommended for total loads up to approximately 300 lb, including trike, rider, and cargo

Cadence Sensor Option: Uses the supplied cadence sensor and pickup sensor.

Bottom Bracket Torque Sensor Option: Automatically includes the torque sensor, bottom bracket adapter set, compatible crankset, and matching pedals required to convert a single-piece crank configuration to a compatible two-piece crank arrangement.

Traditional tricycles vary by manufacturer, model, frame design, drivetrain, axle configuration, wheel size, and crank style. Confirm compatibility before installation.

Trikes that have been modified or differ from standard factory configurations may require additional parts or installation adjustments.

The Traditional conversion system uses matched SINET™ components and connectors to simplify installation on compatible upright adult tricycles.

• Confirm the selected 20″, 24″, or 26″ wheel size matches the tricycle
• Install the selected rear motor wheel
• Install the supplied torque arm
• Install the Traditional trike battery mounting plate
• Mount the integrated battery/controller cradle securely to the mounting plate
• Install and secure the included 48V 15Ah battery
• Install the SINET™ LCD, thumb throttle, and e-brake levers
• Install the selected cadence sensor or torque-sensor package
• For the torque-sensor option, install the bottom bracket adapter set, compatible crankset, matching pedals, torque sensor, and extension cable
• Route and secure the SINET™ wiring harness, motor cable, and sensor wiring
• Verify axle-nut torque, torque-arm placement, brake operation, drivetrain alignment, and cable routing

Proper torque-arm installation, correct axle-nut torque, secure battery mounting, safe cable routing, and proper brake adjustment are essential for safe operation.

Professional bicycle-shop installation is recommended when the installer is not experienced with tricycle drivetrains, rear-wheel installation, brakes, electrical systems, torque arms, battery mounting, crank conversion, or bottom bracket service.

This section provides a reference point to help dealers position, present, install, and support the Traditional conversion system confidently.

Dealer Support Commitment:

• Real-time installation support by phone, text, and email
• Direct access to system builders and wheel technicians
• Guidance on selecting the correct 20″, 24″, or 26″ wheel size
• Guidance on rear-wheel fitment, torque-arm placement, and cable routing
• Support for battery mounting plate installation
• Support for cadence-sensor installation
• Support for the torque-sensor crank conversion, including the adapter set, crankset, pedals, sensor, and extension cable
• Fast assistance with shop-floor technical questions

Torque-Sensor Sales Note: The bottom bracket torque sensor option includes all additional crank-conversion parts automatically. The complete package is shown in the product images so dealers and customers can see exactly what is included.

Our mission: Ensure every dealer delivers a clean, professional, and reliable Traditional tricycle conversion experience.
