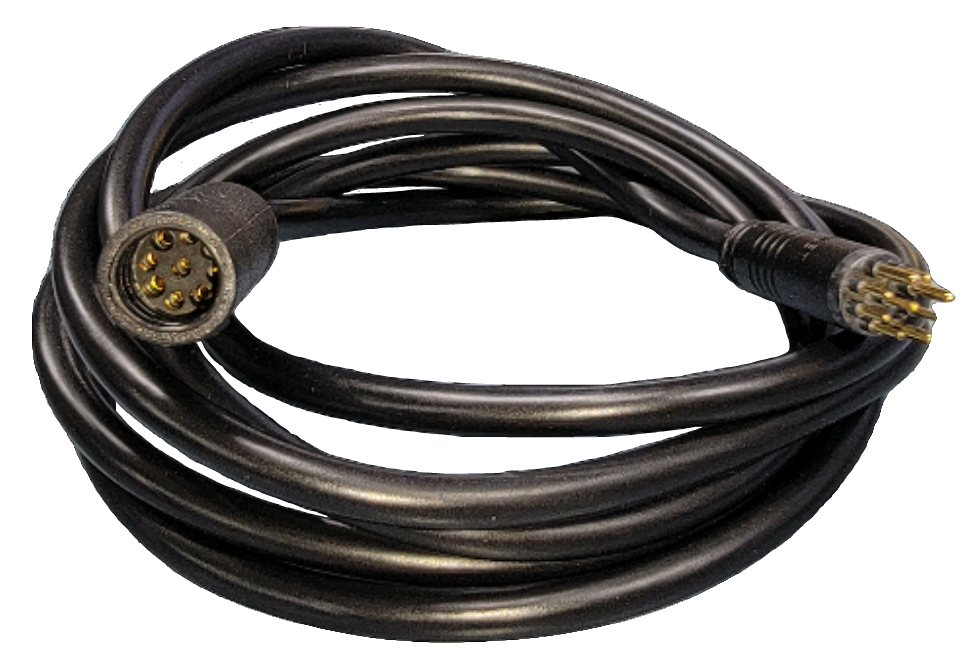

SINET™ Motor Cable

The SINET™ Motor Cable connects the hub motor directly to the current E-BikeKit SINET™ controller using matched waterproof connectors.

This is the standard 67″ motor cable used throughout current E-BikeKit SINET™ conversion systems and complete electric trike systems.

• 67″ overall cable length
• 10.4 mm waterproof connector on both ends
• 9-pin motor connection
• Factory-terminated phase and hall wiring
• Molded, weather-resistant connectors
• No variants or connector options

Legacy Compatibility Note: This cable may also be used with compatible previous-generation E-BikeKit systems that use the same 10.4 mm, 9-pin connector on both the controller side and motor side.

It is not intended for legacy E-BikeKit systems using a direct-drive motor. Those systems commonly use a larger motor-side connector, an 8-pin connection, or a different wiring configuration.

The SINET™ Motor Cable connects directly between the motor and controller.

• Controller Side: 10.4 mm waterproof 9-pin connector
• Motor Side: 10.4 mm waterproof 9-pin connector
• Cable Length: 67″
• Internal Wiring: Factory phase and hall wiring
• Connector Style: Molded weather-resistant plugs

Both ends use the same 10.4 mm, 9-pin connector.

Compatible With:

• Current E-BikeKit SINET™ conversion systems
• Current E-BikeKit SINET™ complete trike systems
• SINET™ integrated controllers
• SINET™ external controllers
• Current SINET™ hub motors using the 10.4 mm, 9-pin connector
• Compatible legacy E-BikeKit systems using 10.4 mm, 9-pin connectors on both the controller and motor sides

Not Compatible With:

• Legacy E-BikeKit systems using direct-drive motors
• Motors using a 14.7 mm motor-side connector
• Legacy 8-pin motor connections
• Systems using different pin assignments or internal wiring
• Third-party electrical systems unless compatibility has been confirmed

Matching connector appearance alone does not guarantee compatibility. Always compare the connector diameter, pin count, cable length, and motor type with the existing system before ordering.

• Platform: E-BikeKit SINET™
• Cable Type: Motor-to-controller cable
• Cable Length: 67″
• Controller Connector: 10.4 mm waterproof 9-pin
• Motor Connector: 10.4 mm waterproof 9-pin
• Connector Construction: Molded, weather-resistant
• Internal Wiring: Factory phase and hall wiring
• Variants: None

• One 67″ SINET™ Motor Cable
• Factory-installed 10.4 mm, 9-pin waterproof connectors on both ends

• Disconnect the battery before installation.
• Verify the motor and controller both use 10.4 mm, 9-pin connectors.
• Align connector arrows and pins before joining the plugs.
• Do not twist, force, or partially connect the plugs.
• Push connectors together fully to the indicated insertion line.
• Route the cable away from moving parts, steering pivots, tires, chains, and sharp edges.
• Secure the cable with appropriate cable ties without placing strain on the connectors.

After installation, verify normal motor operation before returning the bike or trike to service.

• Direct replacement motor cable for current SINET™ systems
• Also supports compatible legacy geared-motor systems using matching 10.4 mm, 9-pin connectors
• Not intended for legacy direct-drive motor systems
• Phone, text, and email technical support
• Motor connector and compatibility assistance
• Installation guidance available from E-BikeKit technicians

Dealer Note: When servicing a legacy system, confirm the motor is not a direct-drive motor and verify the connector size and pin count before supplying this cable.
