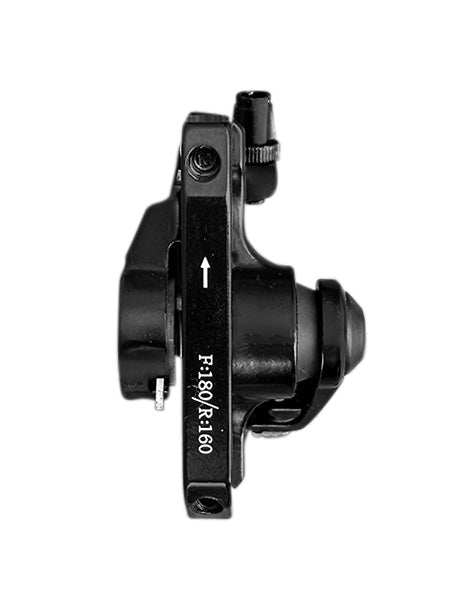

Narrow Disc Brake Calipers

• Fits front 180mm or rear 160mm rotors
• 14mm caliper-head thickness (motor clearance spec)
• Includes post-mount hardware
• Optimized for mechanical disc brake systems
• Designed specifically for hub-motor clearance issues

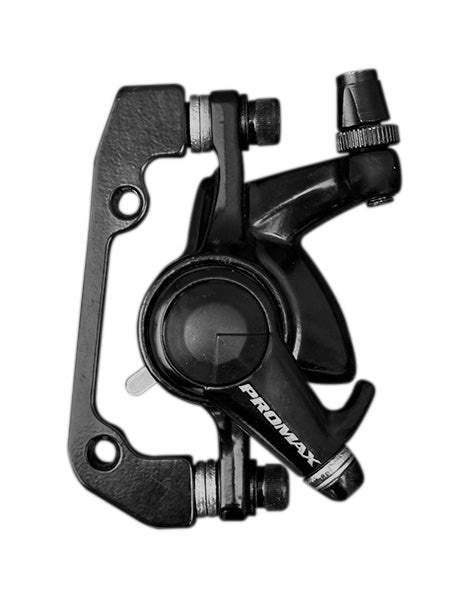

The ProMax Mechanical Disc Brake Caliper is uniquely designed for installations where standard calipers may not clear the side cover of a hub motor. If your current disc brake caliper is too thick to fit between the motor cover and the rotor, this caliper solves the problem with its thin-profile head.

Clearance Requirement: E-BikeKit direct-drive motors require a minimum **18mm** spacing between the rotor and the motor side cover. Standard calipers often exceed this thickness — this ProMax model does not.

Video: How Hub Motor Clearance Works

• Type: Mechanical disc brake caliper
• Rotor Compatibility: Front 180mm / Rear 160mm
• Thickness: ~14mm from disc surface to inner body
• Mount Style: Post-mount
• Use Case: Ideal for hub-motor conversions requiring extra caliper clearance

• 1× ProMax mechanical disc brake caliper
• Post-mount bracket
• Mounting hardware
