Motors

EBikeKit replacement motors are available in five configurations to support any dealer installation or service scenario:

• Front Geared 500W (1000W peak)
• Rear Geared 500W (1000W peak)
• Front Direct-Drive 500W (1000W peak)
• Rear Direct-Drive 500W (1000W peak)
• Rear Fat-Bike Geared 750W (1000W+ peak)

All motors are built to EBikeKit standards with proper phase/hall connectors, durable side covers, sealed internals, and reliable bearings. These are the same motors used in our production kits and trike systems.

Note: This product is for the motor only. Wheels, freewheels, and spokes are sold separately.

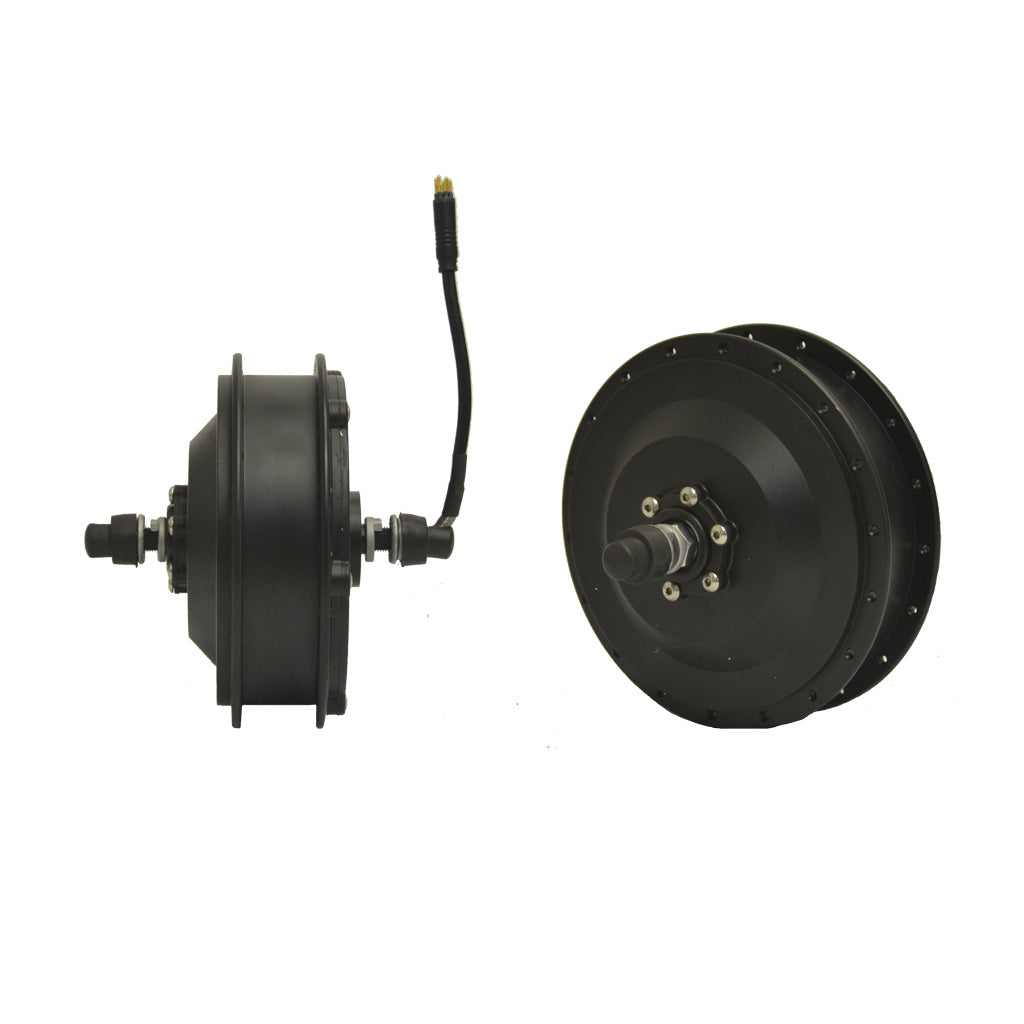

The EBikeKit Performance Geared Front Hub Motor provides high torque, excellent efficiency, and a small, stealthy diameter. Ideal for upright trikes, recumbents, and bicycles requiring strong hill-climbing performance with minimal drag.

• Brand: EBikeKit LLC
• Type: Internally geared (brushless)
• Nominal Power: 500W
• Peak Power: 1000W+
• Max Torque: ~84Nm @ 48V
• Max RPM: ~320 RPM @ 48V
• Cable Exit: 8" axle exit, 3-phase / 5 hall
• Connector: Round 8-pin (10.4mm)
• Weight: ~9.4 lb (4.26 kg)
• Dropout Spacing: 100mm
• Warranty: 1 year (up to 48V, 300 lb total load)

Note: Internal clutch eliminates drag when coasting, but the motor cannot provide speed/ODO readings when unpowered.

• Nominal Power: 500W
• Peak Power: 1000W+
• Torque: ~84Nm @ 48V
• RPM: ~320 RPM
• Cable: 8" exit — 3-phase / 5 hall
• Connector: Round 8-pin (10.4mm)
• Dropout Spacing: 135mm (with 7-speed freewheel)
• Disc Offset: ~15mm (when using disc)
• Weight: ~9.4 lb
• Warranty: 1 year (300 lb max load)

Freewheel Notes:
8/9/10-speed freewheels increase OLD by ~3.5mm per speed. Frame spreading may be required.

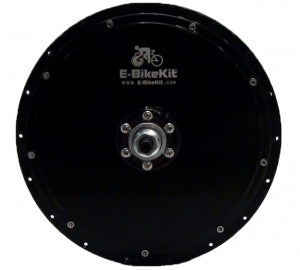

• Type: Direct-drive hub motor (no internal gears)
• Nominal Power: 500W
• Peak Power: 1000W+
• Top Speed: ~14–19 mph (depending on controller & voltage)
• Connector: “3-pin” Direct-Drive plug (actually 9 internal conductors), ~14.7mm
• Cable Exit: 3-phase / 5 hall
• Weight: ~12.8 lb (5.8 kg)
• Dropout Spacing: 100mm
• Warranty: 1 year (up to 600 lb total load)

Note: No internal clutch. Provides regen compatibility depending on controller.

• Nominal Power: 500W
• Peak Power: 1000W+
• Torque: ~46Nm @ 48V
• Top Speed: ~14–19 mph
• Connector: 14.7mm Direct-Drive plug
• Weight: ~12.8 lb
• Dropout Spacing: 135mm (7-speed)
• Warranty: 1 year (600 lb max load)

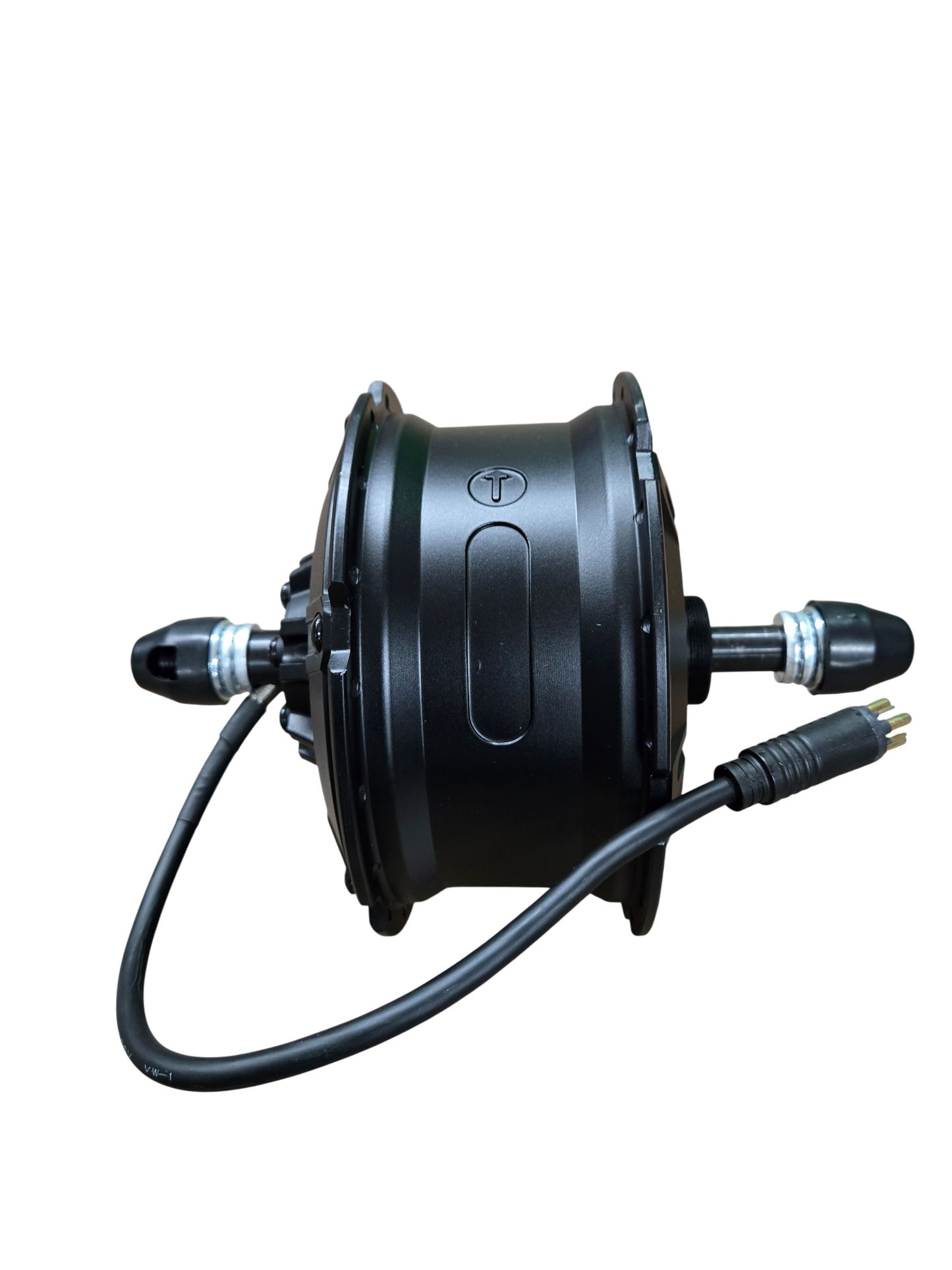

This motor is built specifically for fat bikes and fat trikes requiring 170–190mm OLD spacing. It offers higher torque and a heavier-duty gearset, ideal for large tires and heavy loads.

• Type: Internally geared, brushless
• Nominal Power: 750W
• Peak Power: 1000W+
• Torque: ~84Nm @ 48V
• RPM: ~320 RPM
• Connector: Round 9-pin (14.7mm)
• Dropout Spacing: 170mm (15mm disc offset) / up to 190mm with spacers
• Chainline: ~64mm (75mm with spacer)
• Weight: ~17 lb (7.7 kg)
• Warranty: 1 year

• All motors are 36V–48V compatible
• Ensure your controller matches your connector type (Geared: 10.4mm / DD: 14.7mm)
• Front wheels require 100mm dropout spacing
• Rear wheels require 135mm (standard) or 170–190mm (fat)
• Torque arms strongly recommended on all installs

All motors include a 1-year warranty when operated within the stated limits. Heavy-load applications should use direct-drive or fat-geared motors.
