Kit - X3 AX

This X3 AX–specific E-BikeKit conversion system is designed to convert the X3 AX trike into a clean, efficient, and responsive electric trike using the current-generation SINET™ platform.

The system includes a USA hand-built 20″ front motor wheel, integrated SINET™ controller, 3.5″ color SINET™ LCD with USB charging port, 48V 15Ah lithium-ion battery, 3A charger, battery cradle and model-specific mounting hardware, thumb throttle, locking e-brake levers, matched wiring, and X3 AX–specific installation components.

• Configuration developed specifically for the X3 AX trike
• USA hand-built 20″ front motor wheel
• 500W nominal front hub motor
• Integrated controller housed in the battery cradle
• 48V 15Ah battery and 3A charger included
• Choice of cadence pedal assist or bottom bracket torque sensing
• Throttle-on-demand included with either pedal-assist option
• Model-specific battery mounting hardware included
• Recommended for total loads up to approximately 300 lb

Choose your pedal-assist system:

• Cadence Sensor: Activates motor assistance when crank rotation is detected.
• Bottom Bracket Torque Sensor: Measures rider effort and provides a smoother, more natural, proportional level of motor assistance.

The pedal-assist type is the only selection required. The 20″ motor wheel, integrated controller, battery, charger, battery mounting system, LCD, throttle, wiring, locking e-brake levers, and model-specific installation hardware are included with every X3 AX conversion system.

Who’s it for? Dealers looking for a complete, model-specific X3 AX conversion system with matched SINET™ components, a professionally built motor wheel, and direct technical support.

This system includes the battery, charger, integrated controller, 20″ motor wheel, and X3 AX–specific mounting and installation components. The only selection required is the pedal-assist type: cadence or bottom bracket torque sensing.

X3 AX Conversion System Components:

• USA hand-built 20″ front motor wheel with rim strip
• 500W nominal front hub motor
• Integrated SINET™ controller housed in the battery cradle
• 3.5″ color SINET™ LCD with USB charging port
• Thumb throttle
• Left and right locking e-brake levers with motor cutoff
• Main SINET™ wiring harness
• Motor cable
• Pedal-assist extension cable as required
• Torque arm(s), axle hardware, installation hardware, and zip ties as required for the application
• 48V 15Ah lithium-ion battery
• 3A battery charger
• Integrated-controller battery cradle
• X3 AX–specific battery mounting hardware

Pedal-Assist Selection:

• Cadence Sensor: External cadence sensor and magnet disc
• Bottom Bracket Torque Sensor: 68 mm square-taper bottom bracket torque sensor with the required SINET™ extension cable

The motor wheel is supplied with a rim strip. Tire and tube are not included unless otherwise noted.

The SINET™ system combines the controller, display, pedal-assist input, throttle, brake cutoffs, motor connection, and battery interface into one matched electrical platform.

• Integrated controller housed within the battery cradle
• 3.5″ color SINET™ LCD with clear system and ride information
• USB charging port built into the LCD
• Matched waterproof electrical connectors
• Cadence and torque-sensing pedal-assist compatibility
• Throttle-on-demand operation
• Motor cutoff through both locking e-brake levers
• Battery interface integrated directly into the controller-equipped cradle

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD quick-start guide for display operation, setup, programming, and system settings.

Download the SINET™ LCD Quick-Start Guide (PDF)

Motor Wheel

• Wheel Position: Front
• Wheel Size: 20″
• Construction: USA hand-built motor wheel
• Motor Type: Brushless front hub motor
• Power: 500W nominal
• Front Dropout Requirement: 100 mm
• Rim Strip: Included
• Tire and Tube: Not included unless otherwise noted

Electrical System

• System Voltage: 48V
• Controller: Integrated SINET™ controller
• Controller Location: Battery cradle
• Display: 3.5″ color SINET™ LCD
• USB Charging Port: Included
• Throttle: Thumb throttle
• Brake Cutoffs: Left and right locking e-brake levers
• Total Recommended Load: Approximately 300 lb, including trike, rider, and cargo

Pedal Assist

• Cadence Option: External cadence sensor and magnet disc
• Torque Option: 68 mm square-taper bottom bracket torque sensor with required extension cable

Every X3 AX conversion system includes the 48V 15Ah lithium-ion battery, integrated-controller battery cradle, model-specific mounting hardware, and 3A charger.

• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Cell Structure: 21700, 13S3P
• Maximum Continuous Discharge: 30A
• BMS Protection Current: 30A
• Maximum Charge Voltage: 54.6V
• BMS Low-Voltage Protection: 36V
• Battery-to-Cradle Interface: Four-blade contact system
• Estimated Range: Approximately 20–40 miles depending on rider weight, terrain, speed, pedal input, assist level, temperature, and total load
• Charger: 3A charger included
• Approximate Charge Time: Approximately 5 hours
• Estimated Cycle Life: Approximately 400–500 cycles

Actual range varies based on rider weight, terrain, speed, temperature, tire pressure, pedal input, assist level, throttle use, and total system load.

This conversion system is designed specifically for the X3 AX trike.

• Designed for a 20″ front motor wheel
• Requires standard 100 mm front fork spacing
• Requires compatible conventional slotted front dropouts
• Includes X3 AX–specific battery mounting hardware
• Recommended for total loads up to approximately 300 lb, including trike, rider, and cargo

The bottom bracket torque sensor is designed for a 68 mm square-taper bottom bracket. Confirm bottom bracket compatibility before ordering the torque-sensor version.

Trikes that have been modified or differ from the standard factory configuration may require additional parts or installation adjustments.

The X3 AX conversion system uses matched SINET™ components and connectors to simplify installation on a compatible X3 AX.

• Install the 20″ front motor wheel into the 100 mm front dropouts
• Install the supplied torque arm(s) and properly secure the axle hardware

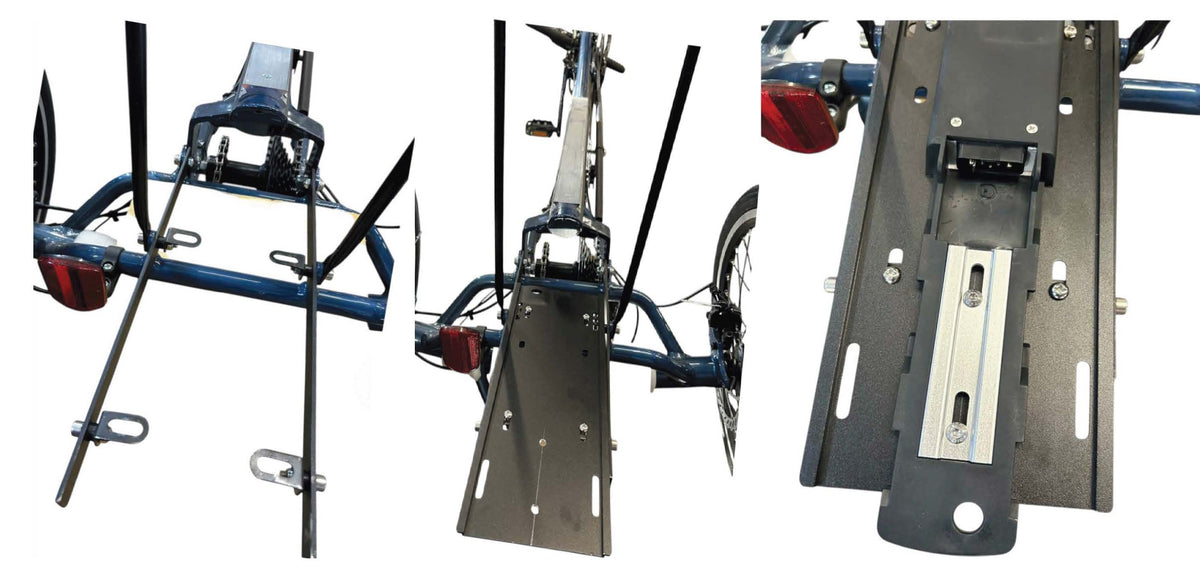

• Install the X3 AX–specific battery mounting hardware
• Mount the integrated battery/controller cradle securely
• Install and secure the included 48V 15Ah battery
• Install the SINET™ LCD, thumb throttle, and locking e-brake levers
• Install the selected cadence or bottom bracket torque sensor
• Route and secure the SINET™ wiring harness, motor cable, and sensor extension cable as required
• Verify axle hardware, torque-arm placement, brake operation, steering clearance, battery mounting, and cable routing before riding

If installing the Bottom Bracket Torque Sensor, confirm compatible 68 mm square-taper bottom-bracket fitment and follow the required torque-sensor cable-routing procedure.

Professional bicycle-shop installation is recommended when the installer is not experienced with bicycle wheels, brakes, electrical systems, torque arms, or bottom bracket service.

This section provides a reference point to help dealers position, present, install, and support the X3 AX conversion system confidently.

Comparable Complete Trike:

• View the complete X3 AX electric trike on ElectricTrike.com:
  X3 AX Electric Trike – ElectricTrike.com
• Use the complete-trike listing to review finished appearance, product photos, component placement, battery mounting, consumer retail positioning, and configuration expectations.
• Use the finished-trike listing as a reference when explaining the completed conversion to customers or planning the installation in your shop.

Dealer Support Commitment:

• Real-time installation support by phone, text, and email
• Direct access to system builders and wheel technicians
• Guidance on pedal-assist installation and front-fork fitment
• Support for X3 AX battery mounting and cable routing
• Guidance on sensor placement, system setup, and troubleshooting
• Fast assistance with shop-floor technical questions

Our mission: Ensure every dealer delivers a clean, professional, and reliable X3 AX conversion experience.
