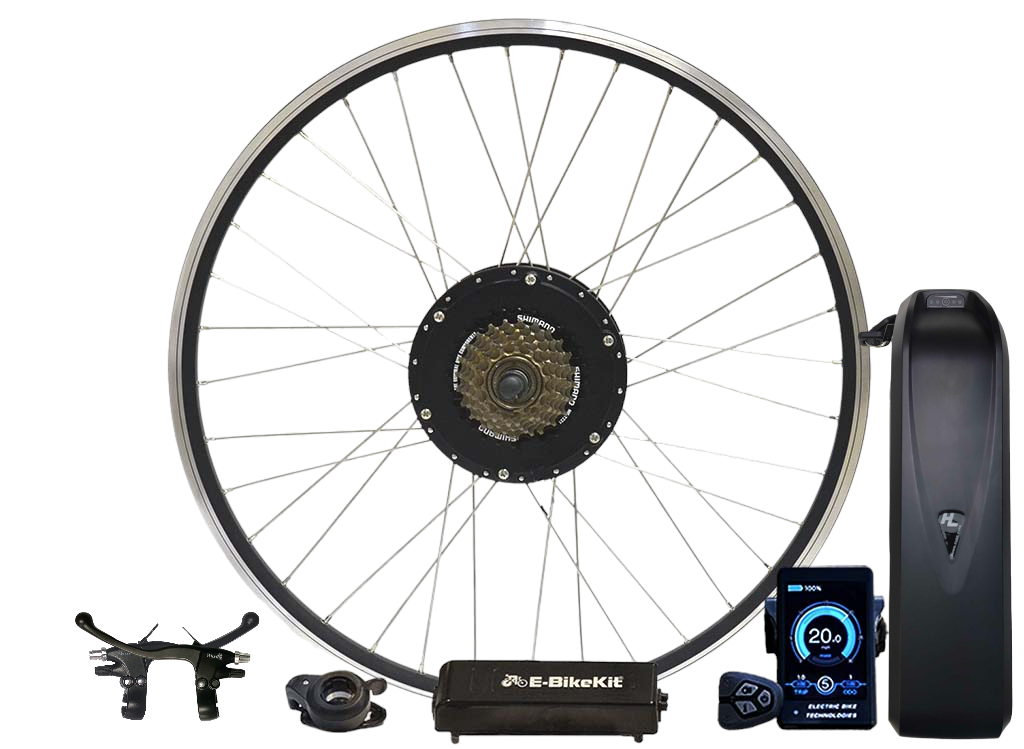

This conversion system is designed specifically for HP Velotechnik Gekko and Scorpion recumbent trikes, using a 500W internally geared rear hub motor paired with an optional 48V 15Ah lithium-ion battery pack.

• Special configuration tailored for HP Velotechnik Gekko & Scorpion models
• Top speed up to ~26 mph at 48V
• Estimated 15–45 mile range depending on rider, terrain, and input
• Supports pedal-assist and throttle-on-demand

The 500–1000W geared motor uses a 5:1 planetary reduction and an internal clutch for zero-drag pedaling. It offers excellent hill-climbing ability, higher efficiency, lighter weight, and a stealthier appearance than direct-drive motors.

Who’s it for? Riders who want lightweight efficiency, strong torque, and premium performance on HP Velotechnik trikes. Recommended for total loads up to 300 lb (rider + trike + cargo).

HP Velotechnik–Specific Extras:

• PAS extension cable
• Locking parking brake levers
• Mountain bike bar-end for offset throttle mounting (used on certain handlebar configurations)

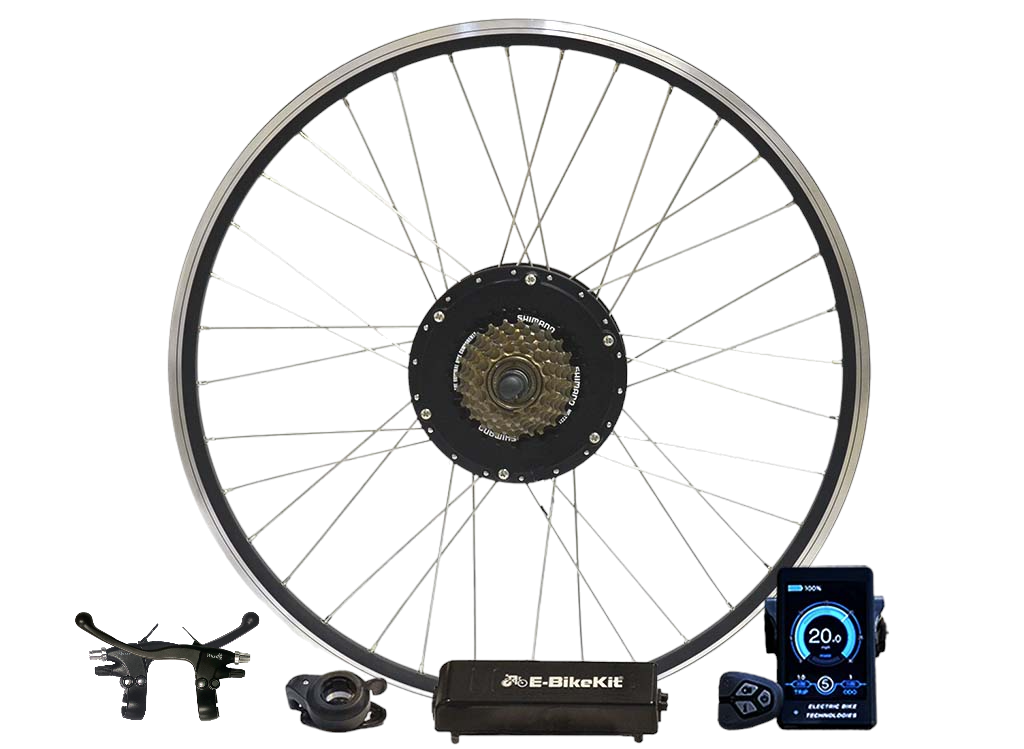

Core Conversion Components:

• USA hand-built rear wheel with 500W geared hub motor (disc-brake compatible)
• 48V compatible 22A 12FET controller
• Programmable LCD display
• PAS 12-magnet split disc
• PAS sensor (left-side standard; right-side available for external-bearing cranksets)
• Thumb throttle
• Left & right locking e-brake levers
• Main motor cable
• 4-to-1 accessory cable
• Battery wire harness (included only when battery is not ordered)
• Freewheel
• Battery & charger (only if ordered)
• Zip ties, C-washers, torque arms

Battery Mount: This kit does not include a universal battery mount. If required, order a battery mount separately.

Motor Specifications

• Brand: EBikeKit LLC
• Type: Internally geared (brushless, disc-brake compatible)
• Power: 500W nominal / >1000W peak @ 48V
• Max Torque: 84Nm @ 48V
• Max RPM: ~320 @ 48V
• Cable: 8" axle exit — 3-phase / 5 Hall sensors
• Connector: Round 8-pin (10.4 mm)
• Motor Weight: ~9.4 lb (4.26 kg)
• Rear Dropout Requirement: 135 mm
• Total Load Limit: ~300 lb

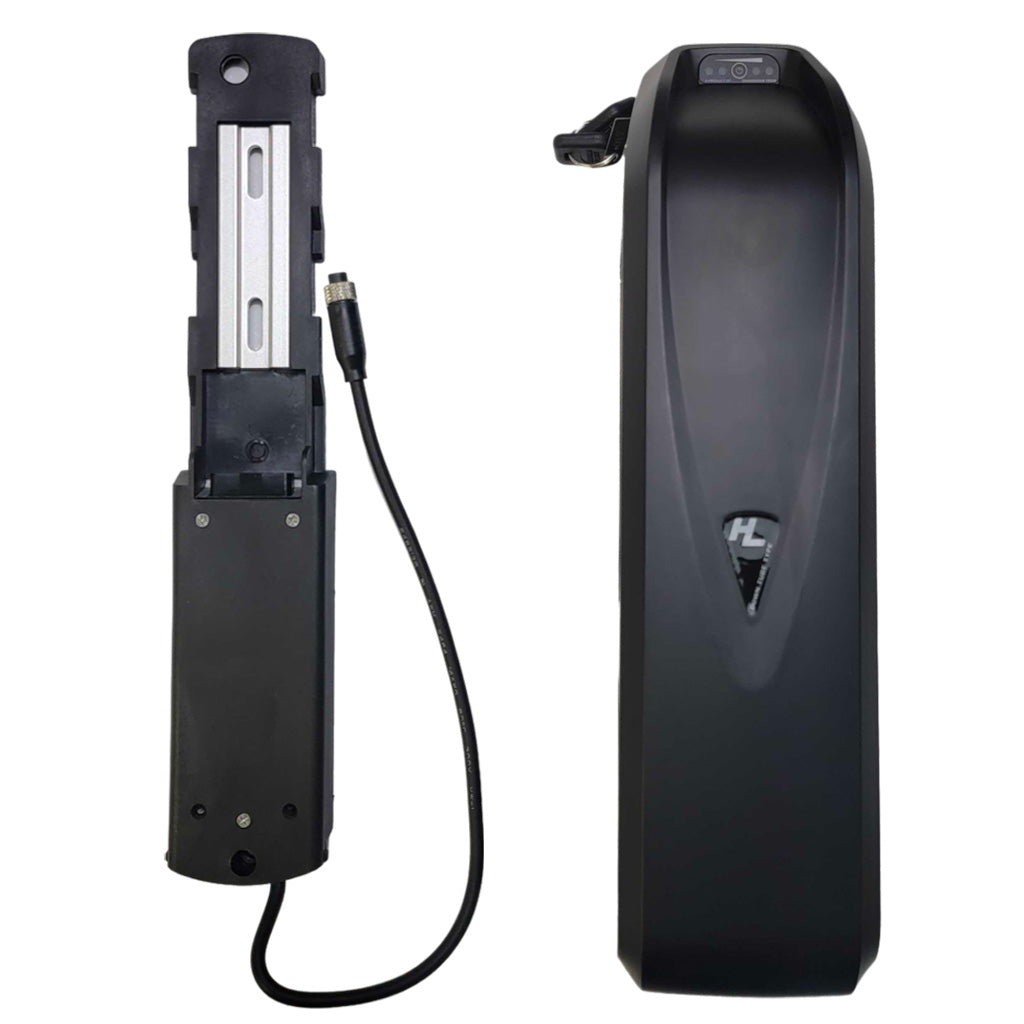

This system may be ordered with or without a 48V 15Ah lithium-ion battery pack.

• Range: 15–45 miles depending on riding conditions
• Charge Time: ~5 hours (3A charger)
• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: ~720Wh
• Total Weight: ~10.1 lb (4.6 kg)
• Cell Configuration: 18650, 13S4P
• Life Cycles: ~500–800
• Max Continuous Discharge: 16A
• BMS Protection: 20A
• Discharge Cut-Off: ~37.5V
• Max Charge Voltage: 54.6V
• Internal Resistance: ≤230 mΩ
• Operating Temp (Charge): 0°C–113°F
• Operating Temp (Discharge): –68°F–140°F
• Storage Temp: 0°C–104°F
• Certifications: UN38.3, MSDS, UL-listed cells

This system has been installed many times on HP Velotechnik Gekko and Scorpion trikes and is considered a reliable, proven configuration for these platforms.

Dealer Support Commitment:

• Real-time installation support via text, phone, and email
• Direct access to system builders and wheel technicians
• Guidance for PAS selection based on bottom bracket style
• Special support for external-bearing cranksets (PAS sensor modifications)
• Help with routing, torque-arm placement, and battery mounting
• Fast responses to shop-floor questions

If you need help with a specific Gekko or Scorpion configuration:
Contact us — we will walk you through the exact PAS setup, mounting solution, and hardware needed for a clean installation.

Our mission:
Equip every dealer with the clarity and confidence to perform a clean, professional HP Velotechnik installation.

This kit is designed for most HP Velotechnik Gekko and Scorpion models.

Important Compatibility Notes:

• Rear dropout spacing must be 135 mm
• Not compatible with internal geared hubs (IGH)
• Not compatible with rear thru-axle frames
• External-bearing cranksets require special PAS components (right-side PAS sensor + split magnet ring)
• Square-taper cranksets use the standard left-side PAS system

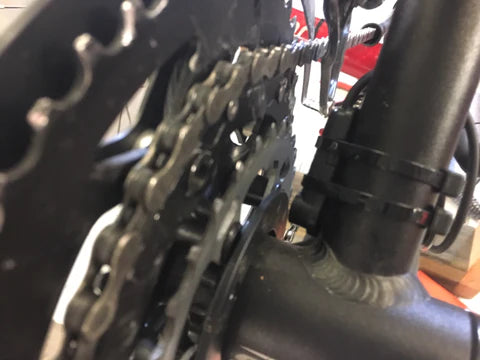

Bottom Bracket PAS Notes:

• External-bearing BB: use PAS 12-magnet split 64/74 BCD + right-side sensor (legs may require trimming)
• Square-taper BB: standard left-side PAS installs normally

Send photos of your crankset if unsure — we will confirm compatibility and the correct PAS configuration.

This system installs using basic hand tools and includes all required model-specific extras.

• Rear motor wheel installs into 135 mm dropouts
• Controller, LCD, and wiring connect using matched plugs
• PAS installation depends on BB type (external vs. square-taper)
• MTB bar-end helps position throttle clear of shifter cables (on certain models)
• Torque arms must be installed and axle nuts torqued properly
• Battery mount must be securely installed (mount sold separately)

Correct PAS setup, torque-arm installation, and clean cable routing are essential for safe, reliable operation.
