Kit - Direct Drive Front Wheel

• Proven, reliable modular system design
• Hand-built wheel with 12-gauge stainless spokes & double-walled rim
• Full-color LCD with customizable speed limits & system settings

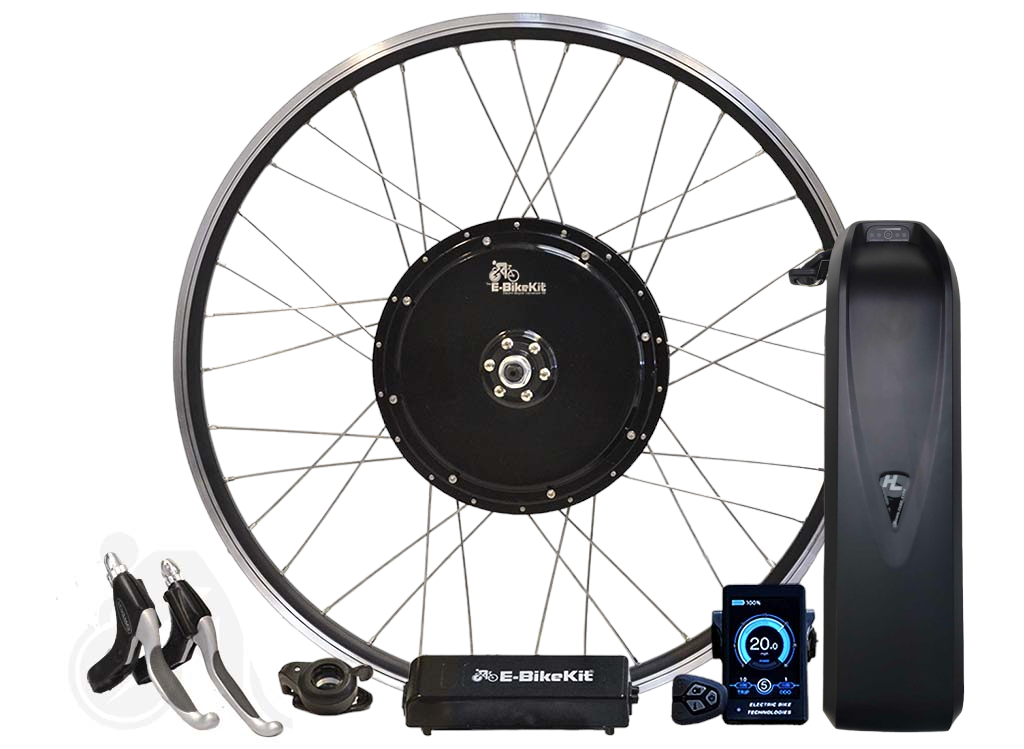

E-BikeKit Front 500W Direct-Drive Hub Motor Conversion System with 48V 15Ah Lithium-Ion Battery Pack and 3A Charger.

This system is engineered for riders who need maximum durability and motor strength for heavier total loads. A direct-drive hub motor is the correct choice for any combined load (bike + rider + cargo) of 300 lb or more. This HD configuration pairs a heavy-duty motor with a 48V battery and is speed-limited to 20 mph to increase torque, reliability, and long-term performance.

Direct-drive motors are strong, durable, and long-lasting thanks to zero internal friction and no moving planetary gears. Unlike cheaper direct-drive hubs, this E-BikeKit motor maintains smooth rotation with minimal resistance.

Who’s it for? Riders who prioritize stability, load capacity, motor strength, and long-term durability. Ideal for adult trikes, heavy riders, cargo builds, and utility bicycles requiring high torque and reliability.

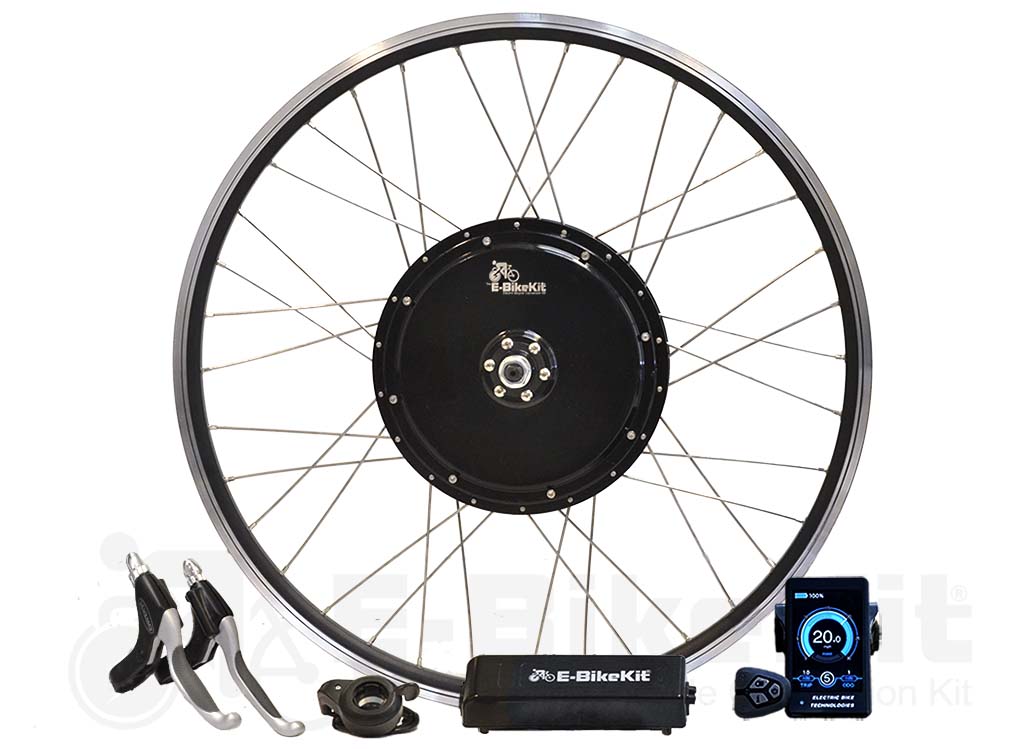

Every E-BikeKit conversion kit includes all components required for installation:

• USA hand-built front wheel with 500W direct-drive hub motor (disc-brake compatible)
• 48V compatible 22A 12FET controller
• Programmable full-color LCD dashboard
• PAS 12-magnet split disc
• PAS sensor — left-side mount (right-side available upon request)
• Thumb or split-twist throttle
• Left & right e-brake levers
• Main motor cable
• 4-to-1 accessory cable
• Battery & charger (only when ordered)
• Zip ties, C-washers & torque arms

Battery mount not included — mounting systems vary by frame.

• Brand: EBikeKit LLC
• Type: Direct-drive (brushless, disc-brake compatible)
• Power: 500W nominal / >1000W peak @ 48V
• Max Torque: 46Nm @ 48V
• Max RPM: ~259 @ 48V
• Cable: 8″ axle exit — 3-phase / 5 Hall sensors
• Connector: Round 8-pin (10.4 mm)
• Motor Weight: ~12.8 lb (5.8 kg)
• Front Fork Requirement: 100 mm dropout spacing
• Max System Load: ~600 lb total (bike + rider + cargo)

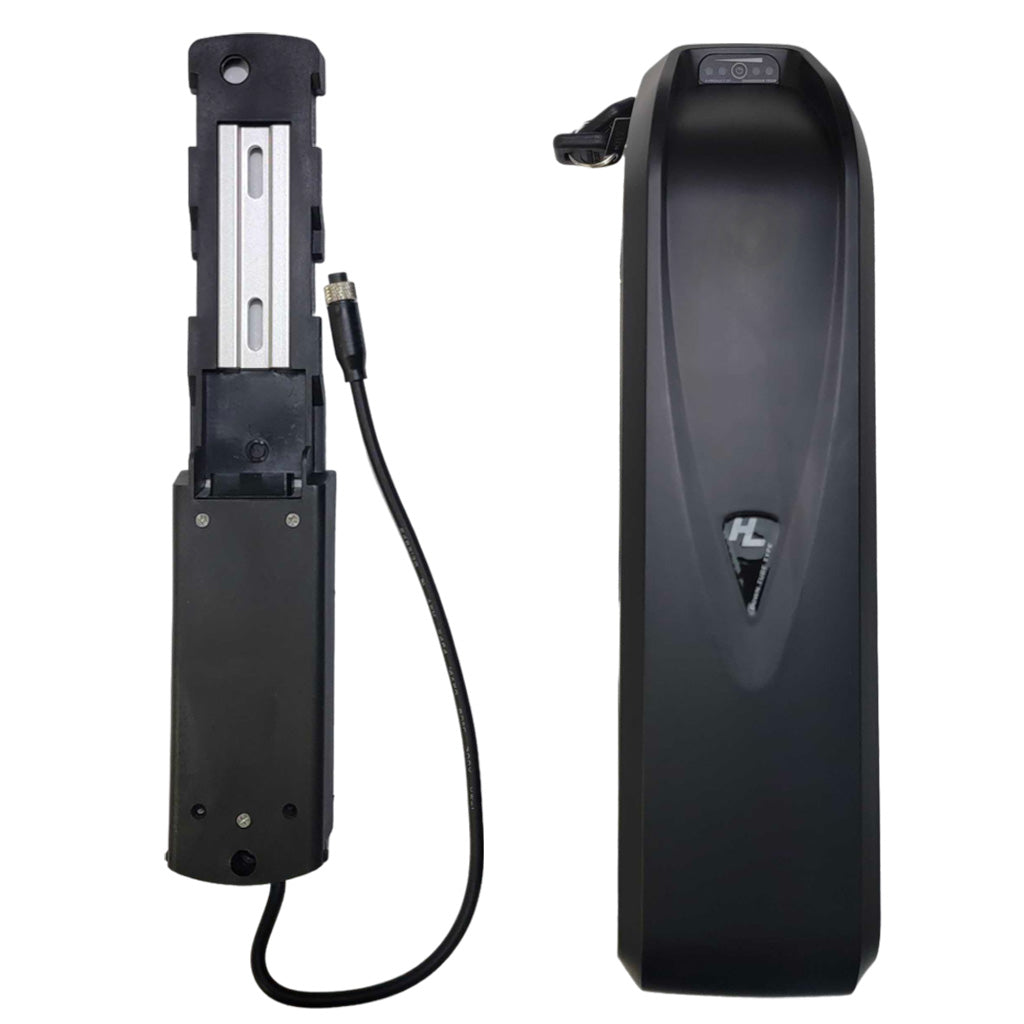

This system may be ordered with or without the 48V 15Ah lithium-ion battery.

• Range: 15–45 miles depending on terrain, rider input, and assist level
• Charge Time: ~5 hours with 3A charger
• Nominal Voltage: 48V
• Nominal Capacity: 15Ah
• Energy: ~720Wh
• Total Weight: ~10.1 lb (4.6 kg)
• Cell Configuration: 18650 lithium cells, 13S4P
• Life Cycles: ~500–800
• Max Continuous Discharge: 16A
• BMS Protection: 20A
• Discharge Cut-Off: ~37.5V
• Max Charge Voltage: 54.6V
• Internal Resistance: ≤230 mΩ
• Operating Temp (Charge): 0°C–113°F
• Operating Temp (Discharge): −68°F–140°F
• Storage Temp: 0°C–104°F
• Certifications: UN38.3, MSDS, UL-listed cells

This heavy-duty front direct-drive system has been installed many times by dealers and is well-proven for tricycles, cargo builds, and heavy-load applications.

Dealer Support Commitment:

• Real-time installation support via text, phone, and email
• Direct access to system builders and wheel technicians
• Guidance on torque-arm placement, fork safety, and battery mounting
• Help confirming compatibility for older or modified trikes and bikes
• Fast troubleshooting for shop-floor questions

If you need model-specific guidance:
Send photos of the fork, dropouts, brakes, and crank area — we’ll walk you through exactly what you need for a safe, clean installation.

Our mission:
Give every dealer the clarity and support needed to install this heavy-duty system with complete confidence.

This heavy-duty front direct-drive motor fits most adult tricycles and upright bicycles needing more torque and load capacity.

Requirements:

• Front fork dropout spacing must be 100 mm
• Fork must be steel or reinforced aluminum capable of handling motor torque
• Disc or rim brakes supported

Not Compatible With:

• Front thru-axle forks
• Suspension forks with weak dropouts
• Internal geared hubs (IGH) front wheels

If you’d like us to verify your fork or frame, send pictures — we’re happy to confirm compatibility.

This system installs using common bicycle tools and includes all necessary hardware.

• Motor wheel installs into 100 mm front dropouts
• Controller, LCD, and wiring plug together with matched connectors
• PAS sensor mounts at the crank (left side standard)
• E-brake levers replace the existing brake levers
• Torque arms must be installed and axle nuts torqued correctly
• Battery must be securely mounted using an appropriate mounting method

Correct torque-arm installation, clean cable routing, and secure mounting are essential for safe, reliable operation — especially with heavy loads.
