Complete Wheels

• Performance & Heavy-Duty motor options
• USA-built wheels with stainless 12-gauge spokes
• Double-wall, eyeletted rims for strength & durability

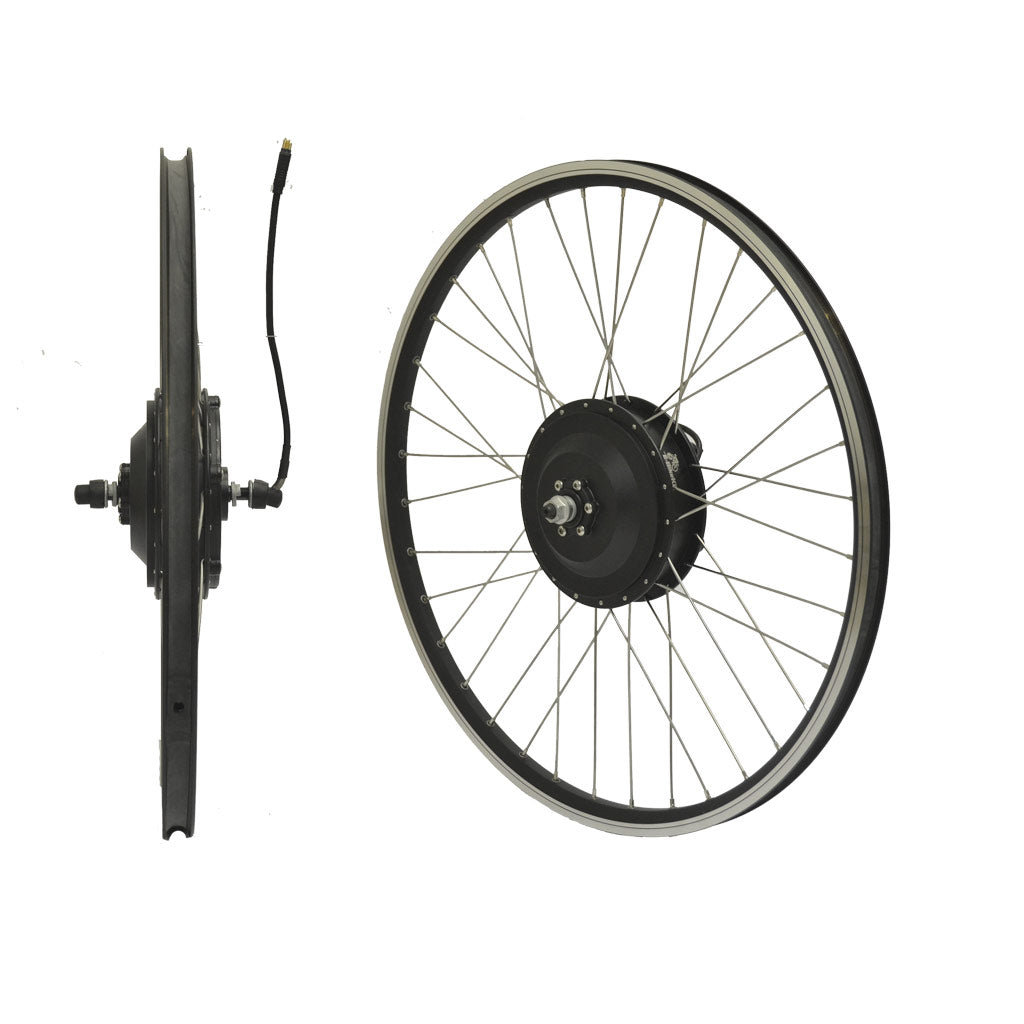

E-BikeKit front and rear hub motor wheels are hand-built in the USA by expert wheelbuilders. Each wheel uses reinforced rims, stainless spokes, brass nipples, and professionally tensioned builds designed for high-power systems.

Freewheel not included when ordering a wheel by itself.

Performance Geared Motor

• Type: Internally geared, brushless, disc-brake compatible
• Power: 500W nominal / >1000W peak @ 48V
• Max Torque: ~84 Nm @ 48V
• Max RPM: ~320 @ 48V
• Cable: 8" axle exit, 3-phase / 5-hall
• Connector: Round 9-pin (approx. 10.4 mm)
• Motor Weight: ~9.4 lb (4.26 kg)
• Load Rating: Up to 300 lb total system load
• Warranty: 1 year

Heavy-Duty Direct-Drive Motor

• Type: Direct-drive, brushless, ISO disc-brake compatible
• Power: 500W nominal / >1000W peak @ 48V
• Top Speed: ~14–19 mph (varies by battery & configuration)
• Connector: Round “3-Pin style” plug (actually 9-pin), approx. 14.7 mm
• Motor Weight: ~14 lb (6.35 kg)
• Load Rating: Up to 600 lb total system load
• Warranty: 1 year

• USA hand-built wheel (Front or Rear)
• Performance Geared or Heavy-Duty Direct-Drive Motor (depending on selection)
• 12-gauge stainless steel spokes
• Double-wall, eyeletted rim
• Brass spoke nipples
• Note: Freewheel not included on “wheel only” purchases
