Fat Tad Conversion System

• Complete Sun Fat-Tad CXS electric conversion system with battery and charger included
• Integrated battery and controller architecture for a cleaner, factory-style installation
• USA hand-built 20" fat rear motor wheel with 8-speed freewheel
• 750W nominal / 1000W peak geared hub motor
• Includes E-BikeKit 48V 15Ah lithium battery with integrated SINET™ controller cradle
• Includes matching 3A smart charger
• Available with cadence sensing or bottom bracket torque sensing
• Includes Fat-Tad-specific short motor cable and locking parking-brake levers
• 3.5" full-color SINET™ LCD with USB-C charging, diagnostics, and advanced programming
• Backed by E-BikeKit dealer technical support

The E-BikeKit Fat Tad Conversion System is a complete model-specific electric conversion system engineered for the Sun Fat-Tad CXS tadpole recumbent trike.

Built around the latest SINET™ electronics, the system combines a powerful 20" fat rear geared hub motor with an integrated battery/controller cradle, full-color display, matched wiring, and model-specific installation components. The result is a clean, professional conversion with strong low-speed torque, responsive acceleration, and excellent mixed-terrain capability.

The 750W nominal / 1000W peak geared hub motor uses an internal planetary reduction and clutch. The clutch allows the wheel to turn with minimal drag when motor power is not being used, while the geared design provides strong hill-climbing performance, efficient power delivery, and precise low-speed control.

Who’s it for? Dealers and experienced installers converting a Sun Fat-Tad CXS for riders who want a powerful, torque-rich fat-tire tadpole system with responsive on-road and mixed-terrain performance.

Recommended Total System Load: Up to approximately 300 lb, including trike, rider, and cargo.

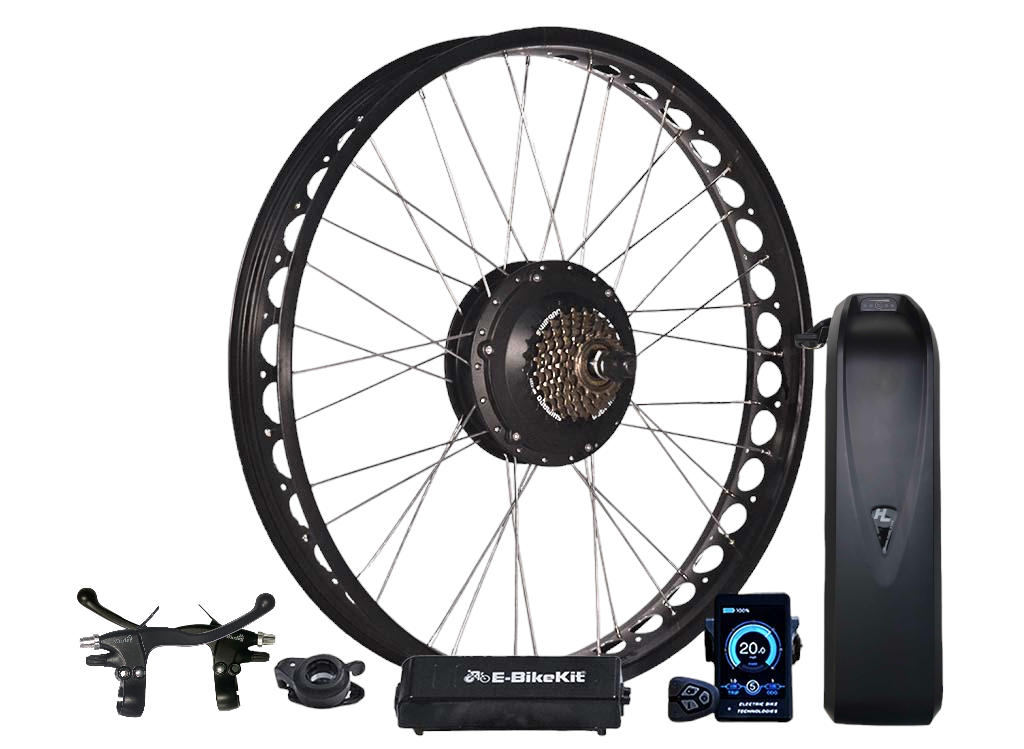

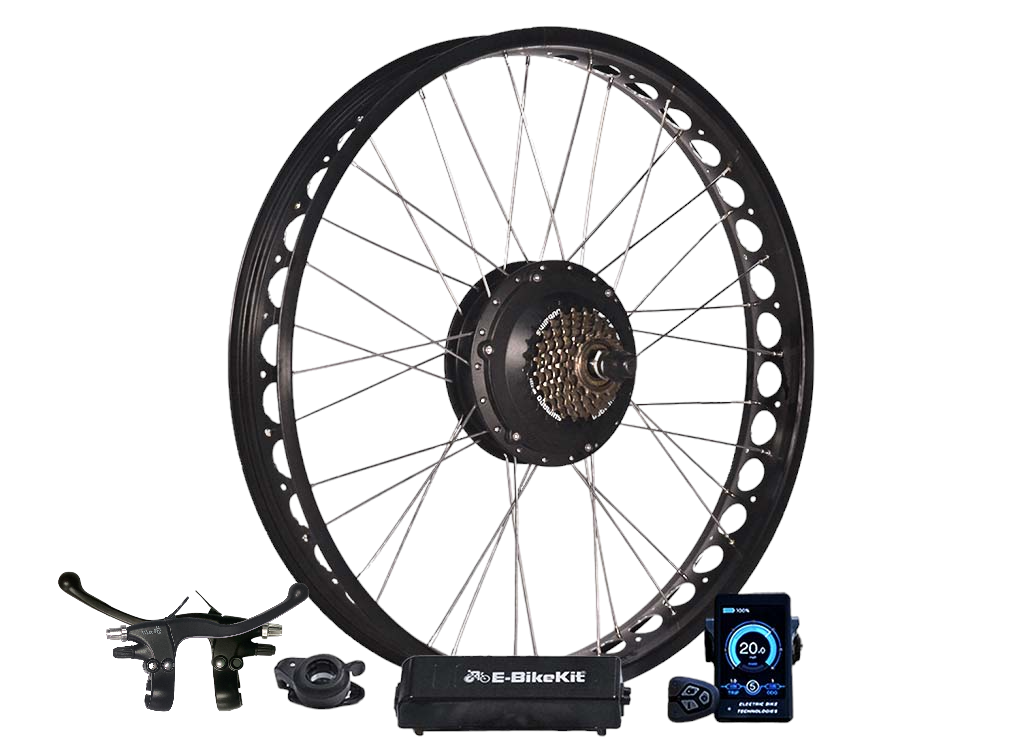

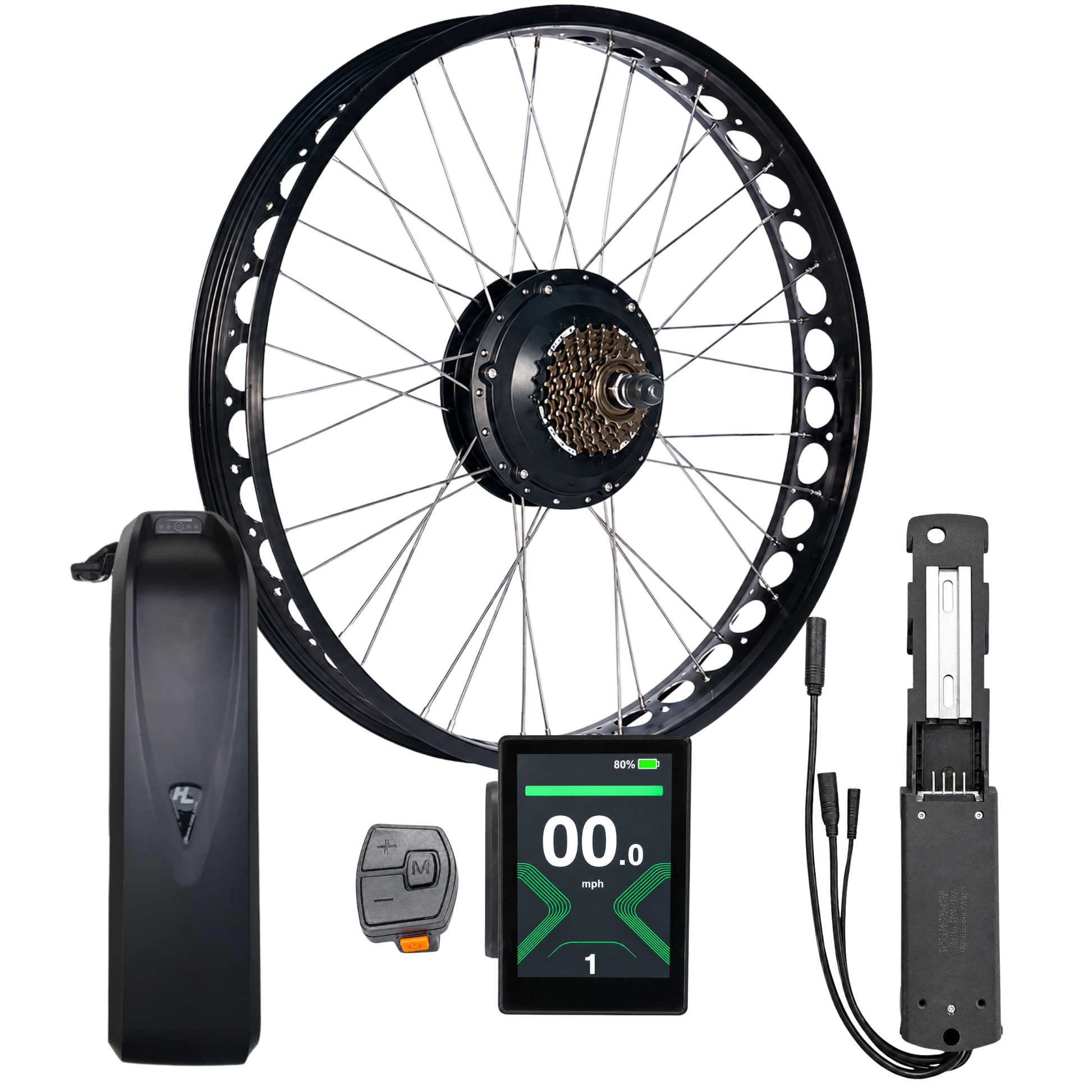

Every E-BikeKit Fat Tad Conversion System includes:

• USA hand-built 20" fat rear motor wheel
• Disc-brake-compatible 750W geared hub motor
• 8-speed freewheel
• E-BikeKit 48V 15Ah lithium battery
• Integrated SINET™ controller cradle
• 3A smart battery charger
• SINET™ 3.5" full-color LCD display

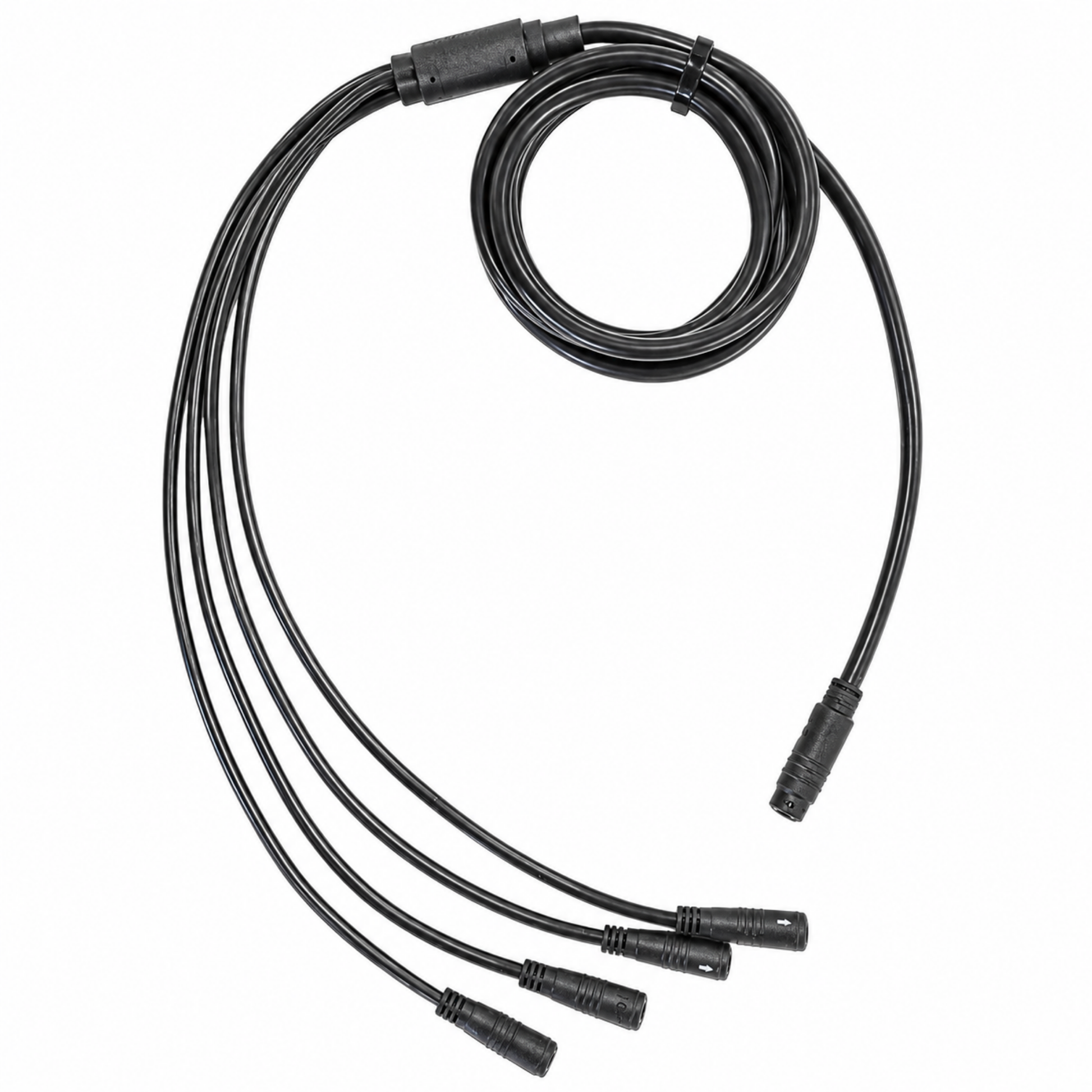

• SINET™ main wiring harness

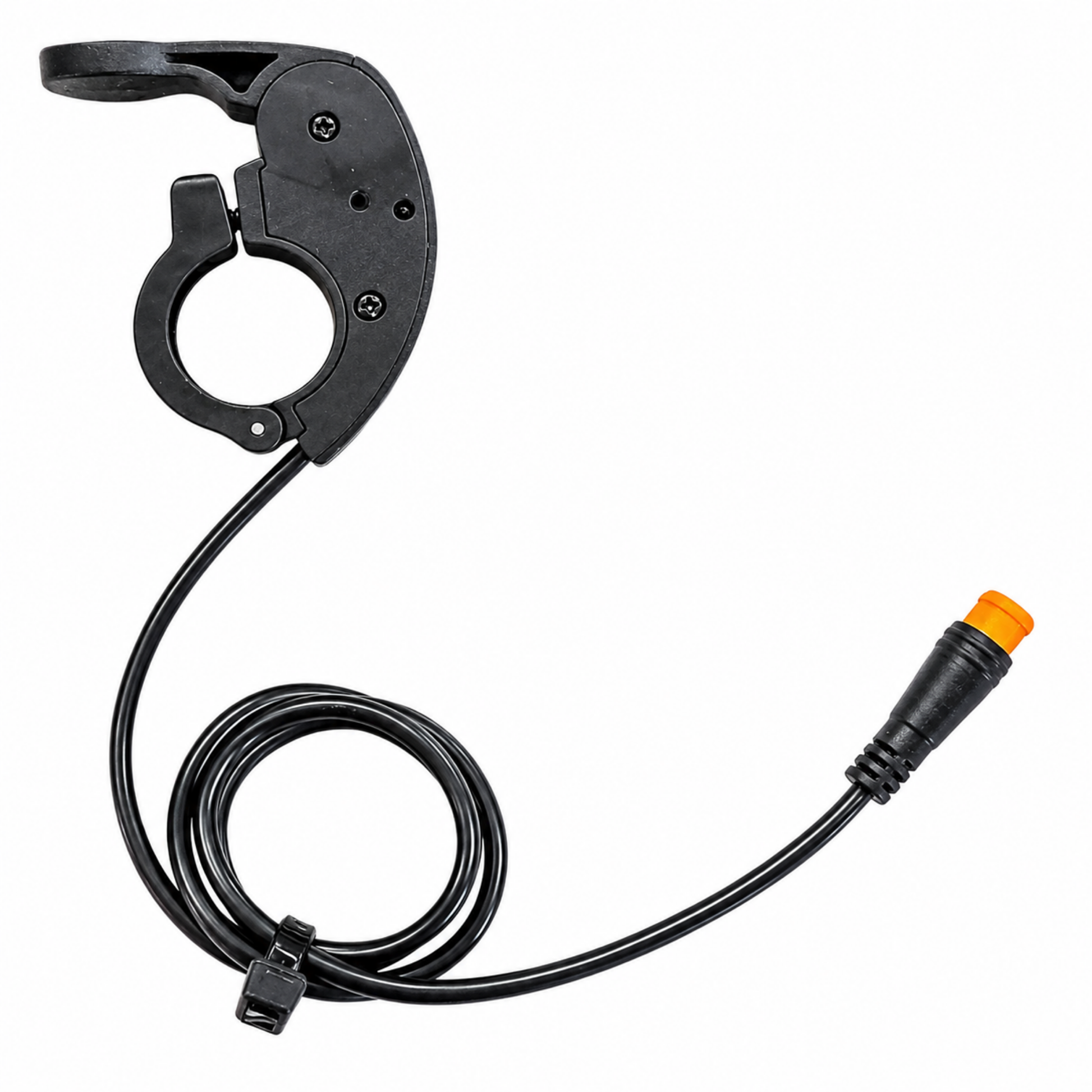

• Thumb throttle

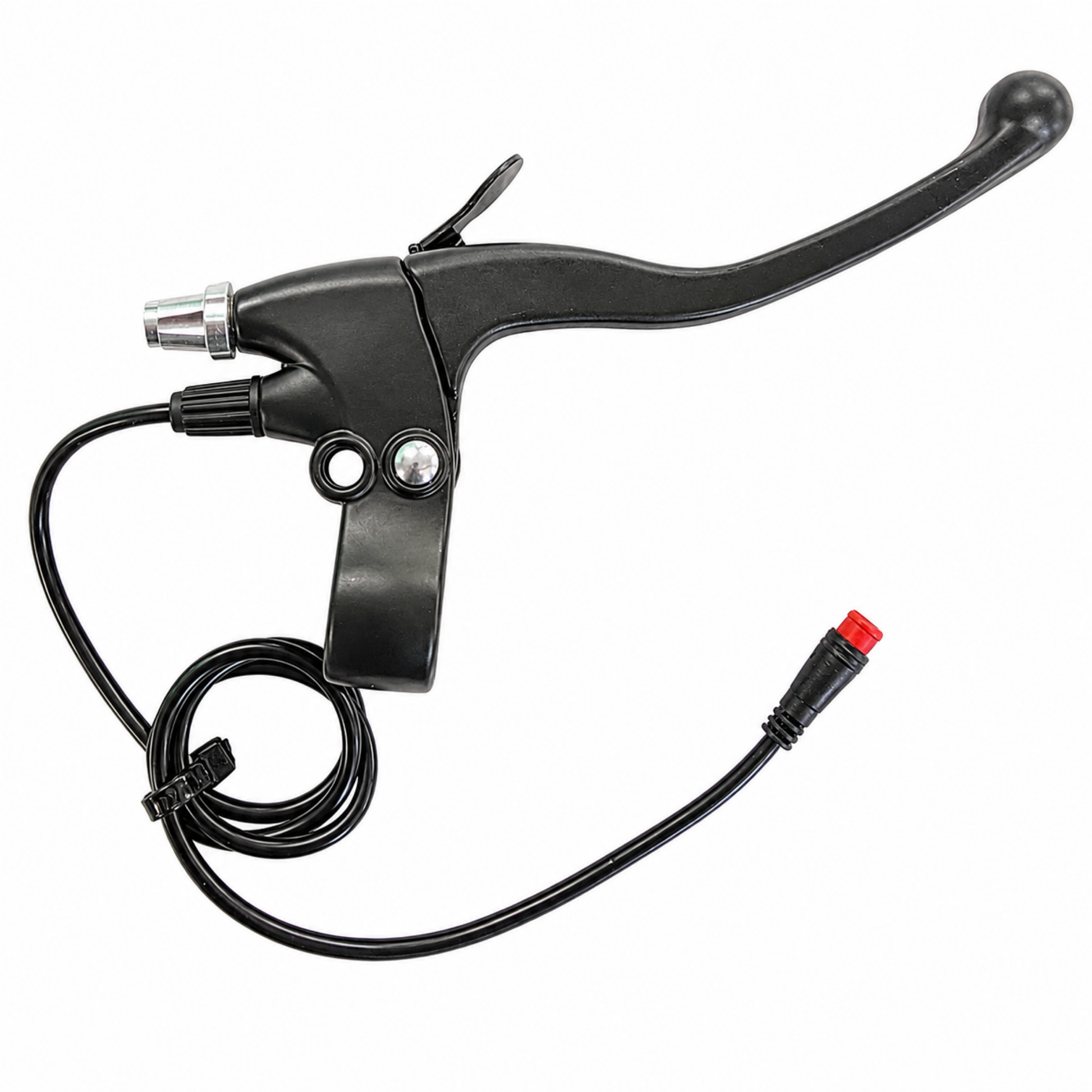

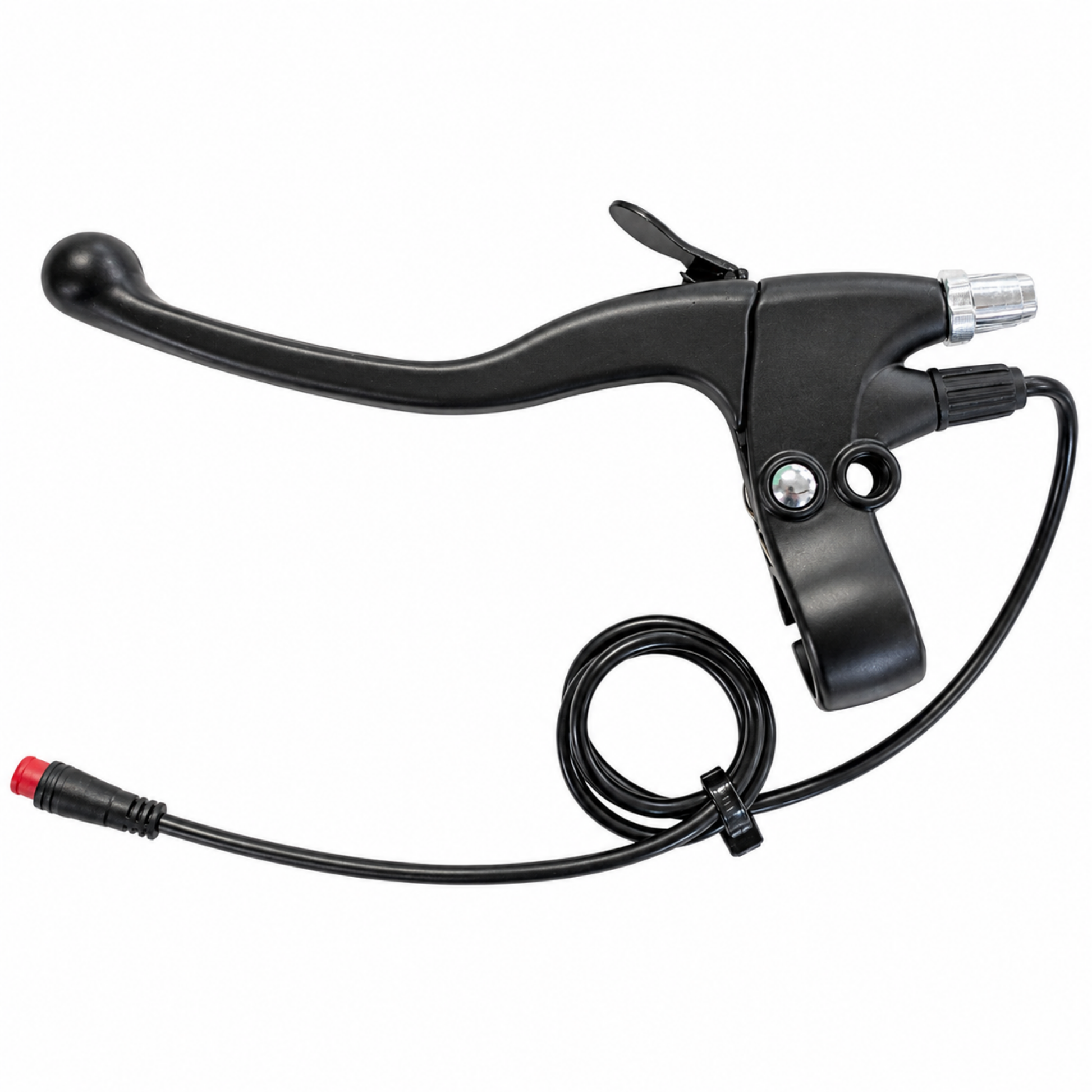

• Left and right mechanical e-brake levers with motor cutoff and parking lock

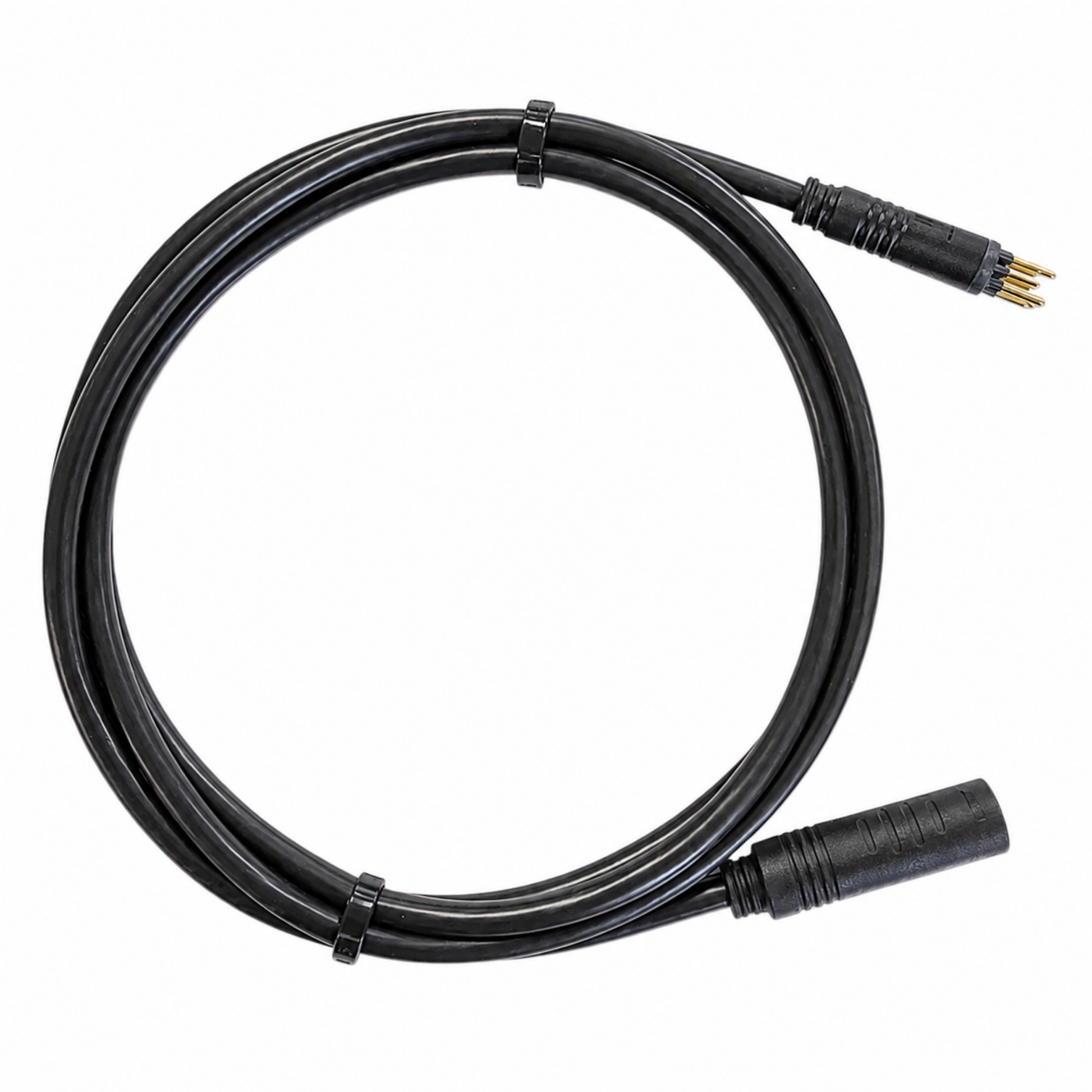

• Fat-Tad-specific short motor cable for compact rear routing

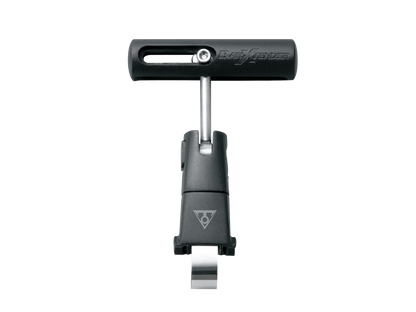

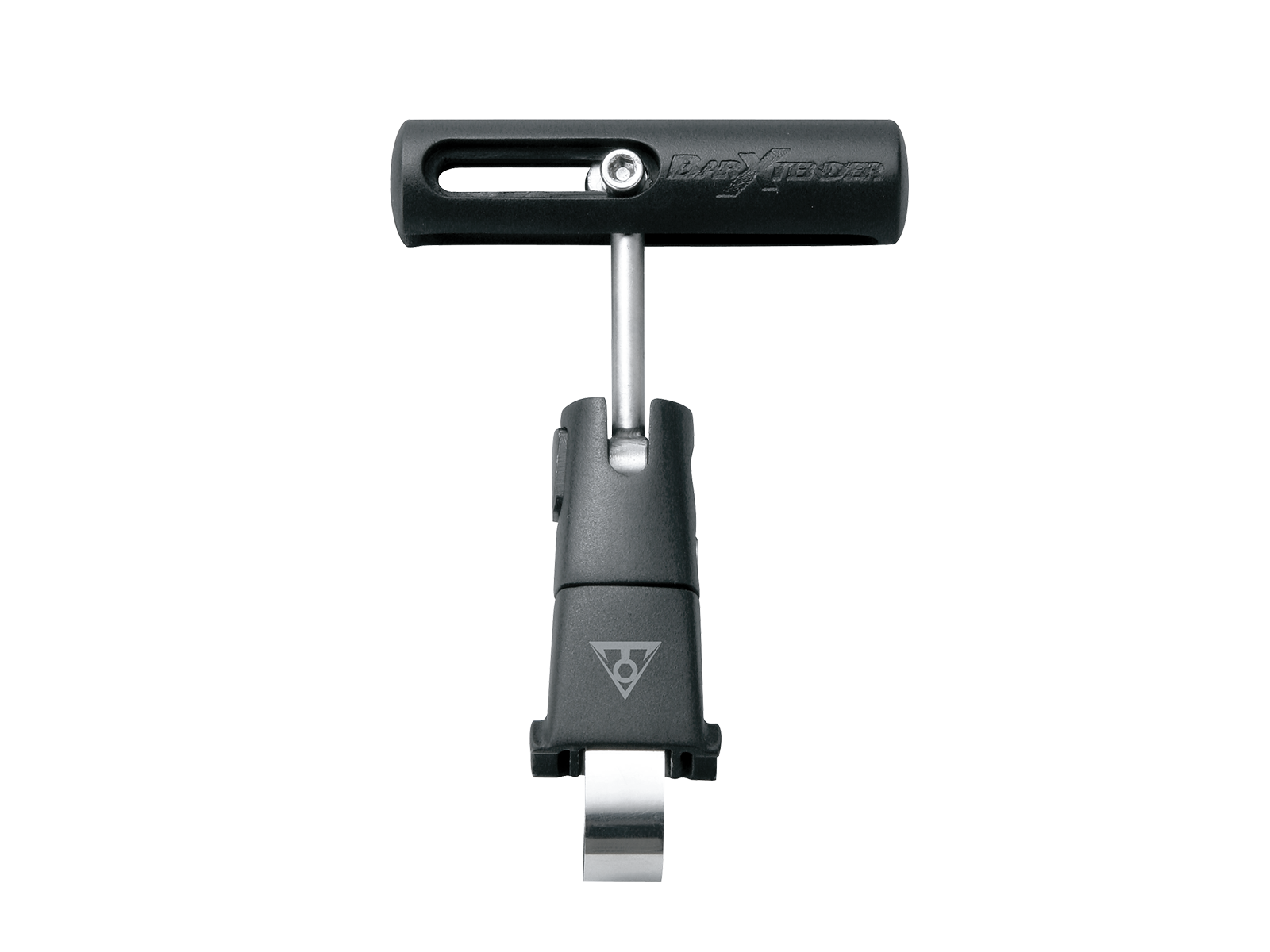

• Topeak® BarXtender for LCD placement
• Torque arms
• C-washers, axle hardware, installation hardware, and zip ties

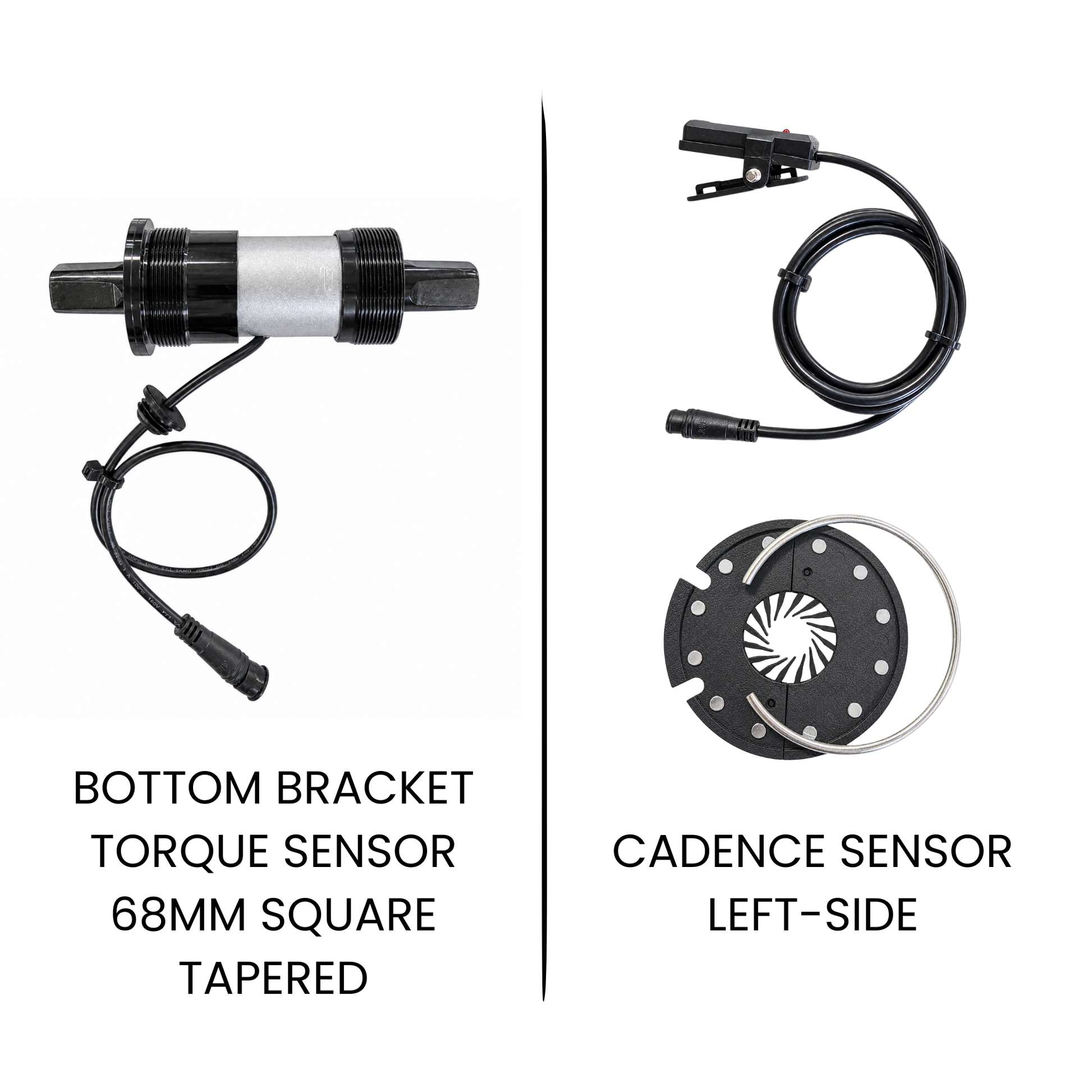

Select your preferred pedal assist system:

• Cadence Sensor: Split-disc cadence sensor for dependable pedal assistance and straightforward installation
• Bottom Bracket Torque Sensor: 68mm torque-sensing bottom bracket with required extension cable for proportional, rider-responsive assistance

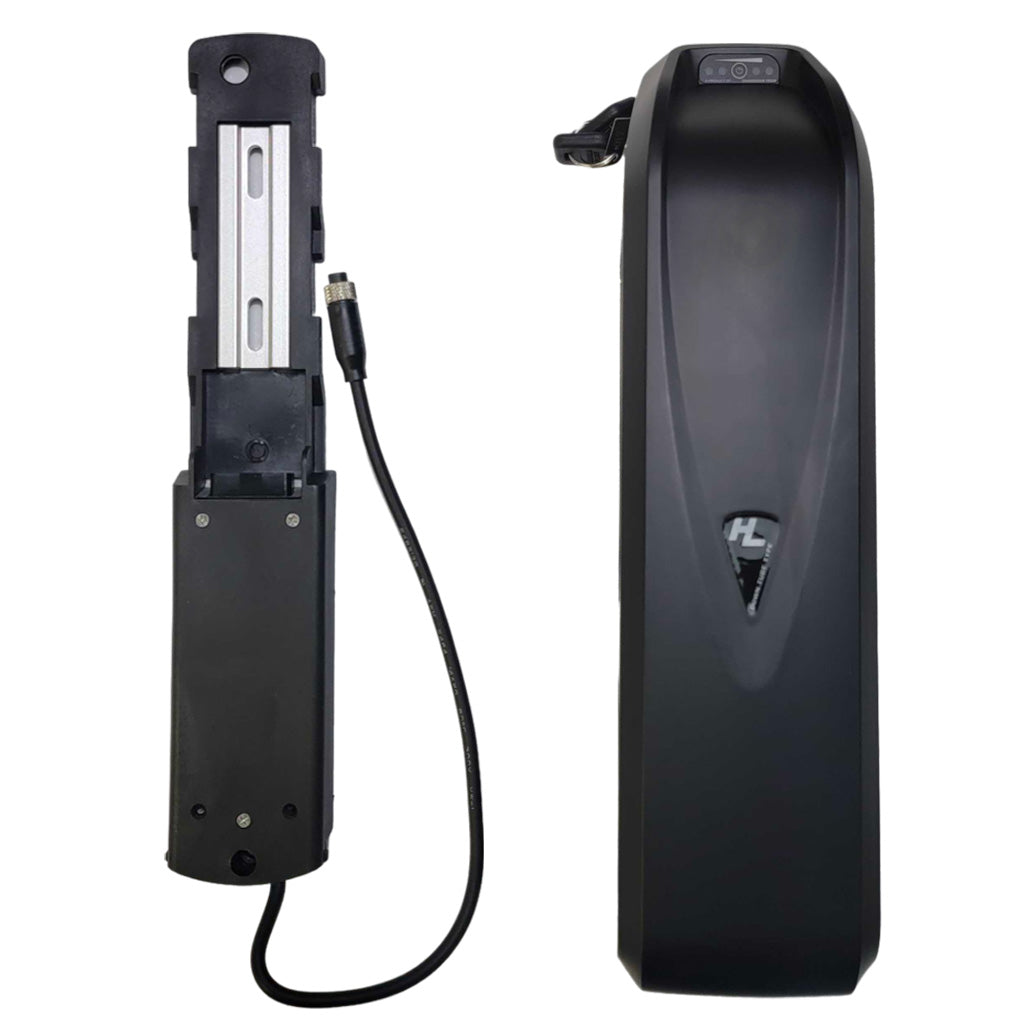

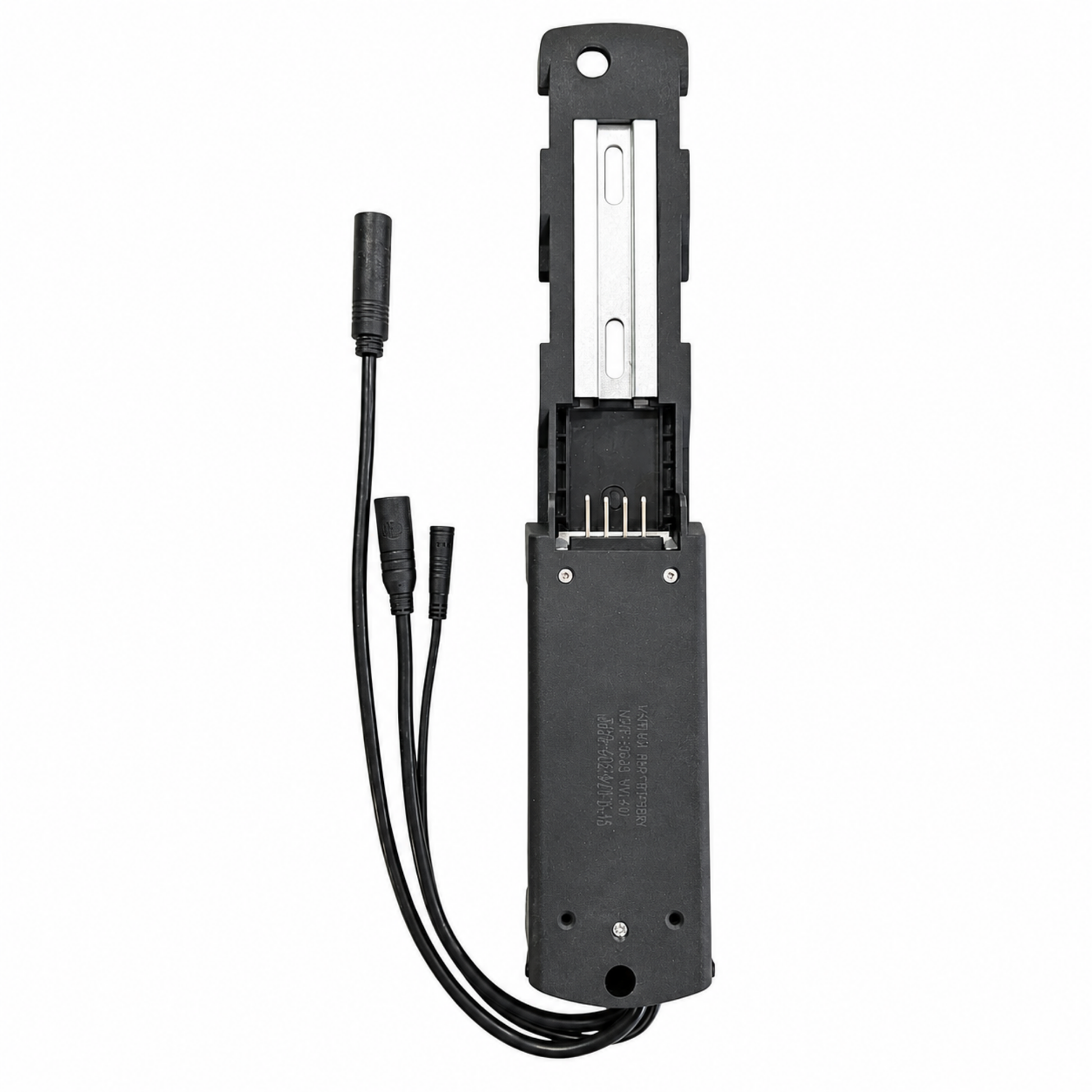

The integrated architecture combines the battery, controller, and battery cradle into one matched assembly. This reduces external components, simplifies wiring, and creates a cleaner installation than a traditional separately mounted controller.

• 48V 15Ah lithium battery included
• SINET™ sine-wave controller integrated into the battery cradle
• Cleaner installation with fewer external components
• Smooth and predictable throttle response
• Natural pedal-assist performance
• Easy battery removal for charging or storage
• Includes matching 3A smart charger

This system is configured specifically for the Sun Fat-Tad CXS and includes components selected for its rear-wheel layout, fat-tire spacing, cockpit arrangement, and cable-routing requirements.

• Rear Motor Wheel: 20" fat wheel configured for the Fat-Tad CXS
• Rear Spacing: Fat-bike-style 170–190mm application range, configured with the required spacing hardware
• Drivetrain: 8-speed freewheel included
• Brake Compatibility: Disc-brake-compatible rear motor wheel
• Motor Cable: Short cable for compact tadpole routing
• Brake Levers: Locking parking-brake levers with motor cutoff
• LCD Mounting: Topeak® BarXtender included for display placement

Cadence Sensor

The cadence sensor detects crank rotation and provides dependable pedal assistance whenever the rider is pedaling.

• Split-disc design
• Straightforward installation
• Consistent assist based on selected assist level
• Ideal for riders who prefer simple, predictable operation

Bottom Bracket Torque Sensor

The bottom bracket torque sensor measures rider pedal force and adjusts motor assistance proportionally. This creates a smoother and more natural riding experience, especially during starts, climbs, and changing terrain.

• 68mm square-taper bottom bracket
• Includes required SINET™ extension cable
• Motor output responds to rider effort
• More natural and responsive pedal assistance

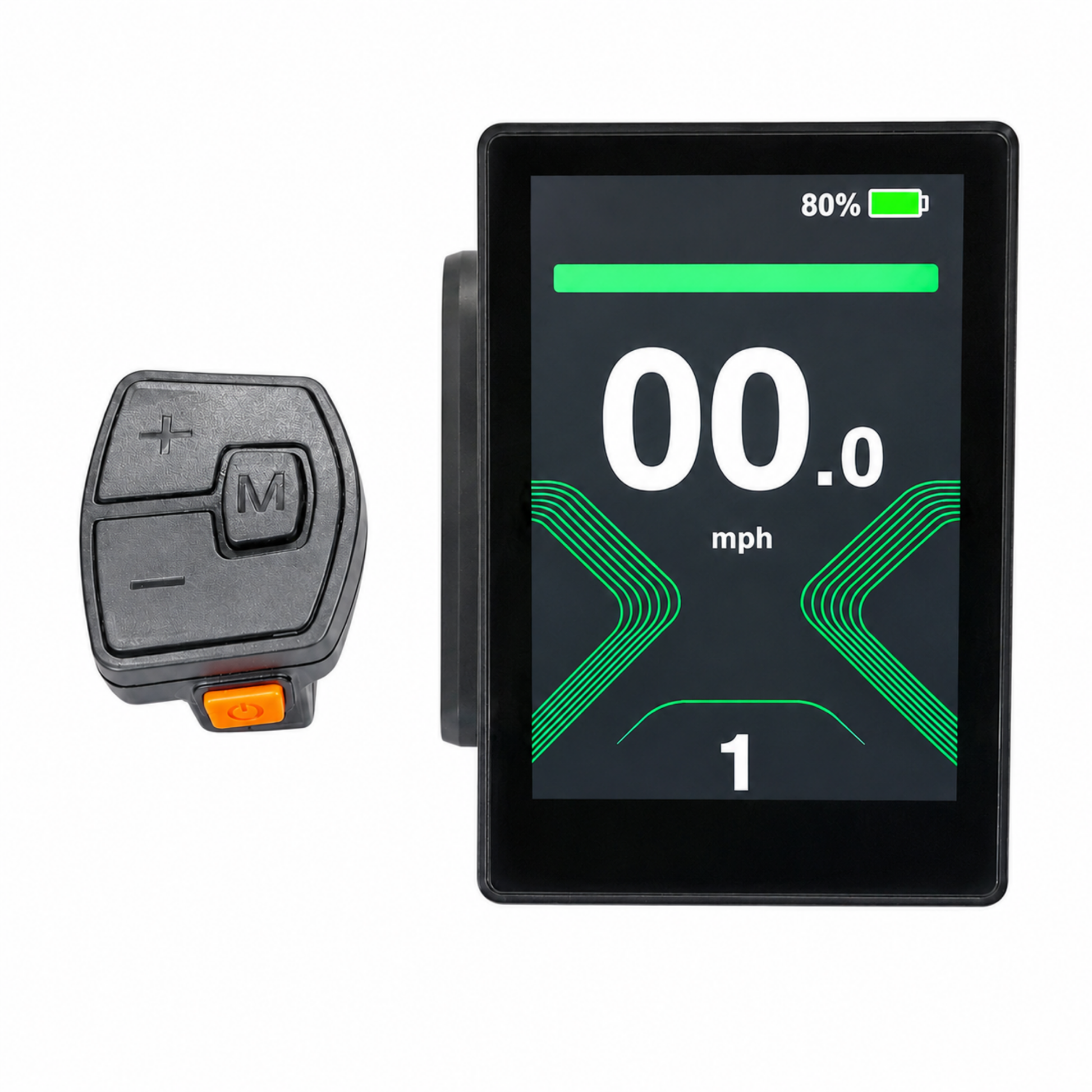

The included SINET™ 3.5" full-color LCD gives installers and riders access to programming, diagnostics, and real-time ride information.

• 3.5" full-color display
• USB-C charging port
• Battery voltage display
• Battery level indicator
• Current speed
• Trip meter and odometer
• Pedal-assist level selection
• Walk-assist mode
• Error diagnostics
• Advanced programming menu

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD quick-start guide for display operation, setup, programming, and system settings.

Download the SINET™ LCD Quick-Start Guide (PDF)

• Brand: E-BikeKit
• Motor Type: Brushless internally geared rear fat-bike hub motor
• Power: 750W nominal / 1000W peak at 48V
• Maximum Torque: Approximately 84Nm at 48V
• Maximum Motor Speed: Approximately 320 RPM at 48V
• Approximate Top Speed: Up to approximately 24 mph, depending on programming, rider weight, terrain, tire pressure, and operating conditions
• Wheel Size: 20" fat rear wheel
• Rear Dropout Application: 170–190mm fat-bike-style spacing
• Brake Compatibility: Disc brake
• Drivetrain: 8-speed freewheel
• Controller: Integrated SINET™ sine-wave controller inside battery cradle
• Display: SINET™ 3.5" full-color LCD
• Throttle: Thumb throttle
• Pedal Assist: Cadence sensor or bottom bracket torque sensor
• Motor Connector: Round 8-pin motor connector
• Motor Weight: Approximately 17 lb
• Wheel Build: USA hand-built
• Spokes: 12-gauge stainless steel
• Rim: Double-wall fat-bike rim
• Recommended Total Load: Up to approximately 300 lb, including trike, rider, and cargo

This system includes the E-BikeKit 48V 15Ah lithium battery, integrated SINET™ controller cradle, and matching 3A smart charger.

• Nominal Voltage: 48V
• Nominal Capacity: 15Ah
• Energy: Approximately 720Wh
• Controller: Integrated into battery cradle
• Estimated Range: Approximately 15–45 miles depending on rider input, terrain, assist level, speed, tire pressure, weather, and total load
• Charger: 3A smart charger included
• Estimated Charge Time: Approximately 5 hours from fully depleted
• Battery Weight: Approximately 10.1 lb
• Maximum Charge Voltage: 54.6V

Actual range will vary significantly based on rider weight, terrain, speed, assist level, throttle use, tire pressure, temperature, and overall system load.

The E-BikeKit Fat Tad Conversion System is designed specifically for the Sun Fat-Tad CXS tadpole recumbent fat trike.

System Configuration:

• 20" fat rear motor wheel
• 8-speed freewheel
• Disc-brake-compatible hub motor
• Fat-bike-style rear dropout spacing
• Model-specific short motor cable
• Integrated battery/controller cradle
• Topeak® BarXtender for LCD placement

Frame production variations, existing accessories, prior modifications, and component wear may affect installation. The installer must verify dropout condition, rear spacing, brake alignment, freewheel compatibility, battery mounting location, and cable routing before completing the conversion.

The E-BikeKit Fat Tad Conversion System is intended for dealer installation or experienced bicycle mechanics.

• Remove the original rear wheel and confirm rear dropout condition and spacing
• Install the 20" fat rear motor wheel using the supplied spacing hardware
• Confirm proper 8-speed freewheel alignment and chain clearance
• Confirm disc rotor position and brake-caliper alignment
• Install both torque arms and tighten axle hardware properly

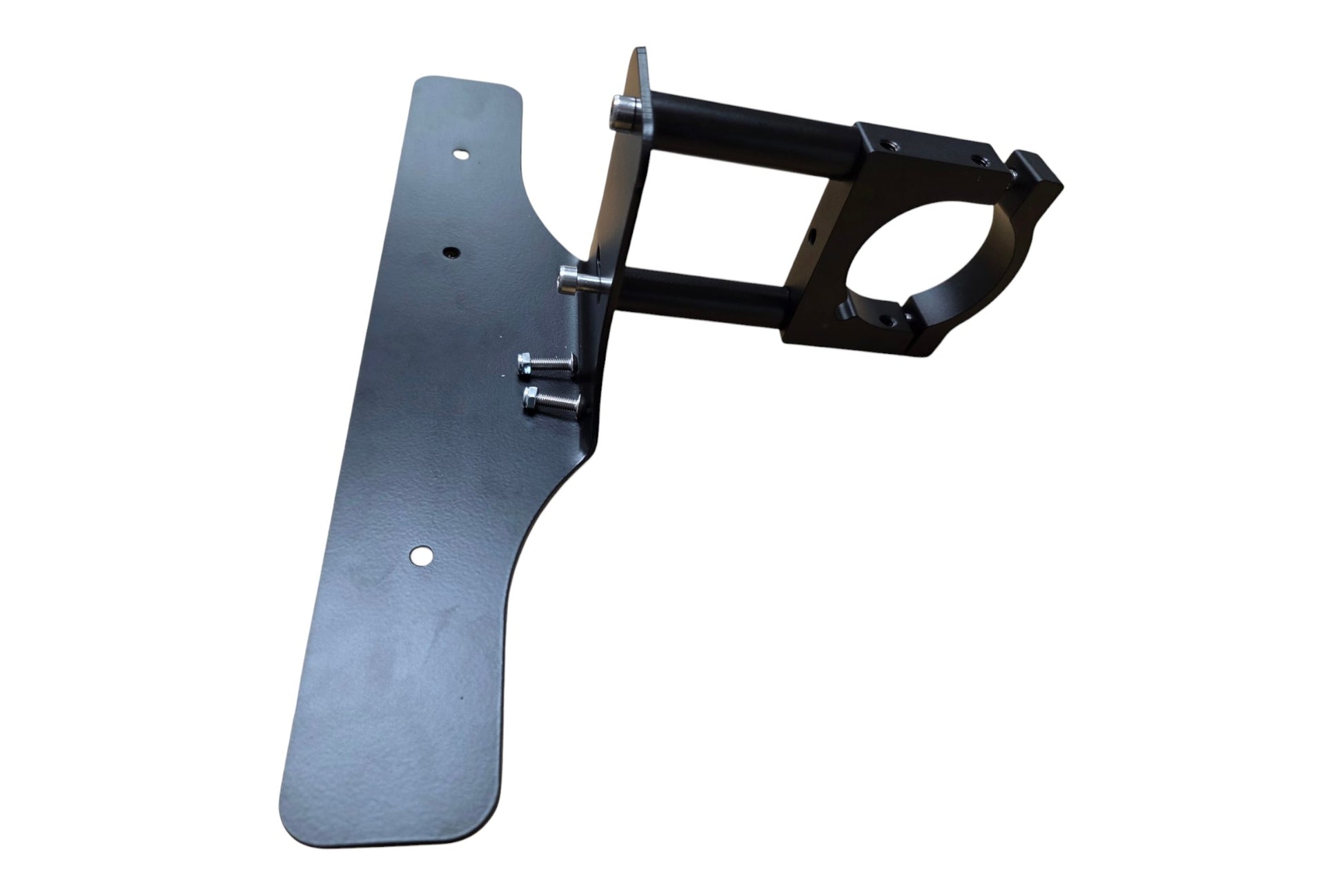

• Mount the integrated battery/controller cradle securely in an appropriate location
• Install and secure the included 48V 15Ah battery
• Install the SINET™ LCD using the included Topeak® BarXtender
• Install the thumb throttle and locking e-brake levers
• Install the selected cadence sensor or bottom bracket torque sensor
• Route the short motor cable and main wiring away from the chain, steering components, tires, and sharp edges
• Verify brake cutoffs, throttle operation, pedal assist, drivetrain clearance, battery retention, and display settings before riding

Proper wheel installation, torque-arm placement, axle-nut torque, brake alignment, battery mounting, and cable routing are essential to safe and reliable operation.

This section gives dealers reference points and support information to help position, install, and sell the system confidently.

Comparable Complete Trike:

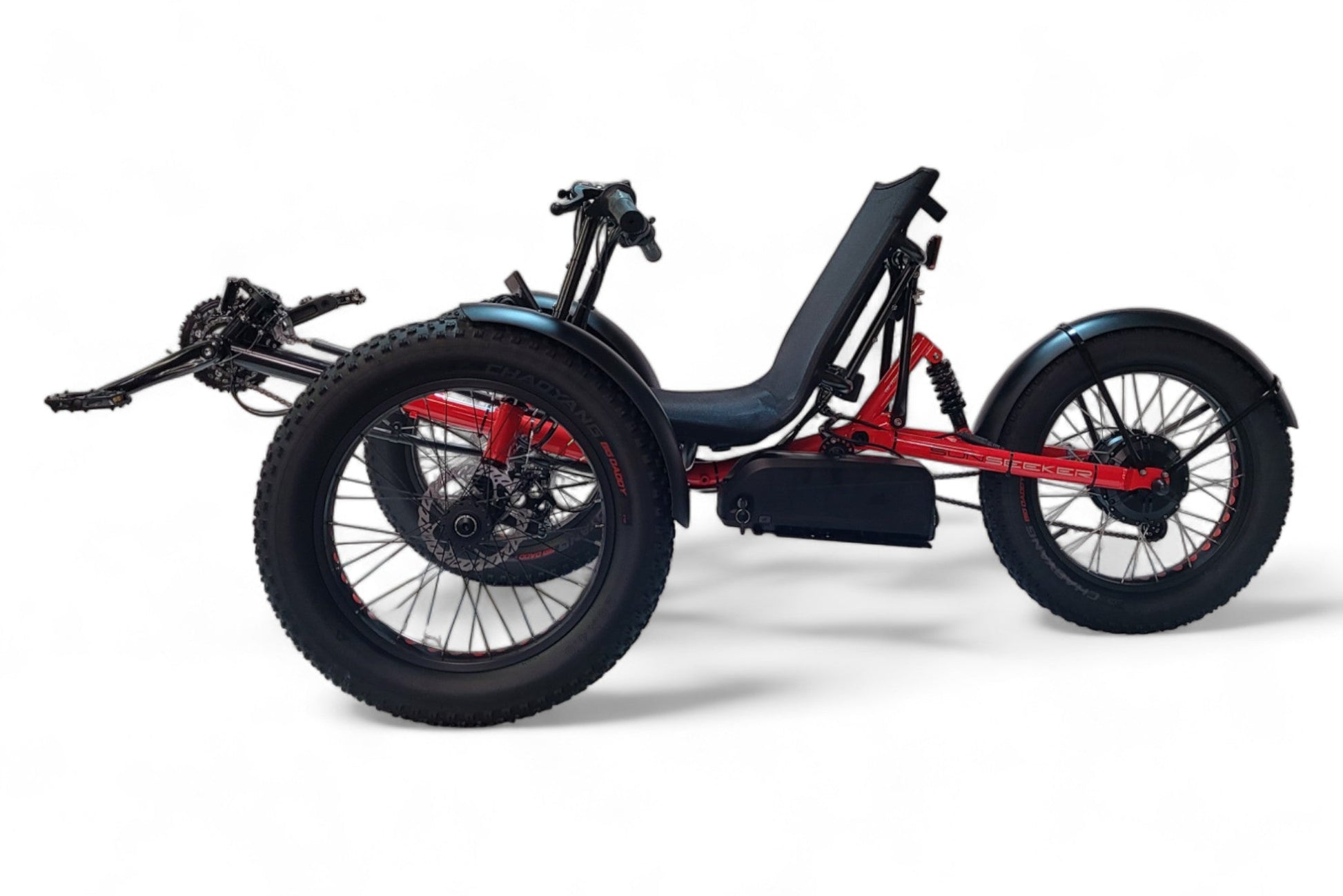

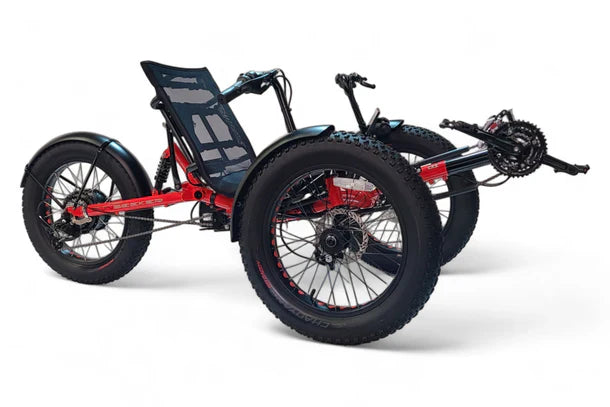

• View the complete Fat Tad CXS electric trike with this type of system installed:
  Fat Tad CXS Tadpole Electric Trike – ElectricTrike.com
• Use the complete-trike listing to compare presentation, finished build quality, and consumer-facing pricing.
• When quoting a complete assembled trike, remember that direct freight shipping may add approximately $300.

Dealer Support Commitment:

• Phone, email, and text technical support
• Hands-on installation guidance
• Fat-wheel spacing and alignment assistance
• Torque-arm placement guidance
• Battery mounting and cable-routing assistance
• Replacement parts and service support
• Direct access to experienced system builders and wheel technicians

Our goal is simple:
Make every dealer look like the expert with every customer, every time.
