Kit - EZ-Tri Classic

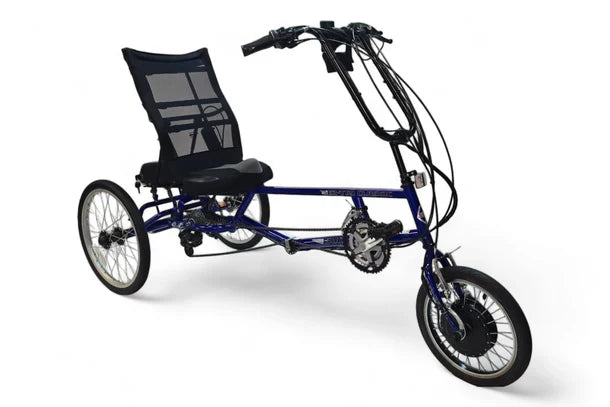

This EZ-Tri Classic Conversion System transforms the Sunseeker EZ-Tri Classic delta trike into a smooth, efficient electric trike using a 500W internally geared front hub motor and an optional 48V 15Ah lithium-ion battery pack.

• Special parts and configuration designed specifically for the EZ-Tri Classic
• Top speed approximately 14 mph at 48V
• Estimated 15–45 mile range depending on terrain, rider weight, and input
• Supports both pedal-assist and throttle-on-demand

The 500–1000W geared motor features a 5:1 internal planetary reduction and a clutch mechanism for zero-drag pedaling when unassisted. Compared to direct-drive motors, it provides improved efficiency, lighter weight, strong hill-climbing torque, and a compact, stealthy appearance.

Who’s it for? Riders who want reliable, lightweight assist on the EZ-Tri Classic platform. Suitable for total system loads up to 300 lb (trike + rider + cargo).

EZ-Tri–Specific Extras:

• Pedal-assist extension cable
• Locking parking brake levers
• (2) Torque arms — both required for safe axle retention

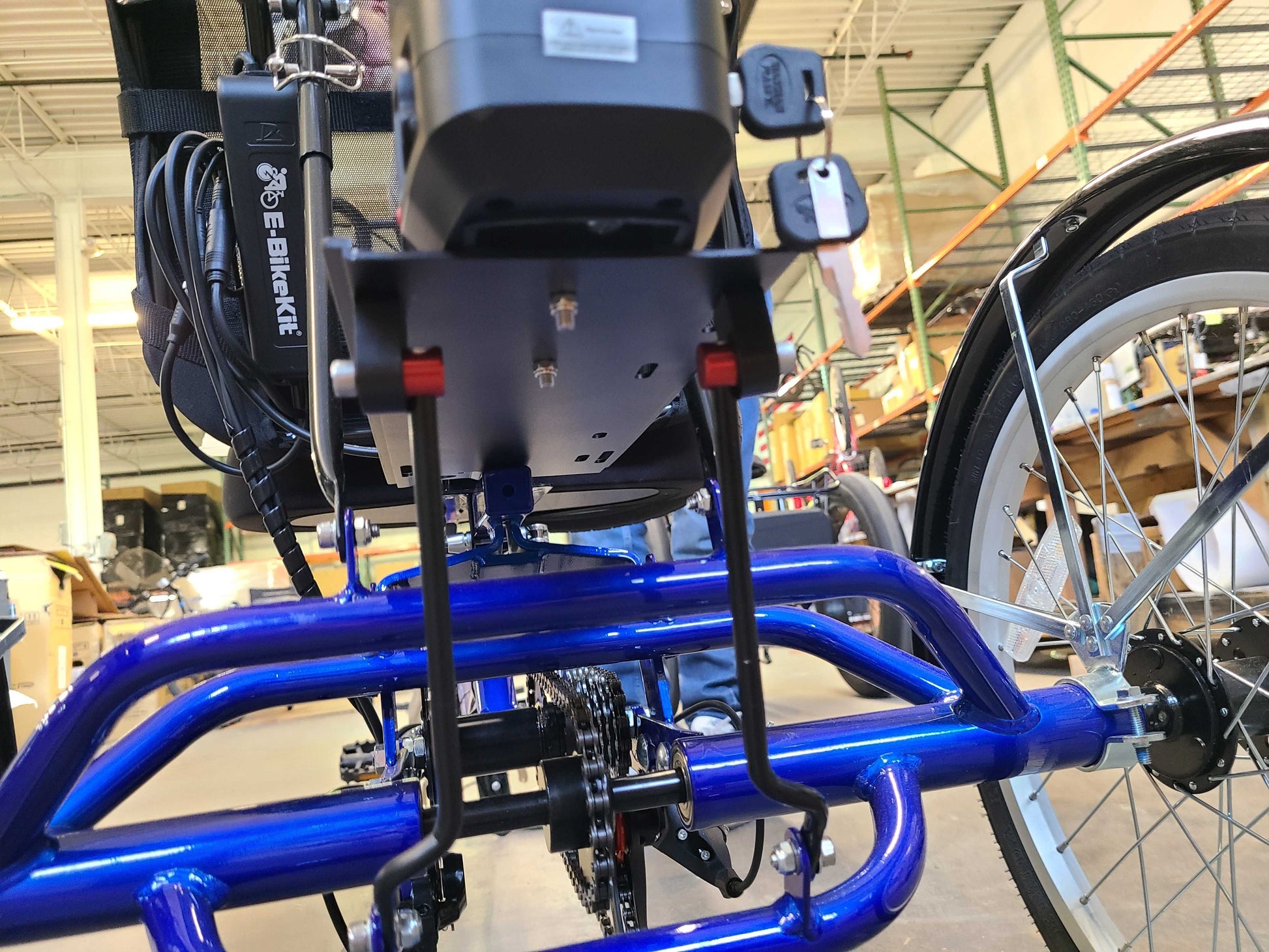

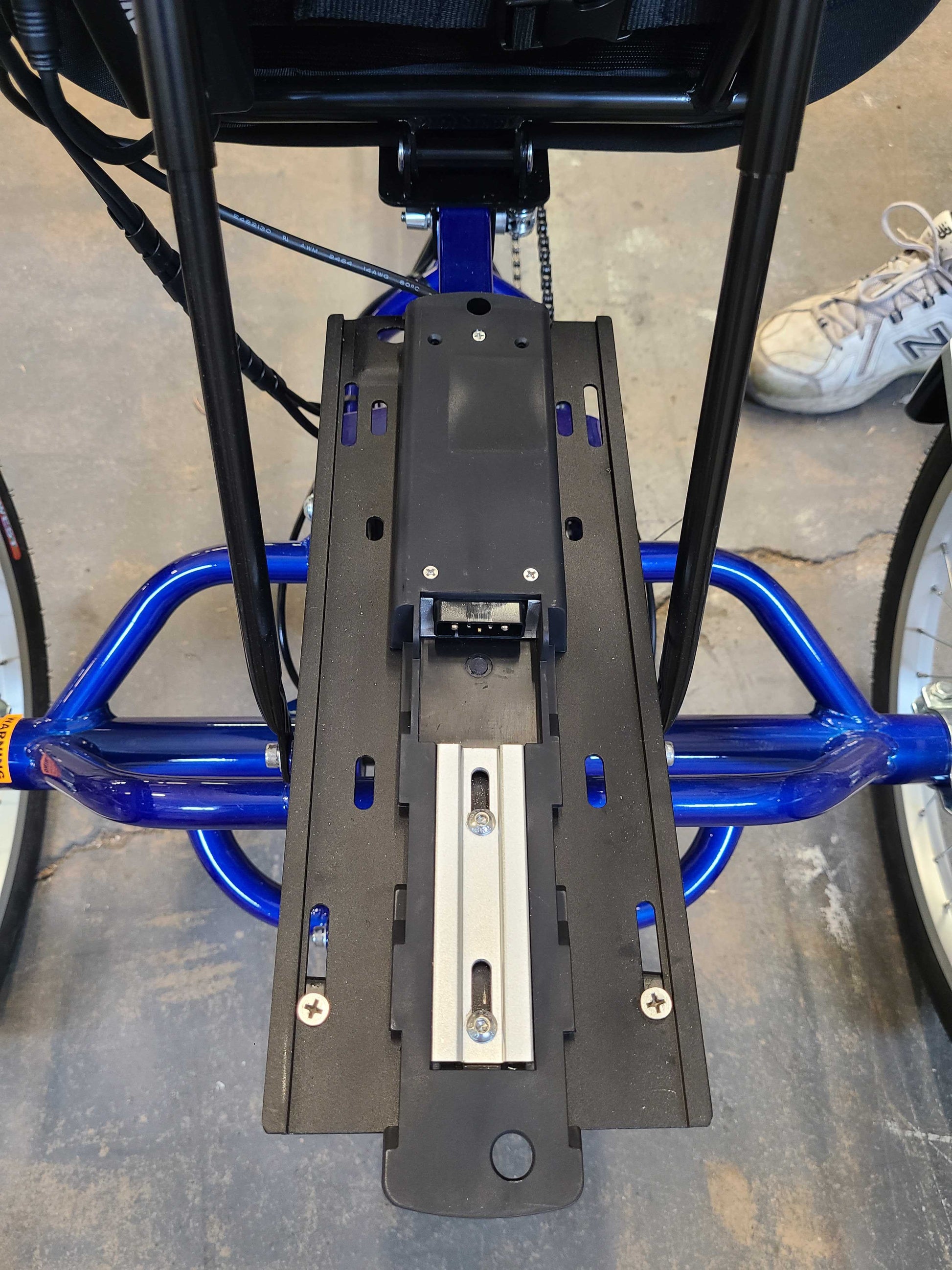

• Battery mounting hardware as shown in photos (EZ-Tri frame is pre-tapped)

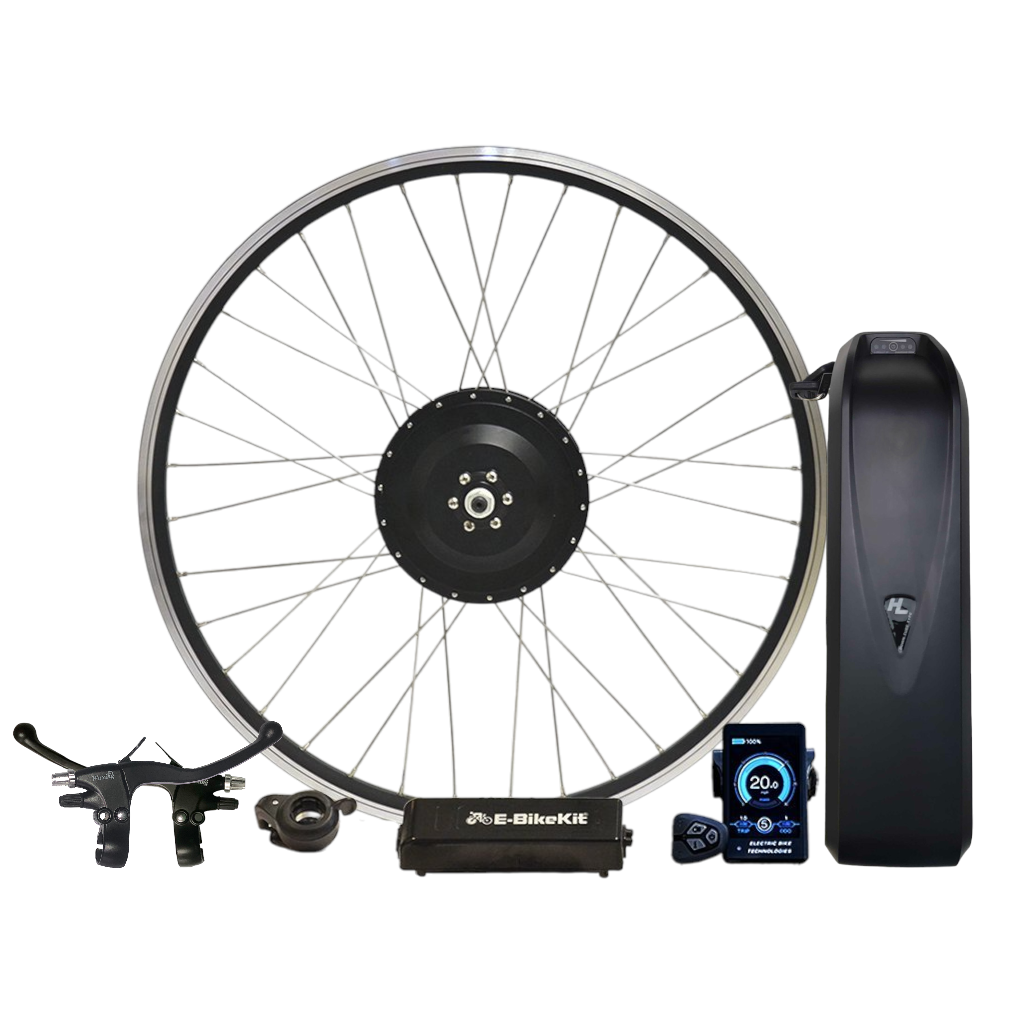

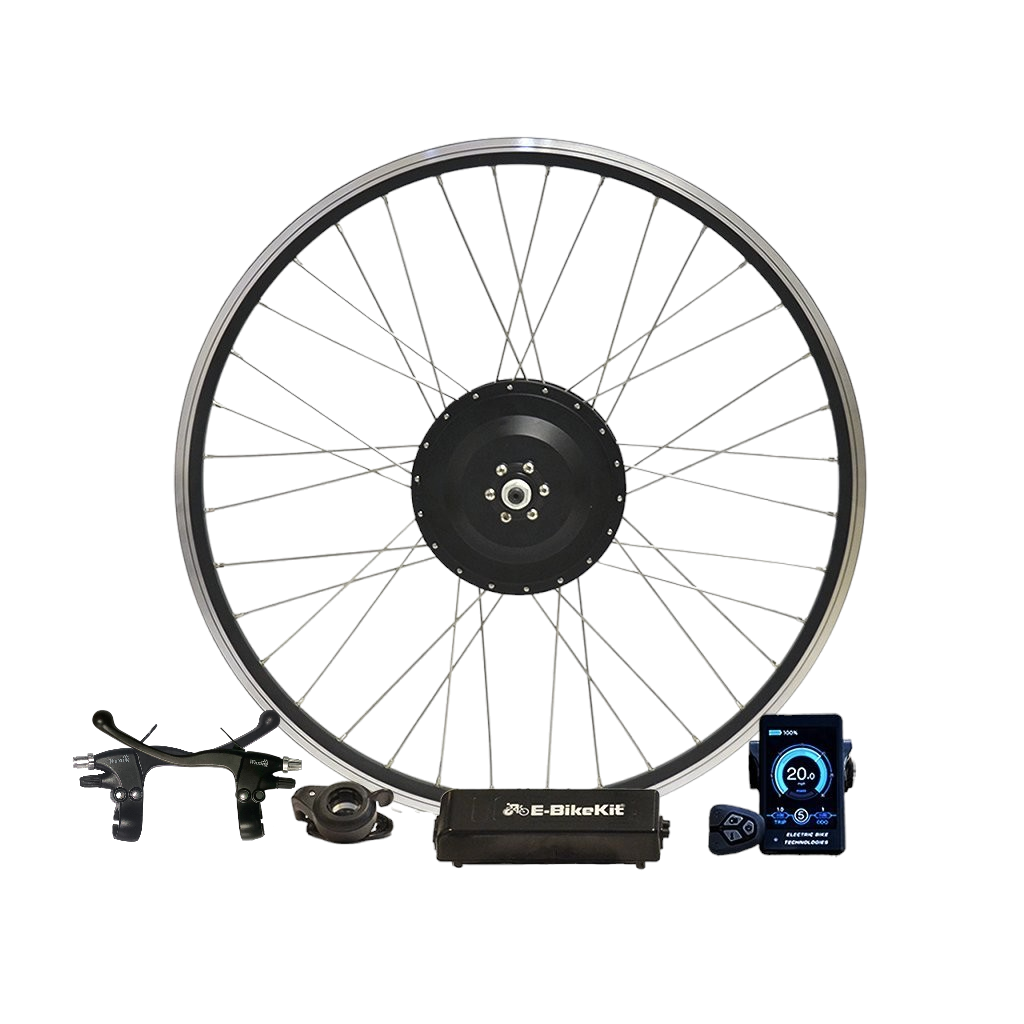

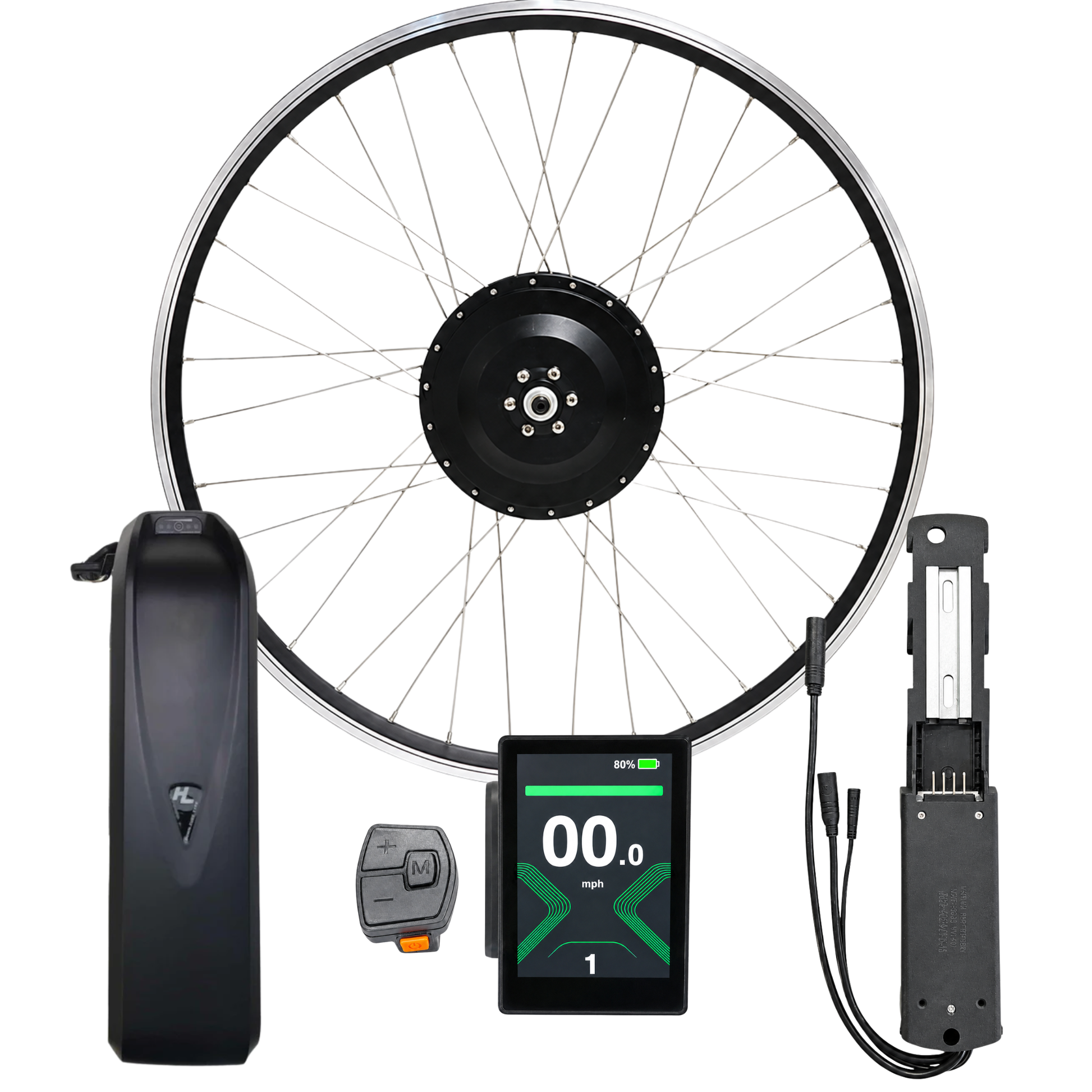

Core Conversion Kit Components:

• USA hand-built 16″ or 20″ front wheel with 500W geared hub motor (disc-brake compatible)

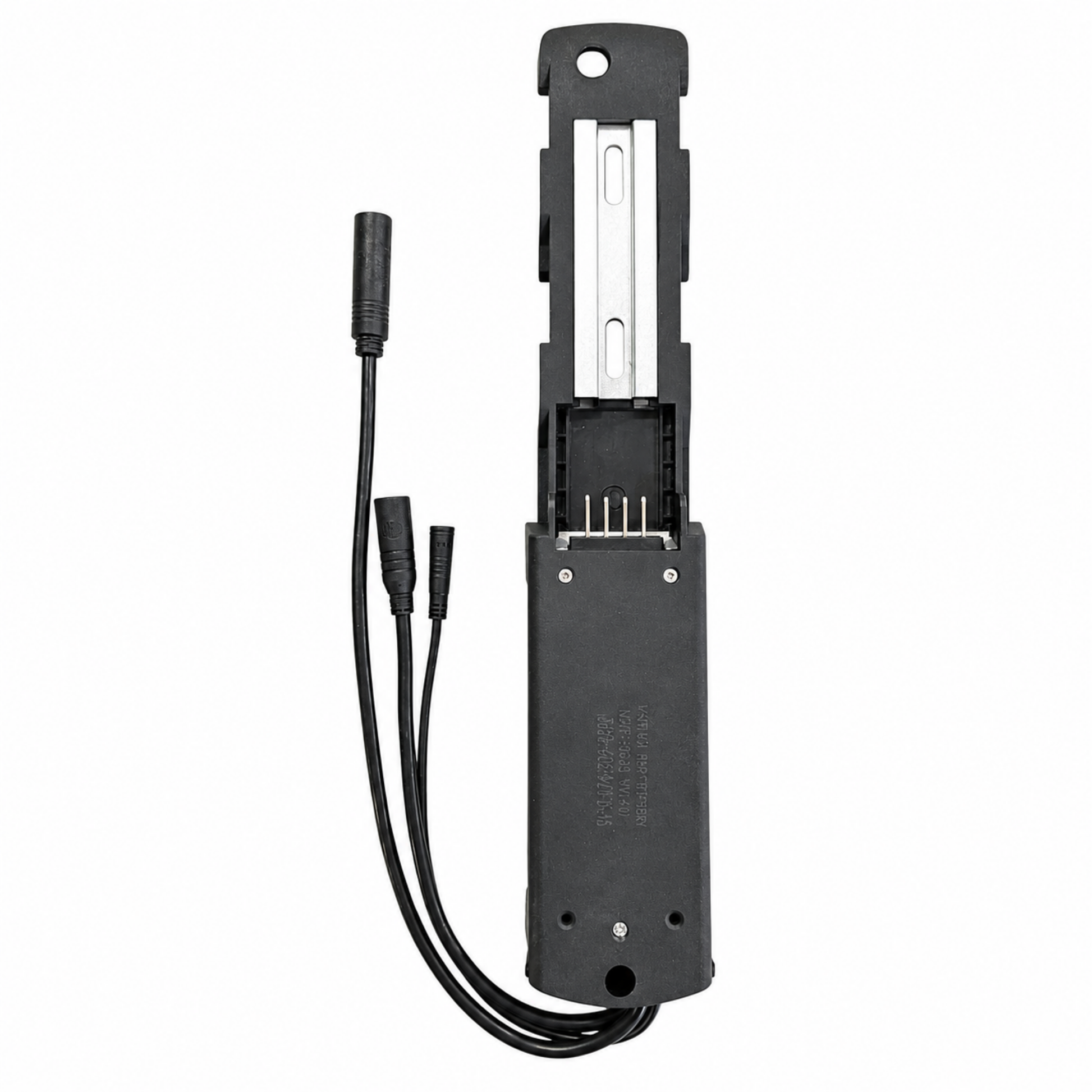

• 48V compatible 22A 12FET controller

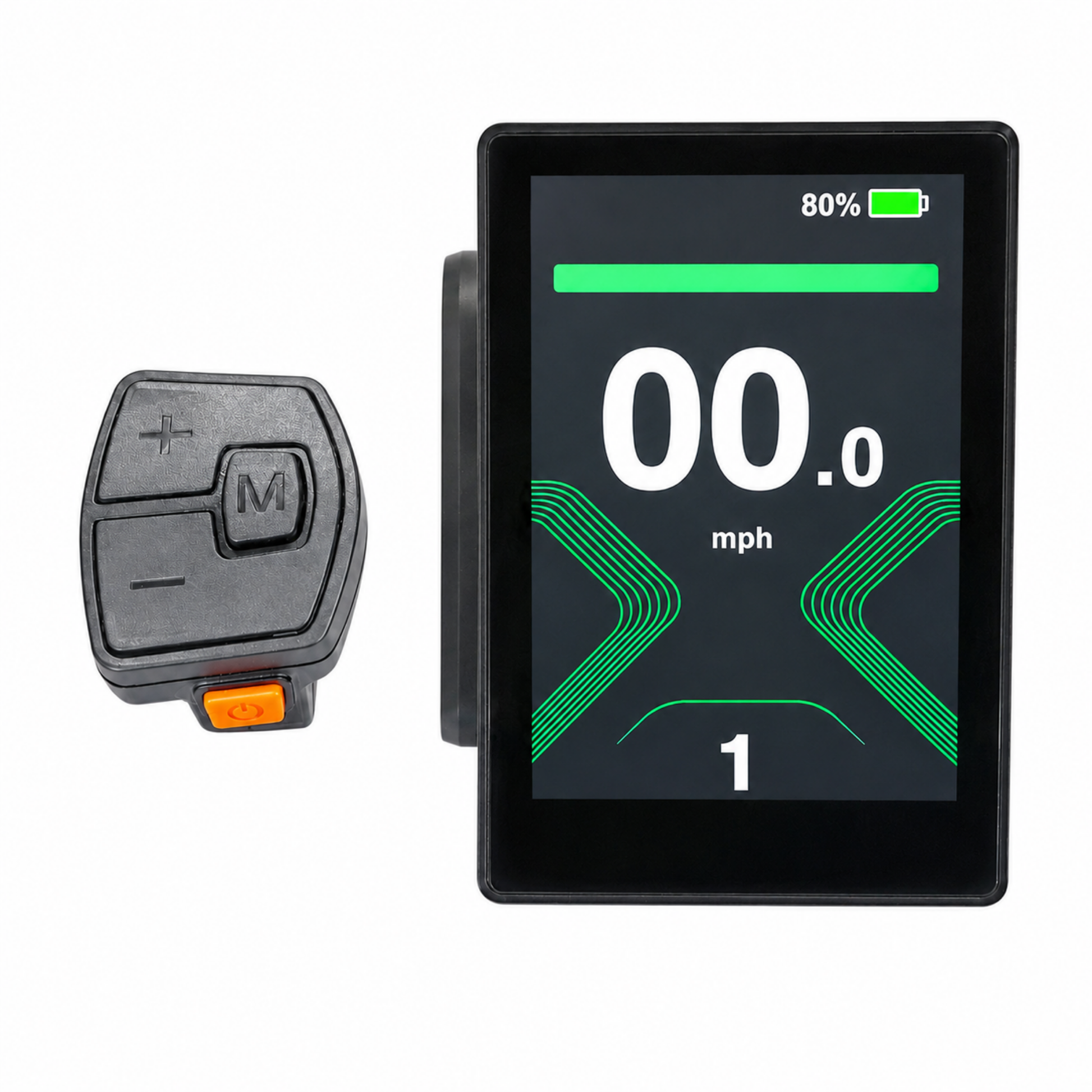

• Programmable LCD dashboard display

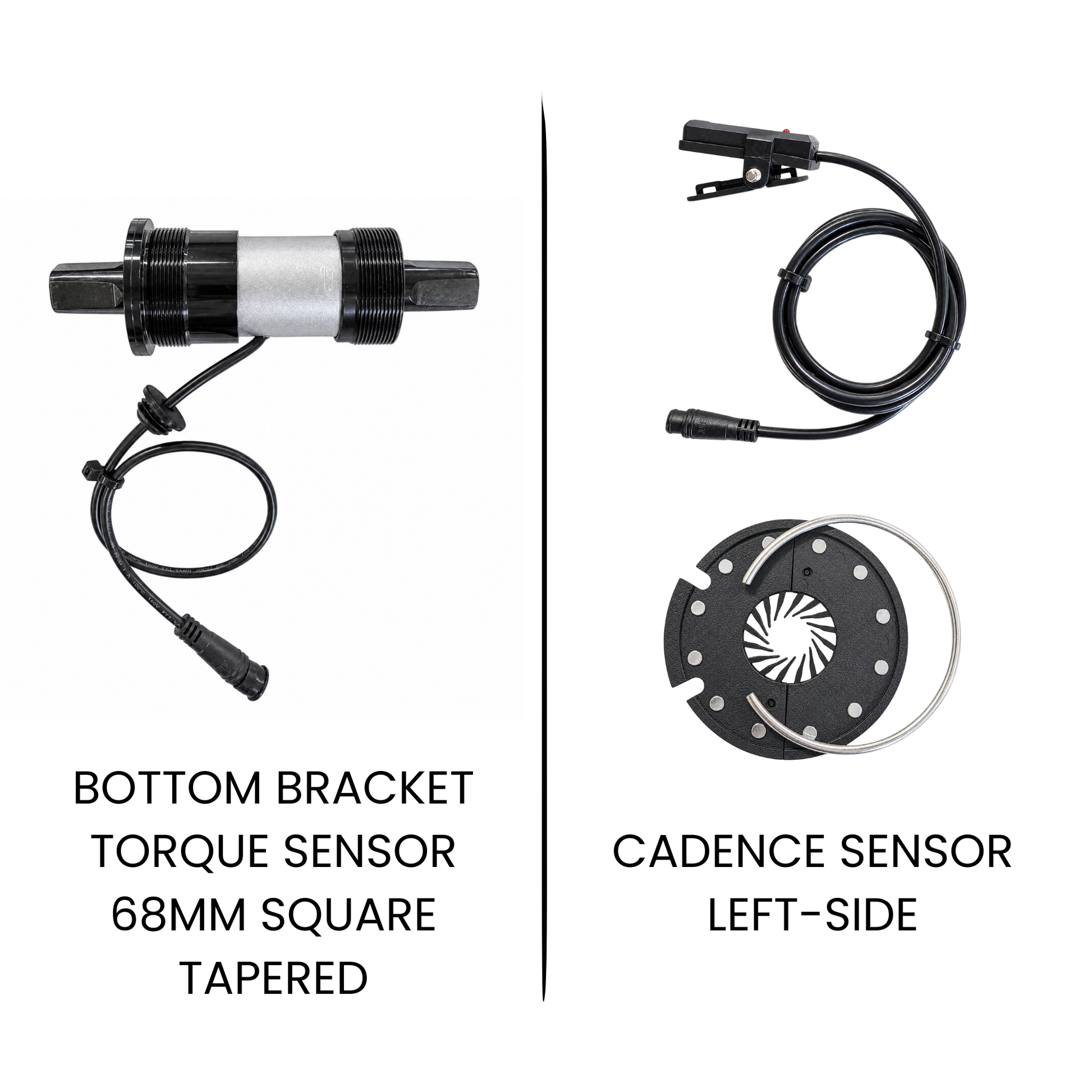

• 12-magnet split PAS disc
• PAS sensor – left-side mount (right-side by request)

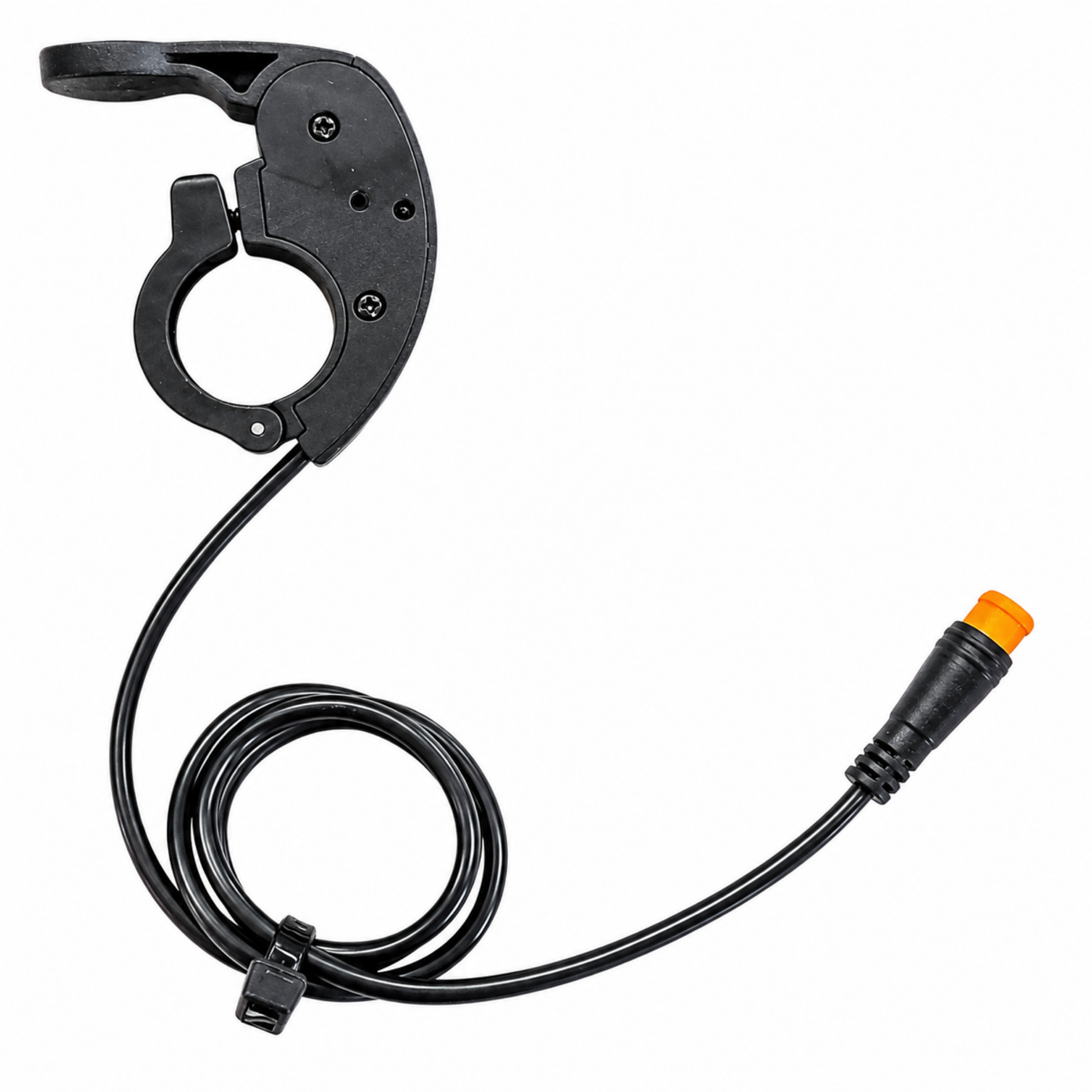

• Thumb throttle

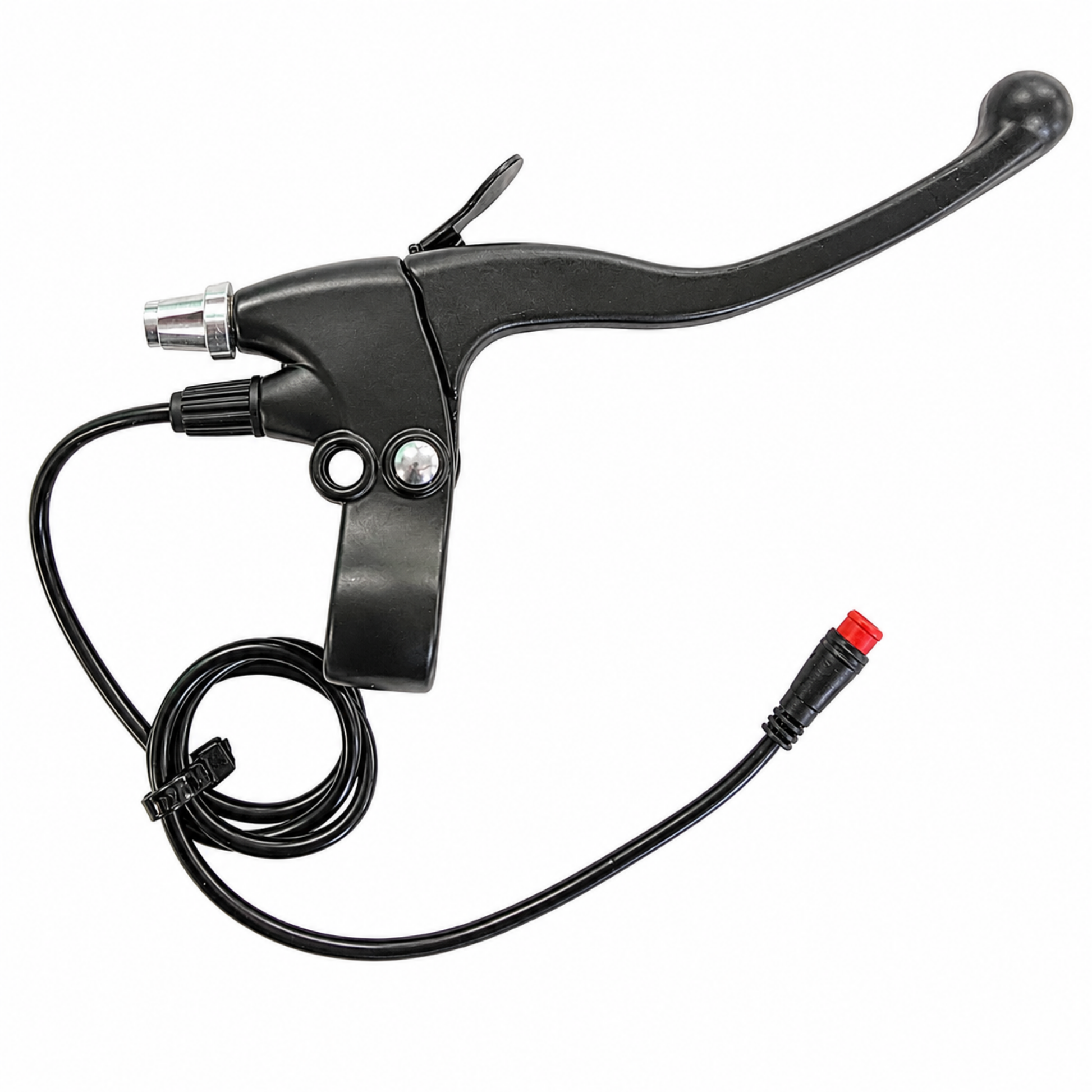

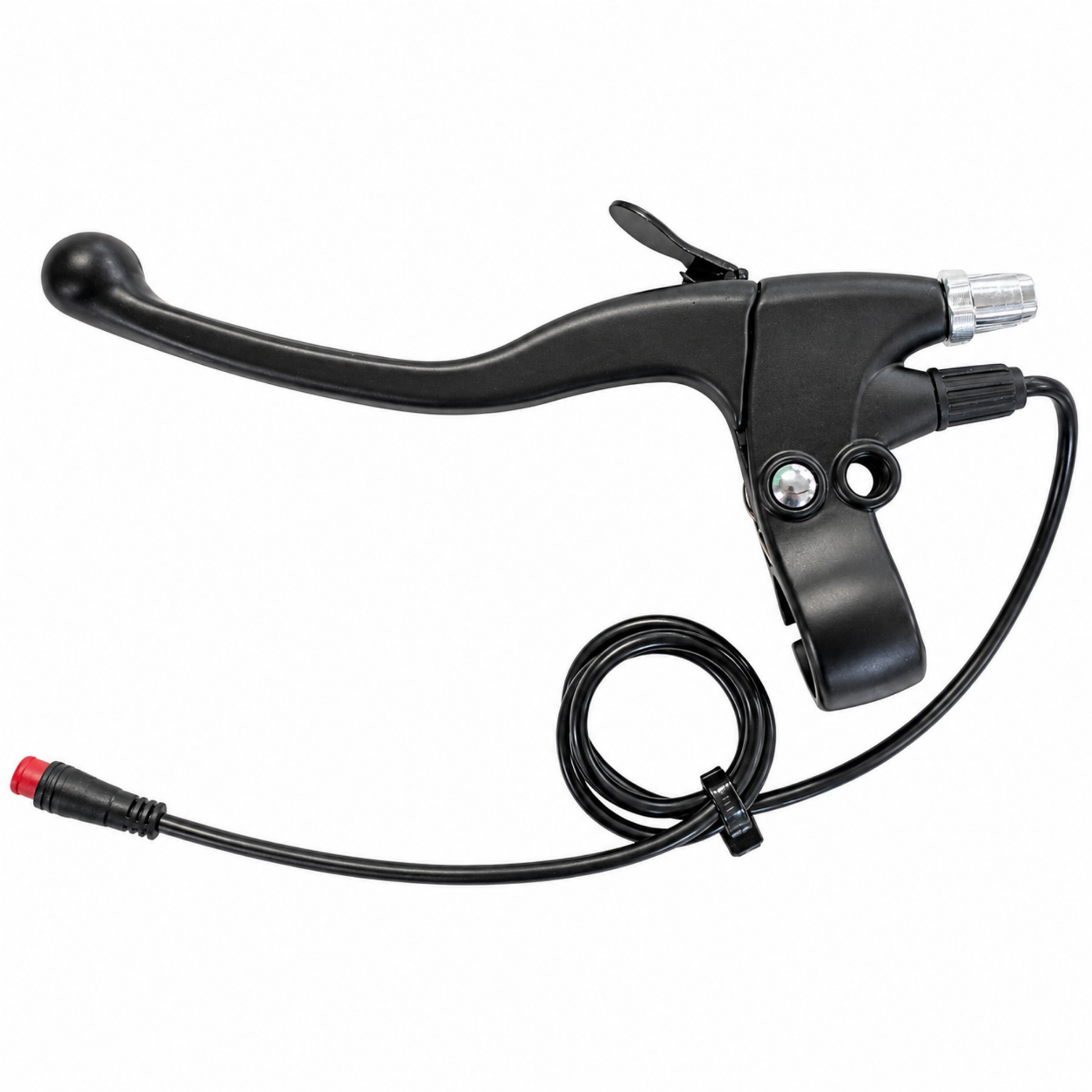

• Left & right locking e-brake levers

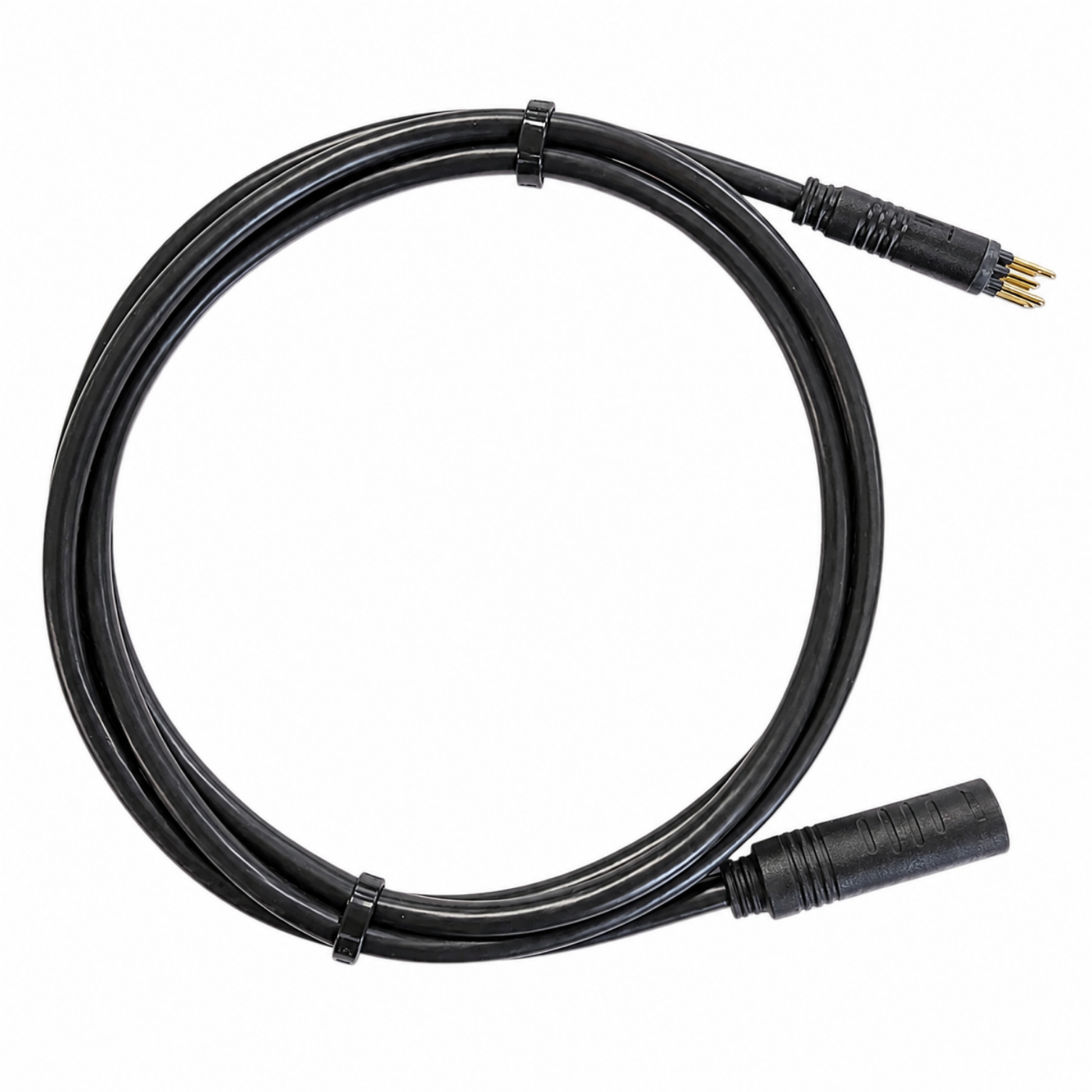

• Main motor cable

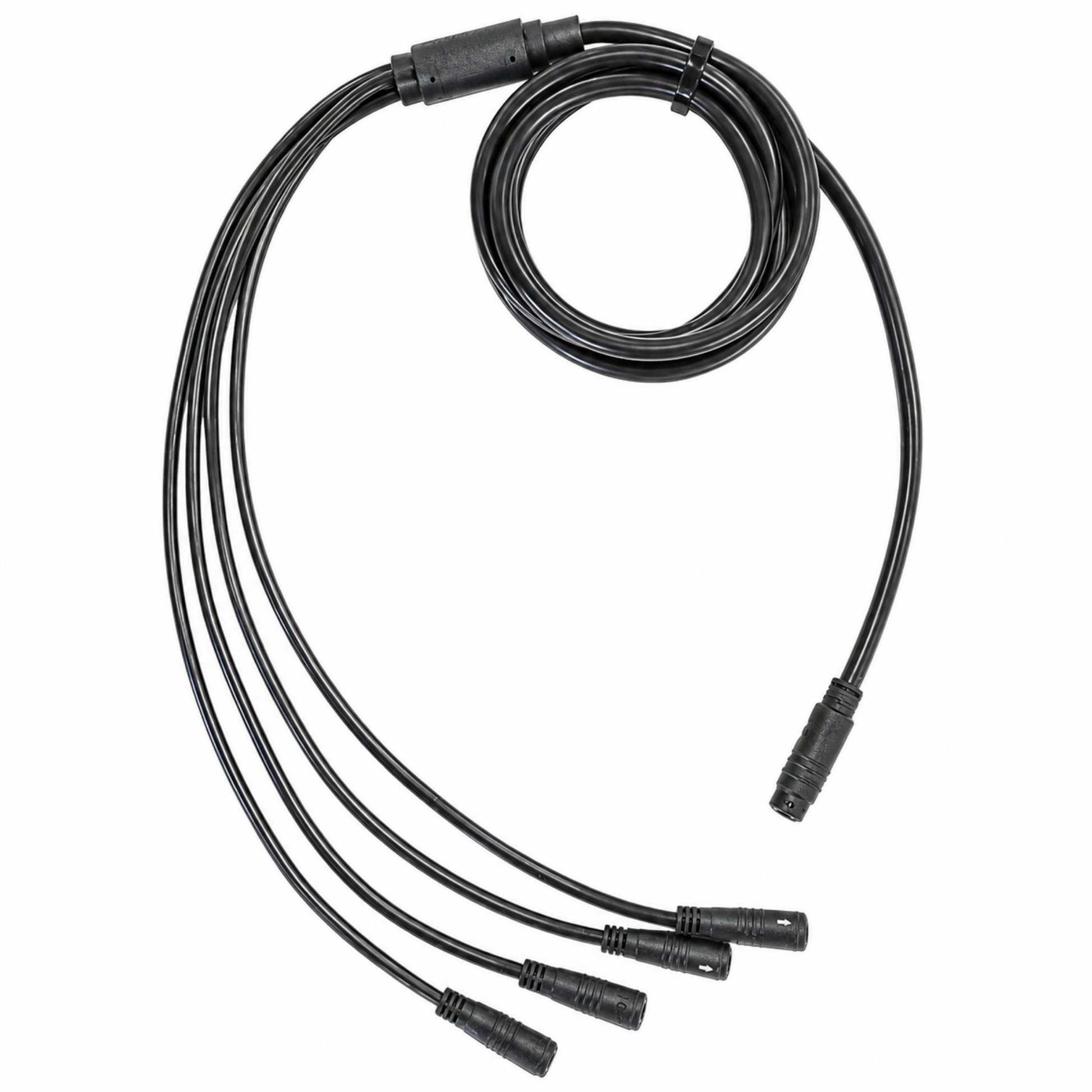

• 4-to-1 accessory cable
• Battery wire harness (only included when no battery is ordered)
• Battery & charger (only when ordered)
• Zip ties, C-washers, and torque arms

Motor Specifications

• Brand: EBikeKit LLC
• Type: Internally geared / brushless / disc-brake compatible
• Power: 500W nominal / >1000W peak @ 48V
• Max Torque: 84Nm @ 48V
• Max RPM: ~320 @ 48V
• Cable: 8″ axle exit — 3-phase / 5 Hall sensors
• Connector: Round 8-pin (10.4 mm)
• Motor Weight: ~9.4 lb (4.26 kg)
• Front Dropout Requirement: 100 mm
• Total System Load Limit: ~300 lb

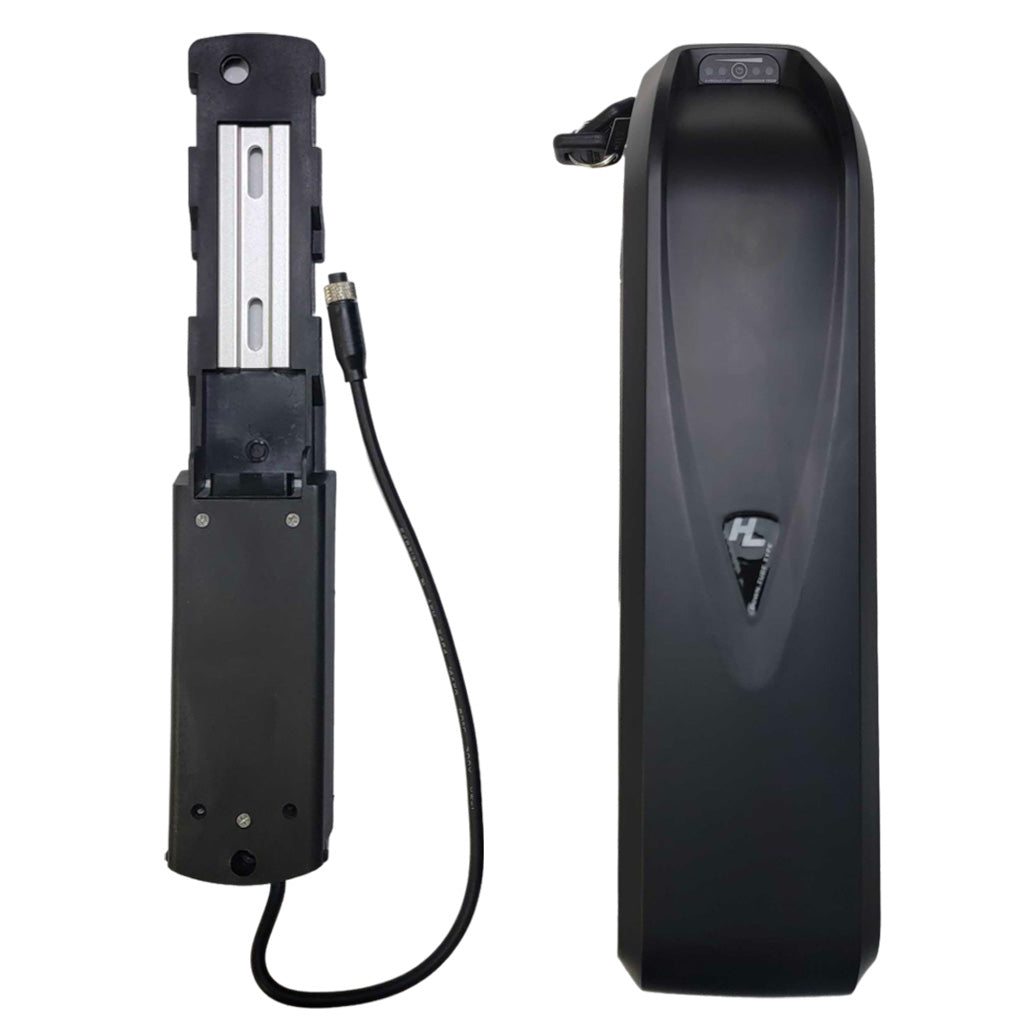

This system may be ordered with or without a 48V 15Ah lithium-ion battery pack.

• Range: 15–45 miles depending on riding conditions
• Charge Time: ~5 hours with 3A charger
• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: ~720Wh
• Total Battery Weight: ~10.1 lb (4.6 kg)
• Cell Configuration: 18650, 13S4P
• Life Cycles: ~500–800 cycles
• Max Continuous Discharge: 16A
• BMS Protection: 20A
• Cut-Off Voltage: ~37.5V
• Max Charge Voltage: 54.6V
• Internal Resistance: ≤230 mΩ
• Operating Temp (Charge): 0°C–113°F
• Operating Temp (Discharge): −68°F–140°F
• Storage Temp: 0°C–104°F (59–77°F recommended)
• Certifications: UN38.3, MSDS, UL-listed cells

This section helps dealers compare the EZ-Tri Classic conversion system to the complete consumer-ready trike.

Comparable Complete Trike:

• View the fully assembled EZ-Tri Classic electric trike:
  EZ-Tri Classic Electric Trike – ElectricTrike.com
• Use the complete-trike listing as the reference benchmark for what customers see when shopping for a finished electric trike.
• Fully assembled trikes delivered to customer homes typically include approximately $300 freight shipping. This figure should be included when discussing value comparisons.

Dealer Support Commitment:

• Real-time installation assistance via text, phone, and email
• Direct access to the people who assemble these kits every day
• Help with PAS installation, front-fork fitment, and torque-arm placement
• Support for battery mounting using the EZ-Tri frame’s tapped hardware points
• Fast turnaround on shop-floor technical questions

Our mission: Equip every dealer with the tools, knowledge, and support required to complete reliable, professional EZ-Tri Classic installations.

This system is engineered specifically for the Sunseeker EZ-Tri Classic delta trike.

• Front motor requires standard 100 mm fork spacing
• Optimized for stable, torque-rich delta-style handling
• Supports loads up to ~300 lb

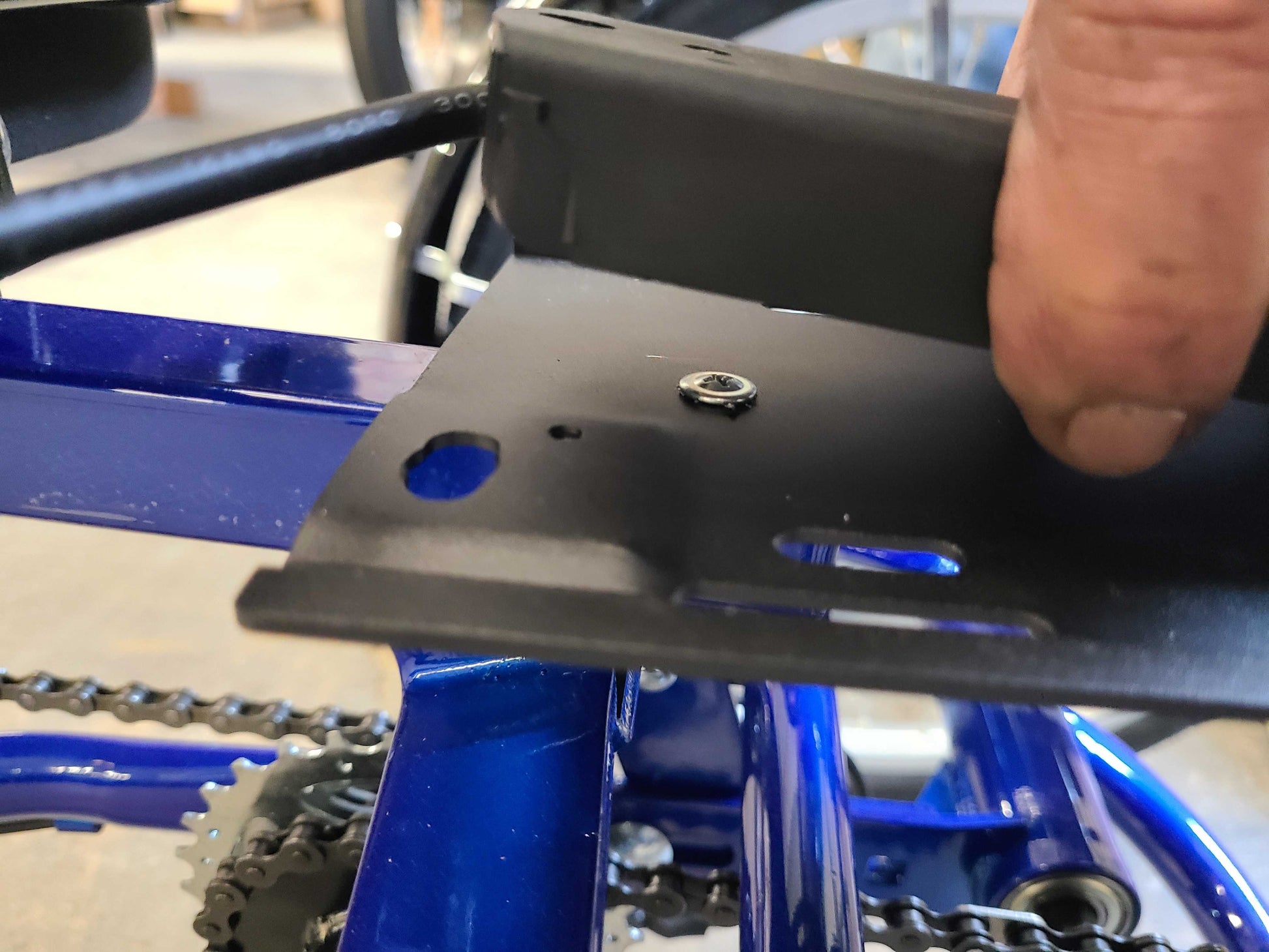

The frame’s pre-tapped mounting point supports the included battery hardware.

The EZ-Tri Classic system installs easily using standard bike tools and the included model-specific hardware.

• Front motor wheel installs into 100 mm dropouts
• Controller, LCD, and wiring use matched connectors
• PAS sensor mounts on the crank (left-side standard)
• Parking-lock brake levers replace stock brake levers
• Both torque arms must be installed; axle nuts must be properly torqued

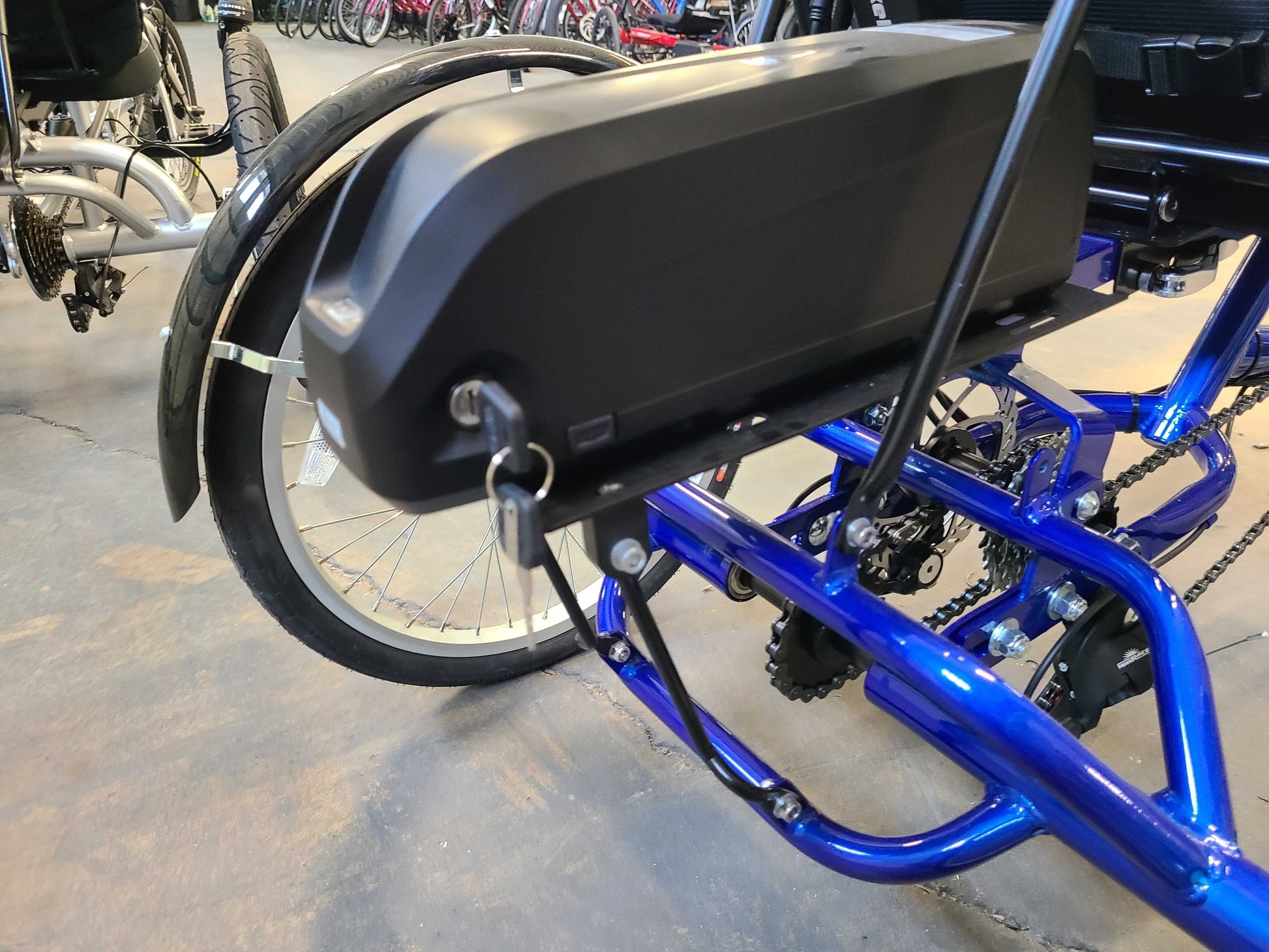

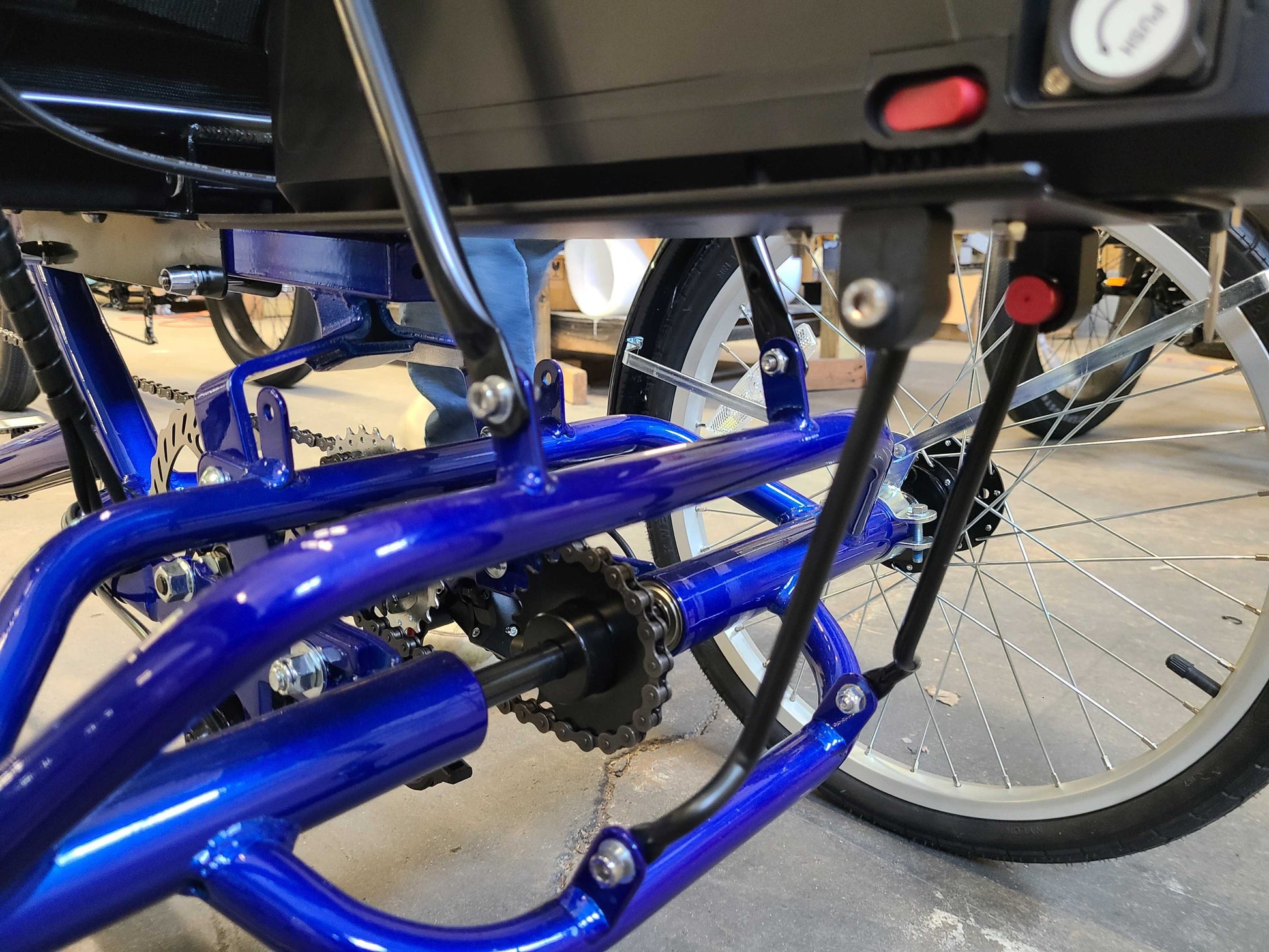

• Battery mounts using the frame’s factory-tapped mounting hole

Correct torque-arm installation, proper cable routing, and secure mounting are essential for long-term reliability.
