Kit - EZ-Tad

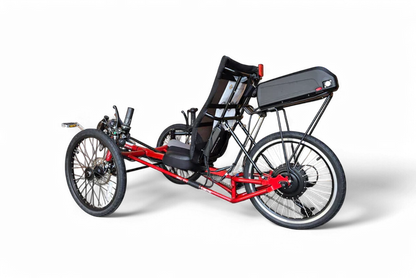

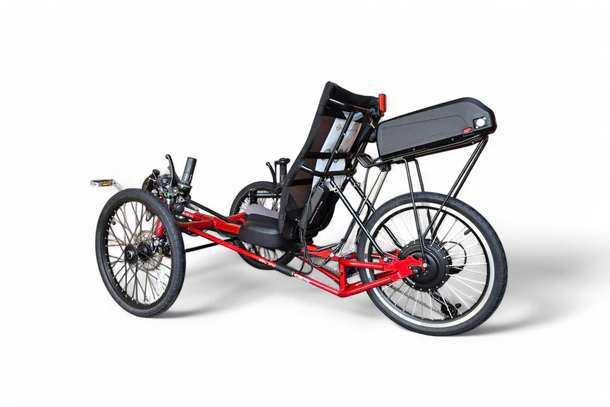

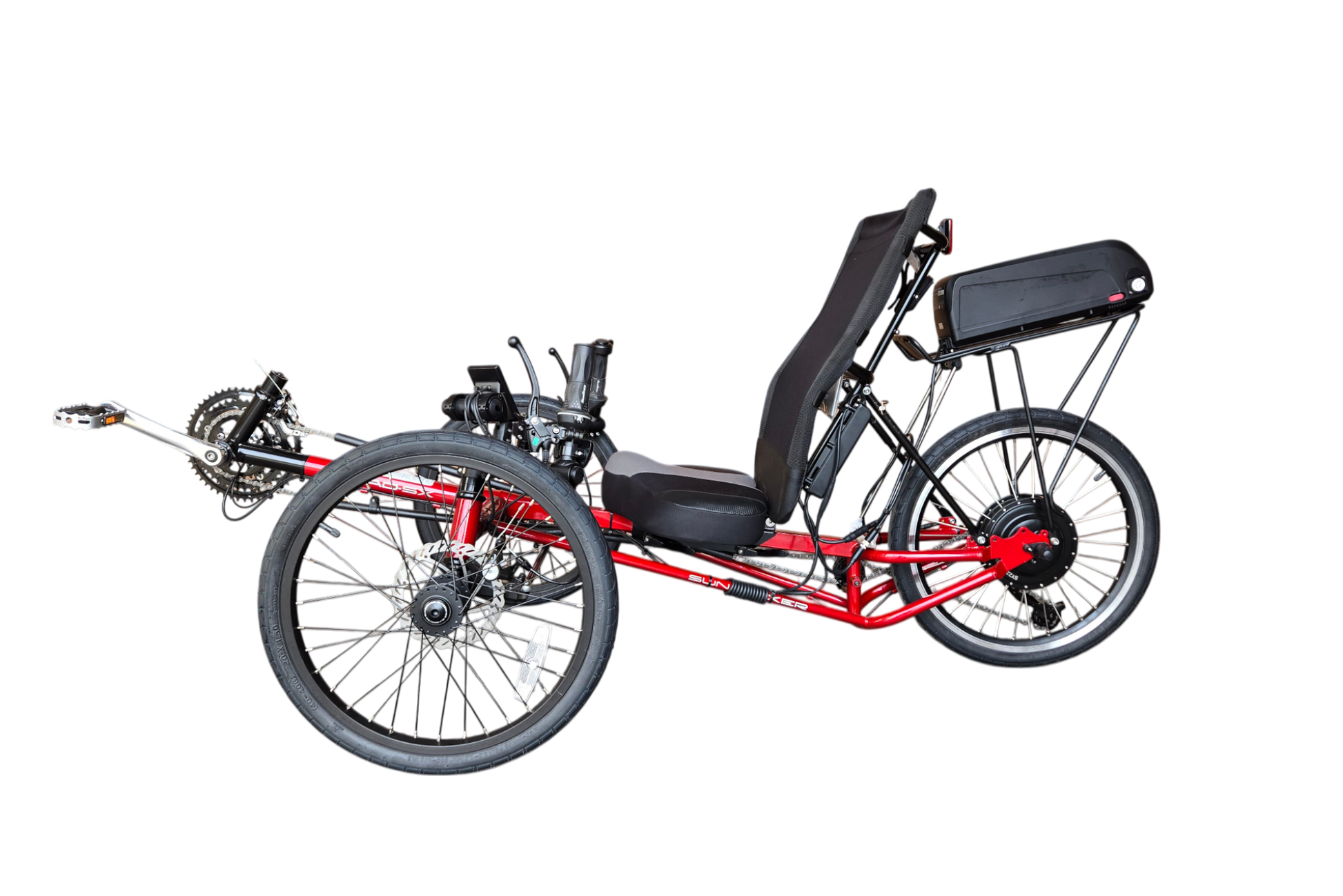

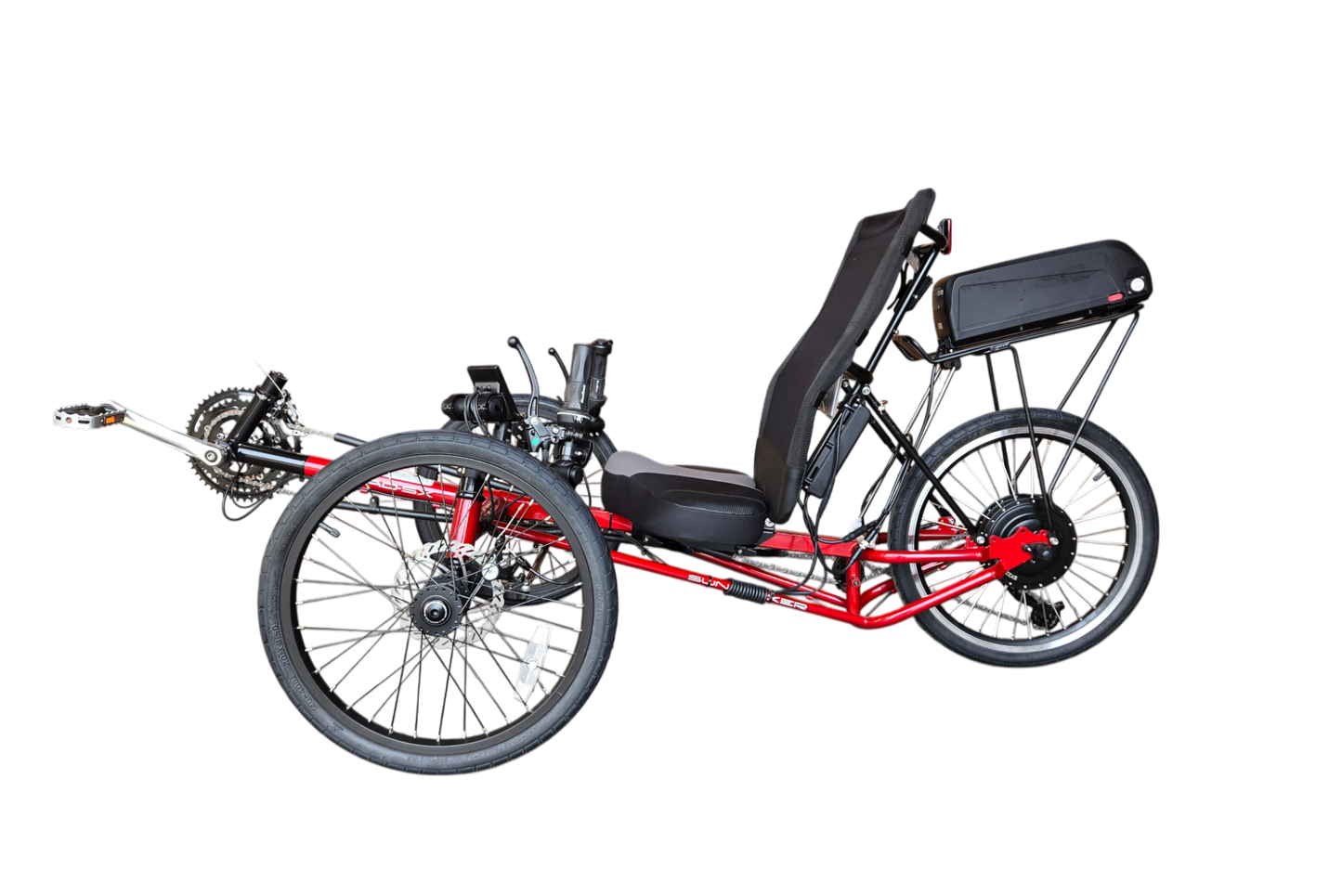

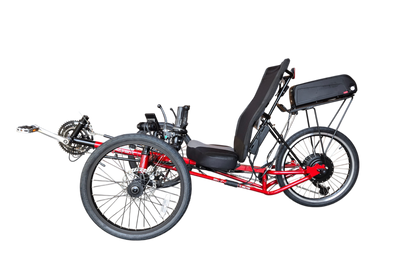

This EZ-Tad–specific E-BikeKit system converts the Sunseeker EZ-Tad SX into a fast, smooth, and efficient electric tadpole trike using a 500W internally geared rear hub motor and an optional 48V 15Ah lithium-ion battery pack.

• Purpose-built configuration for the Sunseeker EZ-Tad SX
• Top speed up to approximately 26 mph
• Estimated 15–45 mile range depending on rider, terrain, and riding style
• Supports pedal-assist and throttle-on-demand

The 500–1000W internally geared motor uses a 5:1 planetary drive paired with a clutch for zero-drag pedaling when unpowered. It delivers excellent efficiency, strong climbing torque, quicker response, and a smaller/lighter profile than equivalent direct-drive systems.

Who’s it for? Riders who want top-end performance, lightweight efficiency, and excellent torque delivery on the EZ-Tad chassis. Recommended for total system loads up to 300 lb (trike + rider + cargo).

EZ-Tad–Specific Extras:

• Locking parking-brake levers

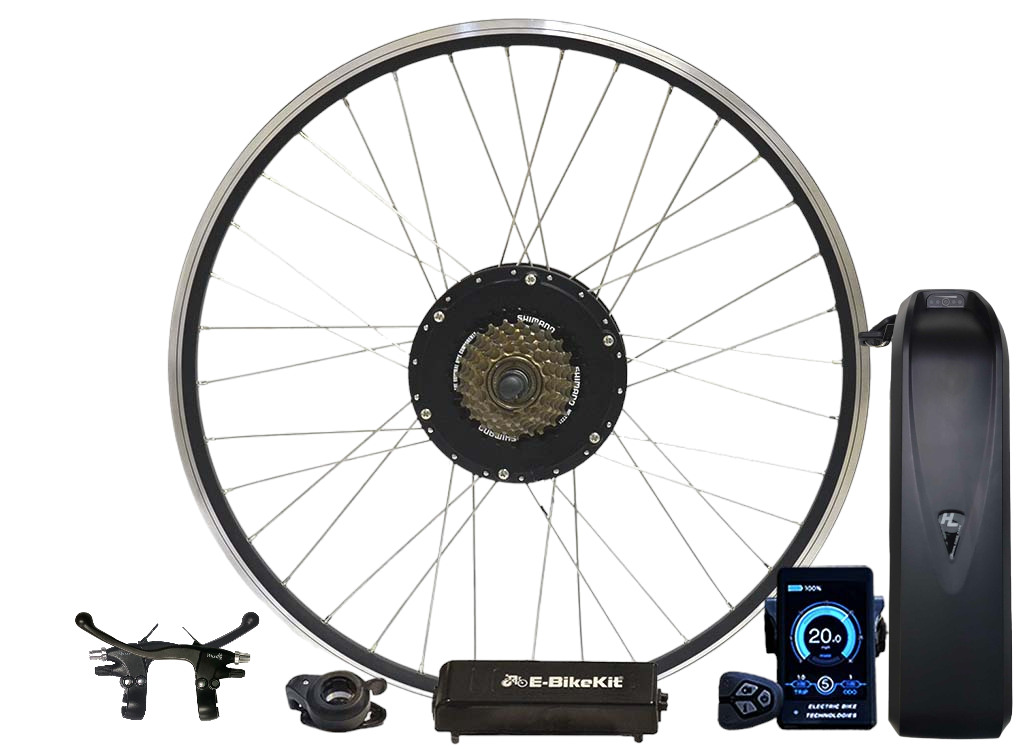

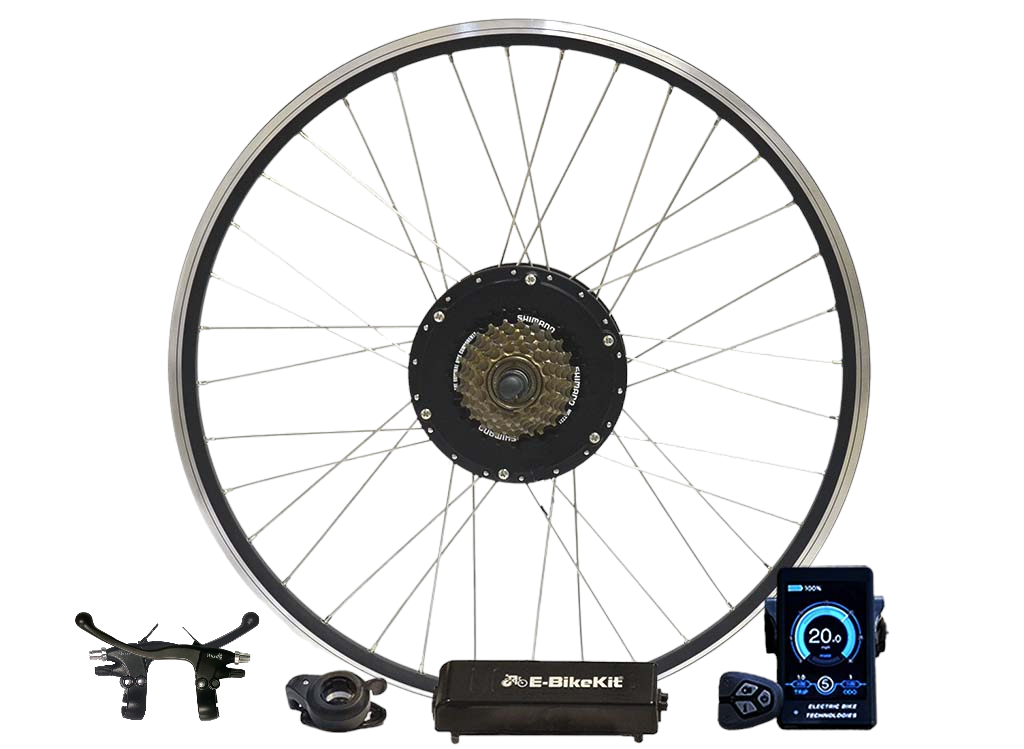

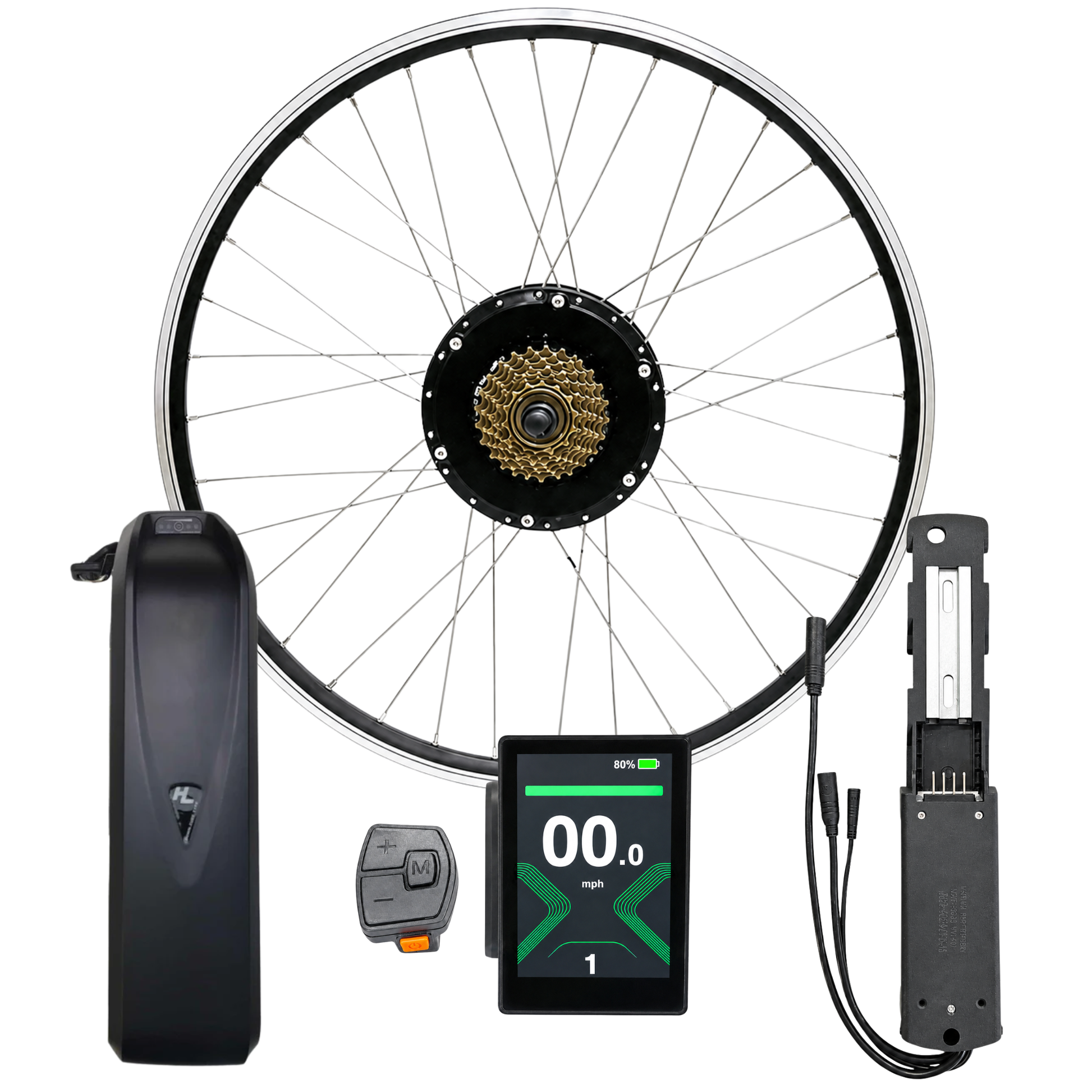

Core Conversion Components:

• USA hand-built 20″ rear wheel with 500W geared hub motor (disc-brake compatible)

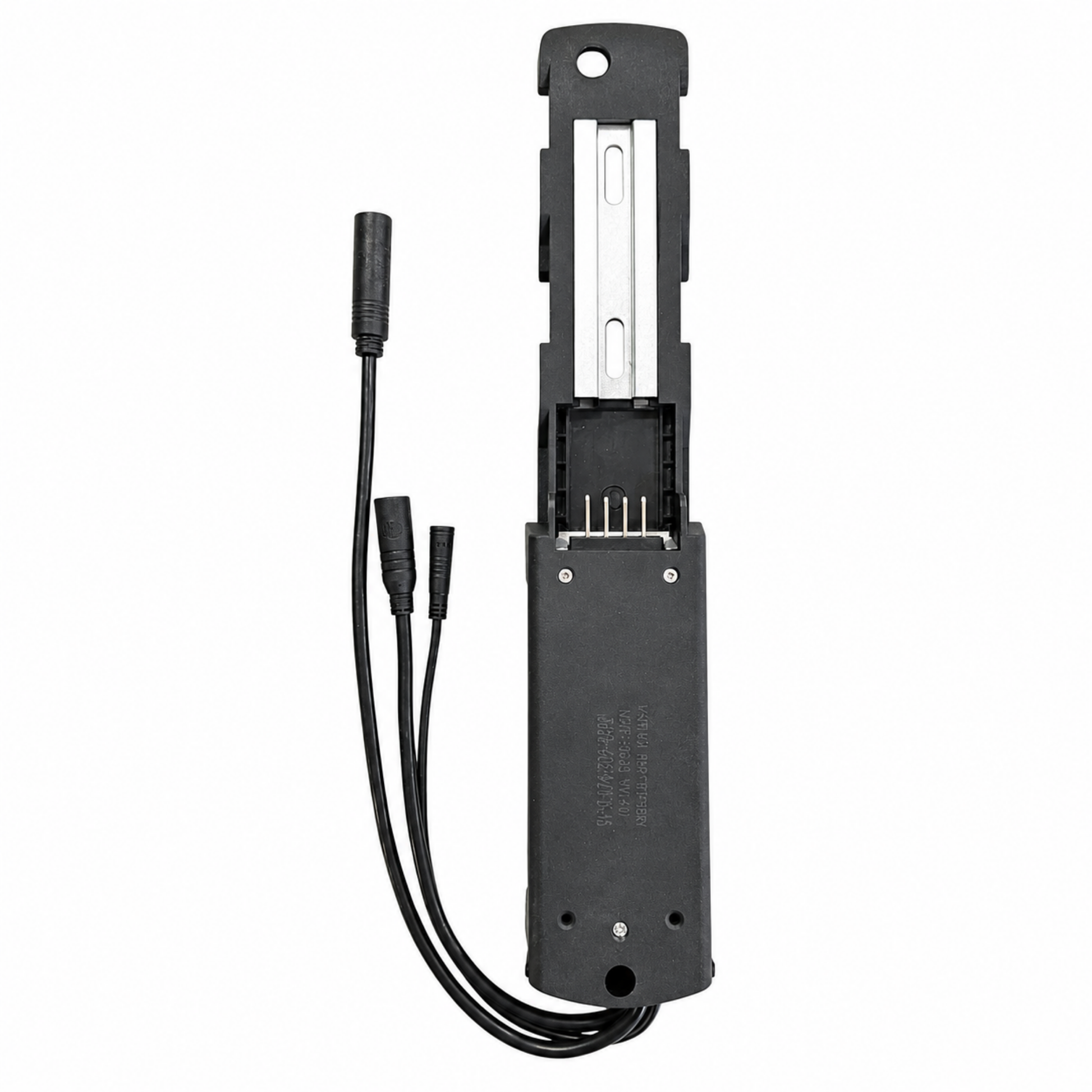

• 48V compatible 22A 12FET controller

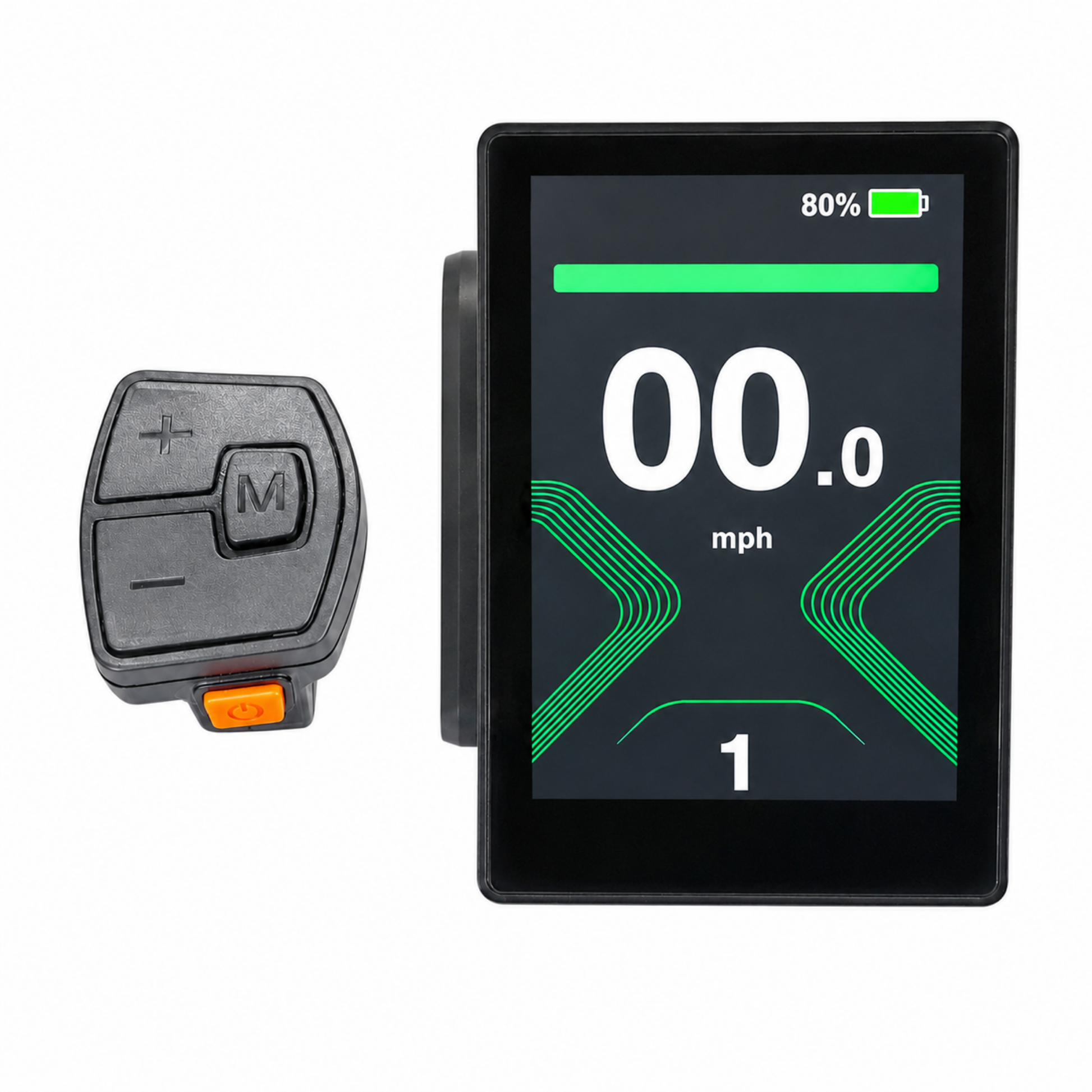

• Programmable LCD dashboard

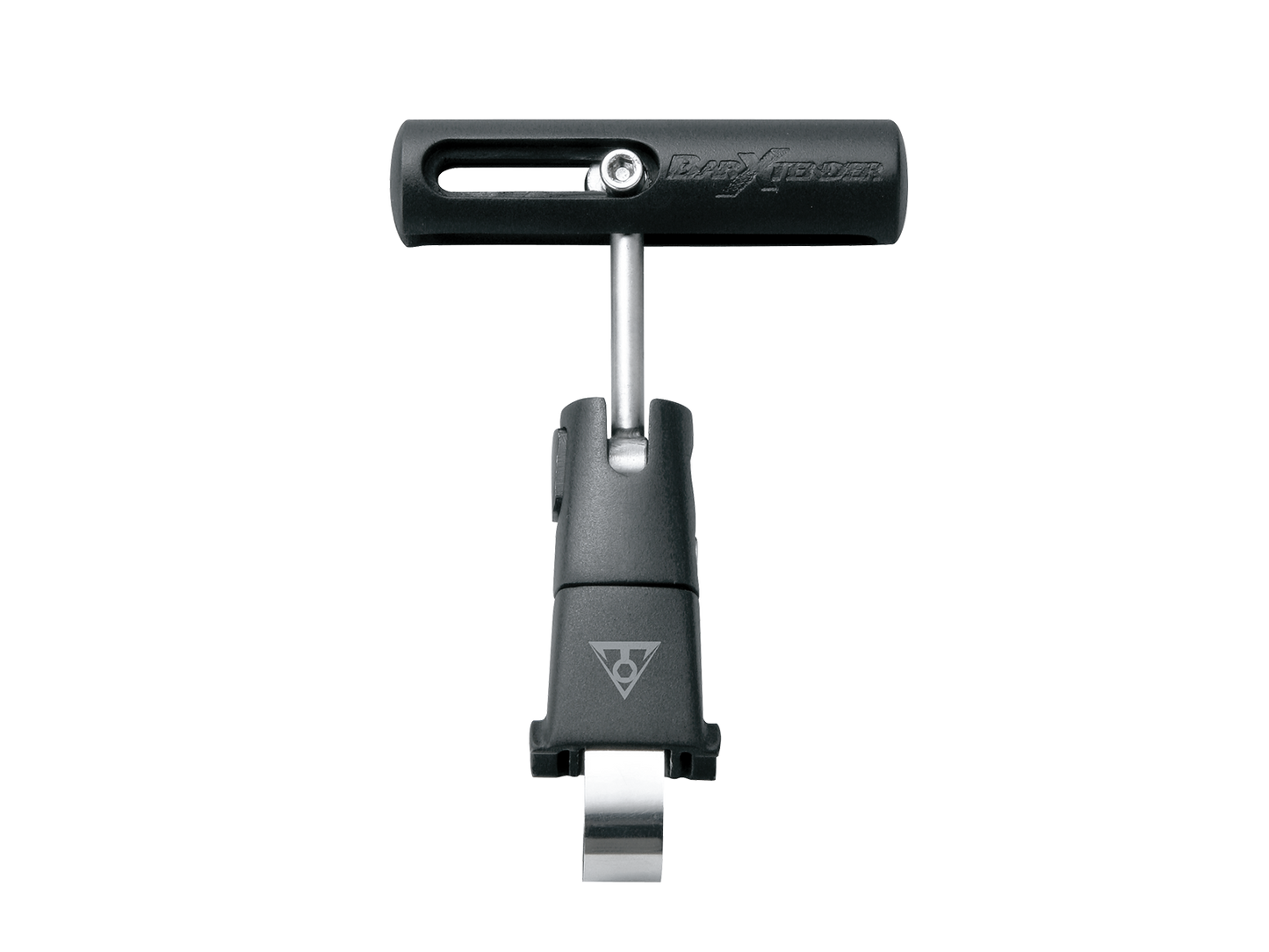

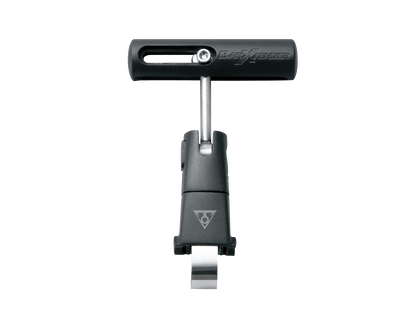

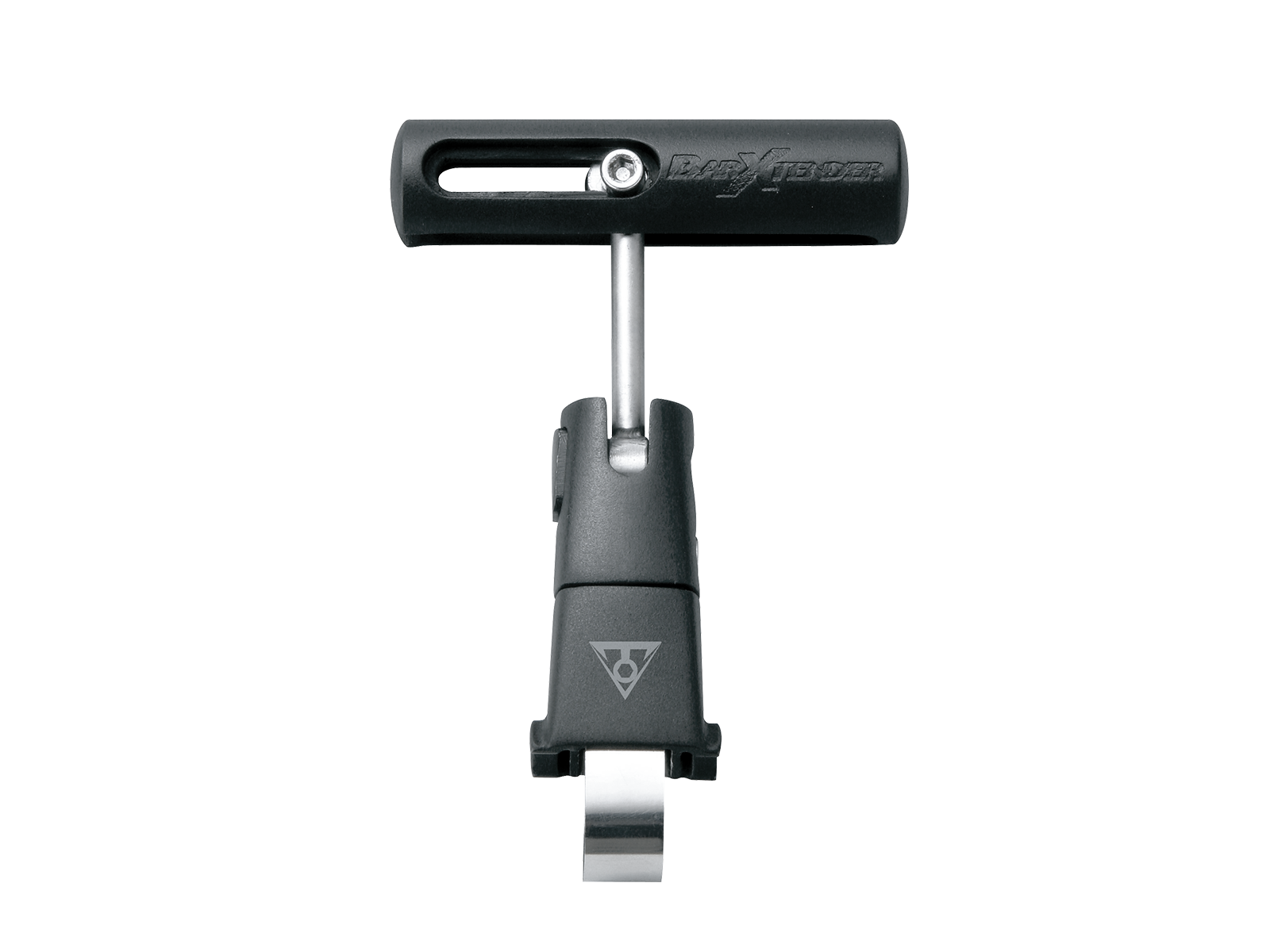

• Topeak Bar Extender to mount LCD
• 12-magnet split PAS disc

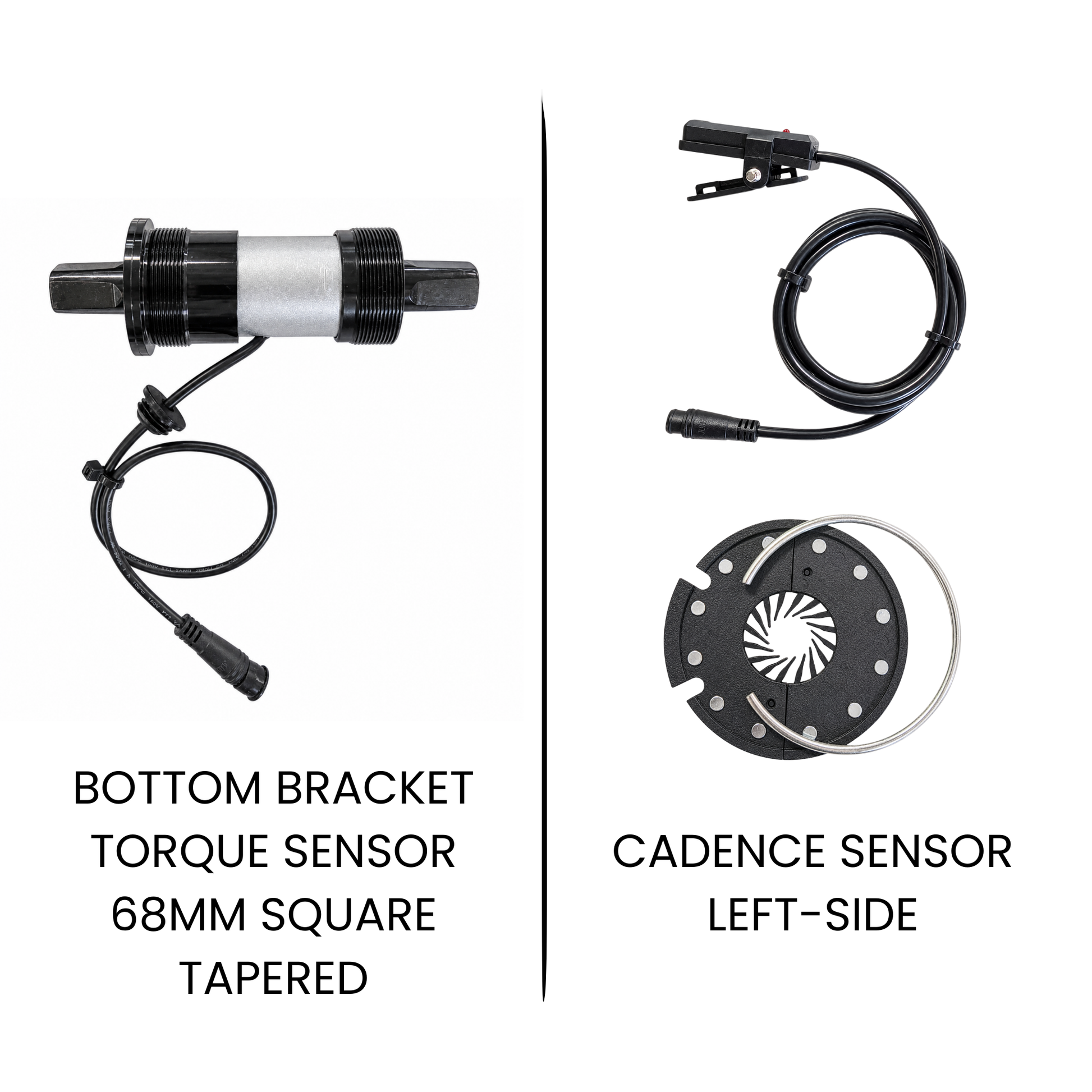

• PAS sensor – left-side mount (right side by request)

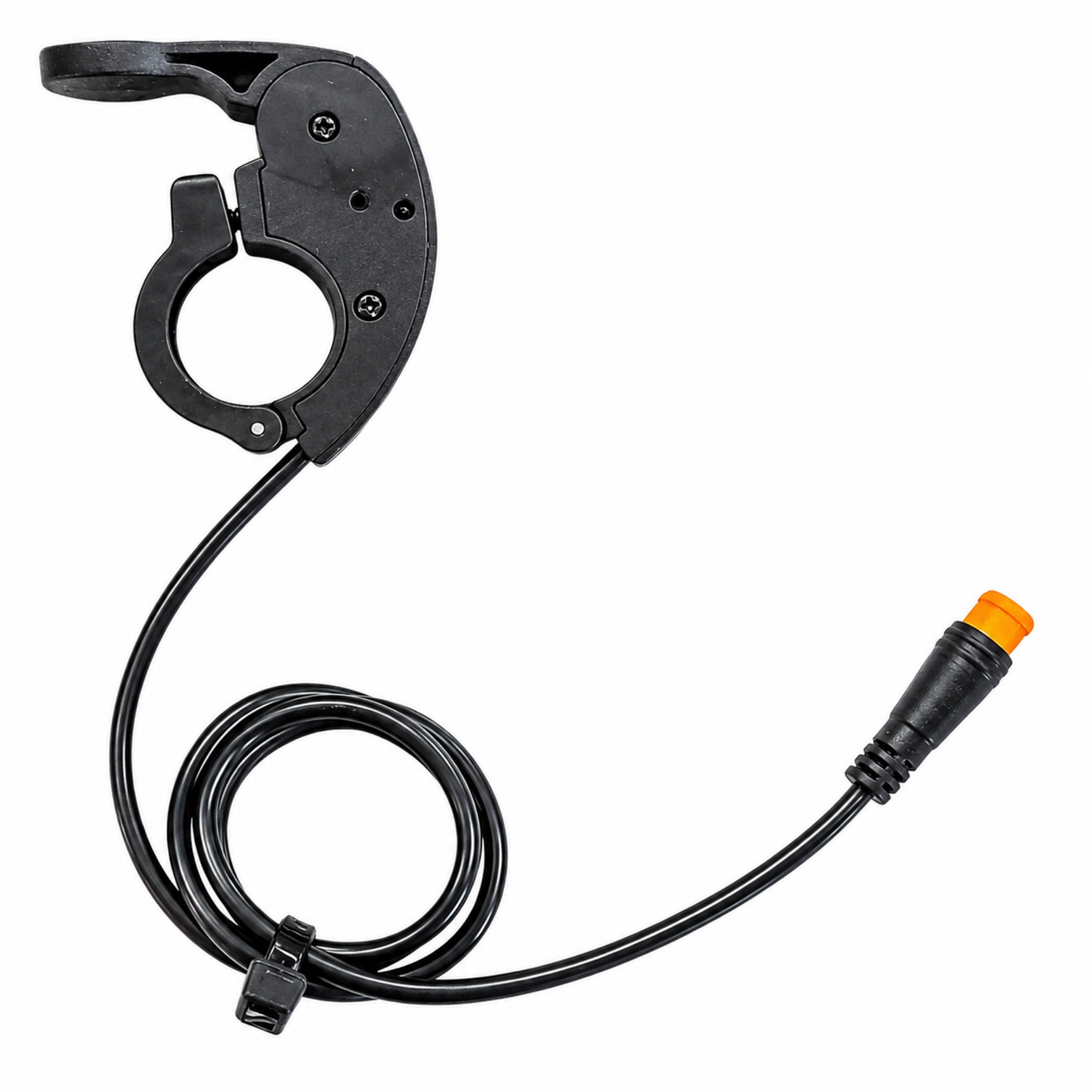

• Thumb throttle

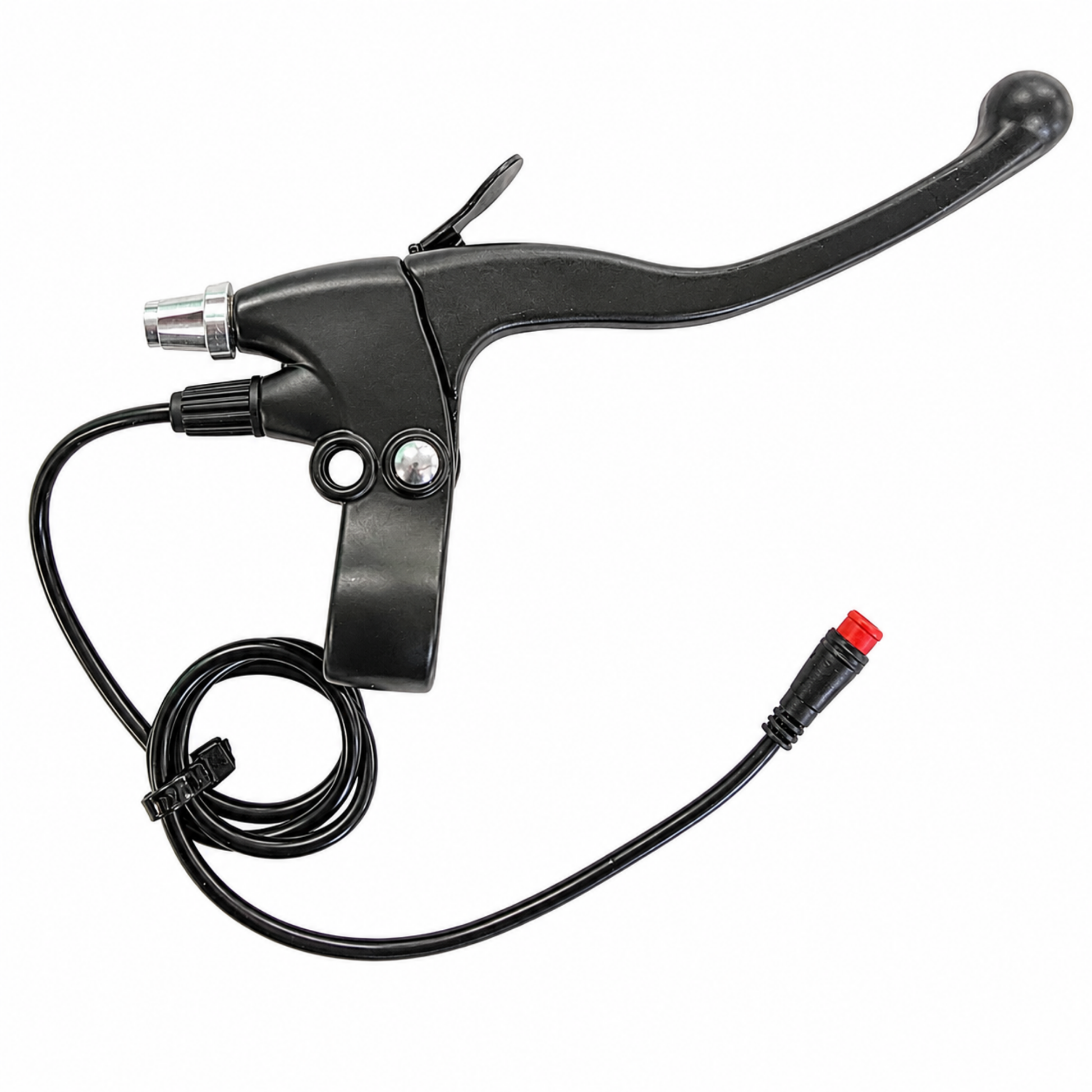

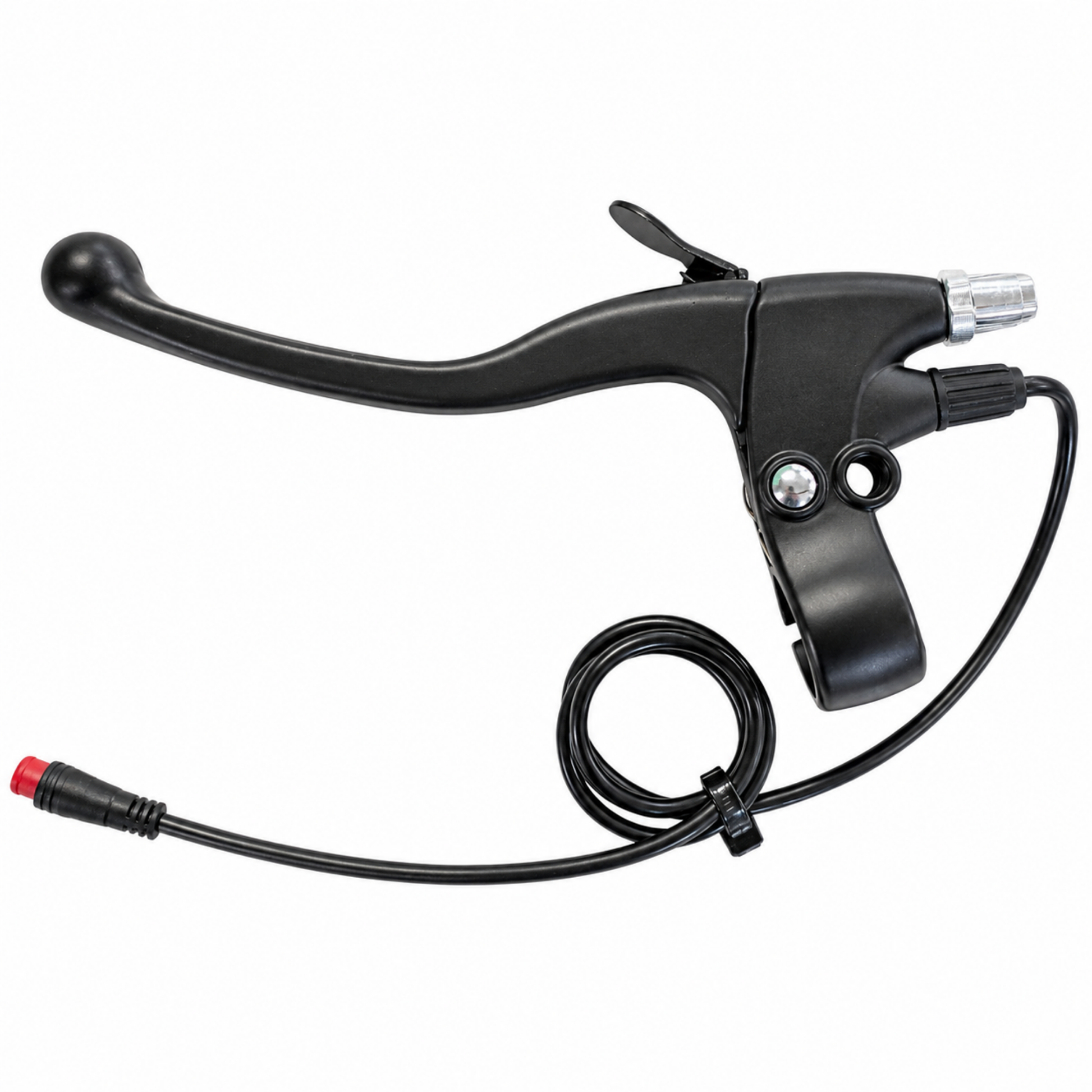

• Left & right e-brake levers with parking lock

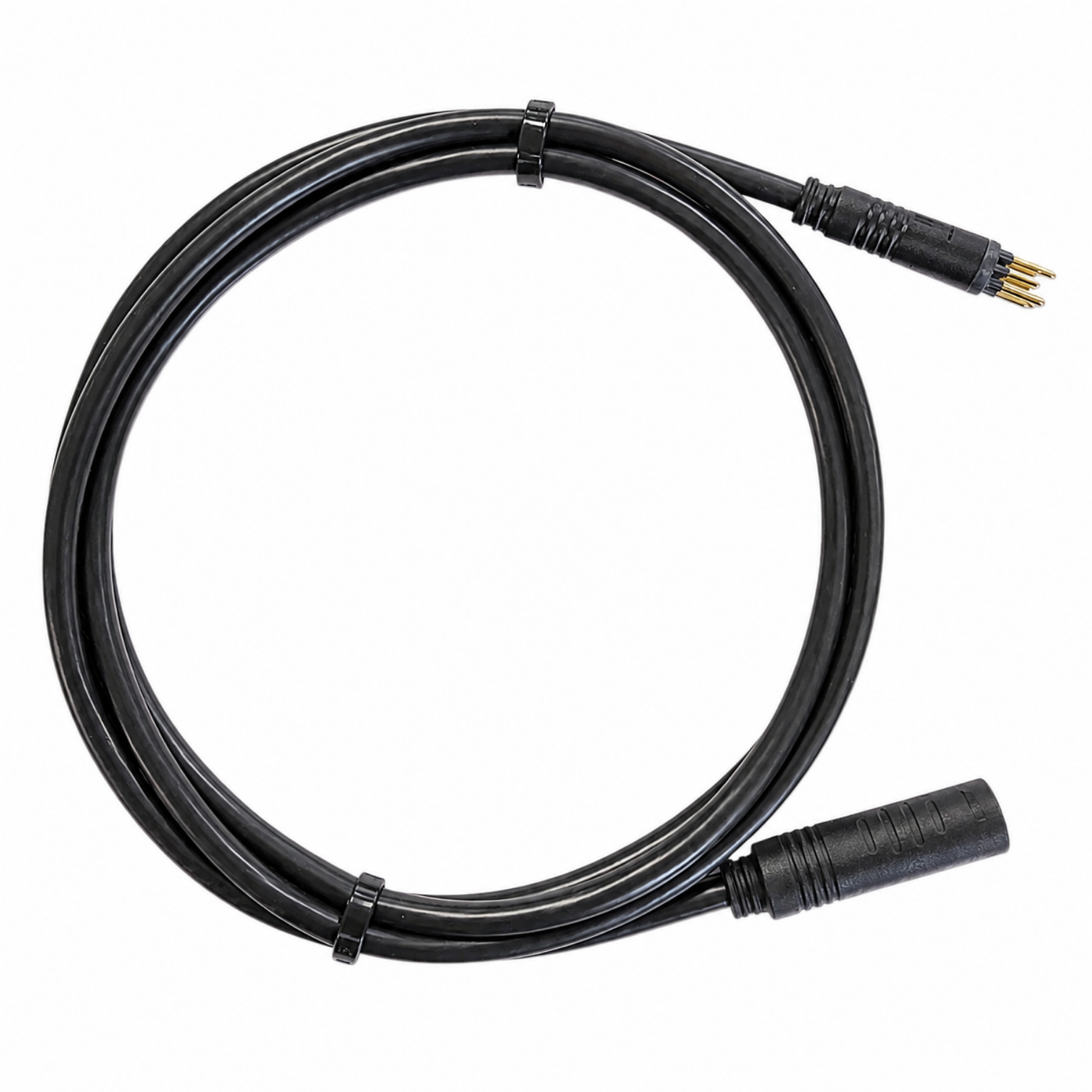

• Main motor cable

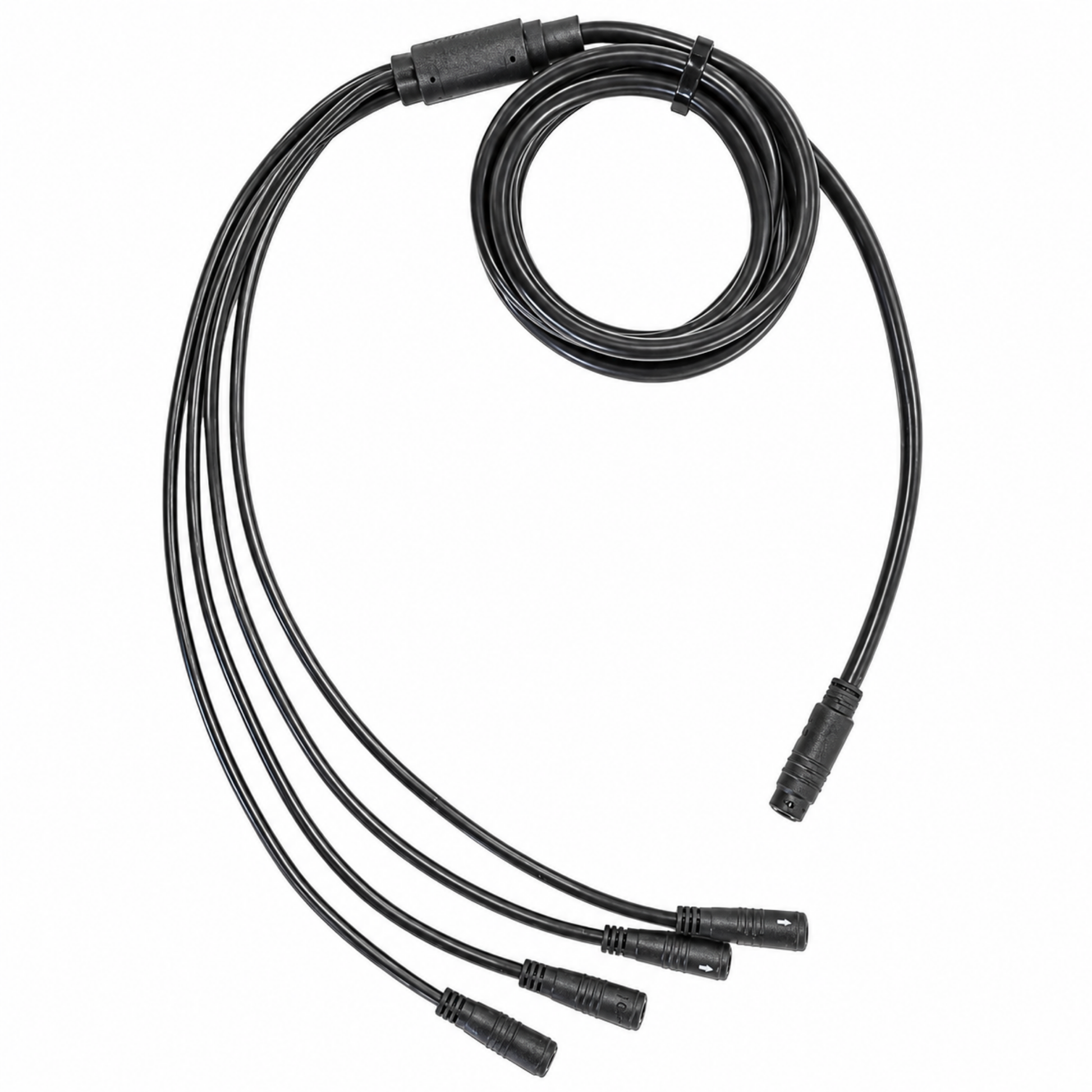

• 4-to-1 accessory cable
• Battery wire harness (included only when no battery is ordered)
• Freewheel
• Battery & charger (only when ordered)
• Zip ties, C-washers, and torque arms

Motor Specifications

• Brand: EBikeKit LLC
• Type: Internally geared, brushless, disc-brake compatible
• Power: 500W nominal / >1000W peak @ 48V
• Max Torque: 84 Nm @ 48V
• Max RPM: ~320 RPM @ 48V
• Cable: 8″ axle exit, 3-phase / 5 hall sensors
• Connector: Round 8-pin (10.4 mm)
• Motor Weight: ~9.4 lb (4.26 kg)
• Rear Dropout Requirement: 135 mm
• Total Load Limit: ~300 lb

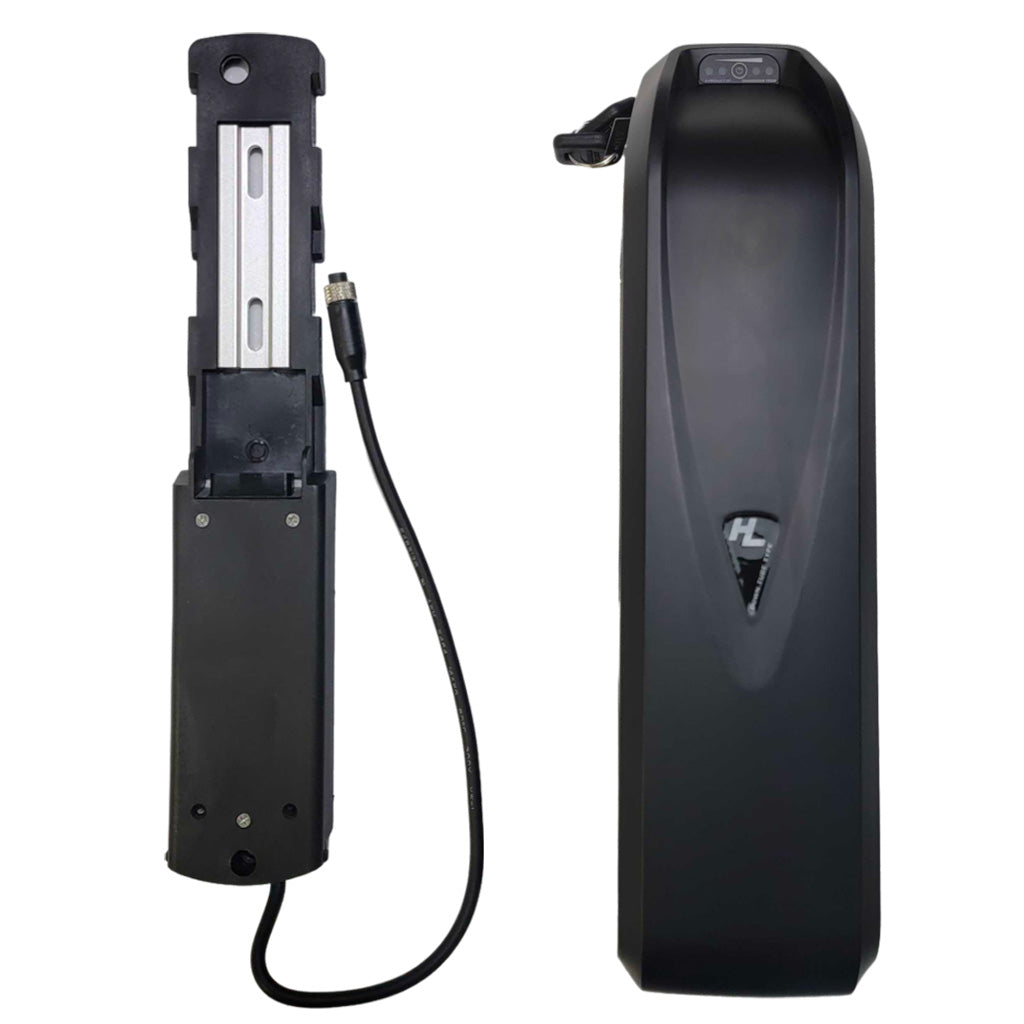

This kit may be ordered with or without the 48V 15Ah lithium-ion battery pack.

• Range: 15–45 miles depending on terrain & input
• Charge Time: ~5 hours (3A charger)
• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: ~720Wh
• Total Weight: ~10.1 lb (4.6 kg)
• Cell Structure: 18650, 13S4P
• Life Cycles: ~500–800
• Max Continuous Discharge: 16A
• BMS Protection: 20A
• Discharge Cut-Off: ~37.5V
• Max Charge Voltage: 54.6V
• Internal Resistance: ≤230 mΩ
• Operating Temp (Charge): 0°C–113°F
• Operating Temp (Discharge): –68°F–140°F
• Storage Temp: 0°C–104°F
• Certifications: UN38.3, MSDS, UL-listed cells

This tab provides a clear reference for dealers comparing this conversion system to the fully assembled consumer model.

Comparable Complete Trike:

• See the professionally built EZ-Tad electric trike:
  Electric EZ-Tad SX – ElectricTrike.com
• Use this listing to benchmark consumer expectations, configuration, and overall presentation.
• Fully assembled trikes delivered to customers normally include about $300 freight. This should be factored in when discussing comparable value.

Dealer Support Commitment:

• Real-time dealer support via text, phone, and email
• Direct access to system builders and wheel technicians
• Guidance on PAS placement, tadpole cable routing, and torque-arm installation
• Custom wheel builds available when needed
• Fast, practical answers for shop-floor installation questions

Our mission: Give every dealer the confidence, clarity, and support needed to deliver a clean, professional EZ-Tad installation.

This conversion system is engineered specifically for the Sunseeker EZ-Tad SX recumbent tadpole trike.

• Fits standard 135 mm rear dropout spacing
• Optimized for tadpole-style stability and handling
• Supports total loads up to ~300 lb

Minor adjustments may be required depending on frame age or configuration.

The EZ-Tad system installs using basic bike tools and includes all required hardware for most stock frames.

• Motor wheel installs directly into the 135 mm rear dropouts
• Controller, LCD display, and cabling use plug-matched connectors
• PAS sensor mounts on the crank (left side standard)
• Locking parking-brake levers replace stock brake levers
• Torque arms must be installed and axle nuts torqued properly

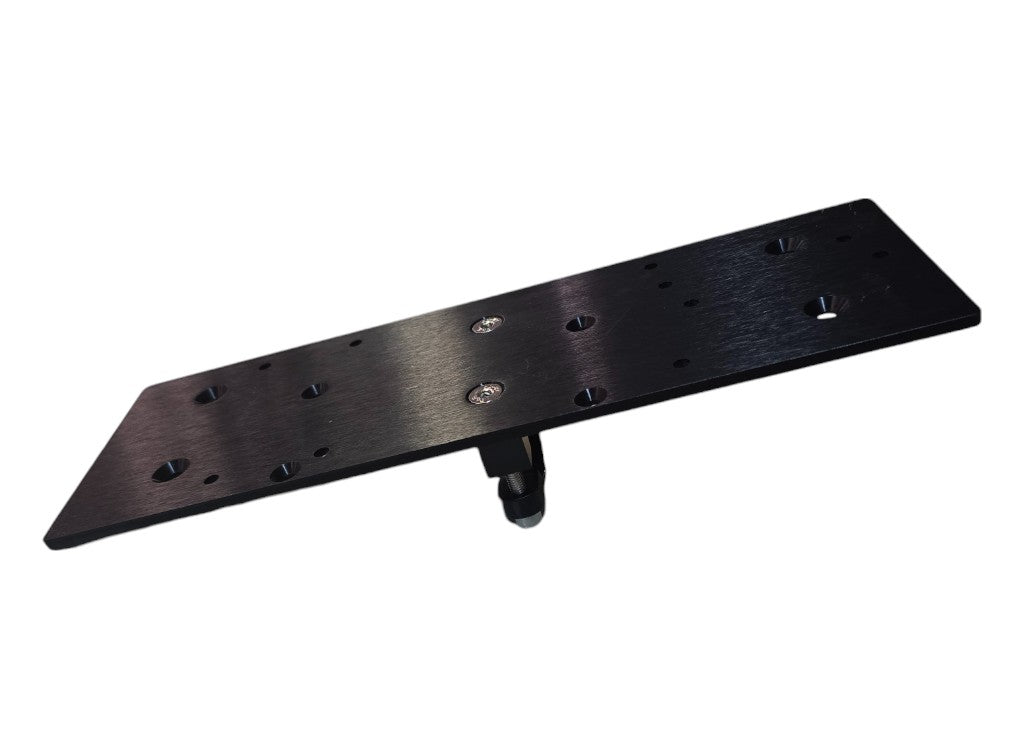

• Battery must be securely mounted using appropriate hardware

Proper torque-arm installation, correct cable routing, and securely mounted components are essential for safe and reliable operation.
