Kit - EZ-3 HD

This EZ-3 HD–specific E-BikeKit conversion system is designed to convert the Sun EZ-3 USX HD delta trike into a powerful, durable, and responsive electric trike.

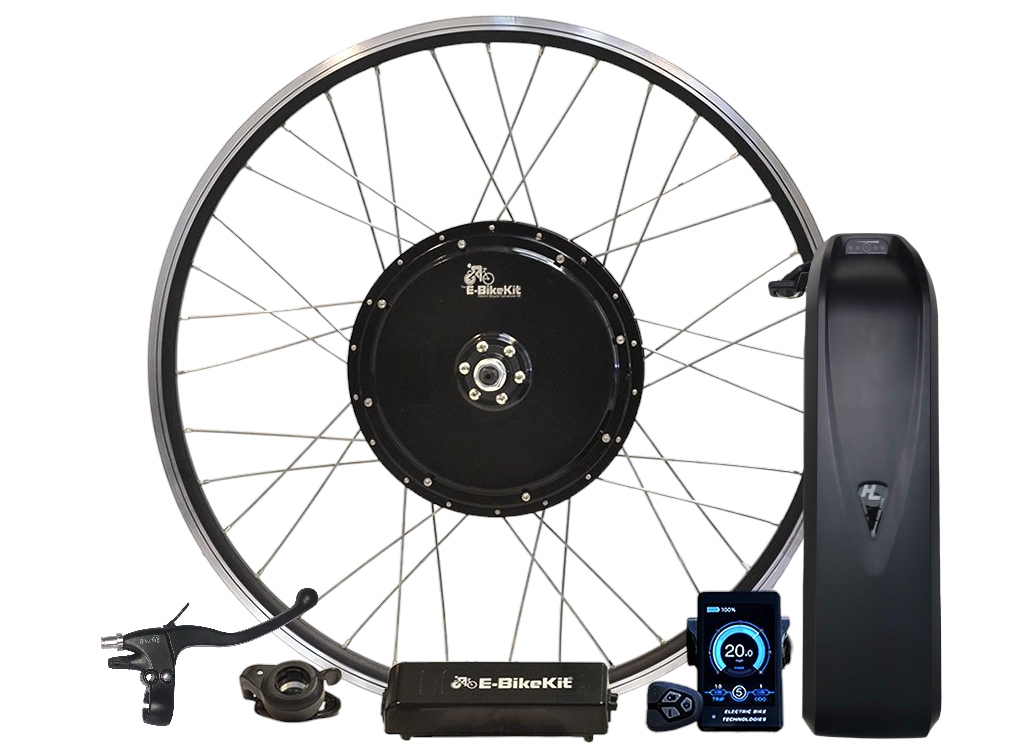

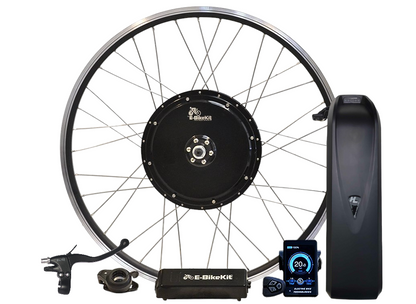

The system includes a USA hand-built 20″ front motor wheel, integrated SINET™ controller, 3.5″ color SINET™ LCD with USB charging port, 48V 15Ah lithium-ion battery, 3A charger, integrated-controller battery cradle, EZ-3 HD battery mounting plate, Topeak Bar Extender, throttle, locking e-brake levers, matched wiring, dual torque arms, and model-specific installation hardware.

• Configuration developed specifically for the Sun EZ-3 USX HD
• USA hand-built 20″ front motor wheel
• Integrated SINET™ controller housed in the battery cradle
• 48V 15Ah battery and 3A charger included
• EZ-3 HD battery mounting plate included
• Topeak Bar Extender included for LCD mounting
• Choice of cadence pedal assist or bottom bracket torque sensing
• Throttle-on-demand included with either pedal-assist option
• Estimated range of approximately 15–45 miles depending on conditions
• Designed for heavy-duty total loads up to approximately 600 lb

Choose your pedal-assist system:

• Cadence Sensor: Activates motor assistance when crank rotation is detected.
• Bottom Bracket Torque Sensor: Measures rider effort and provides a smoother, more natural, proportional level of motor assistance.

The pedal-assist type is the only selection required. The motor wheel, integrated controller, battery, charger, battery cradle, EZ-3 HD mounting plate, Topeak Bar Extender, LCD, throttle, wiring, locking e-brake levers, and model-specific installation hardware are included with every EZ-3 HD conversion system.

Who’s it for? Riders and dealers looking for a heavy-duty, model-specific EZ-3 HD conversion system with matched SINET™ components, a professionally built motor wheel, and direct technical support.

This system includes the battery, charger, integrated controller, motor wheel, battery mounting plate, Topeak Bar Extender, and EZ-3 HD–specific installation components. The only selection required is the pedal-assist type: cadence or bottom bracket torque sensing.

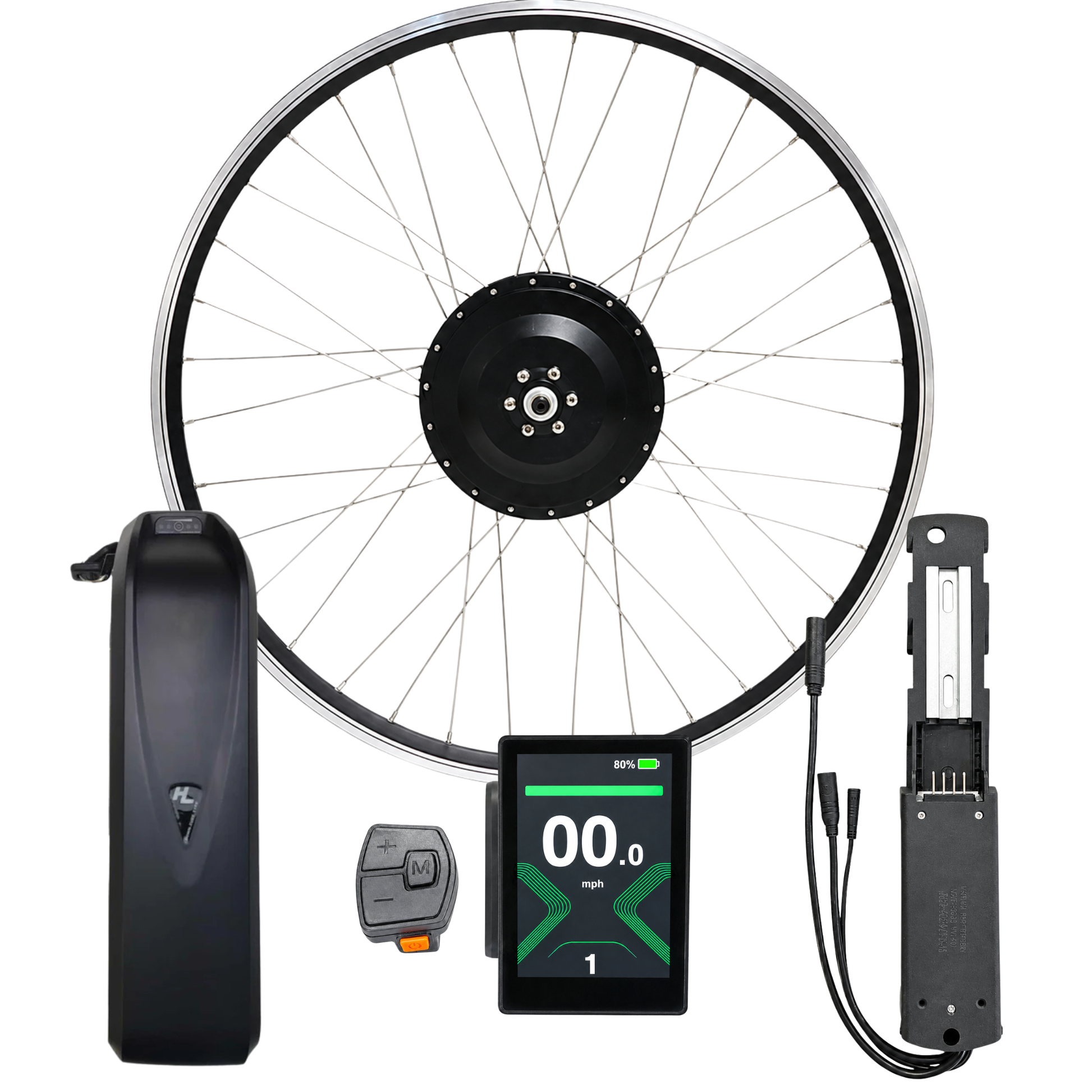

EZ-3 HD Conversion System Components:

• USA hand-built 20″ front motor wheel with rim strip
• Integrated SINET™ controller housed in the battery cradle

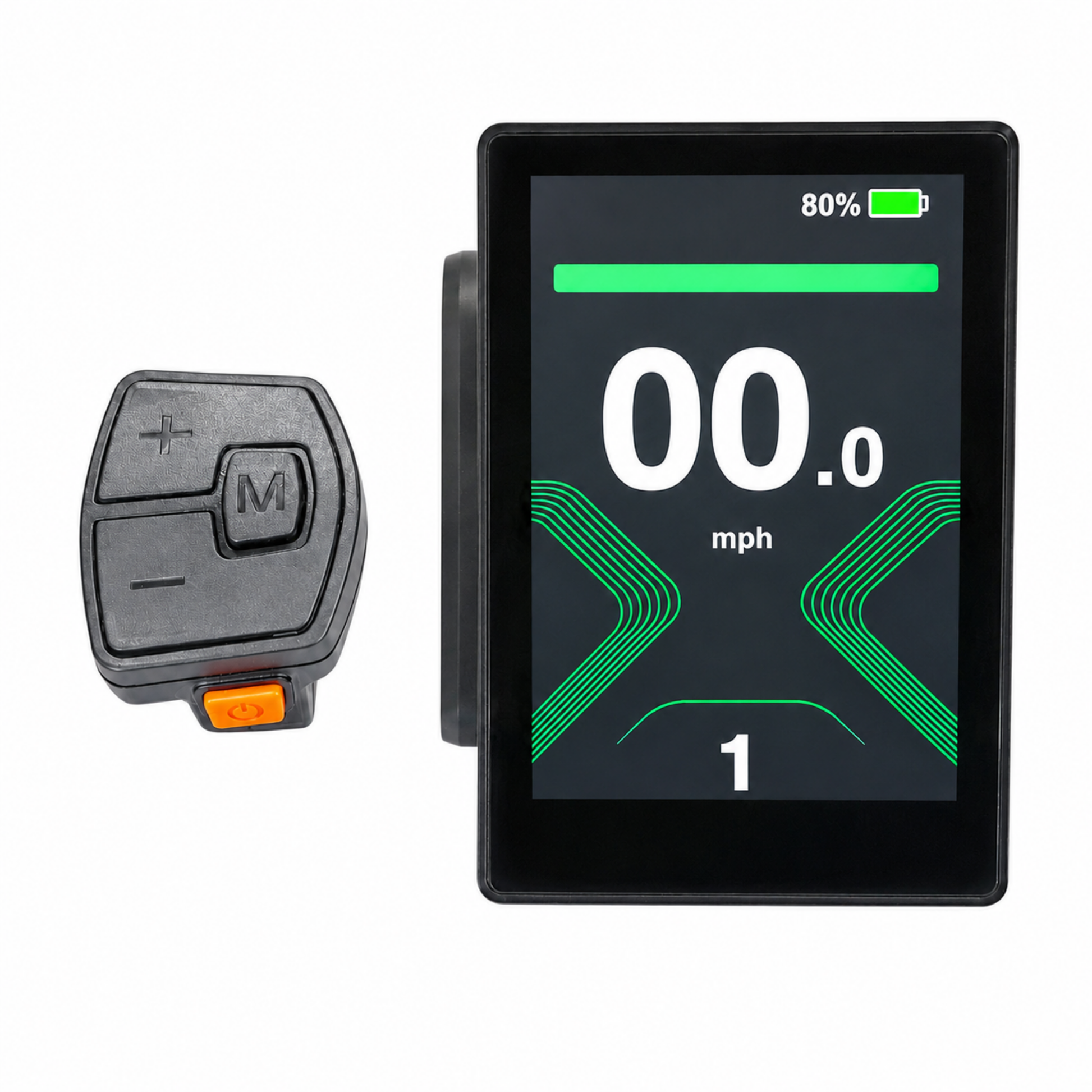

• 3.5″ color SINET™ LCD with USB charging port

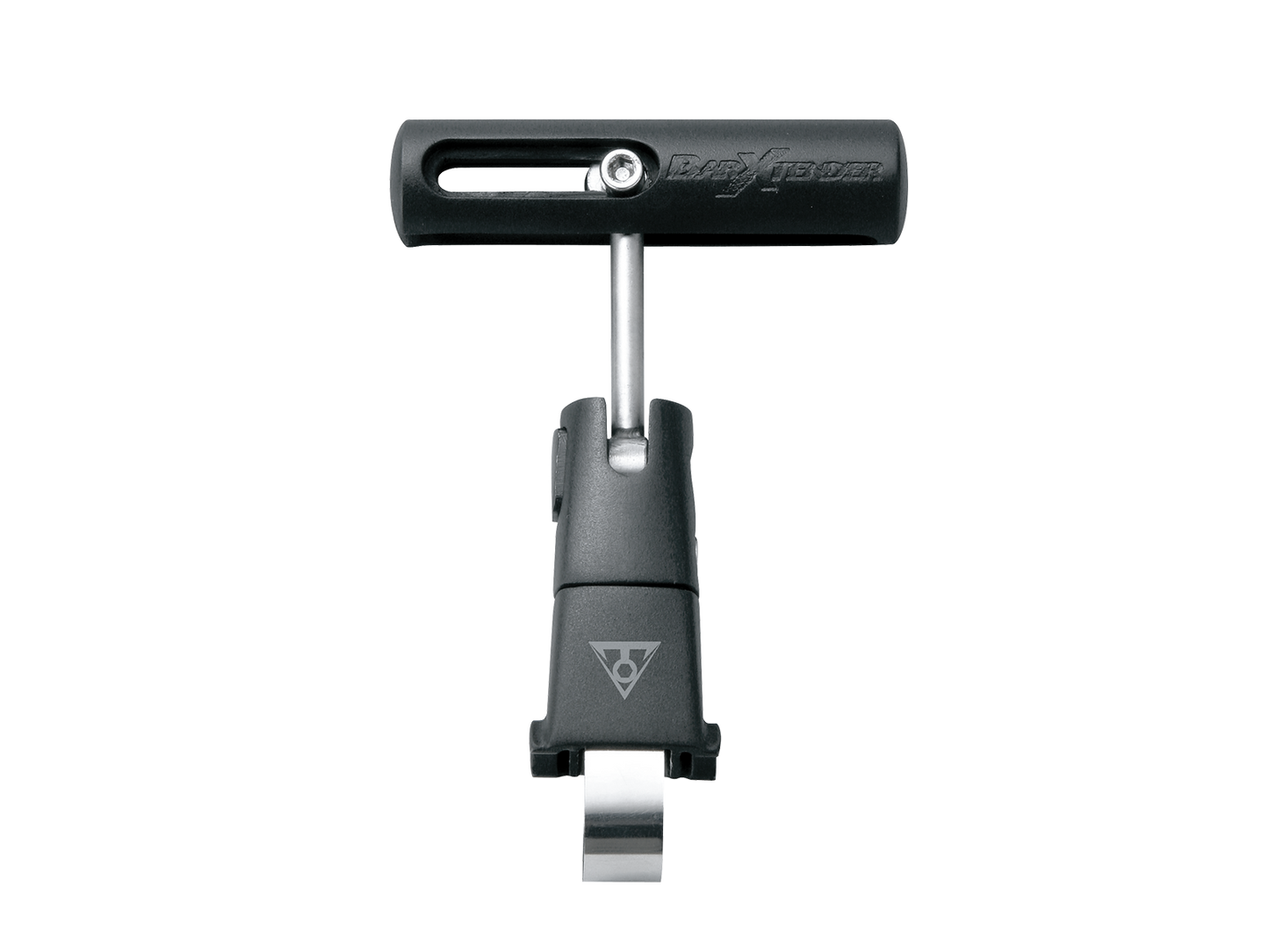

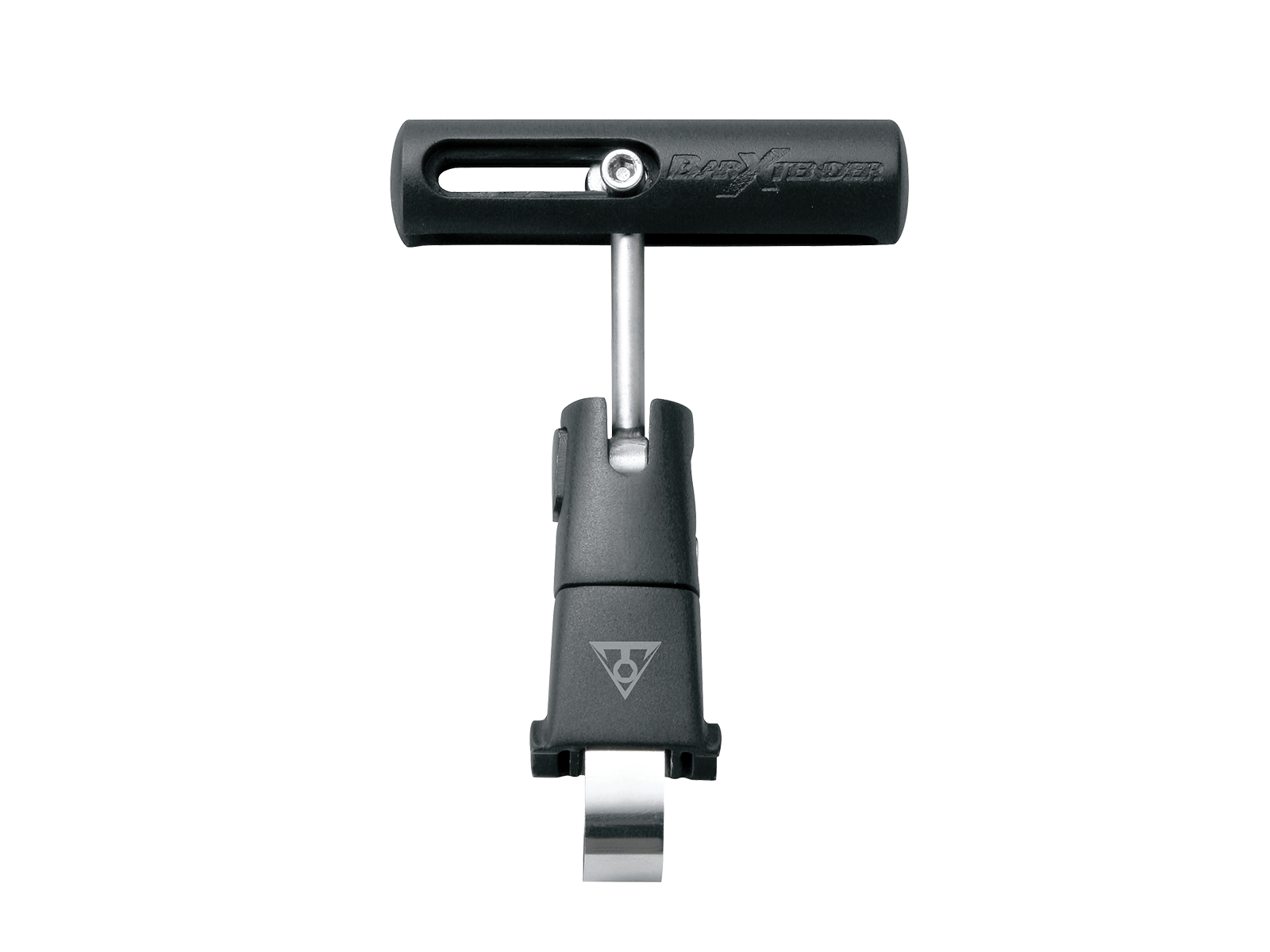

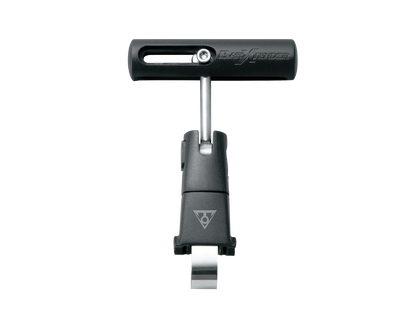

• Topeak Bar Extender for LCD mounting

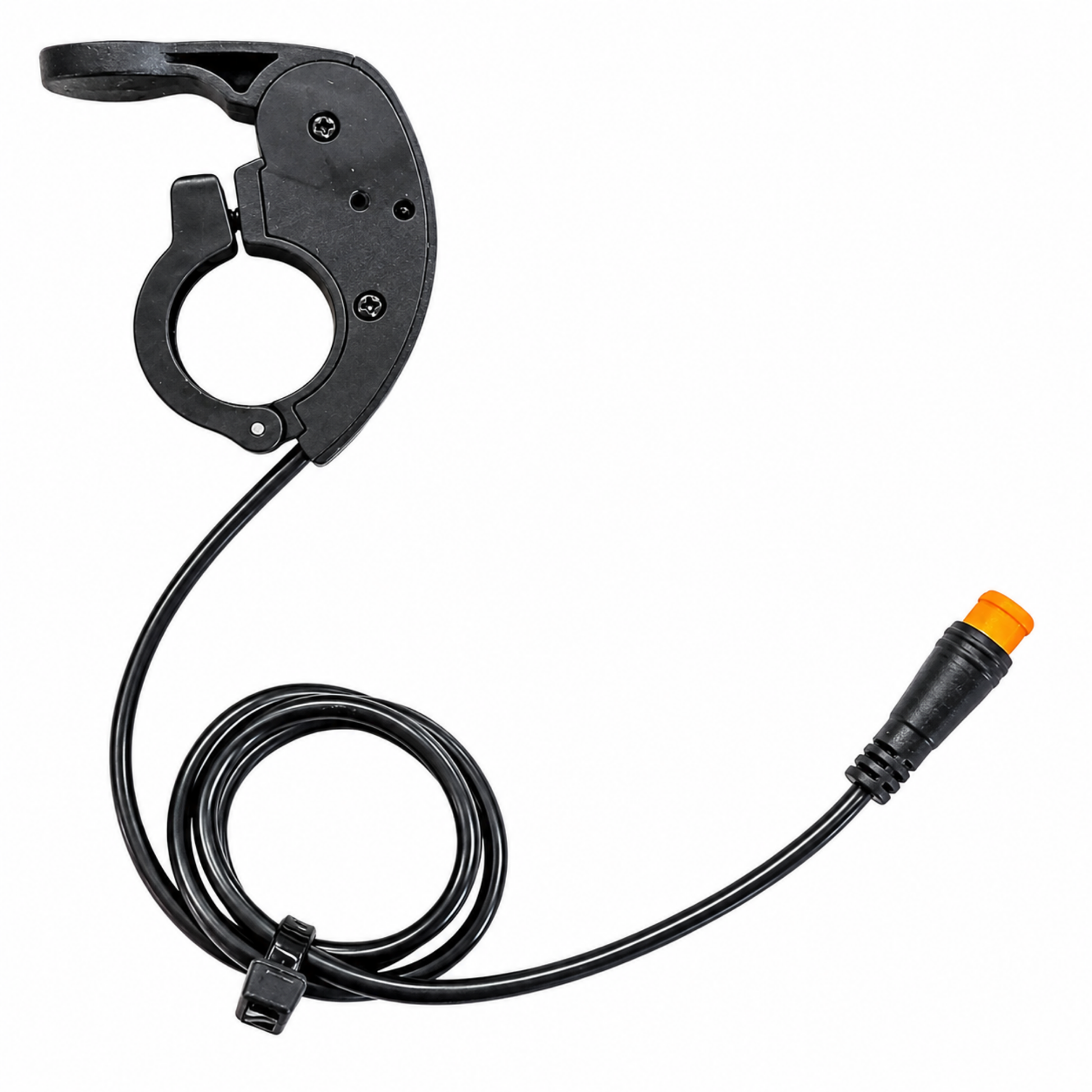

• Thumb throttle

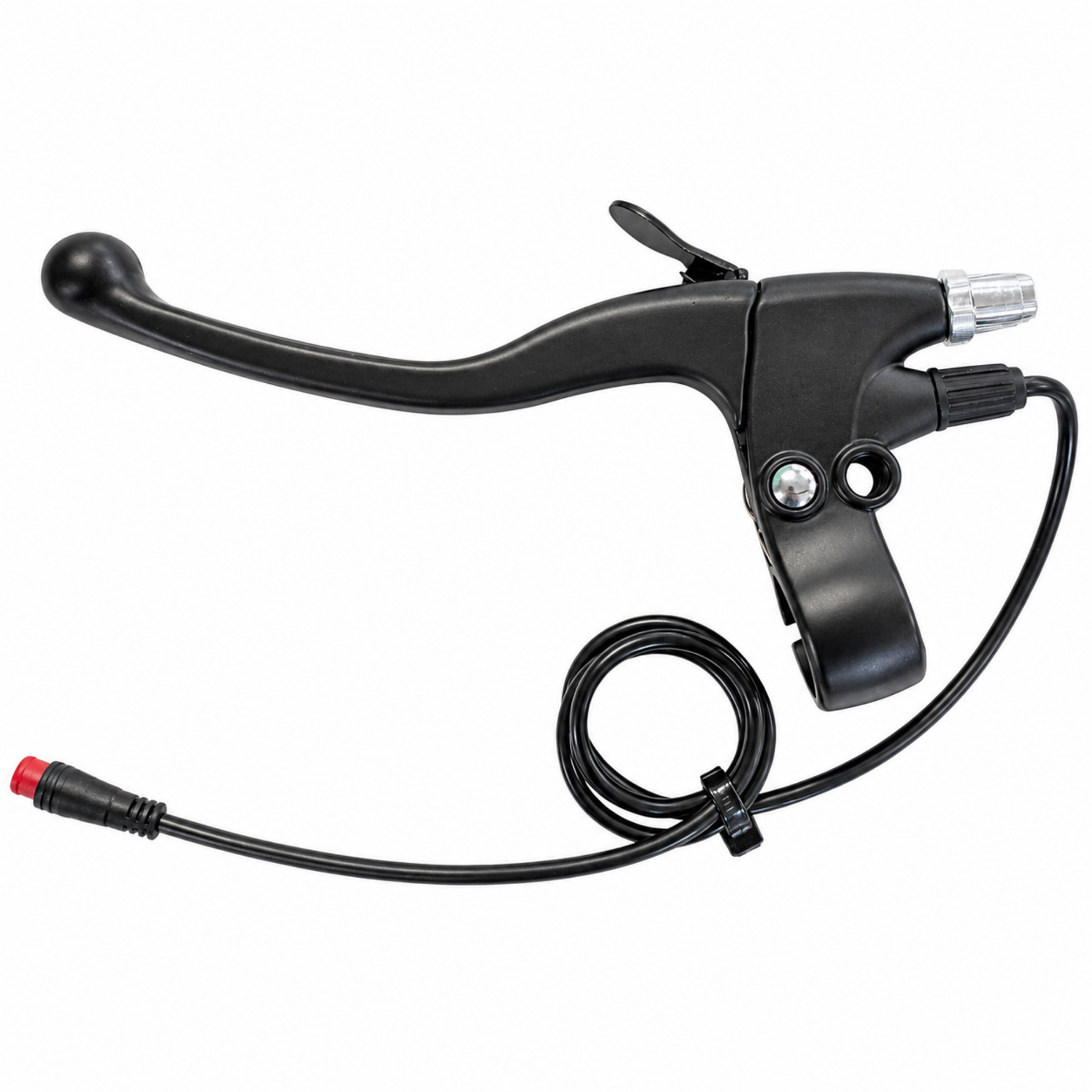

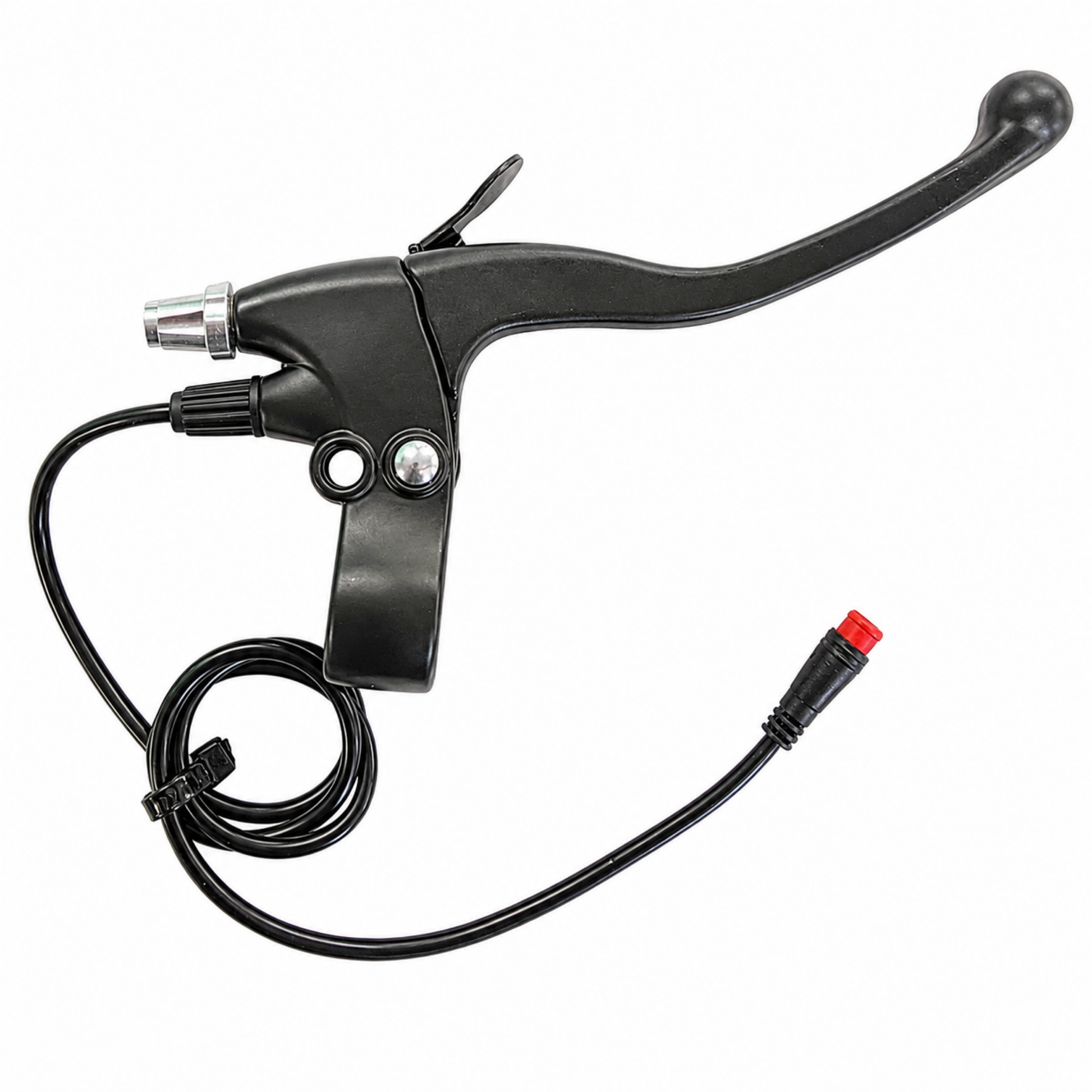

• Left and right locking e-brake levers with motor cutoff

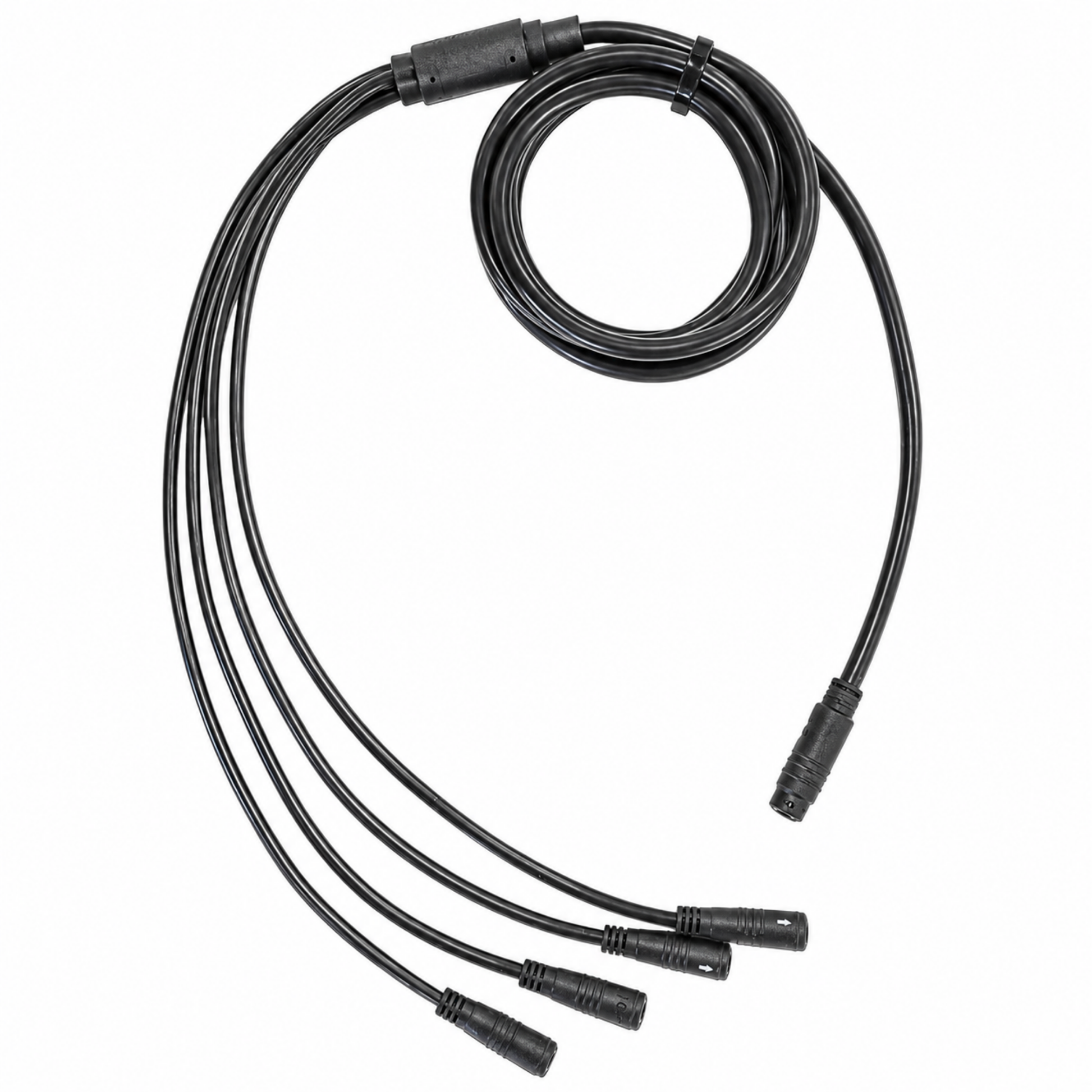

• Main SINET™ wiring harness

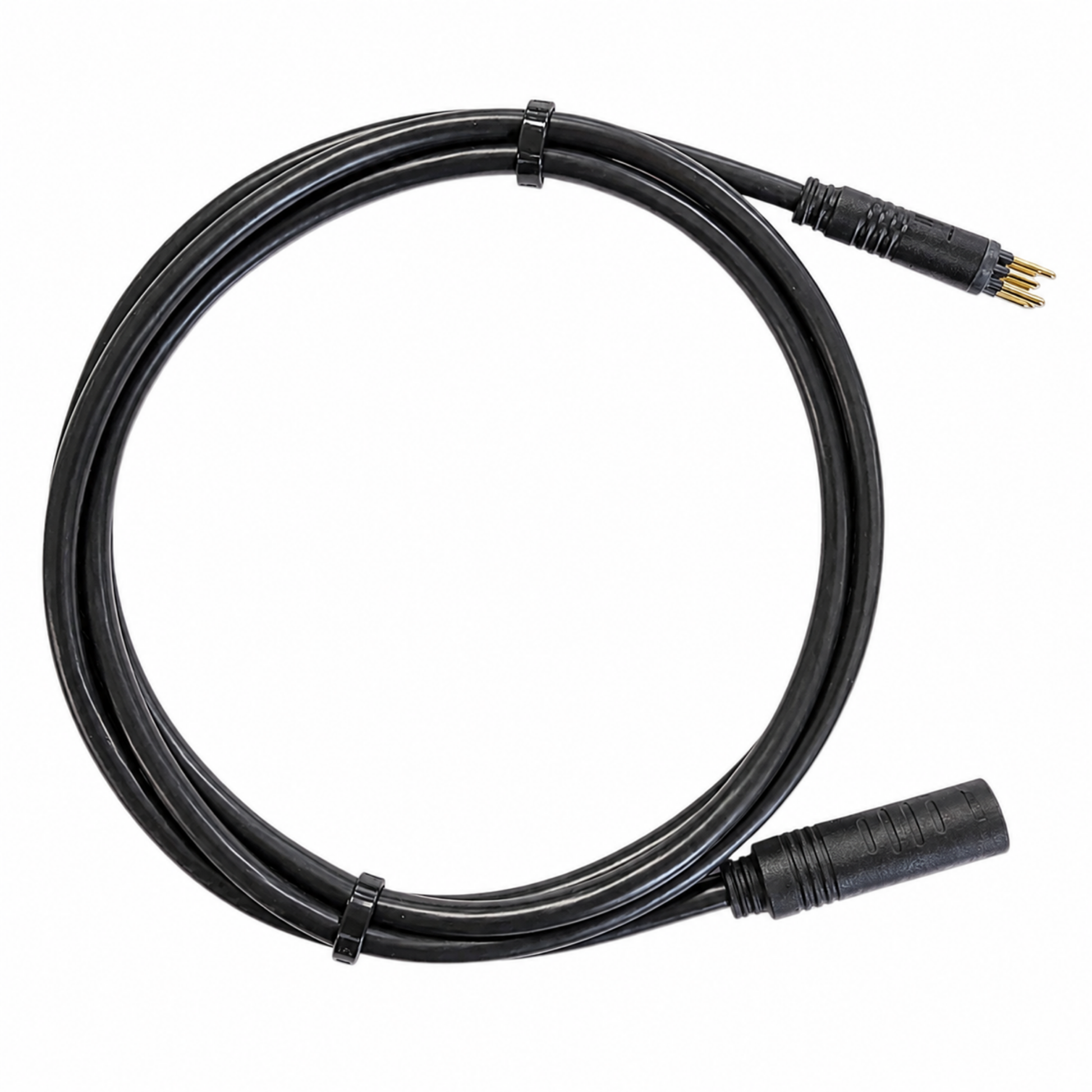

• Motor cable
• Pedal-assist extension cable
• Two torque arms for secure front-axle retention
• C-washers, axle hardware, installation hardware, and zip ties
• 48V 15Ah lithium-ion battery
• 3A battery charger

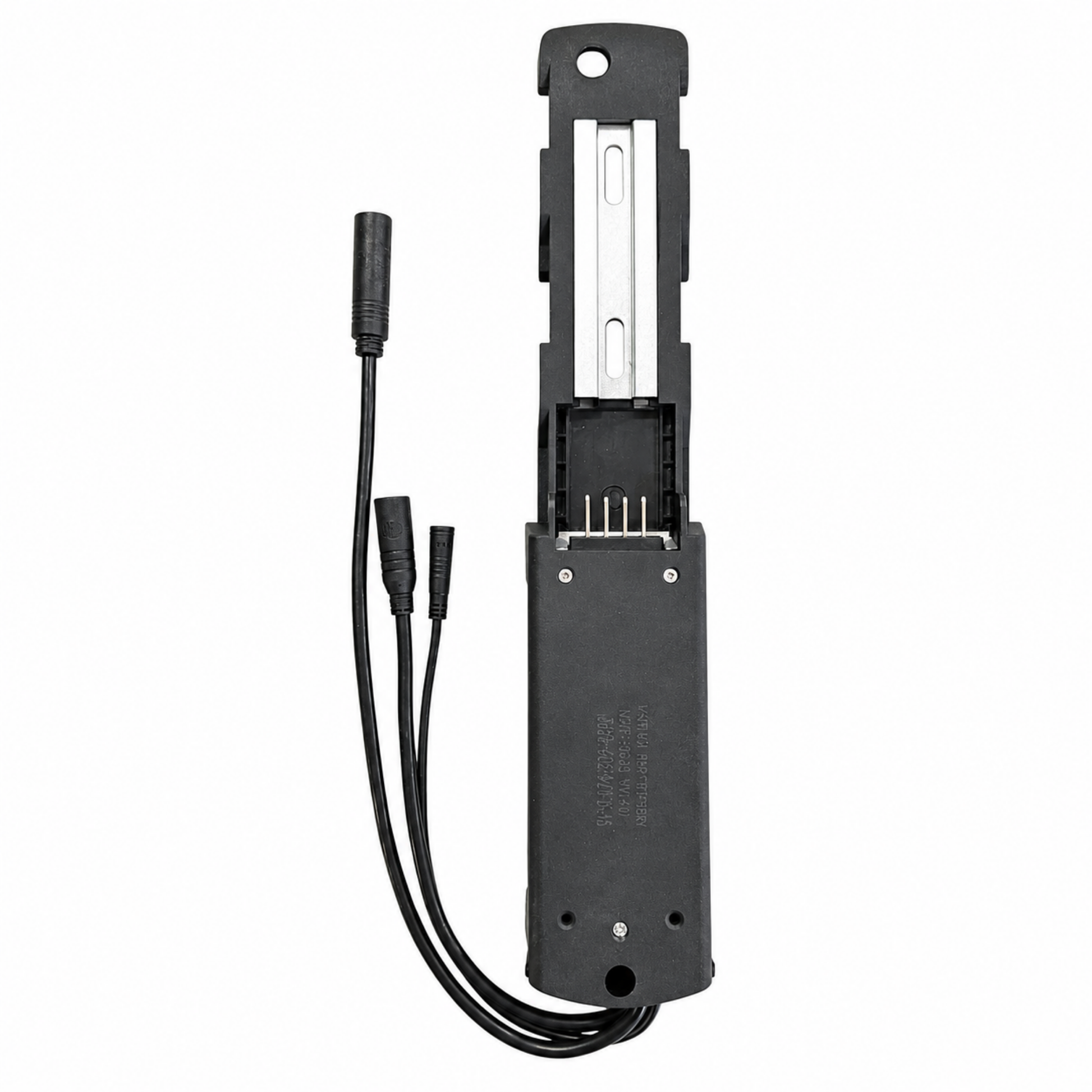

• Integrated-controller battery cradle
• EZ-3 HD battery mounting plate and mounting hardware

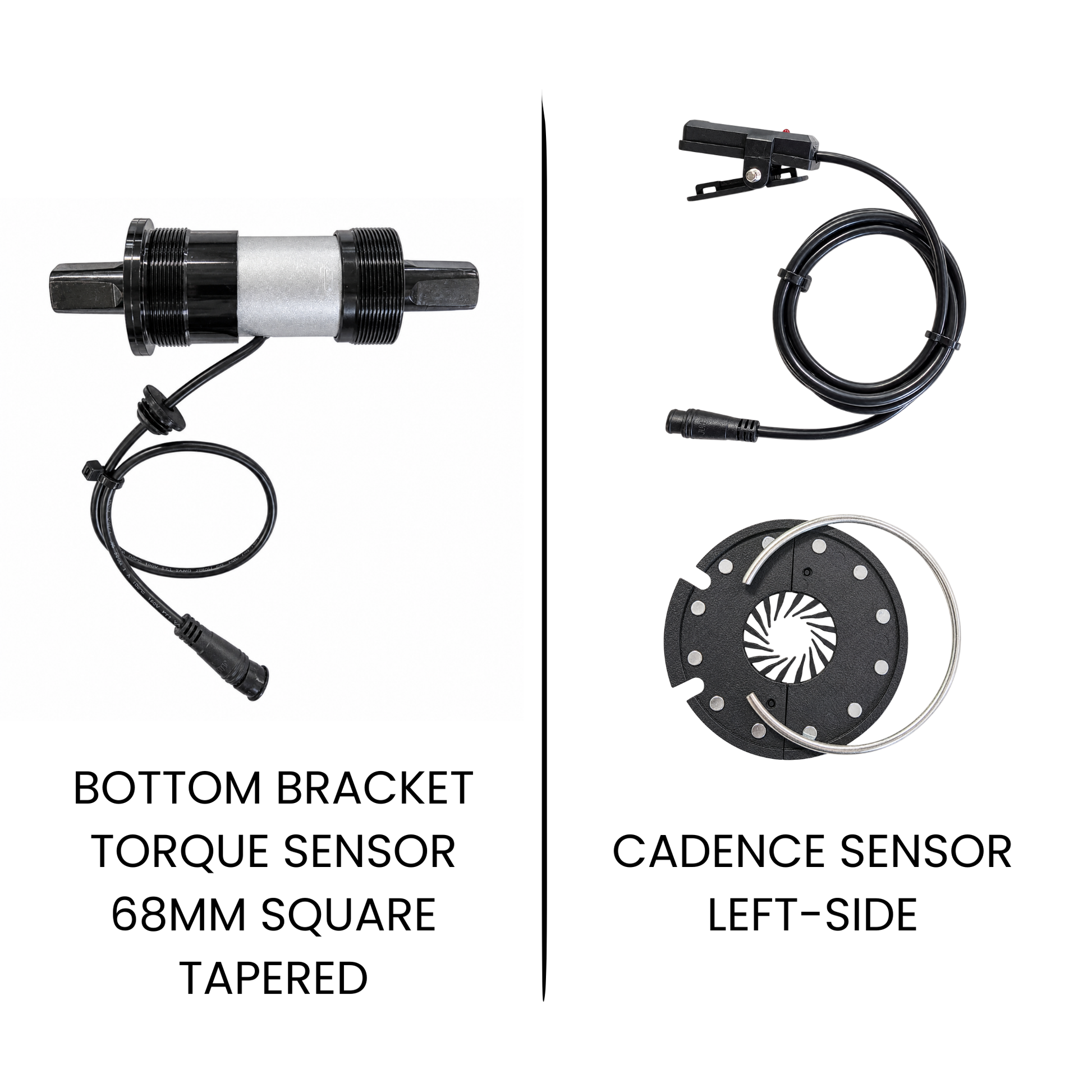

Pedal-Assist Selection:

• Cadence Sensor: Split-disc cadence sensor and pickup sensor
• Bottom Bracket Torque Sensor: 68 mm square-taper bottom bracket torque sensor with the required extension cable

The motor wheel is supplied with a rim strip. Tire and tube are not included.

The SINET™ system combines the controller, display, pedal-assist input, throttle, brake cutoffs, motor connection, and battery interface into one matched electrical platform.

• Integrated controller housed within the battery cradle
• 3.5″ color SINET™ LCD with clear system and ride information
• USB charging port built into the LCD
• Matched waterproof electrical connectors
• Cadence and torque-sensing pedal-assist compatibility
• Throttle-on-demand operation
• Motor cutoff through both locking e-brake levers
• Battery interface integrated directly into the controller-equipped cradle

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD quick-start guide for display operation, setup, programming, and system settings.

Download the SINET™ LCD Quick-Start Guide (PDF)

Motor Wheel

• Wheel Position: Front
• Wheel Size: 20″
• Construction: USA hand-built motor wheel
• Motor Type: Brushless internally geared front hub motor
• Power: 500W nominal with higher peak output at 48V
• Maximum Torque: Approximately 46Nm at 48V
• Maximum Motor Speed: Approximately 259 RPM at 48V
• Approximate Top Speed: Approximately 18–20 mph, conditions dependent
• Brake Compatibility: Disc-brake compatible motor
• Front Dropout Requirement: 100 mm
• Motor Connector: Round 8-pin motor connector
• Motor Weight: Approximately 12.8 lb
• Rim Strip: Included
• Tire and Tube: Not included

Electrical System

• System Voltage: 48V
• Controller: Integrated SINET™ controller
• Controller Location: Battery cradle
• Display: 3.5″ color SINET™ LCD
• USB Charging Port: Included
• LCD Mounting: Topeak Bar Extender included
• Throttle: Thumb throttle
• Brake Cutoffs: Left and right locking e-brake levers
• Torque Arms: Two included and required
• Axle-Nut Torque: 35 ft-lb
• Total Recommended Load: Up to approximately 600 lb, including trike, rider, and cargo

Pedal Assist

• Cadence Option: Split-disc cadence sensor
• Torque Option: 68 mm square-taper bottom bracket torque sensor with required extension cable

Every EZ-3 HD conversion system includes the 48V 15Ah lithium-ion battery, integrated-controller battery cradle, EZ-3 HD battery mounting plate, mounting hardware, and 3A charger.

• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Estimated Range: Approximately 15–45 miles
• Charger: 3A charger included
• Approximate Charge Time: Approximately 5 hours
• Maximum Charge Voltage: 54.6V
• Cell Structure: 18650, 13S4P
• Estimated Cycle Life: Approximately 500–800 cycles
• Battery Weight: Approximately 10.1 lb
• Certifications: UN38.3, MSDS, and UL-listed cells

Actual range varies based on rider weight, terrain, speed, temperature, tire pressure, pedal input, assist level, throttle use, and total system load. Heavy-duty loads will reduce range.

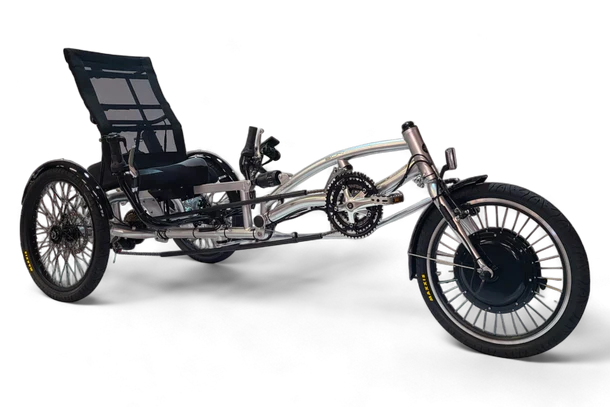

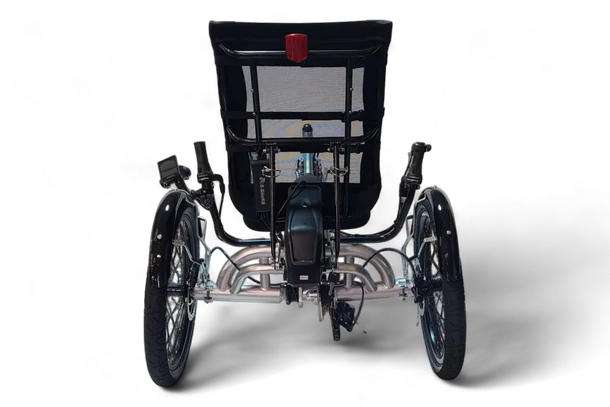

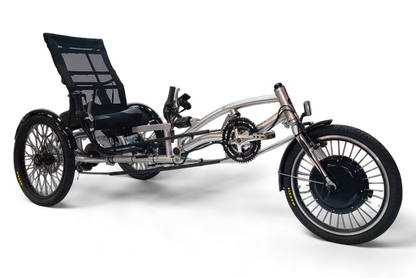

This conversion system is designed specifically for the Sun EZ-3 USX HD delta trike.

• Designed for a 20″ front motor wheel
• Requires standard 100 mm front fork spacing
• Includes two torque arms for secure axle retention
• Includes locking parking-brake levers with motor cutoff
• Includes the EZ-3 HD battery mounting plate and mounting hardware
• Includes a Topeak Bar Extender for LCD mounting
• Designed for total loads up to approximately 600 lb, including trike, rider, and cargo

The bottom bracket torque sensor is designed for a 68 mm square-taper bottom bracket. Confirm bottom bracket compatibility before ordering the torque-sensor version.

Older trikes, modified frames, aftermarket accessories, or nonstandard components may require additional installation work or adjustments.

The EZ-3 HD conversion system uses matched SINET™ components and connectors to simplify installation on a compatible stock EZ-3 USX HD.

• Install the 20″ front motor wheel into the 100 mm front dropouts
• Install both supplied torque arms
• Torque the axle nuts to 35 ft-lb

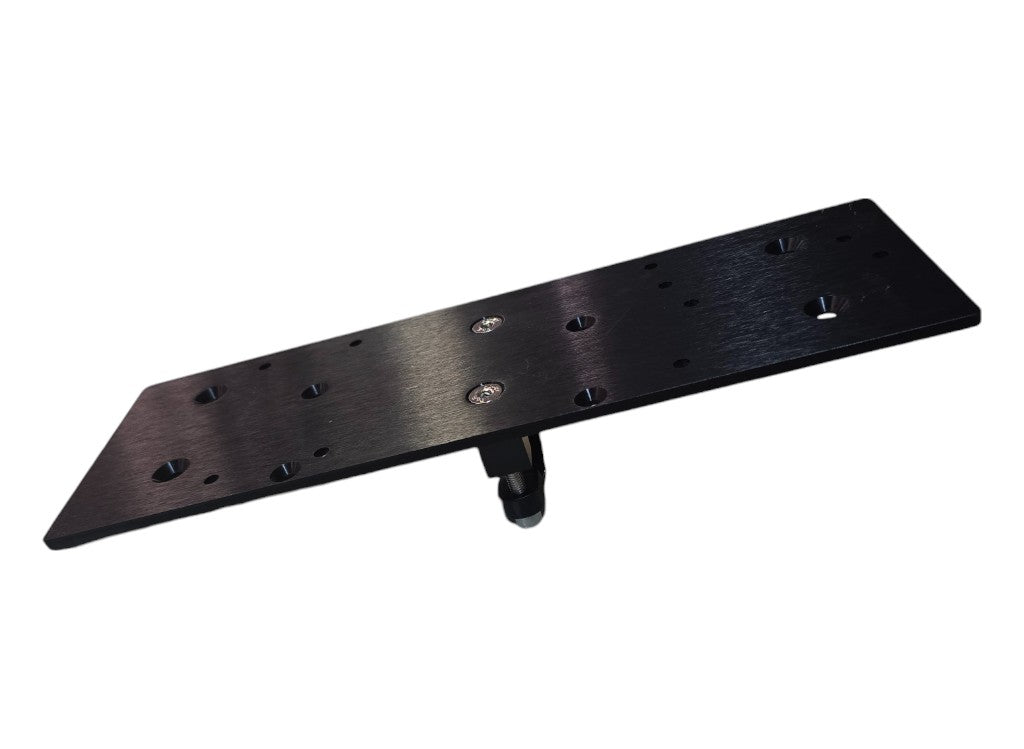

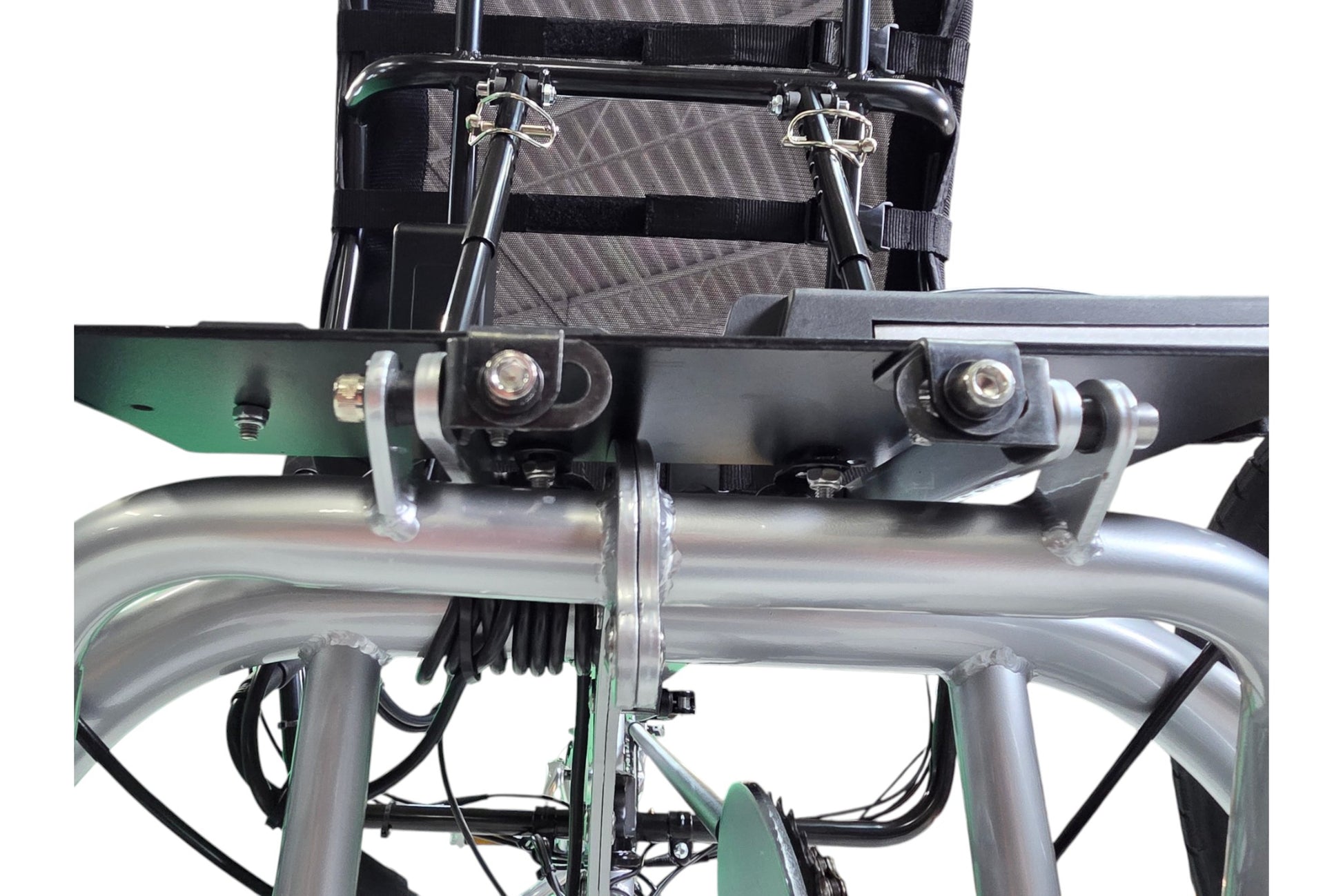

• Install the EZ-3 HD battery mounting plate

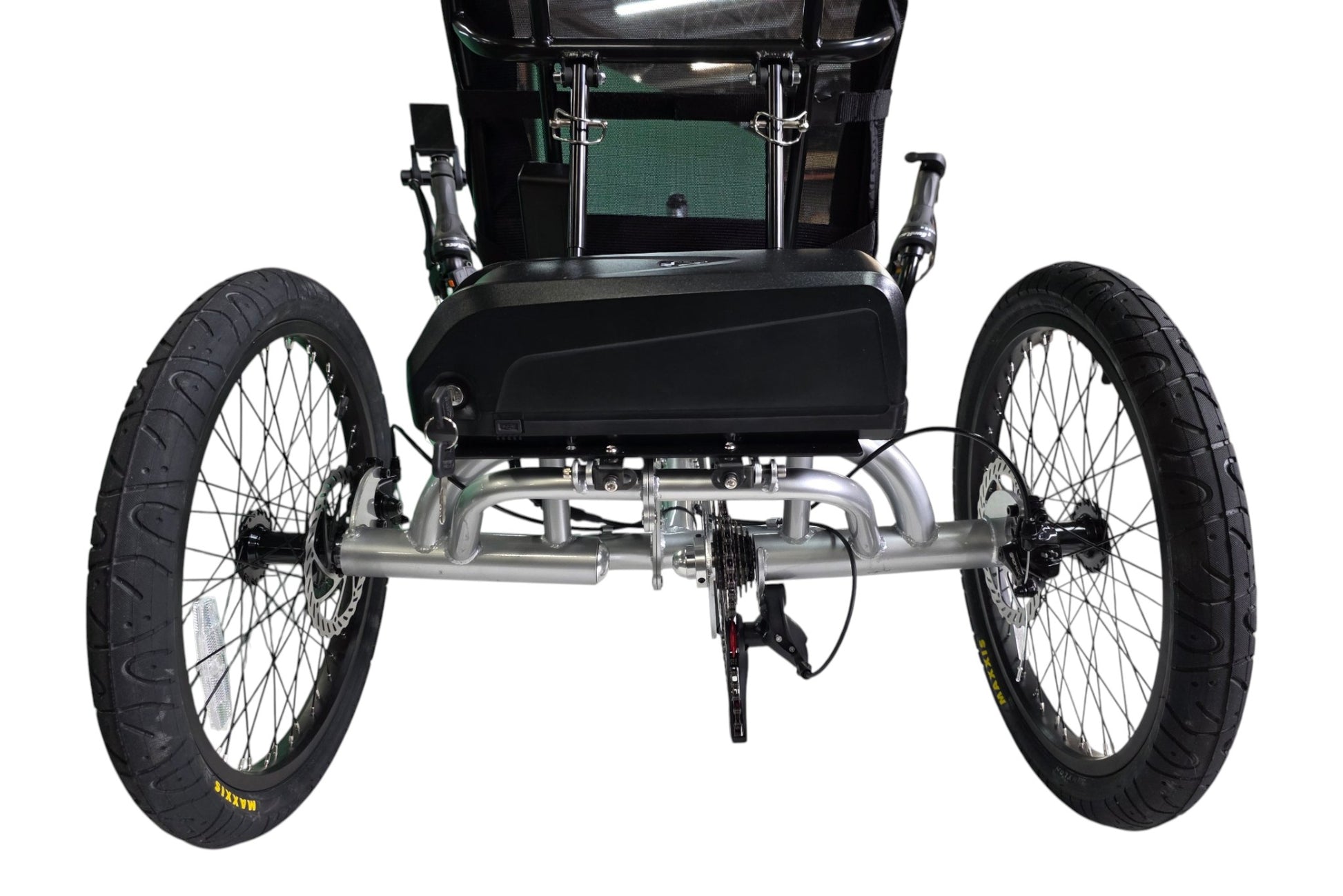

• Mount the integrated battery/controller cradle securely to the mounting plate
• Install and secure the included 48V 15Ah battery

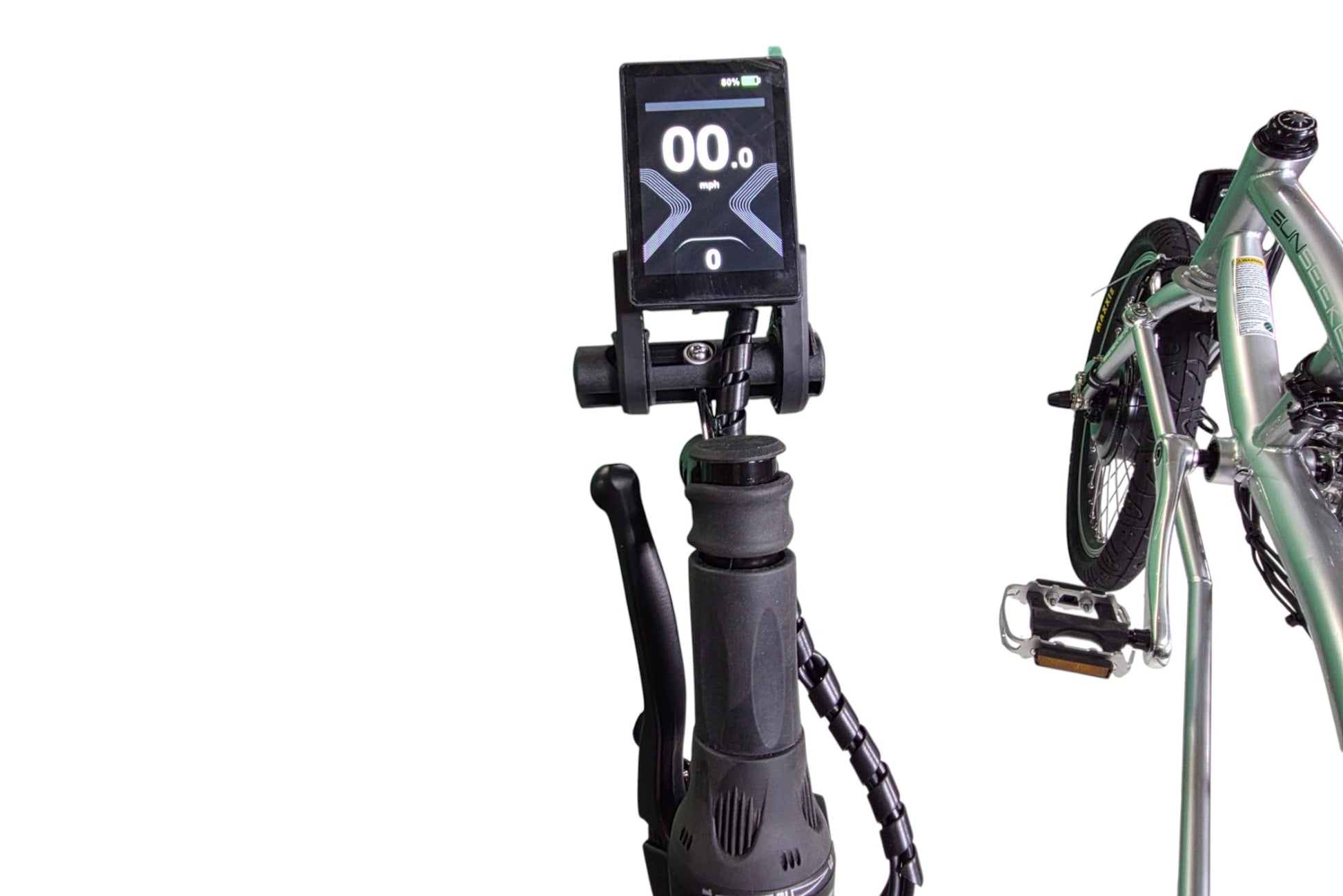

• Install the Topeak Bar Extender and mount the SINET™ LCD
• Install the thumb throttle and locking e-brake levers

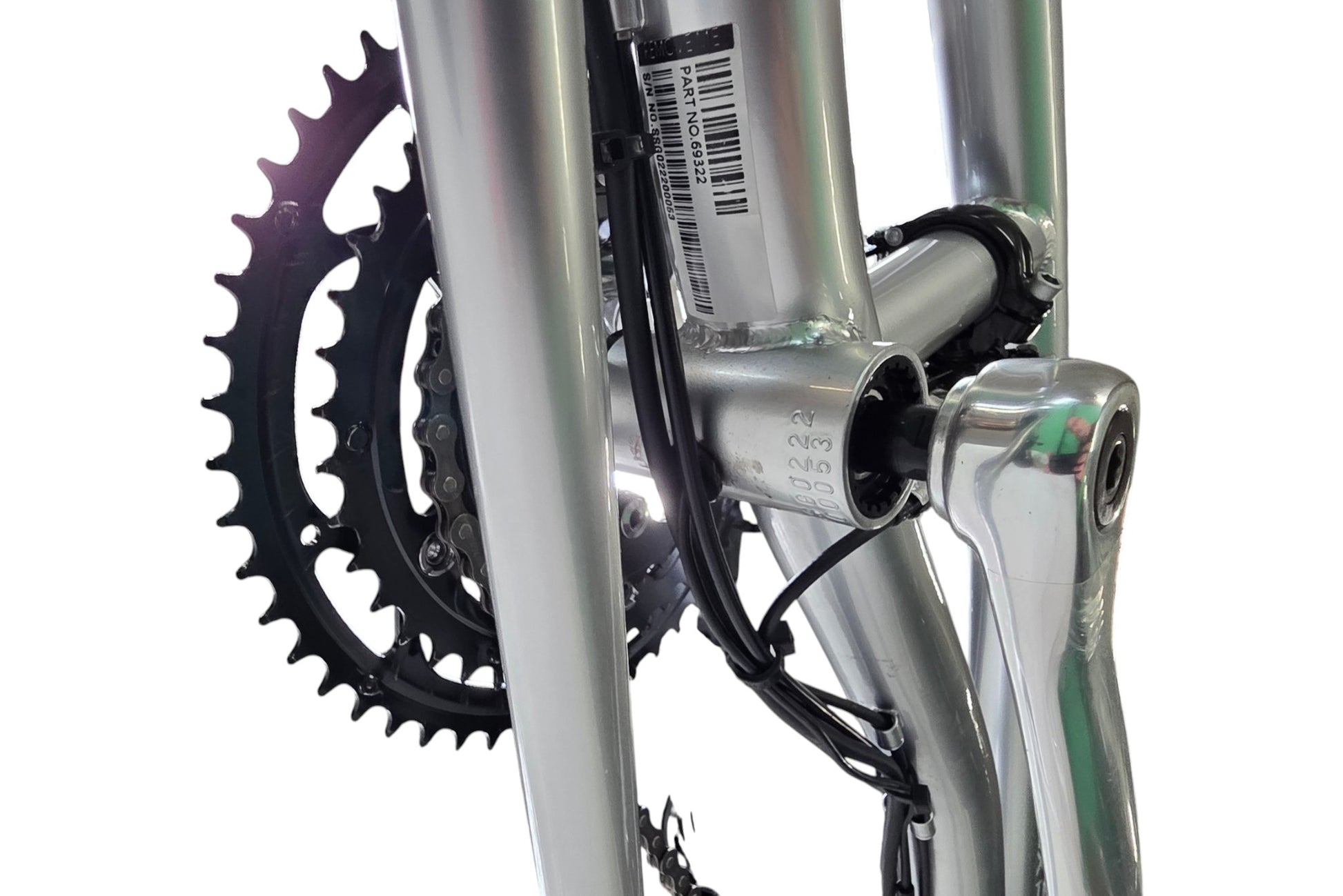

• Install the selected cadence or bottom bracket torque sensor

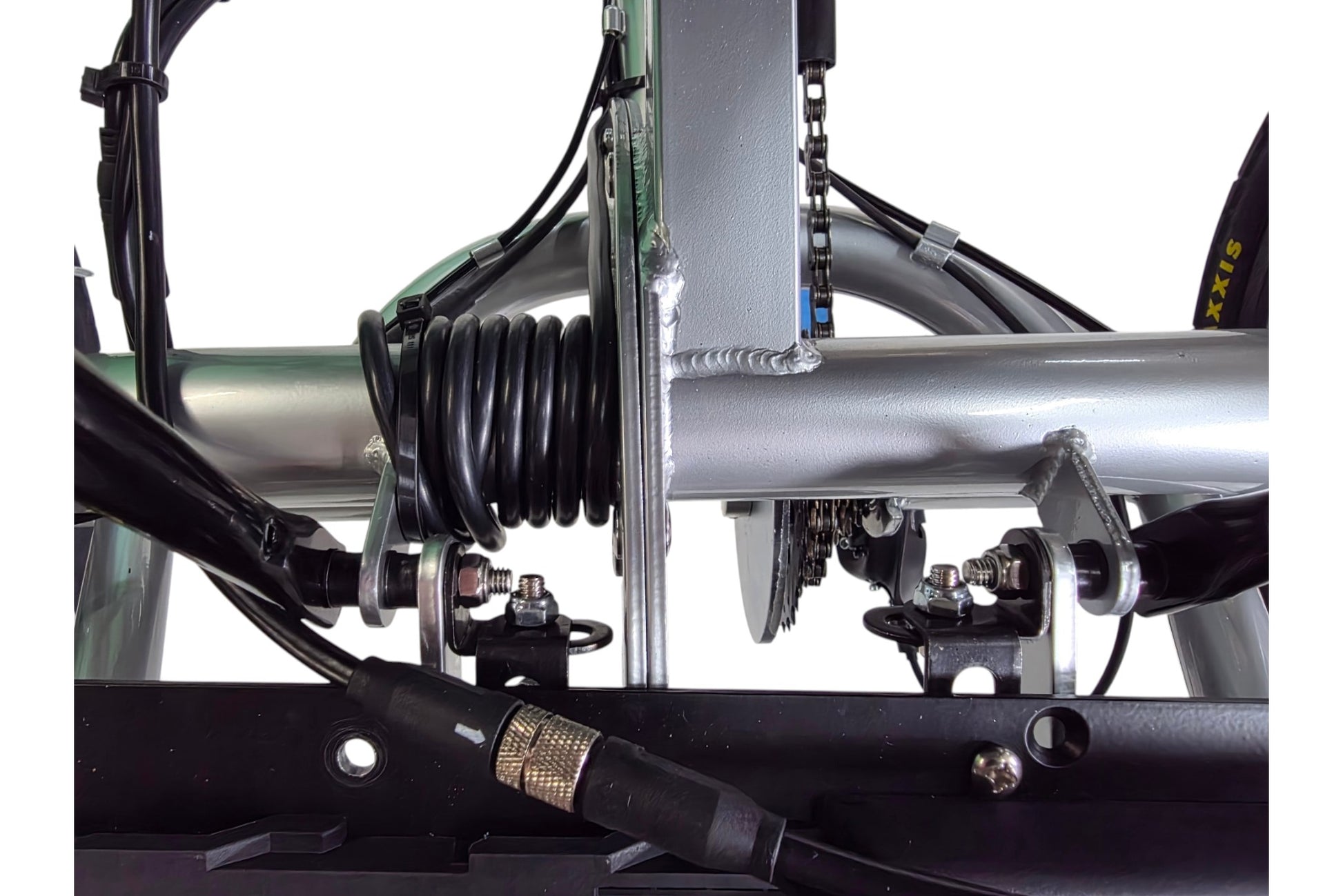

• Route and secure the SINET™ wiring harness, motor cable, and sensor extension cable
• Verify axle-nut torque, torque-arm placement, brake operation, steering clearance, and cable routing

Proper installation of both torque arms, correct axle-nut torque, secure battery mounting, safe cable routing, and proper brake adjustment are essential for safe operation, especially under heavy-duty loads.

Professional bicycle-shop installation is recommended when the installer is not experienced with bicycle wheels, brakes, electrical systems, torque arms, battery mounting, or bottom bracket service.

This section provides a reference point to help dealers position, present, install, and support the EZ-3 HD conversion system confidently.

Comparable Complete Trike:

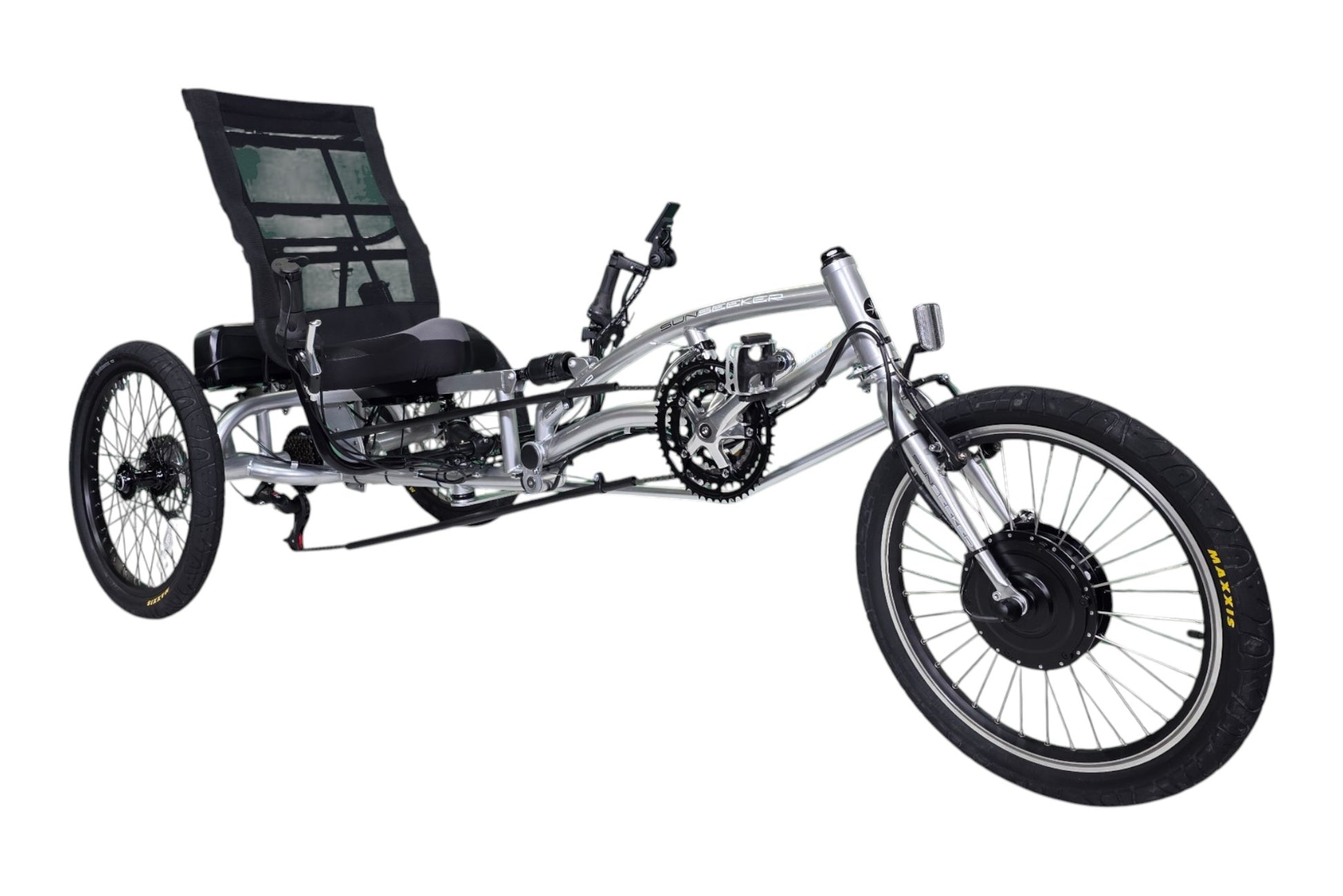

• View the complete EZ-3 USX HD electric trike built with this type of system:
  EZ-3 USX HD – ElectricTrike.com
• Use the complete-trike listing to benchmark consumer retail pricing, finished appearance, heavy-duty configuration, and expected delivered value.
• Fully assembled trikes delivered to customers typically include approximately $300 in freight shipping, which should be considered when comparing total delivered value.

Dealer Support Commitment:

• Real-time installation support by phone, text, and email
• Direct access to system builders and wheel technicians
• Guidance on front-fork fitment, dual torque-arm placement, and axle-nut torque
• Support for EZ-3 HD battery mounting plate installation
• Guidance on Topeak Bar Extender placement, sensor installation, and cable routing
• Support for heavy-duty load configurations
• Fast assistance with shop-floor technical questions

Our mission: Ensure every dealer delivers a clean, safe, professional, and reliable EZ-3 HD conversion experience.
