Kit - Eco-Delta

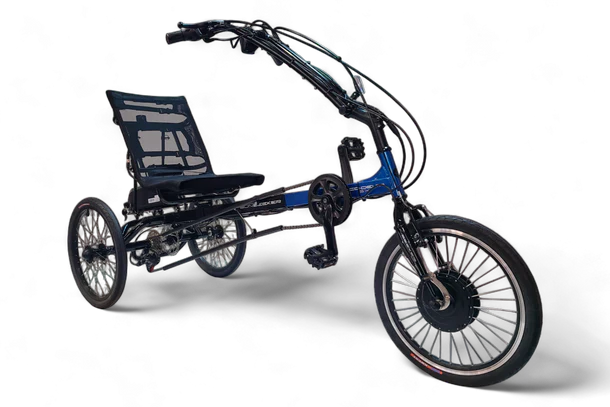

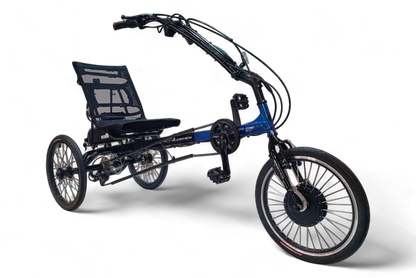

This Eco-Delta–specific E-BikeKit conversion system is designed to convert the Sunseeker Eco-Delta SX delta trike into a clean, efficient, and responsive electric trike.

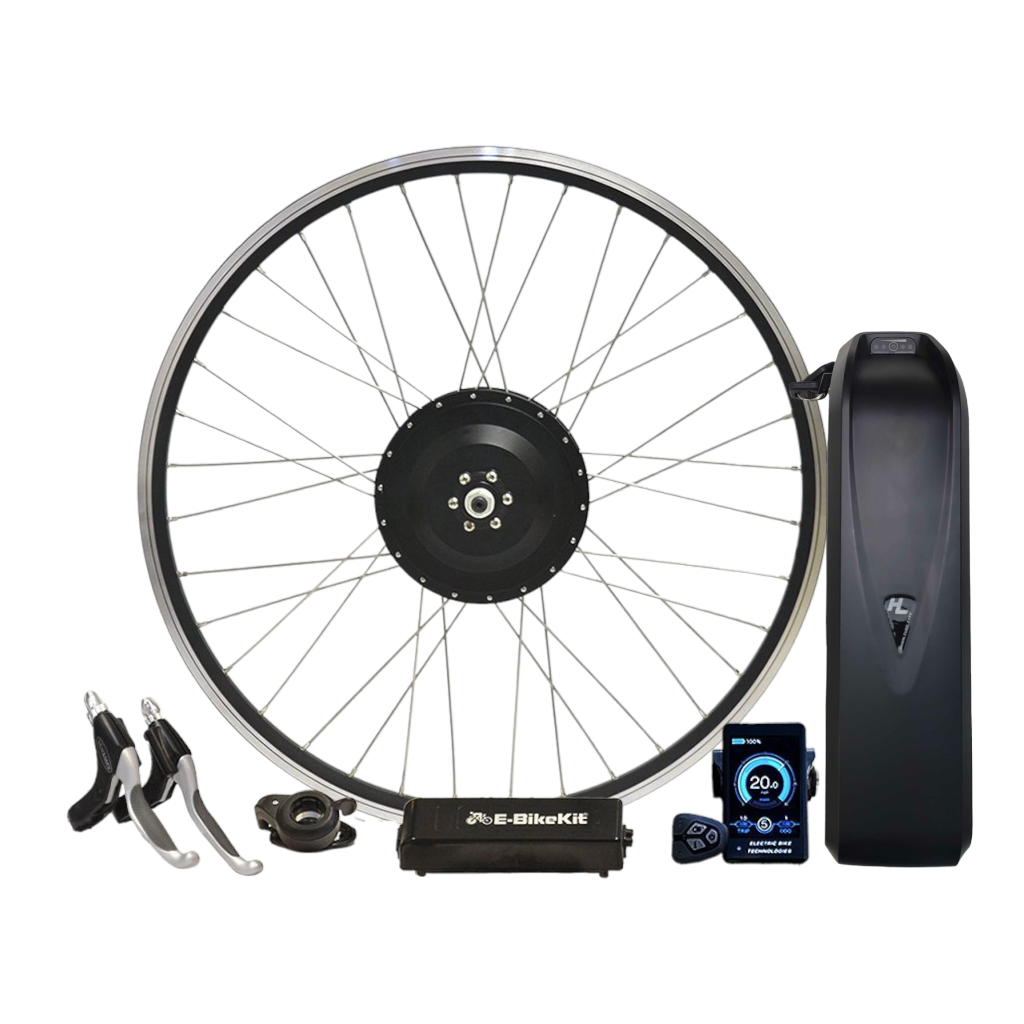

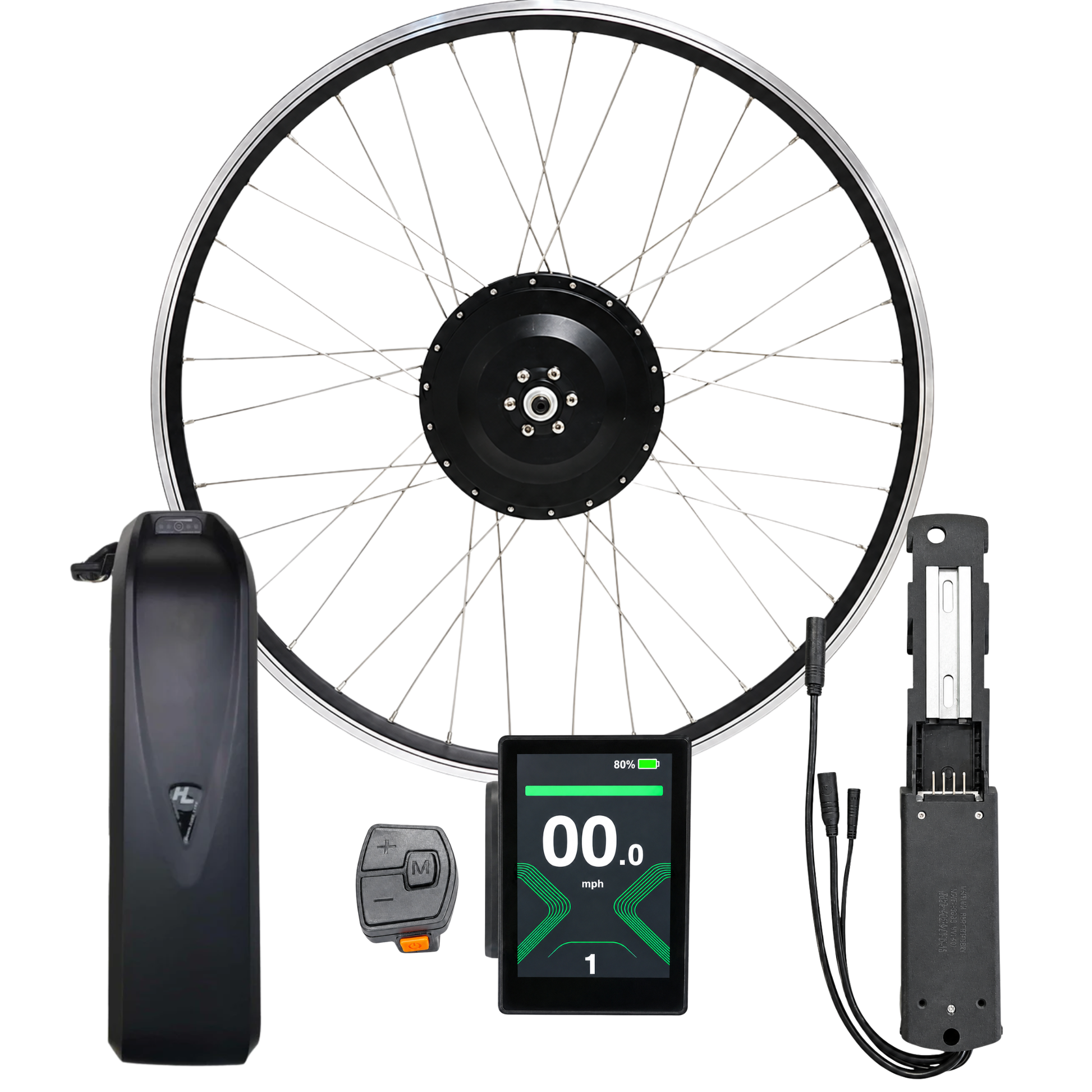

The system includes a USA hand-built 20″ front motor wheel, integrated SINET™ controller, 3.5″ color SINET™ LCD with USB charging port, 48V 15Ah lithium-ion battery, 3A charger, battery cradle and mounting hardware, throttle, locking e-brake levers, matched wiring, dual torque arms, and Eco-Delta–specific installation components.

• Configuration developed specifically for the Sunseeker Eco-Delta SX
• USA hand-built 20″ front motor wheel
• Integrated controller housed in the battery cradle
• 48V 15Ah battery and 3A charger included
• Choice of cadence pedal assist or bottom bracket torque sensing
• Throttle-on-demand included with either pedal-assist option
• Estimated range of approximately 15–45 miles depending on conditions
• Recommended for total loads up to approximately 300 lb

Choose your pedal-assist system:

• Cadence Sensor: Activates motor assistance when crank rotation is detected.
• Bottom Bracket Torque Sensor: Measures rider effort and provides a smoother, more natural, proportional level of motor assistance.

The pedal-assist type is the only selection required. The motor wheel, integrated controller, battery, charger, battery mounting system, LCD, throttle, wiring, locking e-brake levers, and model-specific installation hardware are included with every Eco-Delta conversion system.

Who’s it for? Riders and dealers looking for a complete, model-specific Eco-Delta conversion system with matched SINET™ components, a professionally built motor wheel, and direct technical support.

This system includes the battery, charger, integrated controller, motor wheel, and Eco-Delta–specific mounting and installation components. The only selection required is the pedal-assist type: cadence or bottom bracket torque sensing.

Eco-Delta Conversion System Components:

• USA hand-built 20″ front motor wheel with rim strip
• Integrated SINET™ controller housed in the battery cradle

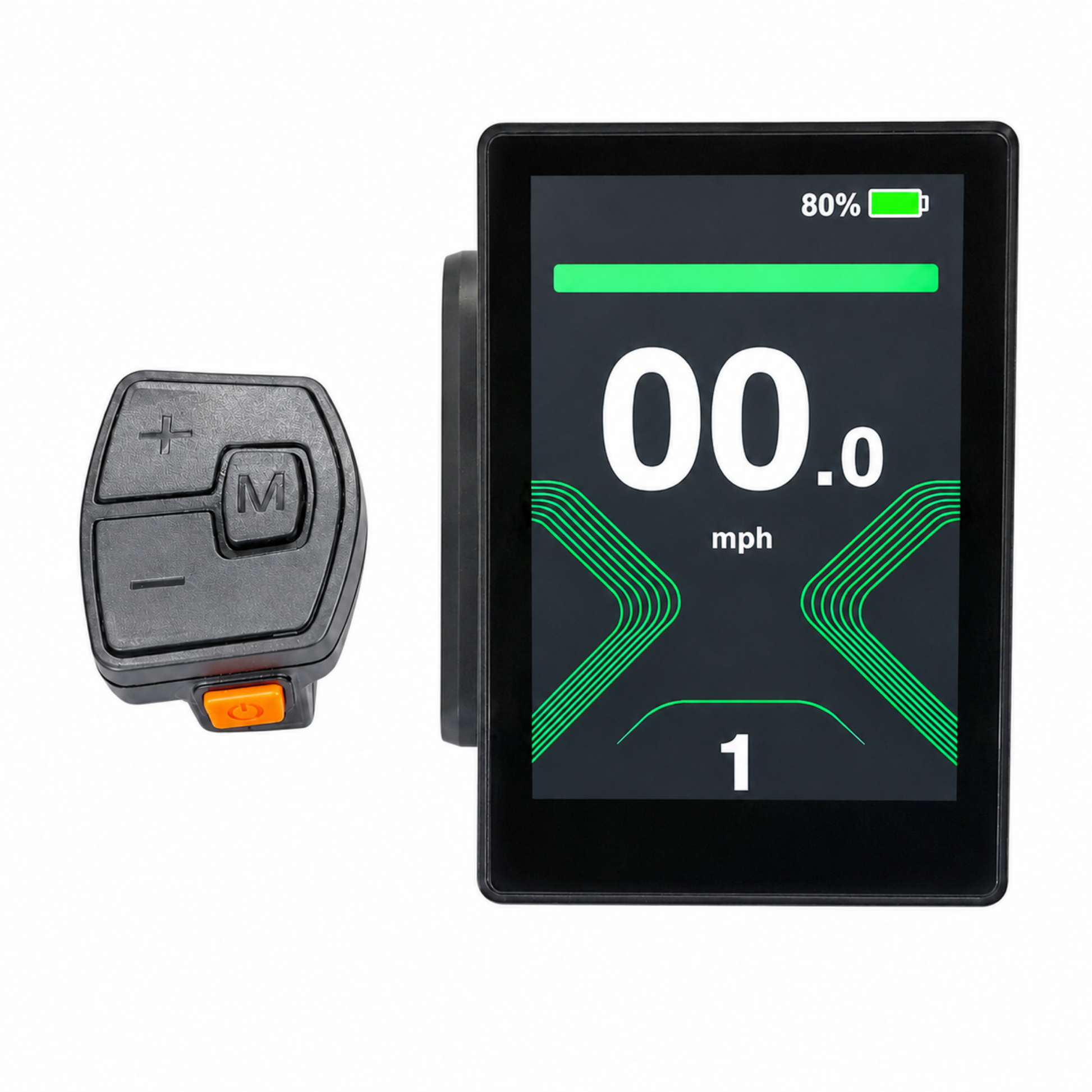

• 3.5″ color SINET™ LCD with USB charging port

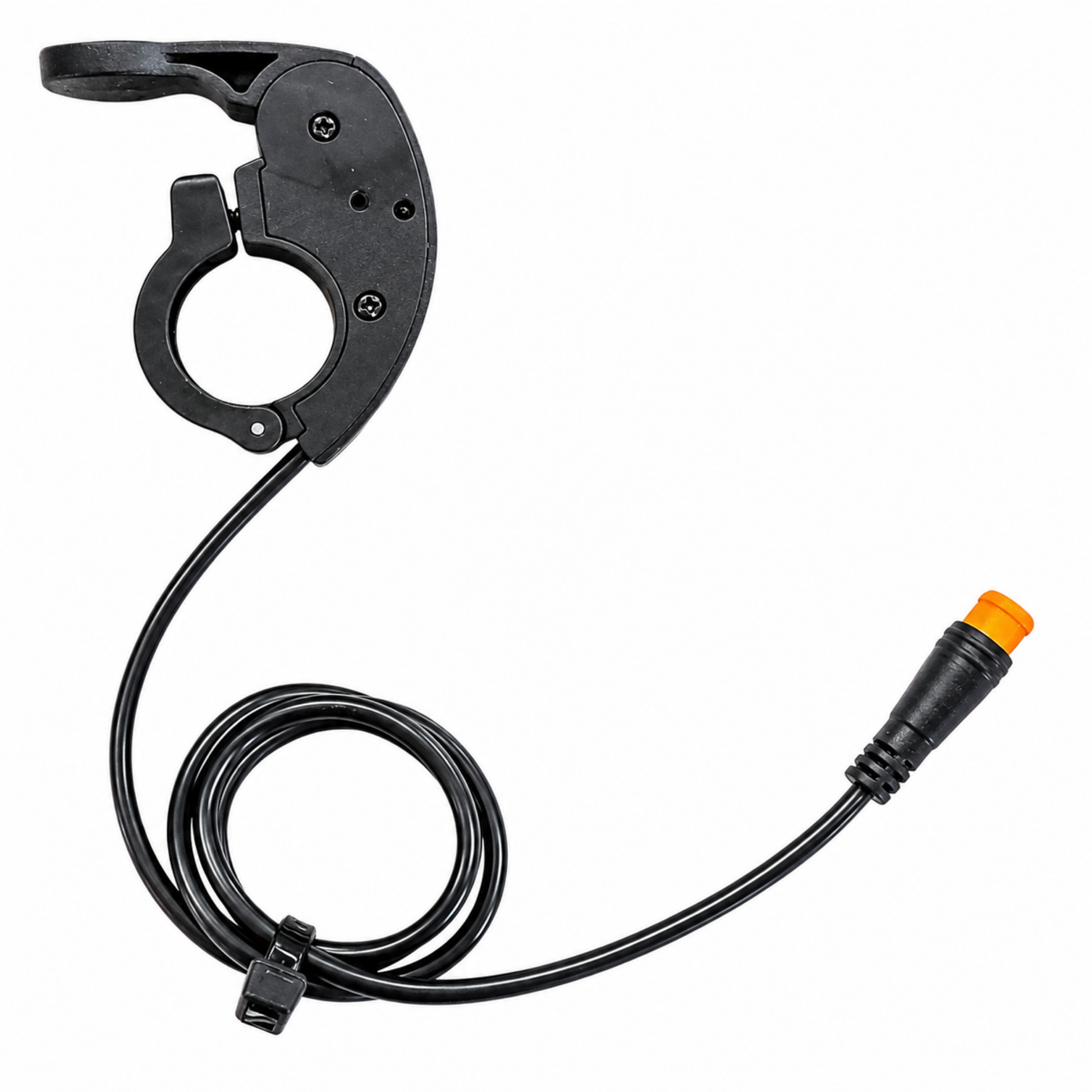

• Thumb throttle

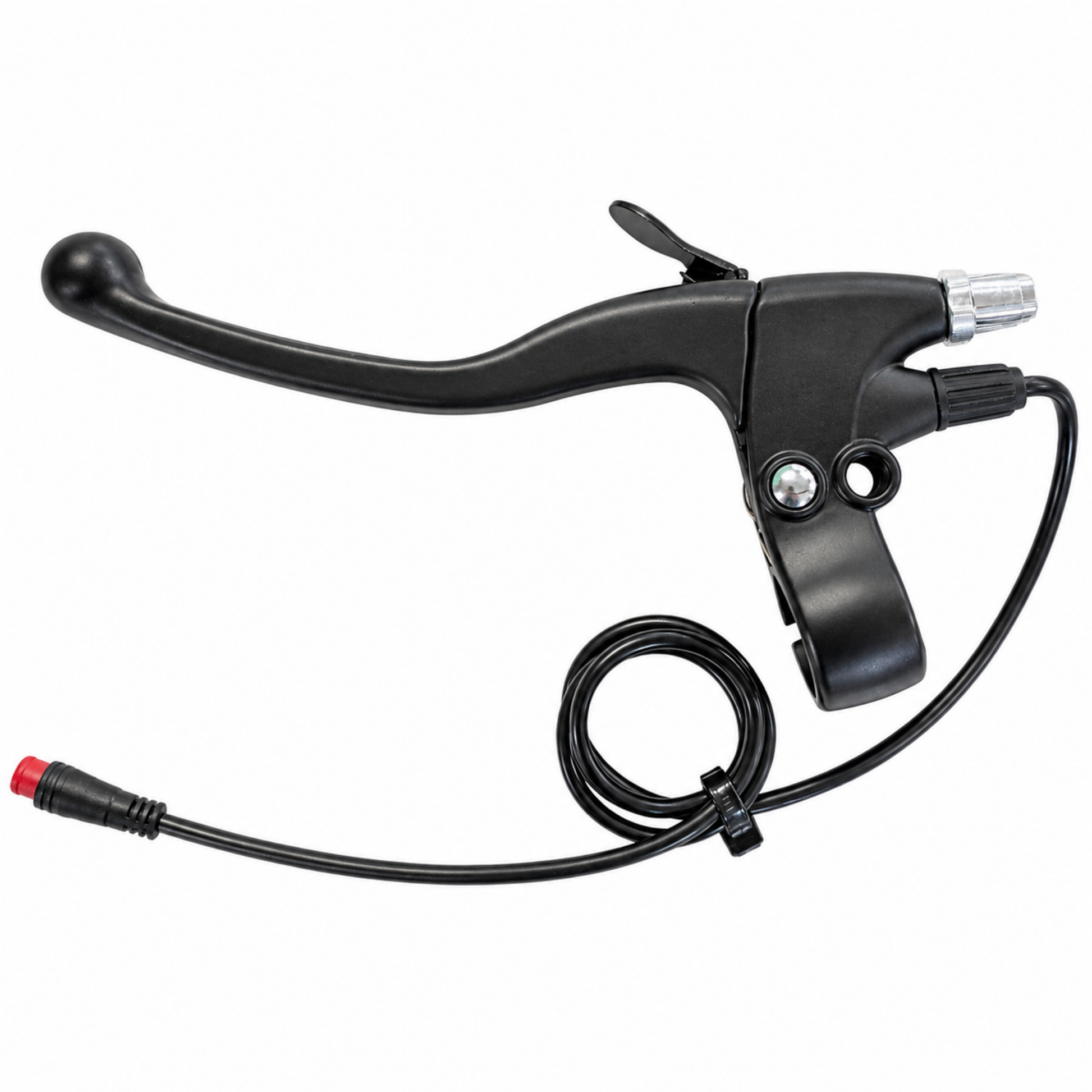

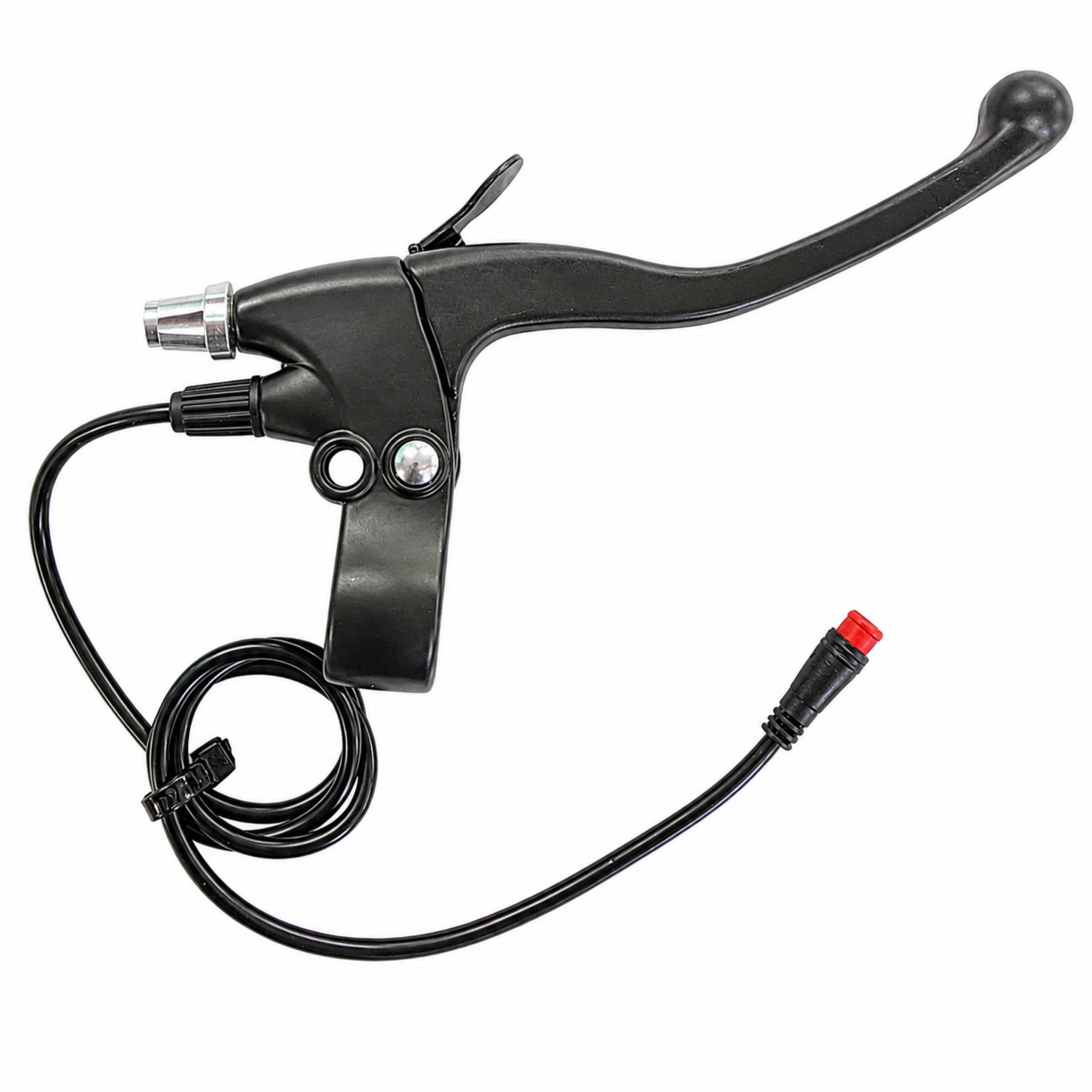

• Left and right locking e-brake levers with motor cutoff

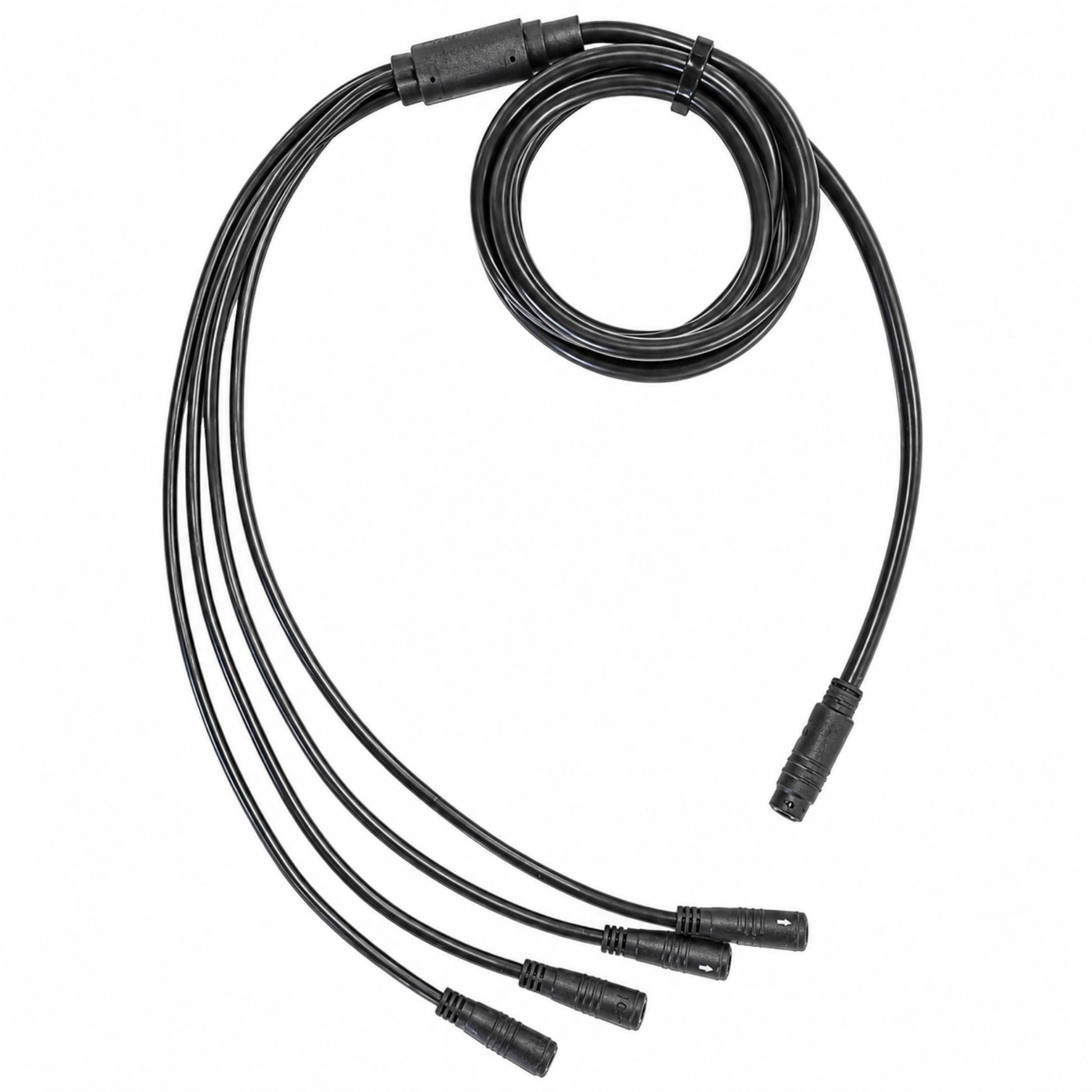

• Main SINET™ wiring harness

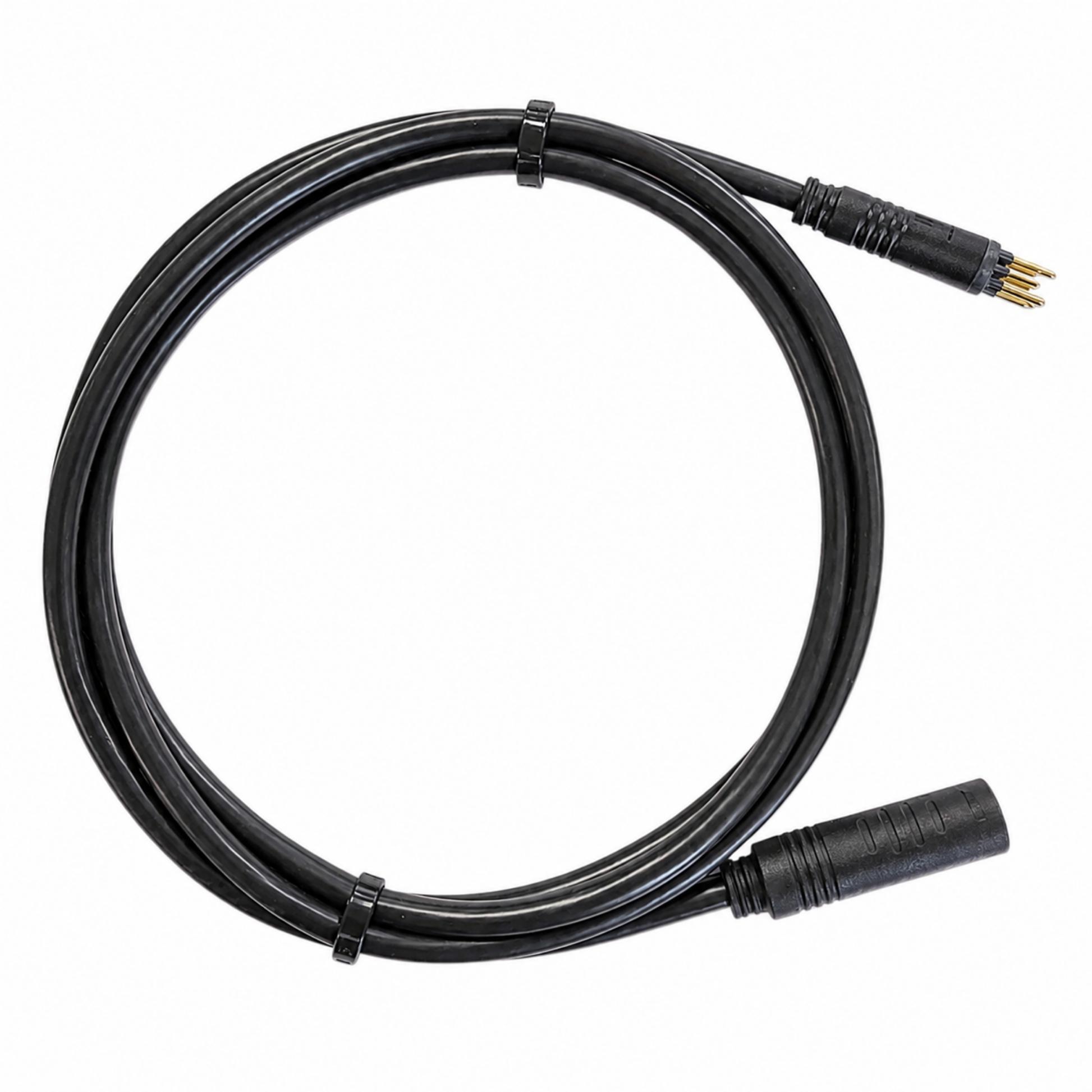

• Motor cable
• Pedal-assist extension cable
• Two torque arms for secure front-axle retention
• C-washers, axle hardware, installation hardware, and zip ties
• 48V 15Ah lithium-ion battery
• 3A battery charger

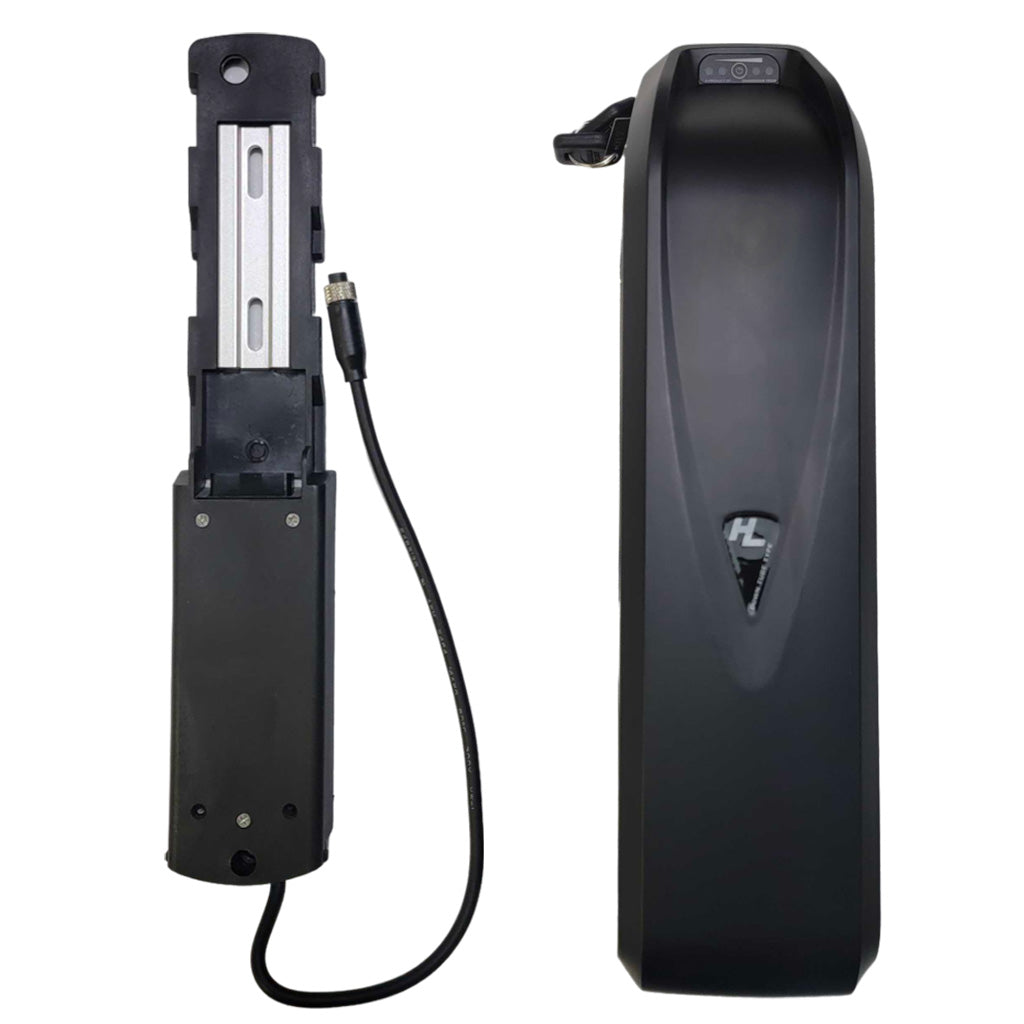

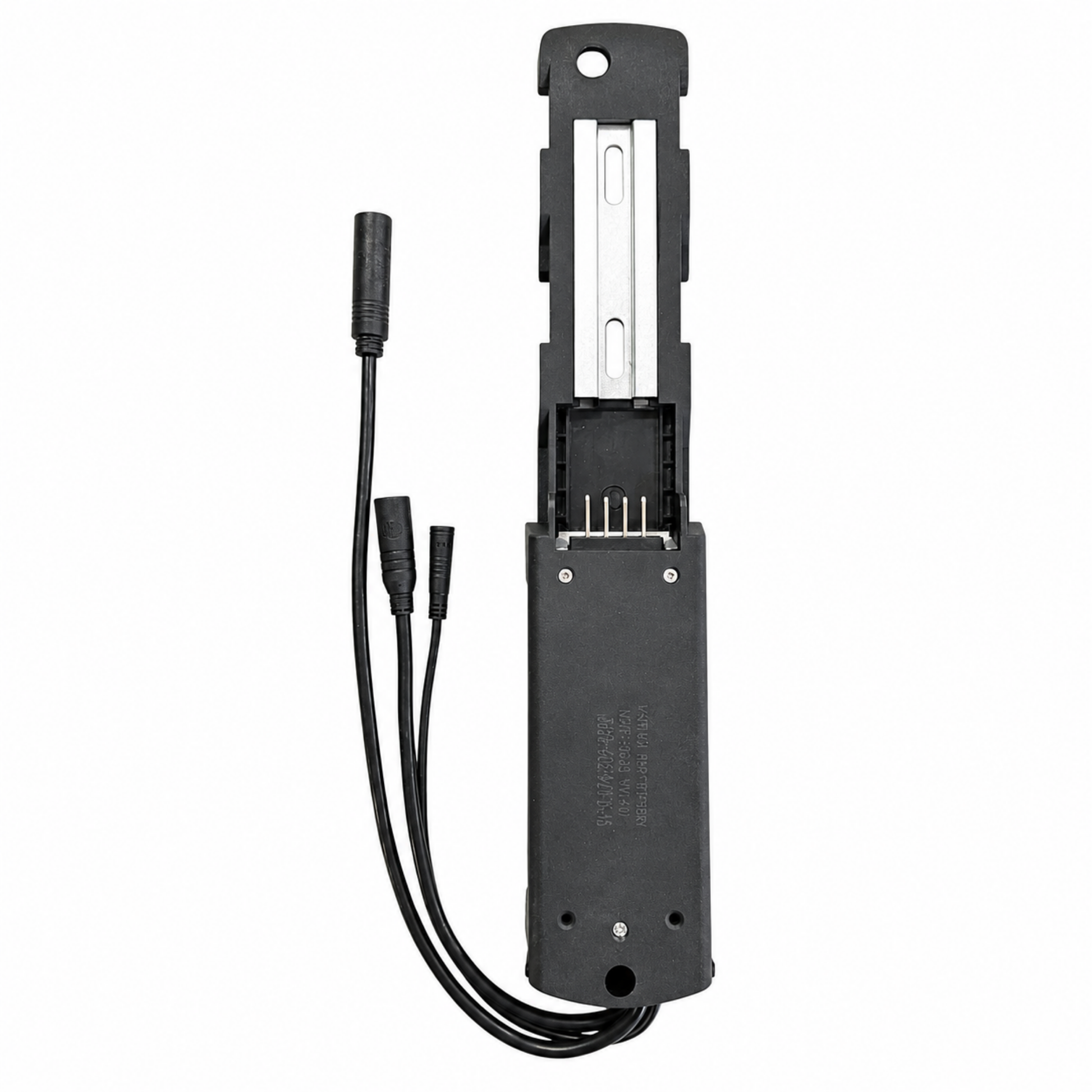

• Integrated-controller battery cradle

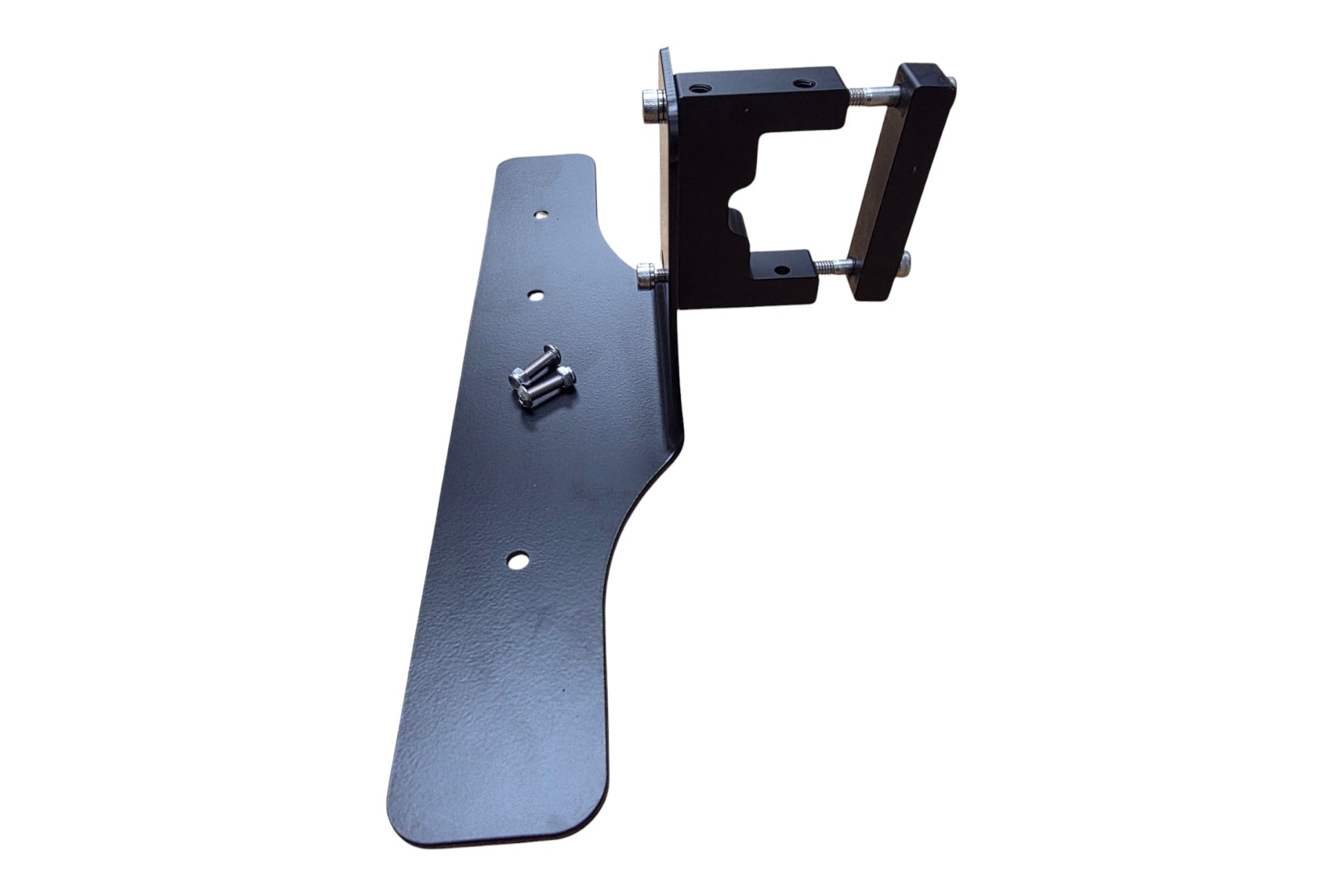

• Eco-Delta–specific battery mounting hardware for underseat installation

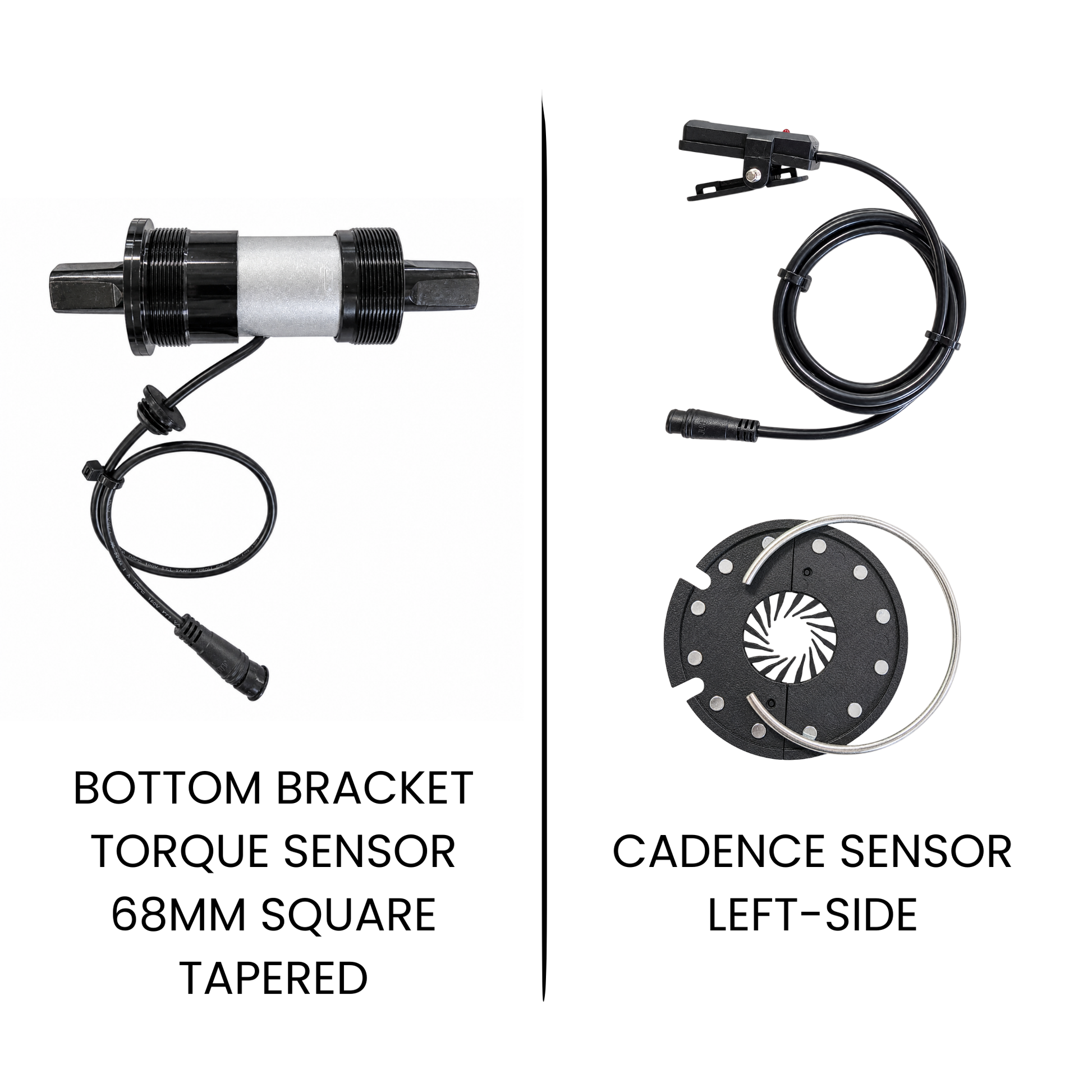

Pedal-Assist Selection:

• Cadence Sensor: Split-disc cadence sensor and pickup sensor
• Bottom Bracket Torque Sensor: 68 mm square-taper bottom bracket torque sensor with the required extension cable

The motor wheel is supplied with a rim strip. Tire and tube are not included.

The SINET™ system combines the controller, display, pedal-assist input, throttle, brake cutoffs, motor connection, and battery interface into one matched electrical platform.

• Integrated controller housed within the battery cradle
• 3.5″ color SINET™ LCD with clear system and ride information
• USB charging port built into the LCD
• Matched waterproof electrical connectors
• Cadence and torque-sensing pedal-assist compatibility
• Throttle-on-demand operation
• Motor cutoff through both locking e-brake levers
• Battery interface integrated directly into the controller-equipped cradle

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD quick-start guide for display operation, setup, programming, and system settings.

Download the SINET™ LCD Quick-Start Guide (PDF)

Motor Wheel

• Wheel Position: Front
• Wheel Size: 20″
• Construction: USA hand-built motor wheel
• Motor Type: Brushless internally geared front hub motor
• Power: 500W nominal with higher peak output at 48V
• Maximum Torque: Approximately 84Nm at 48V
• Maximum Motor Speed: Approximately 320 RPM at 48V
• Approximate Top Speed: Approximately 20 mph, conditions dependent
• Brake Compatibility: Disc-brake compatible motor
• Front Dropout Requirement: 100 mm
• Motor Connector: Round 8-pin motor connector
• Motor Weight: Approximately 9.4 lb
• Rim Strip: Included
• Tire and Tube: Not included

Electrical System

• System Voltage: 48V
• Controller: Integrated SINET™ controller
• Controller Location: Battery cradle
• Display: 3.5″ color SINET™ LCD
• USB Charging Port: Included
• Throttle: Thumb throttle
• Brake Cutoffs: Left and right locking e-brake levers
• Torque Arms: Two included and required
• Axle-Nut Torque: 35 ft-lb
• Total Recommended Load: Approximately 300 lb, including trike, rider, and cargo

Pedal Assist

• Cadence Option: Split-disc cadence sensor
• Torque Option: 68 mm square-taper bottom bracket torque sensor with required extension cable

Every Eco-Delta conversion system includes the 48V 15Ah lithium-ion battery, integrated-controller battery cradle, model-specific mounting hardware, and 3A charger.

• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Estimated Range: Approximately 15–45 miles
• Charger: 3A charger included
• Approximate Charge Time: Approximately 5 hours
• Maximum Charge Voltage: 54.6V
• Cell Structure: 18650, 13S4P
• Estimated Cycle Life: Approximately 500–800 cycles
• Battery Weight: Approximately 10.1 lb
• Certifications: UN38.3, MSDS, and UL-listed cells

Actual range varies based on rider weight, terrain, speed, temperature, tire pressure, pedal input, assist level, throttle use, and total system load.

This conversion system is designed specifically for the Sunseeker Eco-Delta SX delta trike.

• Designed for a 20″ front motor wheel
• Requires standard 100 mm front fork spacing
• Includes two torque arms for secure axle retention
• Includes locking parking-brake levers with motor cutoff

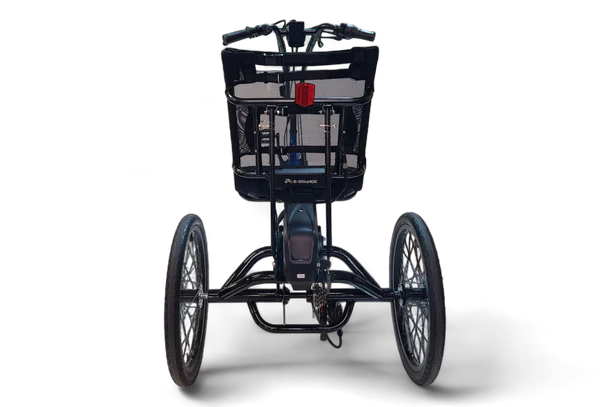

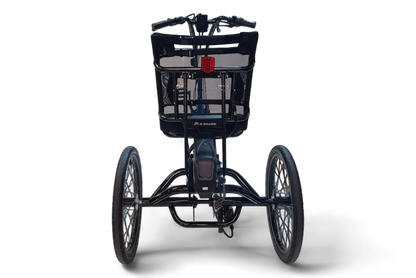

• Includes model-specific underseat battery mounting hardware
• Recommended for total loads up to approximately 300 lb, including trike, rider, and cargo

The bottom bracket torque sensor is designed for a 68 mm square-taper bottom bracket. Confirm bottom bracket compatibility before ordering the torque-sensor version.

Trikes that have been modified or differ from the standard factory configuration may require additional parts or installation adjustments.

The Eco-Delta conversion system uses matched SINET™ components and connectors to simplify installation on a compatible stock Eco-Delta SX.

• Install the 20″ front motor wheel into the 100 mm front dropouts
• Install both supplied torque arms
• Torque the axle nuts to 35 ft-lb

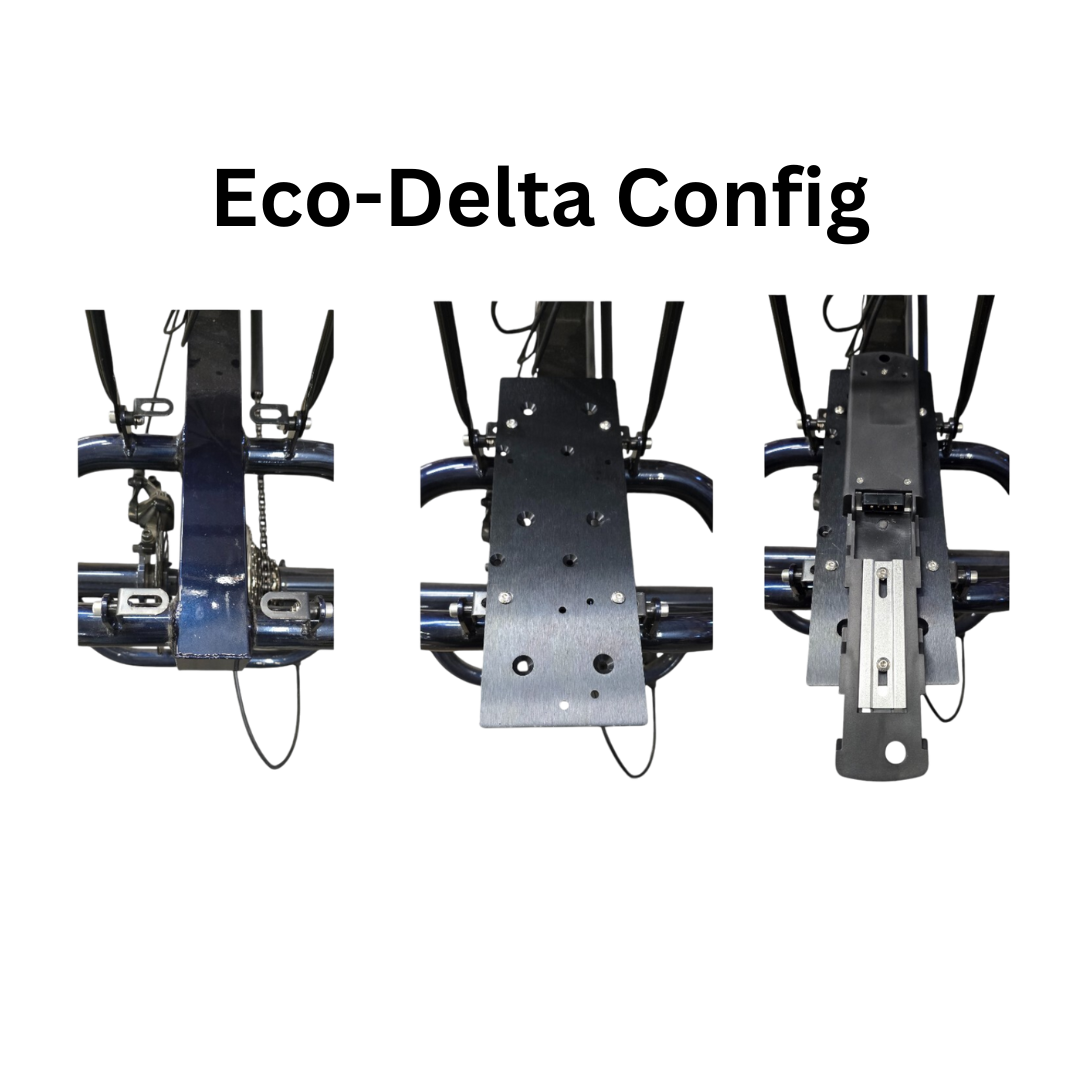

• Mount the integrated battery/controller cradle securely beneath the seat
• Install and secure the included 48V 15Ah battery
• Install the SINET™ LCD, thumb throttle, and locking e-brake levers
• Install the selected cadence or bottom bracket torque sensor
• Route and secure the SINET™ wiring harness, motor cable, and sensor extension cable
• Verify axle-nut torque, torque-arm placement, brake operation, steering clearance, and cable routing

Proper installation of both torque arms, correct axle-nut torque, secure battery mounting, safe cable routing, and proper brake adjustment are essential for safe operation.

Professional bicycle-shop installation is recommended when the installer is not experienced with bicycle wheels, brakes, electrical systems, torque arms, or bottom bracket service.

This section provides a reference point to help dealers position, present, install, and support the Eco-Delta conversion system confidently.

Comparable Complete Trike:

• View the complete Eco-Delta SX electric trike built with this type of system:
  Sun Seeker Eco-Delta SX – ElectricTrike.com
• Use the complete-trike listing to benchmark consumer retail pricing, finished appearance, and configuration expectations.
• Fully assembled trikes delivered to customers typically include approximately $300 in freight shipping, which should be considered when comparing total delivered value.

Dealer Support Commitment:

• Real-time installation support by phone, text, and email
• Direct access to system builders and wheel technicians
• Guidance on pedal-assist installation, front-fork fitment, and dual torque-arm placement
• Support for underseat battery mounting and cable routing
• Guidance on sensor placement, cable routing, and system setup
• Fast assistance with shop-floor technical questions

Our mission: Ensure every dealer delivers a clean, professional, and reliable Eco-Delta conversion experience.
