E-BikeKit Rear Wheel Conversion System (Integrated Controller)

• Newest SINET™ rear wheel conversion platform from E-BikeKit
• Integrated battery and controller architecture for a clean, factory-style installation
• Includes E-BikeKit 48V 15Ah lithium battery with integrated SINET™ controller cradle
• Includes matching 3A charger
• Available with selectable rear dropout spacing
• Available with disc brake or non-disc rear wheel configuration
• Available with selectable freewheel options
• Available with cadence or bottom bracket torque sensing
• USA hand-built rear motor wheel assemblies with 12-gauge stainless spokes and double-wall rims
• 3.5" full-color SINET™ LCD with USB-C charging, diagnostics, and advanced programming
• Backed by E-BikeKit dealer technical support

The E-BikeKit Rear Wheel Conversion System (Integrated Controller) is our complete rear hub motor conversion system, designed for strong traction, clean installation, reduced wiring, premium ride quality, and simplified long-term serviceability.

Built around the latest SINET™ electronics, this system delivers quiet sine-wave motor control, refined throttle response, smooth pedal-assist performance, and an intuitive full-color display. The controller is integrated into the battery cradle, creating a cleaner layout with fewer external components. The rear wheel system is configured by wheel size, rear dropout spacing, disc brake compatibility, and freewheel selection.

Who’s it for? Dealers, builders, and experienced installers looking for a complete rear wheel conversion system for bicycles, adult tricycles, cargo bikes, and specialty applications where traction, clean installation, reliability, and long-term support matter.

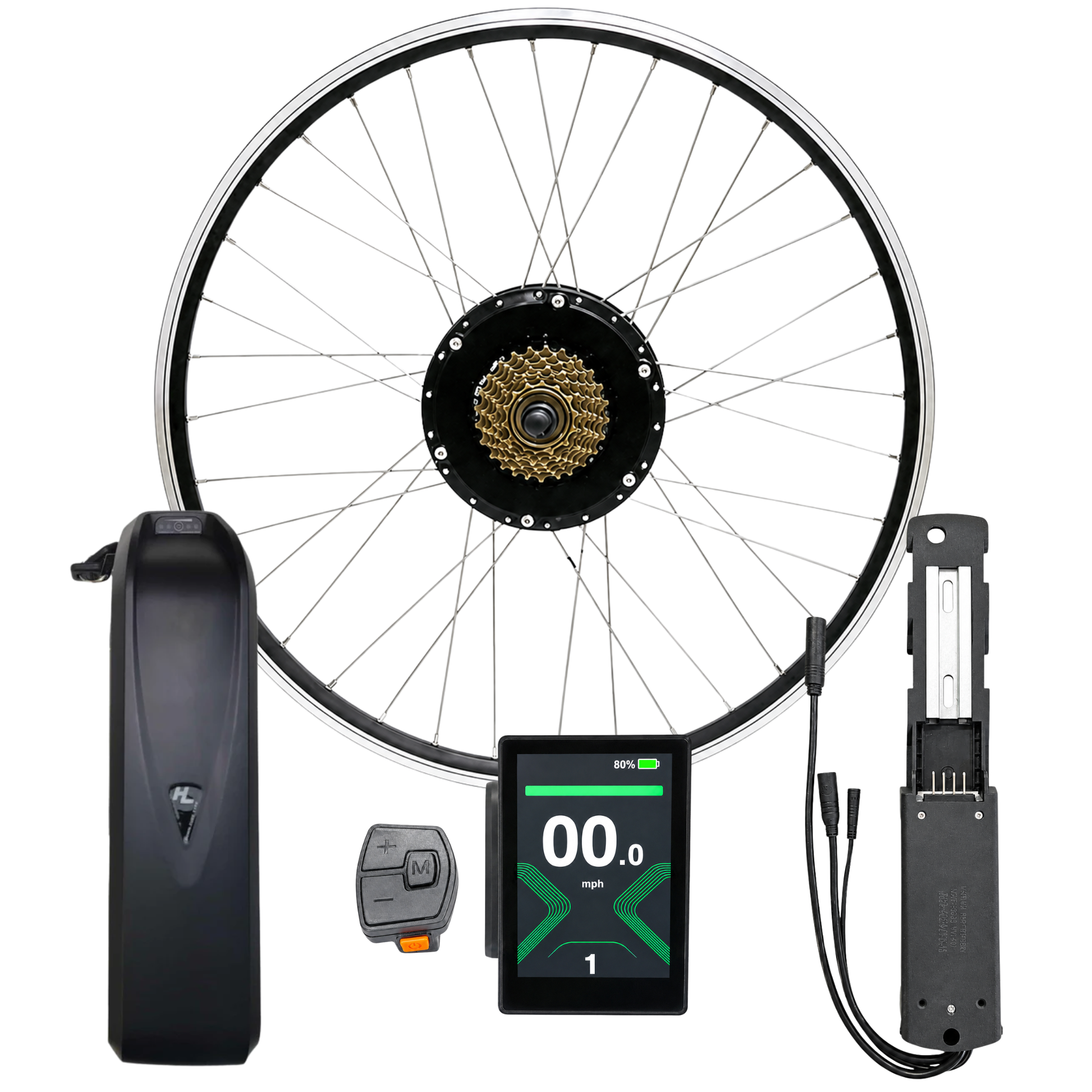

Every E-BikeKit Rear Wheel Conversion System (Integrated Controller) includes:

• USA hand-built rear geared hub motor wheel
• 48V 15Ah lithium battery with integrated SINET™ controller cradle
• 3A smart charger
• SINET™ 3.5" full-color LCD display

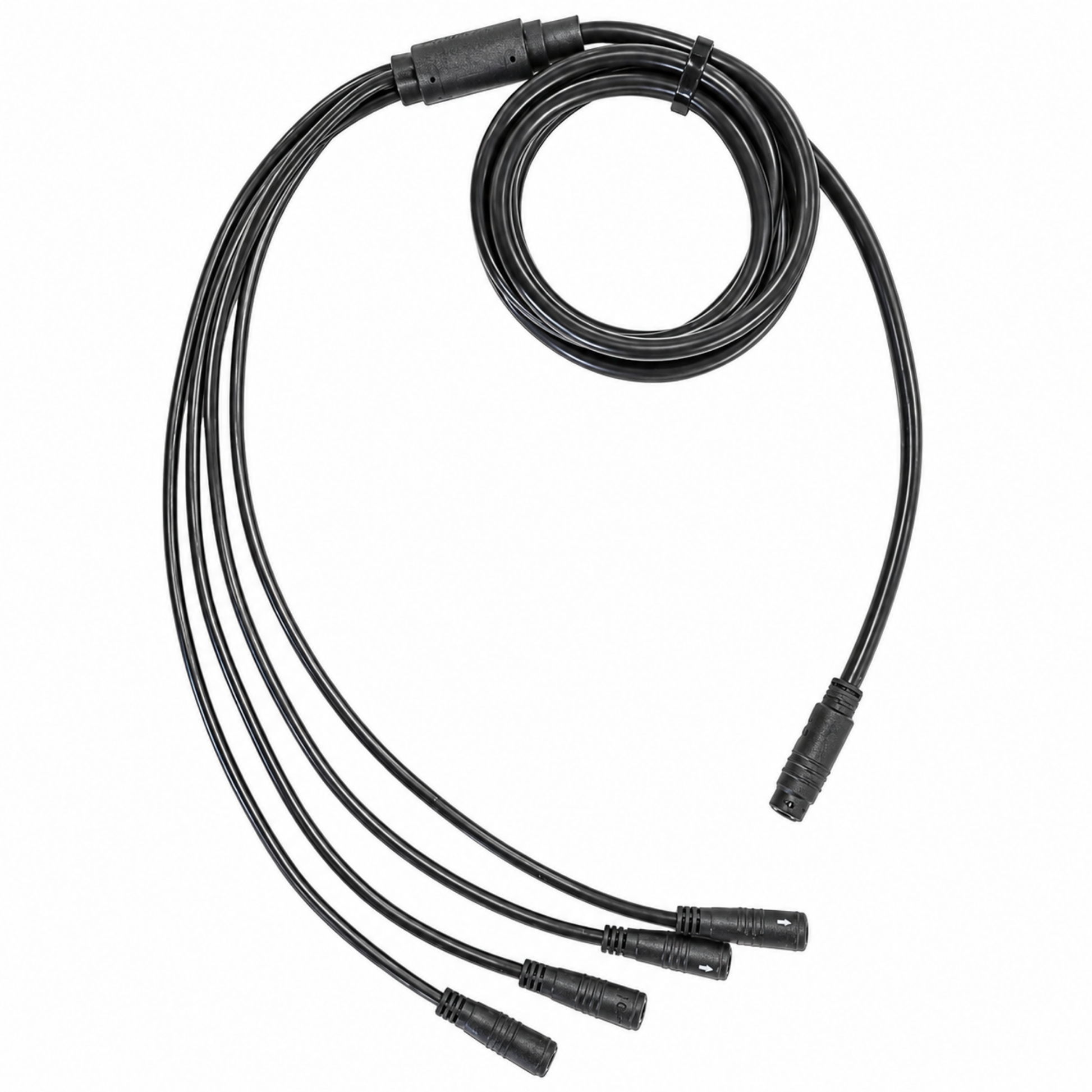

• SINET™ main wiring harness

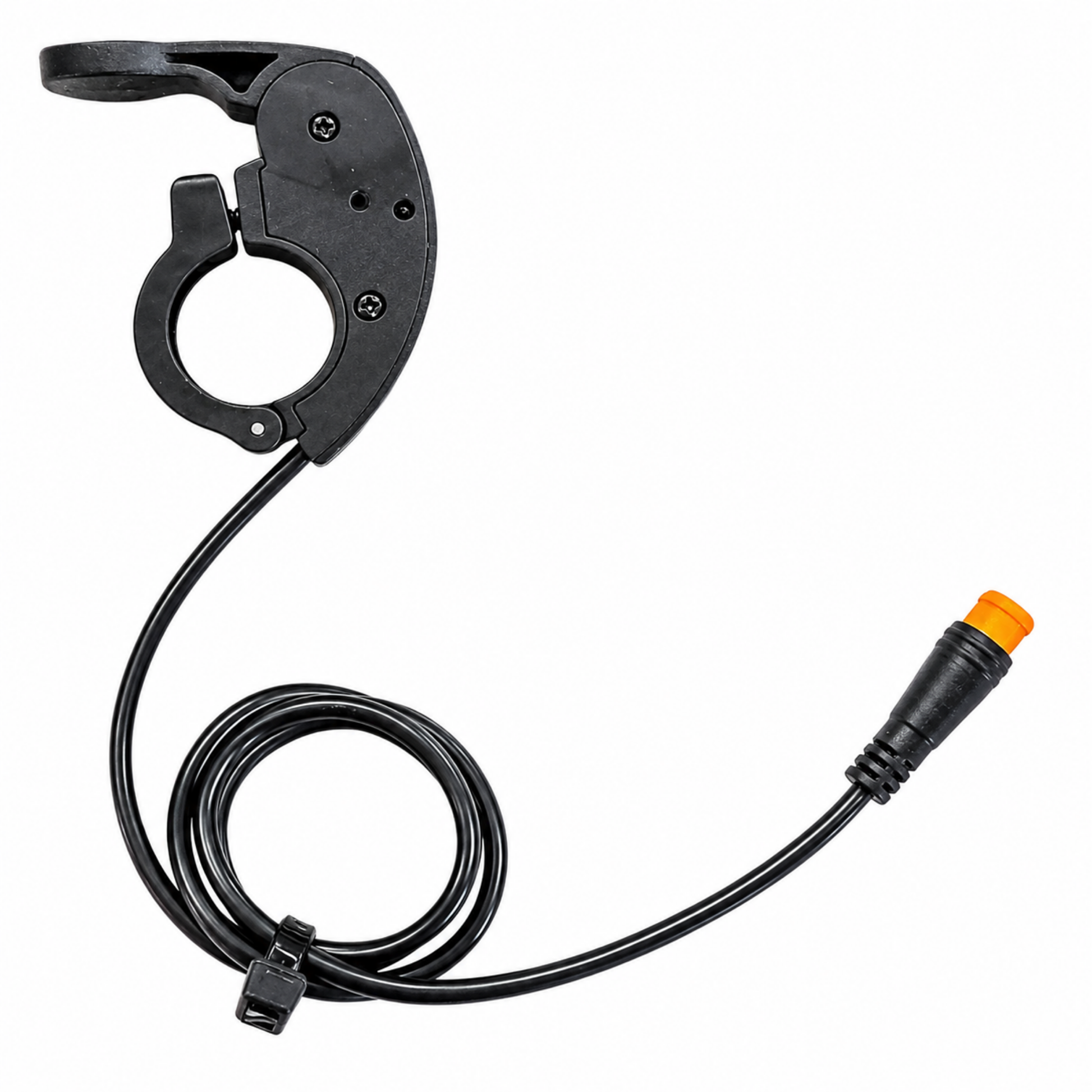

• Thumb throttle

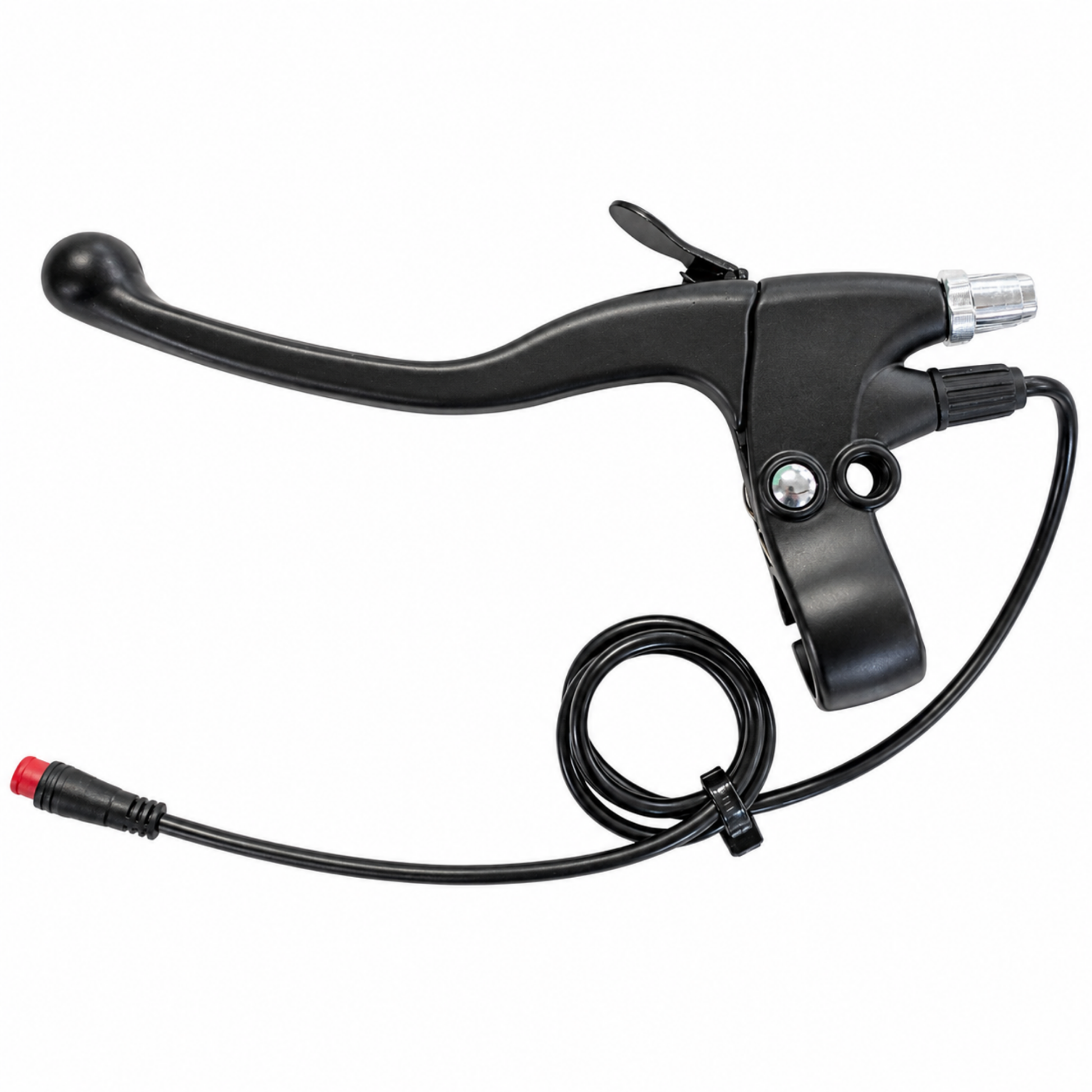

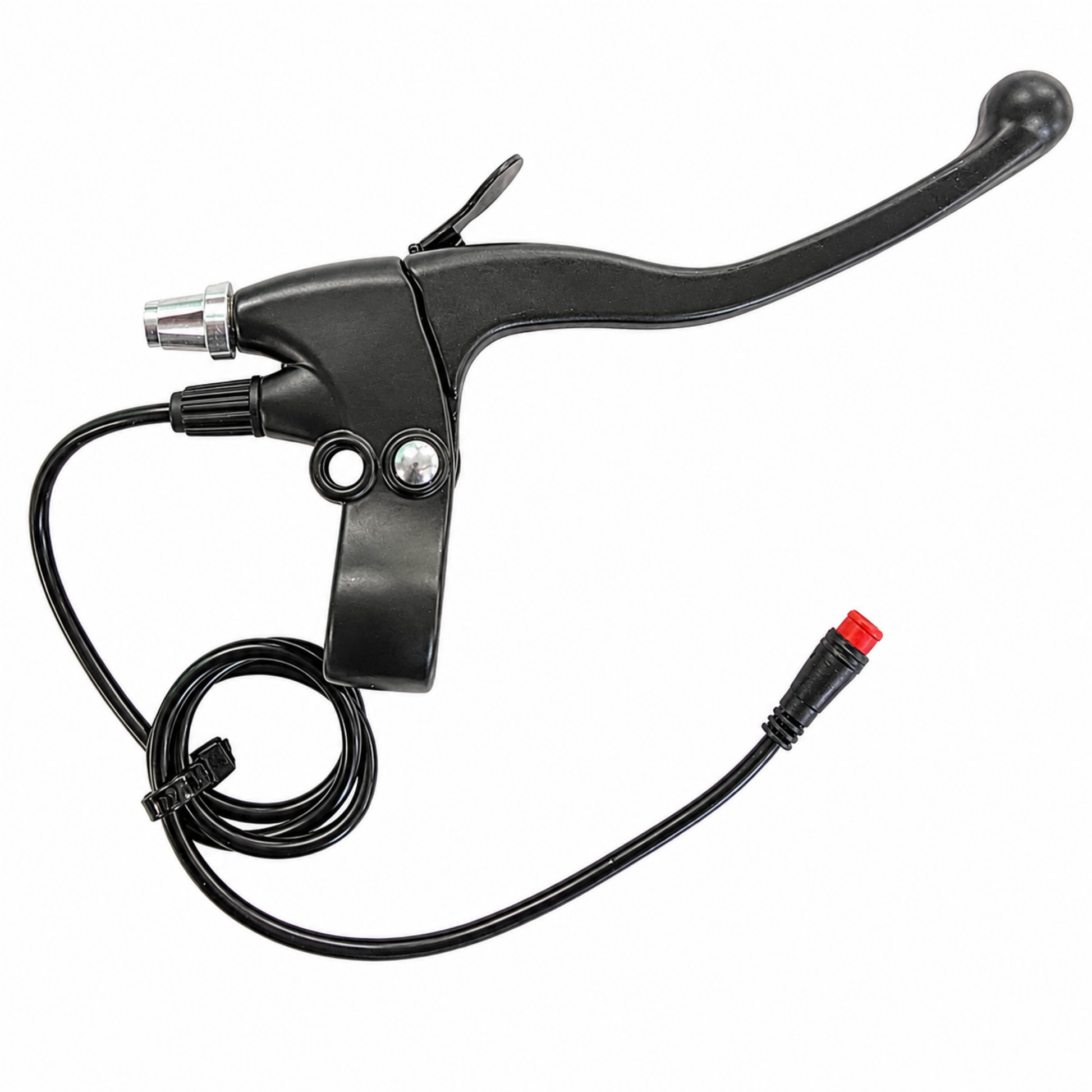

• Left and right mechanical e-brake levers with motor cutoff and parking lock

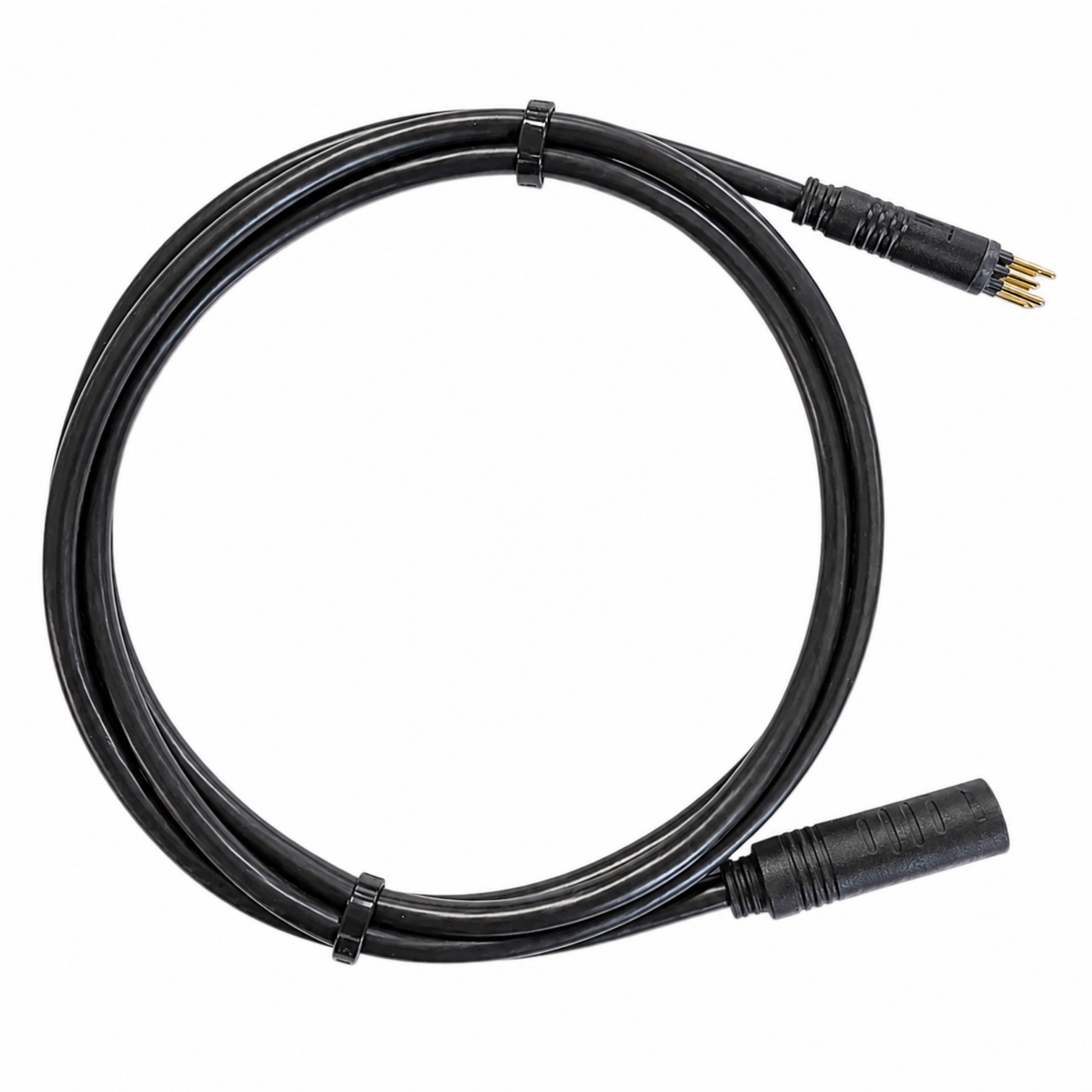

• Main motor cable
• Installation hardware, washers, and zip ties

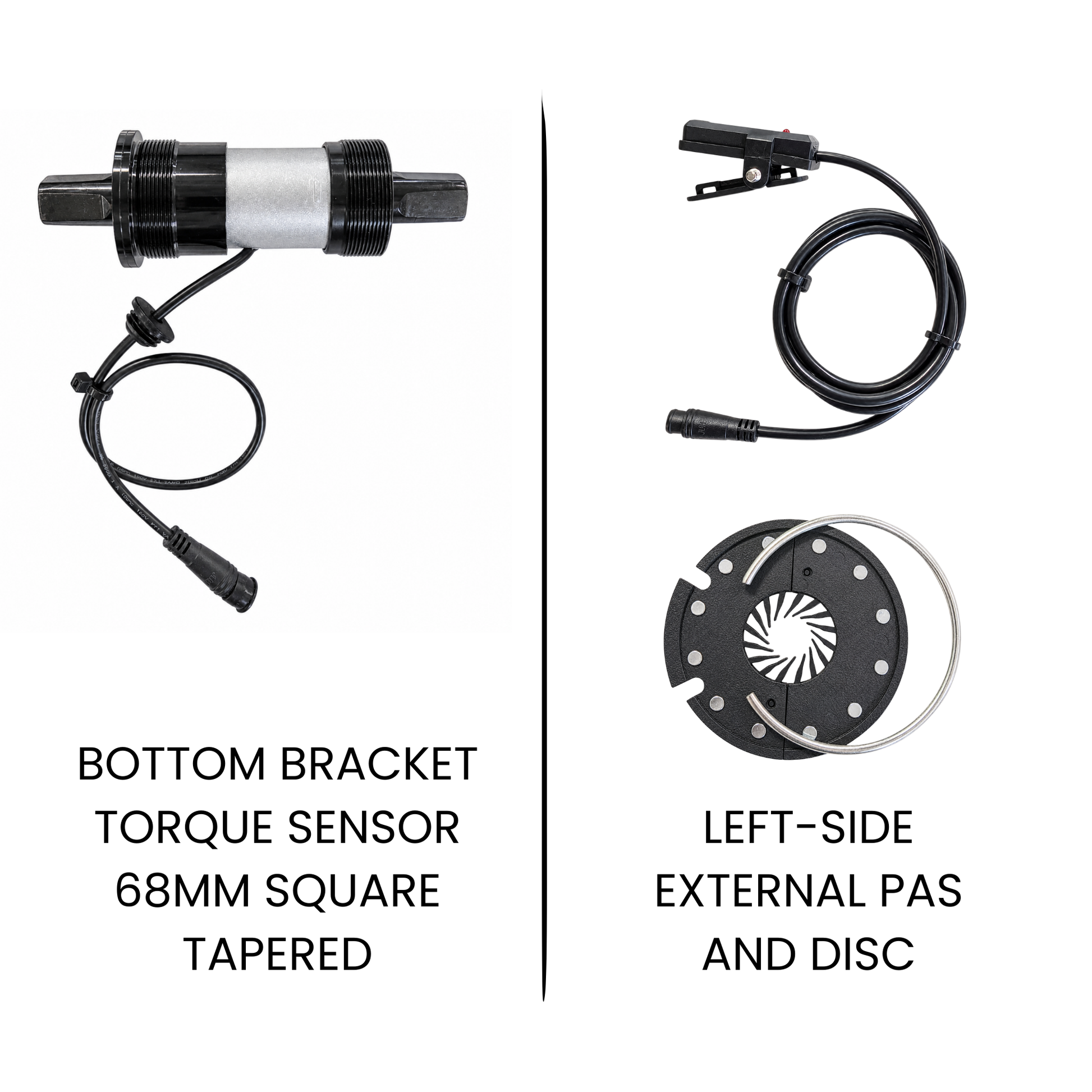

Select your preferred pedal assist system:

• Cadence Sensor: PAS sensor with split magnet disc
• Bottom Bracket Torque Sensor: 68mm torque-sensing bottom bracket with required extension cable

Display Mounting Note:

This system does not include a Topeak® BarXtender or other LCD display mounting extension. Most standard bicycle installations mount the display directly to the handlebars. Some bicycles and many adult tricycles may require an extension to properly position the display due to baskets, handlebar shape, or steering geometry. If required, the installer must supply an appropriate display mounting solution.

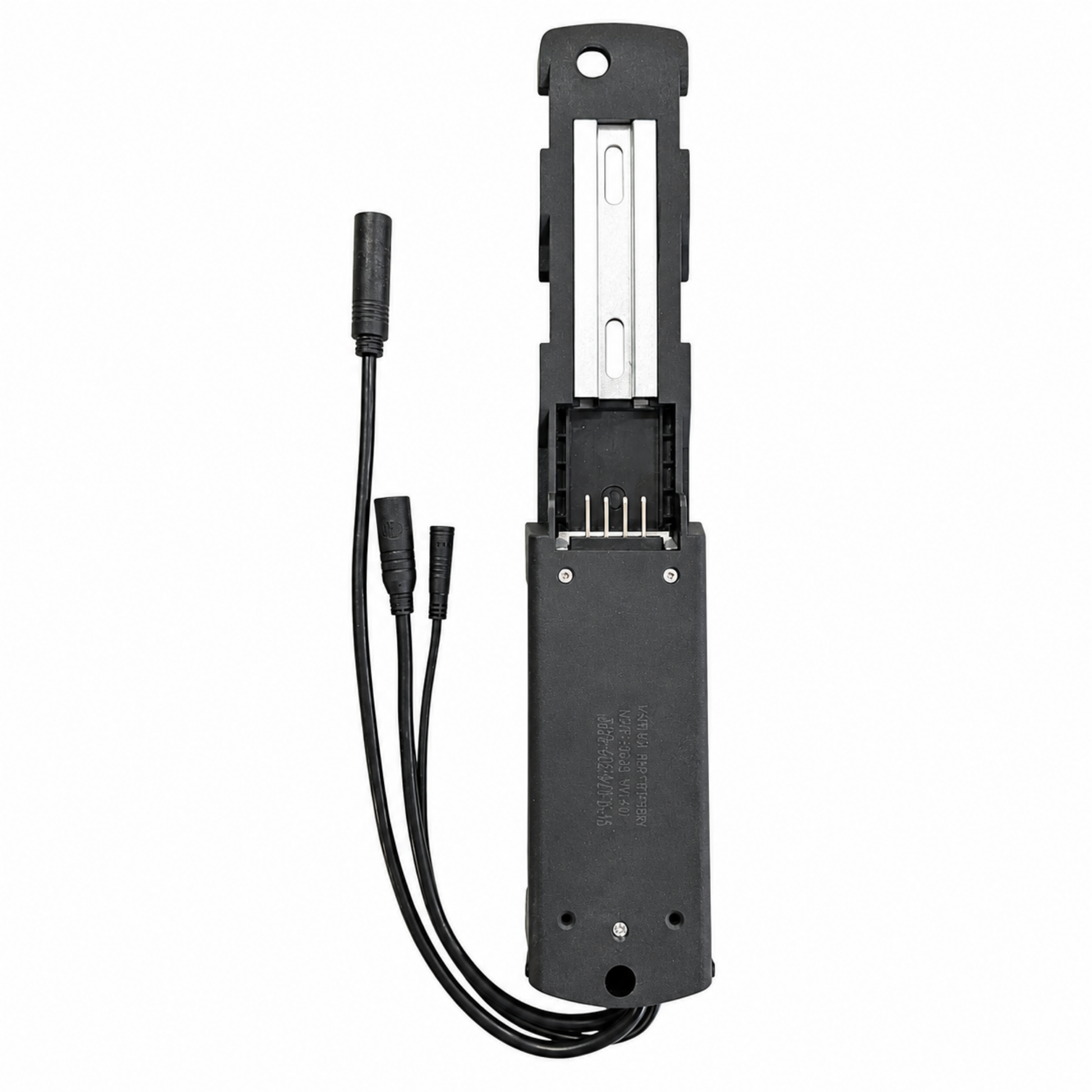

The Integrated Battery & Controller version combines the battery, controller, and battery cradle into one clean assembly. This reduces external wiring, simplifies installation, and creates a more professional factory-style appearance.

• 48V 15Ah lithium battery included
• SINET™ controller integrated into the battery cradle
• Cleaner installation with fewer external components
• Quiet, efficient SINET™ sine-wave controller performance
• Smooth and predictable throttle response
• Natural pedal assist performance
• Includes matching 3A smart charger

This rear wheel system is configured for the selected rear dropout spacing, disc brake option, and freewheel. Correct spacing, brake compatibility, and drivetrain requirements must be confirmed before ordering.

• Rear Dropout Spacing: Select the correct rear spacing for the bicycle, tricycle, or specialty cycle being converted
• Disc Brake Option: Choose the correct disc brake or non-disc rear wheel configuration
• Freewheel: Select the freewheel required for the customer’s drivetrain
• Torque Arms: Must be installed where required for safe rear hub motor installation

If you are unsure of the correct rear dropout spacing, brake setup, or freewheel selection, contact E-BikeKit technical support before ordering.

Cadence Sensor

The standard cadence sensor detects crank rotation to provide dependable pedal assistance that is simple to install and compatible with most bicycles and tricycles.

• 12-magnet split-disc design
• Simple installation
• Reliable everyday performance
• Ideal for most conversion projects

Bottom Bracket Torque Sensor

The optional torque sensor measures rider pedal force to deliver assistance that feels smooth, proportional, and much more natural than traditional cadence-only systems.

• 68mm square-taper bottom bracket
• Includes SINET™ extension cable
• Power output responds to rider effort
• Premium riding experience

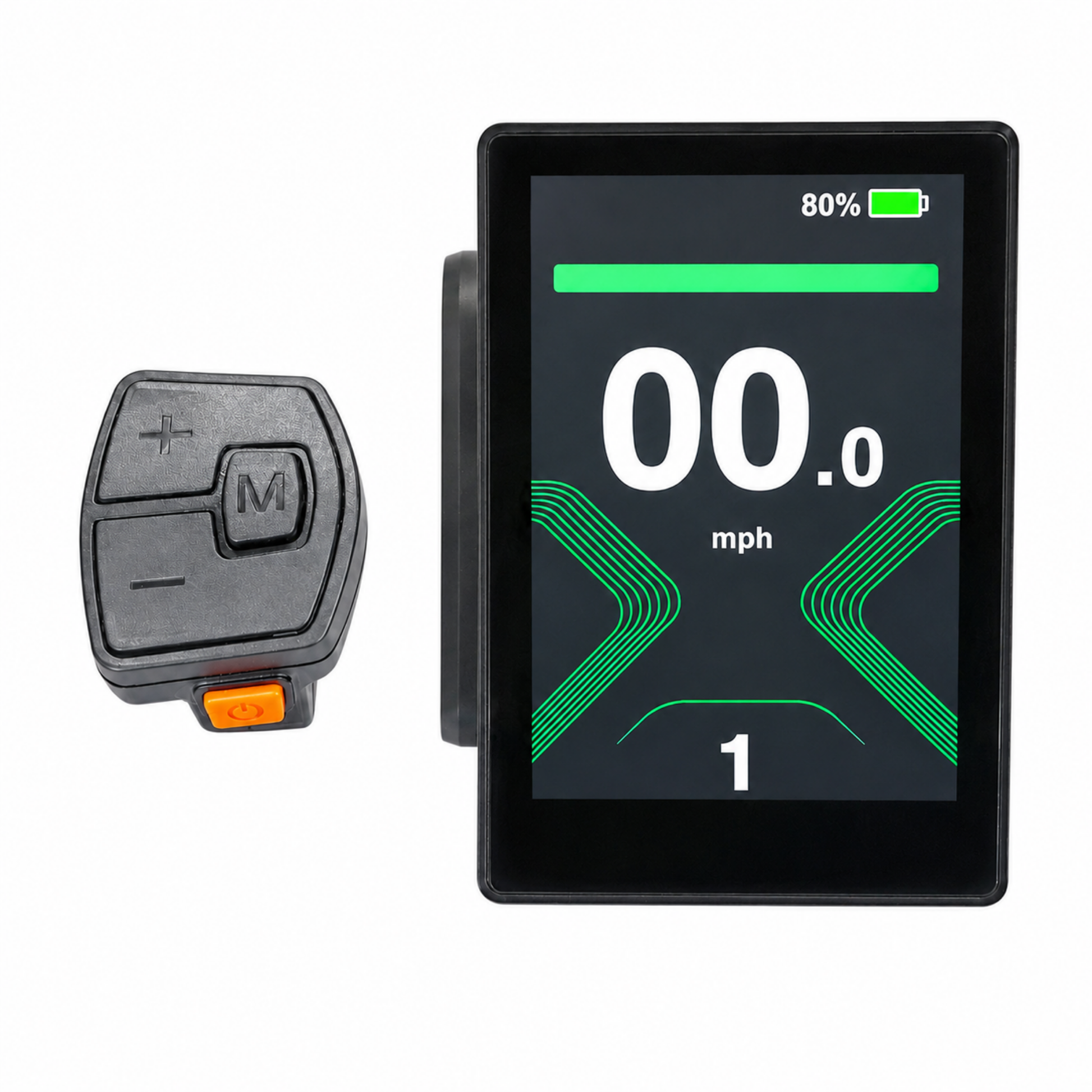

The included SINET™ 3.5" full-color LCD gives installers and riders access to advanced programming, diagnostics, and real-time ride information.

• 3.5" full-color display
• USB-C charging port
• Battery voltage display
• Battery level indicator
• Current speed
• Trip meter and odometer
• Pedal assist level selection
• Walk assist mode
• Error diagnostics
• Advanced programming menu

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD quick-start guide for display operation, setup, programming, and system settings.

Download the SINET™ LCD Quick-Start Guide (PDF)

• Motor Type: Brushless internally geared rear hub motor
• Rear Dropout Spacing: Selectable rear spacing based on application
• Controller: Integrated SINET™ sine-wave controller inside battery cradle
• Battery: 48V 15Ah lithium battery included
• Charger: 3A smart charger included
• Display: SINET™ 3.5" full-color LCD
• Throttle: Thumb throttle
• Pedal Assist: Cadence sensor or optional bottom bracket torque sensor
• Brake Compatibility: Disc or non-disc rear wheel configuration available depending on selected option
• Drivetrain Compatibility: Select the correct freewheel for the customer’s rear drivetrain
• Wheel Build: USA hand-built
• Spokes: 12-gauge stainless steel
• Rim: Double-wall aluminum
• Recommended Total Load: Up to approximately 300 lbs depending on bicycle and application

This system includes the E-BikeKit 48V 15Ah lithium battery, integrated SINET™ controller cradle, and matching 3A charger.

• Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Controller: Integrated into battery cradle
• Estimated Range: Approximately 15–45 miles depending on rider input, terrain, assist level, speed, and load
• Charger: 3A Smart Charger Included
• Charge Time: Approximately 5 hours

The E-BikeKit Rear Wheel Conversion System (Integrated Controller) is designed for installation on compatible bicycles, adult tricycles, cargo bikes, and specialty cycles with the correct rear dropout spacing, brake configuration, and freewheel setup.

Requirements:

• Select the correct rear wheel size for the application
• Select the correct rear dropout spacing
• Select the correct disc brake or non-disc rear wheel configuration
• Select the correct freewheel for the customer’s drivetrain
• Torque arms must be installed where required
• Integrated battery/controller cradle must be mounted securely in an appropriate location
• Verify bottom bracket compatibility when selecting the torque sensor option

Not Compatible With:

• Rear thru-axle frames
• Weak or damaged rear dropouts
• Rear frames with spacing that does not match the selected wheel configuration
• Brake setups that do not match the selected disc or non-disc wheel configuration
• Drivetrain setups that do not match the selected freewheel
• Frames without a suitable location to securely mount the integrated battery/controller cradle
• Bottom brackets incompatible with the selected pedal assist system

If you're unsure which rear wheel size, dropout spacing, brake option, freewheel, battery mounting location, or pedal assist option is correct, contact our technical team before ordering.

The E-BikeKit Rear Wheel Conversion System (Integrated Controller) is intended for dealer installation or experienced bicycle mechanics.

• Install the motor wheel into the correct rear dropout spacing
• Install the selected freewheel as required
• Confirm disc brake or non-disc brake compatibility before final installation
• Install torque arms and tighten axle hardware properly
• Mount the integrated battery/controller cradle securely
• Install the 48V 15Ah battery into the integrated cradle
• Install the display, throttle, brake levers, and selected pedal assist system
• Route wiring away from moving parts and sharp edges
• Verify brake cutoffs, throttle operation, pedal assist, drivetrain clearance, battery fitment, and display settings before riding

Professional installation is recommended for the safest and most reliable performance.

Every E-BikeKit Rear Wheel Conversion System is backed by knowledgeable technical support from the people who design, build, and service these systems every day.

• Phone, email, and text technical support
• Installation guidance
• Compatibility assistance
• Replacement parts and service support
• Support for bicycles, tricycles, cargo bikes, and custom applications

Need help selecting the correct rear wheel size, dropout spacing, brake configuration, freewheel, battery mounting location, or pedal assist system?
Contact our technical support team before ordering and we'll help configure the right E-BikeKit Rear Wheel Conversion System for your build.
