E-BikeKit Rear Wheel Conversion Kit (No Battery)

• Latest-generation rear wheel conversion platform from E-BikeKit
• Powered by the newest SINET™ electronics and full-color LCD
• External controller architecture for maximum installation flexibility
• Available with selectable rear dropout spacing
• Available with disc-brake or non-disc rear wheel configuration
• Designed for use with a compatible customer-supplied battery
• Available with cadence or bottom bracket torque sensing
• USA hand-built rear motor wheel assemblies with 12-gauge stainless spokes and double-wall rims
• 3.5" full-color SINET™ LCD with USB-C charging, diagnostics, and advanced programming
• Backed by E-BikeKit dealer technical support

The E-BikeKit Rear Wheel Conversion Kit (No Battery) is a professional-grade rear hub motor conversion kit designed to provide strong traction, flexible configuration, premium ride quality, and simplified long-term serviceability.

Built around the latest SINET™ electronics, this kit delivers quiet sine-wave motor control, refined throttle response, smooth pedal-assist performance, and an intuitive full-color display. The rear motor wheel is configured by wheel size, rear dropout spacing, disc-brake compatibility, and freewheel selection so dealers can match the kit to the bicycle, tricycle, cargo bike, or specialty cycle being converted.

This version includes the external controller but does not include a battery or charger. A compatible customer-supplied battery and appropriate mounting system are required.

Who’s it for? Dealers, builders, and experienced installers who already have an appropriate battery solution and need a configurable rear wheel conversion kit for applications where traction, flexibility, reliability, and long-term support matter.

Need a battery included?
Choose the E-BikeKit Rear Wheel Conversion Kit (Battery Included) instead.

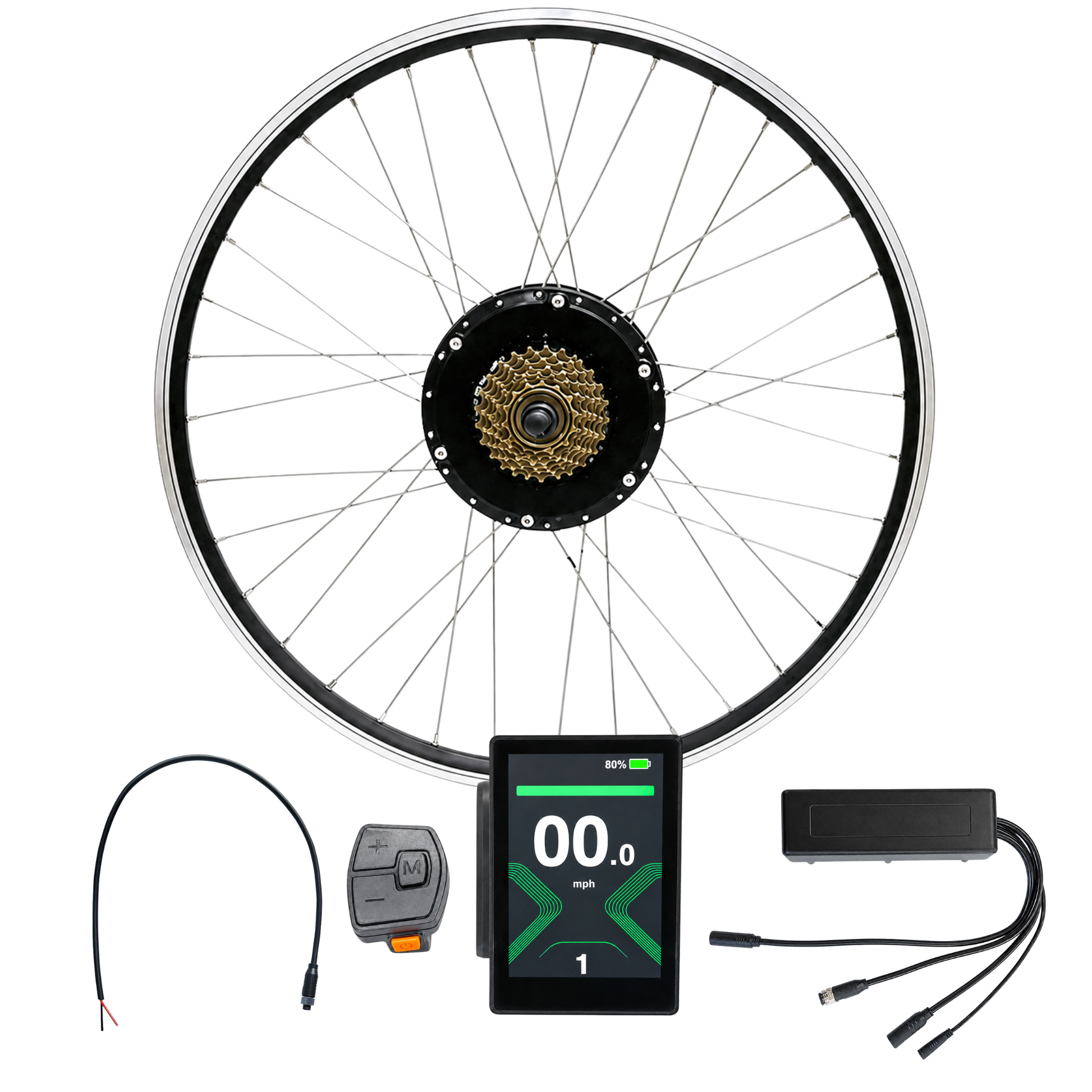

Every E-BikeKit Rear Wheel Conversion Kit (No Battery) includes:

• USA hand-built rear geared hub motor wheel
• External SINET™ sine-wave controller
• SINET™ 3.5" full-color LCD display
• SINET™ main wiring harness
• Thumb throttle
• Left and right mechanical e-brake levers with motor cutoff and parking lock
• Main motor cable
• Installation hardware, washers, and zip ties

Select your preferred pedal assist system:

• Cadence Sensor: PAS sensor with split magnet disc
• Bottom Bracket Torque Sensor: 68mm torque-sensing bottom bracket with required extension cable

Battery Required:

• This kit does not include a battery or charger.
• A compatible customer-supplied 36V or 48V battery is required.
• The battery must be compatible with the selected SINET™ controller configuration.
• The installer is responsible for providing a suitable battery mount and connection method.

Display Mounting Note:

This kit does not include a Topeak® BarXtender or other LCD display mounting extension. Most standard bicycle installations mount the display directly to the handlebars. Some bicycles and many adult tricycles may require an extension to properly position the display due to baskets, handlebar shape, or steering geometry. If required, the installer must supply an appropriate display mounting solution.

The external controller design is intended for builders who want maximum flexibility when choosing battery location, battery style, mounting arrangement, wiring layout, or future upgrades.

It is well suited for custom rear wheel conversions, replacement systems, adult tricycles, cargo bikes, recumbents, and specialty applications where controller access and serviceability are important.

• Quiet, efficient SINET™ sine-wave controller
• Smooth and predictable throttle response
• Natural pedal-assist performance
• Flexible controller mounting options
• Easy access for diagnostics and future replacement
• Compatible with an appropriate customer-supplied battery

This rear wheel kit is built according to the selected wheel size, rear dropout spacing, brake configuration, and freewheel. These specifications must be confirmed before ordering.

• Wheel Size: Select the correct wheel diameter for the bicycle, tricycle, or specialty cycle being converted
• Rear Dropout Spacing: Select the correct rear spacing for the application
• Disc Brake Option: Choose the correct disc-brake or non-disc rear wheel configuration
• Freewheel: Select the freewheel required for the customer's drivetrain
• Torque Arms: Must be installed where required for safe rear hub motor installation

If you are unsure of the correct wheel size, rear dropout spacing, brake setup, or freewheel selection, contact E-BikeKit technical support before ordering.

Cadence Sensor

The standard cadence sensor detects crank rotation to provide dependable pedal assistance that is simple to install and compatible with most bicycles and tricycles.

• 12-magnet split-disc design
• Simple installation
• Reliable everyday performance
• Ideal for most conversion projects

Bottom Bracket Torque Sensor

The optional torque sensor measures rider pedal force to deliver assistance that feels smooth, proportional, and more natural than traditional cadence-only systems.

• 68mm square-taper bottom bracket
• Includes required SINET™ extension cable
• Power output responds to rider effort
• Premium riding experience

The included SINET™ 3.5" full-color LCD gives installers and riders access to advanced programming, diagnostics, and real-time ride information.

• 3.5" full-color display
• USB-C charging port
• Battery voltage display
• Battery level indicator
• Current speed
• Trip meter and odometer
• Pedal-assist level selection
• Walk-assist mode
• Error diagnostics
• Advanced programming menu

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD quick-start guide for display operation, setup, programming, and system settings.

Download the SINET™ LCD Quick-Start Guide (PDF)

• Motor Type: Brushless internally geared rear hub motor
• Rear Dropout Spacing: Selectable rear spacing based on application
• Controller: External SINET™ sine-wave controller
• Battery: Not included
• Charger: Not included
• Compatible Battery Voltage: 36V or 48V, subject to controller compatibility
• Display: SINET™ 3.5" full-color LCD
• Throttle: Thumb throttle
• Pedal Assist: Cadence sensor or bottom bracket torque sensor
• Brake Compatibility: Disc-brake or non-disc rear wheel configuration available depending on selected option
• Drivetrain Compatibility: Select the correct freewheel for the customer's rear drivetrain
• Wheel Build: USA hand-built
• Spokes: 12-gauge stainless steel
• Rim: Double-wall aluminum
• Recommended Total Load: Up to approximately 300 lbs depending on bicycle and application

This kit is supplied without a battery or charger and must be paired with a compatible customer-supplied battery.

• Supported Voltage: 36V or 48V, subject to controller configuration
• Battery Connector: Must be compatible or professionally adapted
• Battery Mounting: Installer must provide a secure and structurally appropriate mounting solution
• Discharge Capability: Battery must safely support the current demand of the SINET™ controller
• Condition: Battery must be in safe operating condition with a functioning battery management system

Contact E-BikeKit technical support before ordering if you are unsure whether an existing battery is appropriate.

The E-BikeKit Rear Wheel Conversion Kit (No Battery) is designed for installation on compatible bicycles, adult tricycles, cargo bikes, and specialty cycles with the correct rear dropout spacing, brake configuration, and freewheel setup.

Requirements:

• Select the correct rear wheel size for the application
• Select the correct rear dropout spacing
• Select the correct disc-brake or non-disc rear wheel configuration
• Select the correct freewheel for the customer's drivetrain
• Torque arms must be installed where required
• A compatible customer-supplied battery and secure mounting system are required
• A secure mounting location is required for the external controller
• Verify bottom bracket compatibility when selecting the torque sensor option

Not Compatible With:

• Rear thru-axle frames
• Weak or damaged rear dropouts
• Rear frames with spacing that does not match the selected wheel configuration
• Brake setups that do not match the selected disc-brake or non-disc wheel configuration
• Drivetrain setups that do not match the selected freewheel
• Incompatible, damaged, or under-rated batteries
• Bottom brackets incompatible with the selected pedal-assist system

If you're unsure which rear wheel size, dropout spacing, brake option, freewheel, compatible battery, or pedal-assist option is correct, contact our technical team before ordering.

The E-BikeKit Rear Wheel Conversion Kit (No Battery) is intended for dealer installation or experienced bicycle mechanics.

• Confirm that the selected motor wheel matches the frame's rear dropout spacing
• Install the selected freewheel and confirm proper drivetrain alignment
• Confirm disc-brake or non-disc brake compatibility before final installation
• Install the motor wheel into the rear dropouts
• Install torque arms and tighten axle hardware properly
• Mount the external SINET™ controller securely
• Install a compatible customer-supplied battery using an appropriate mounting system
• Confirm correct battery voltage, polarity, connector compatibility, and discharge capability before connection
• Install the display, throttle, brake levers, and selected pedal-assist system
• Route wiring away from moving parts, heat sources, and sharp edges
• Verify brake cutoffs, throttle operation, pedal assist, drivetrain clearance, battery connection, and display settings before riding

Professional installation is recommended for the safest and most reliable performance.

Every E-BikeKit conversion kit is backed by knowledgeable technical support from the people who design, build, and service these systems every day.

• Phone, email, and text technical support
• Installation guidance
• Rear wheel configuration assistance
• Battery compatibility assistance
• Replacement parts and service support
• Support for bicycles, tricycles, cargo bikes, and custom applications

Need help selecting the correct rear wheel size, dropout spacing, brake configuration, freewheel, compatible battery, or pedal-assist system?
Contact our technical support team before ordering and we'll help configure the right E-BikeKit conversion kit for your build.
