E-BikeKit™ Color LCD with PAS
E-BikeKit™ Color LCD with PAS
MSRP:
$130.00
Dealer Price:
$84.00
35% OFF
Quantity
Couldn't load pickup availability
Overview
- Retro-compatible with EBK systems (2017 on)

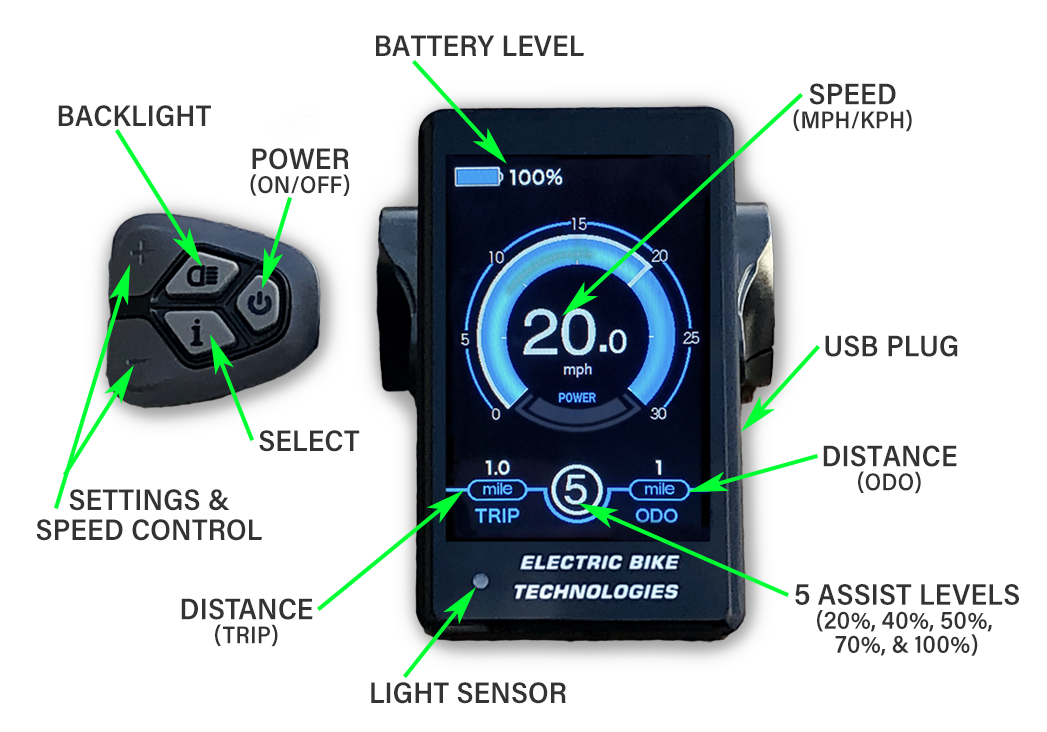

- Displays battery level, speed, pas level, trip & ODO
- Compatible with both 36V & 48V systems
- Includes current-limit & speed-limit settings
- Customizable PAS sensitivity & assist behavior
This LCD Dashboard is used across all PAS-enabled E-BikeKit and E-TrikeKit systems. It offers real-time ride data and full configuration control, including wheel size, motor type, battery type, PAS behavior, and system limits.
Initial Setup Required:
Be sure to set your wheel size, motor type, and battery voltage to ensure accurate speed and distance readings.
Quick Reference: For step-by-step configuration, watch the video above and review the LCD Setup User Manual.
Wheel Size Lookup Table:
| Tire Size Description | MM | LCD Options |
| 16" BMX / Kids | 305 | 16" 305 |
| 16" Recumbent | 349 | 16" 349 |
| 18" BMX / Kids | 355 | 18" 355 |
| 20" BMX / Kids | 406 | 20" 406 |
| 20" x 1-3/4" | 419 | 20" 419 |
| 20" x 1-1/8"–3/8" | 451 | 20" 451 |
| 22" | 457 | 22" 457 |
| 24" Trike / BMX / Kids | 507 | 24" 507 |
| 26" Mountain | 559 | 26" 559 |
| 26" FAT | 584 | 26" 584 |
| 26" x 1-3/8" | 590 | 26" 590 |
| 700c / 29" / 28" | 622 | 29" 622 |
| 27" Road | 630 | 27" 630 |
Specs
- Brand: EBikeKit LLC
- System Compatibility: 36V & 48V EBK / ETK PAS systems
- Functions: Battery, speed, PAS level, trip, ODO, max speed, avg speed
- Adjustable Settings: Wheel size, speed limit, motor type, battery type, PAS sensitivity
- Ports: Standard EBK LCD connector
- Mount: Handlebar clamp included
What’s Included
- EBikeKit LCD Display
- Handlebar mount & hardware
- Pre-wired EBK LCD connector
