Wheel - Fat Rear

• Specialty wheels for Baja Trike & fat bikes
• Built with 12-gauge stainless spokes & brass nipples
• Hand-built in the USA by expert wheelbuilders

Heavy-Duty Baja and Fat Performance E-BikeKit Wheels are built to handle higher loads, wider tires, and demanding terrain. Each wheel is tensioned and trued by hand to meet the requirements of high-torque electric systems.

Freewheel is not included when ordering a wheel only.

Note on motor cables:
Our current fat geared and Baja wheels use the latest direct-drive style motor cable. If you are upgrading from an older system that used the original geared motor cable, you may also need a new motor cable.

Ordering Baja wheels:
To order a Baja-specific wheel, please call 1-866-882-3245 or email support@ebikekit.com for assistance.

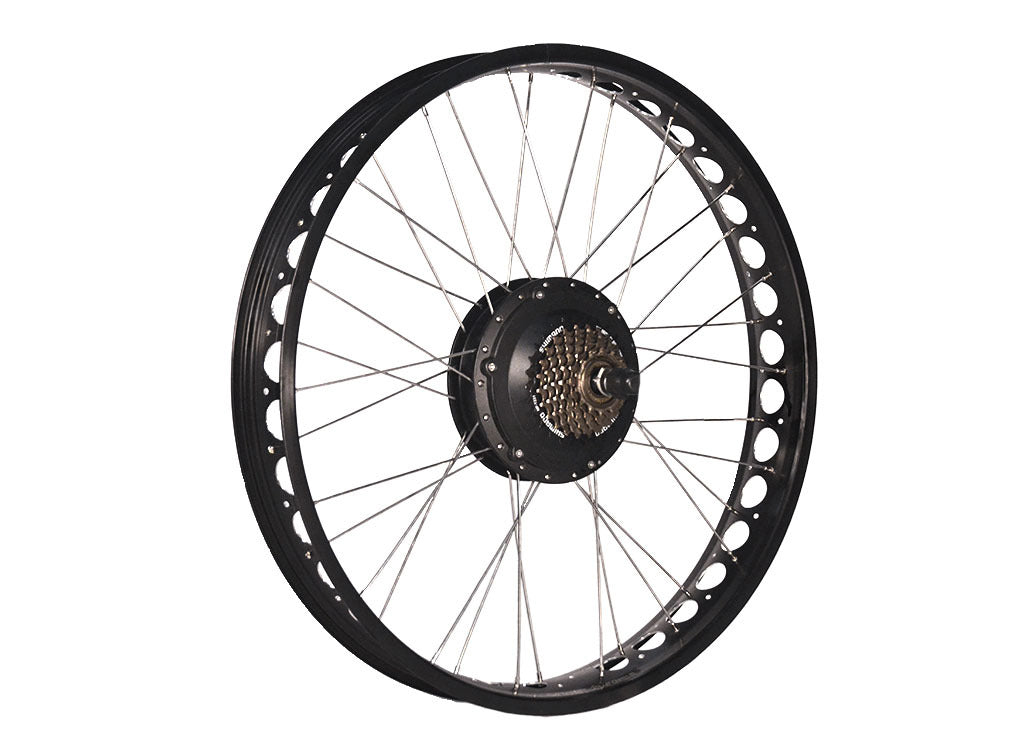

Fat Performance Geared Rear Wheel

• Type: Internally geared, brushless, disc-brake compatible
• Power: 750W nominal / >1000W peak @ 48V
• Max Torque: ~84 Nm @ 48V
• Max RPM: ~320 @ 48V
• Cable: 3-phase / 5 Hall effect
• Connector: Round 9-pin (~14.7 mm)
• Motor Weight: ~9.4 lb (4.26 kg)
• Load Rating: Up to ~300 lb total system load
• Warranty: 1 year

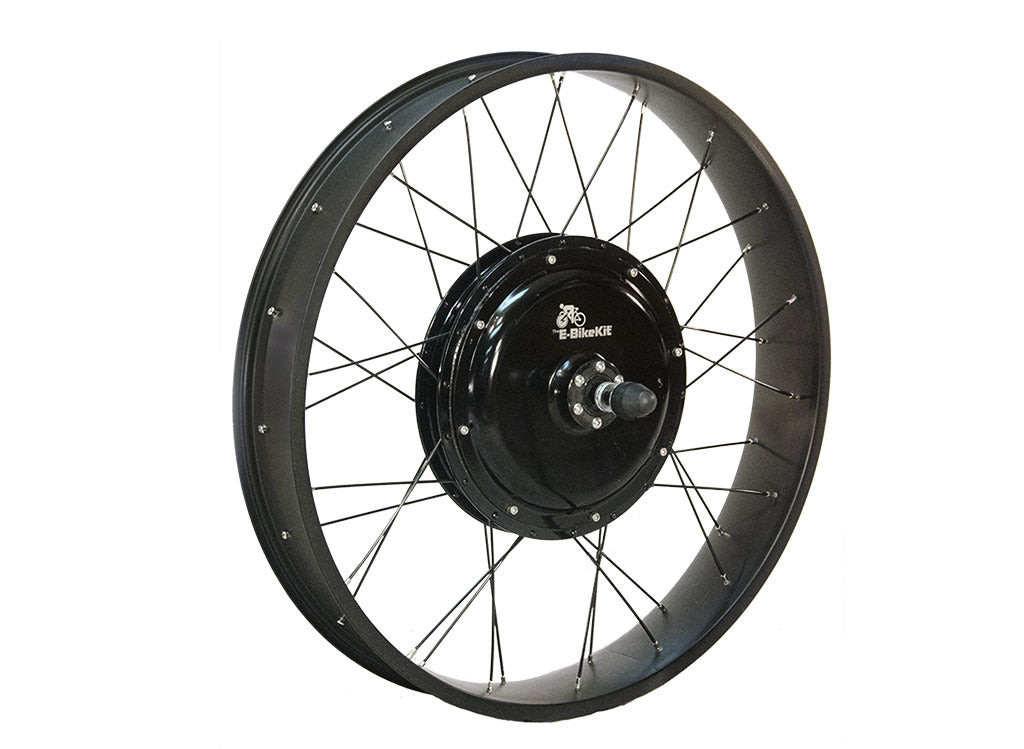

Heavy-Duty Direct-Drive Baja Wheel

• Type: Direct-drive hub motor, ISO disc-brake compatible
• Power: 500W nominal / >1000W peak @ 48V
• Top Speed: ~14–19 mph (varies by battery & configuration)
• Connector: Round 9-pin (~14.7 mm)
• Motor Weight: ~14 lb (6.35 kg)
• Load Rating: Up to ~600 lb total system load
• Warranty: 1 year

• USA hand-built wheel (Baja or Fat configuration, depending on selection)
• Performance Geared or Heavy-Duty Direct-Drive motor (as ordered)
• 12-gauge stainless steel spokes
• Double-wall rim with reinforced nipple seats
• Brass spoke nipples
• Note: Freewheel is not included with “wheel only” purchases
