This Catrike-specific E-BikeKit conversion system is designed to convert compatible Catrike recumbent trikes into smooth, efficient, and responsive electric trikes.

The system includes a USA hand-built rear motor wheel, integrated SINET™ controller, 3.5″ color SINET™ LCD with USB charging port, 48V 15Ah lithium-ion battery, 3A charger, integrated-controller battery cradle, battery mounting system, Topeak Bar Extender, thumb throttle, locking e-brake levers, matched wiring, torque arm, selected freewheel, and Catrike-specific installation components.

• Configuration developed specifically for compatible Catrike recumbent trikes
• Available in 20″, 26″, and 700C rear wheel sizes
• Wheel-size selection does not change the price
• Freewheel selection required
• Rear dropout spacing selection required
• Integrated controller housed in the battery cradle
• 48V 15Ah battery and 3A charger included
• Topeak Bar Extender included for LCD mounting
• Choice of cadence pedal assist or bottom bracket torque sensing
• Throttle-on-demand included with either pedal-assist option
• Estimated range of approximately 15–45 miles depending on conditions
• Recommended for total loads up to approximately 300 lb

Choose your pedal-assist system:

• Cadence Sensor: Activates motor assistance when crank rotation is detected.
• Bottom Bracket Torque Sensor: Measures rider effort and provides a smoother, more natural, proportional level of motor assistance.

Important Compatibility:

• Only compatible with Catrikes using standard slotted rear dropouts
• NOT compatible with Catrikes using rear thru-axles

The pedal-assist type, wheel size, freewheel, and rear dropout spacing must be selected. The integrated controller, battery, charger, battery mounting system, LCD, Topeak Bar Extender, throttle, wiring, e-brake levers, and installation hardware are included with every compatible Catrike conversion system.

Who’s it for? Riders and dealers looking for a complete Catrike conversion system with matched SINET™ components, a professionally built rear motor wheel, and direct technical support.

This system includes the battery, charger, integrated controller, selected rear motor wheel, selected freewheel, battery mounting system, Topeak Bar Extender, and matched SINET™ components.

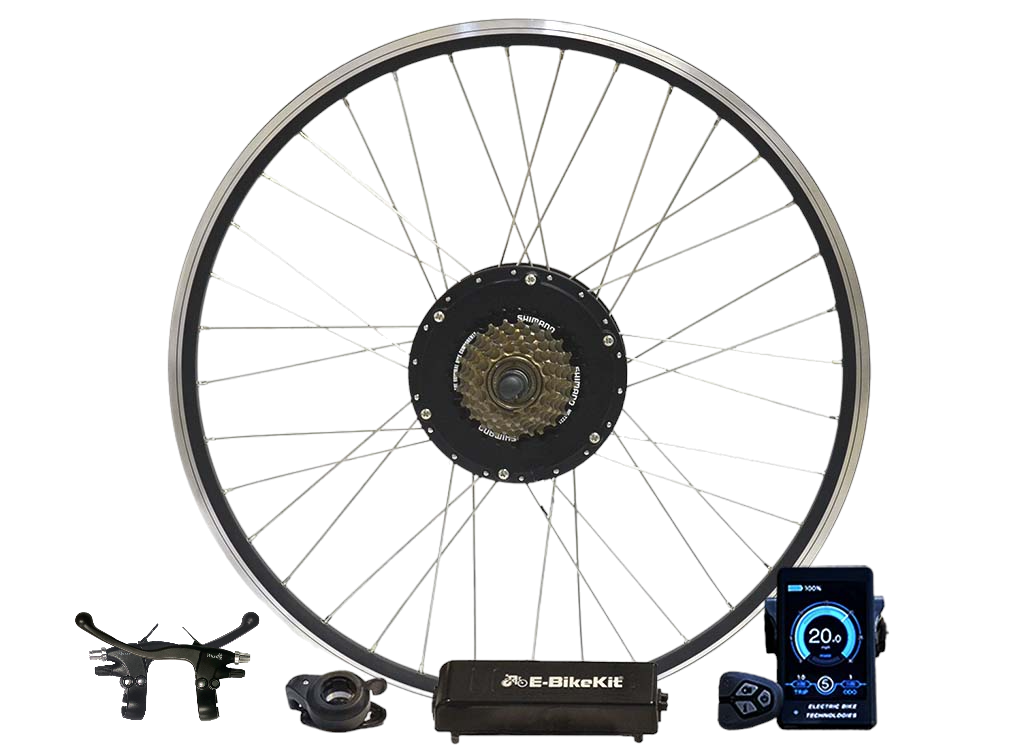

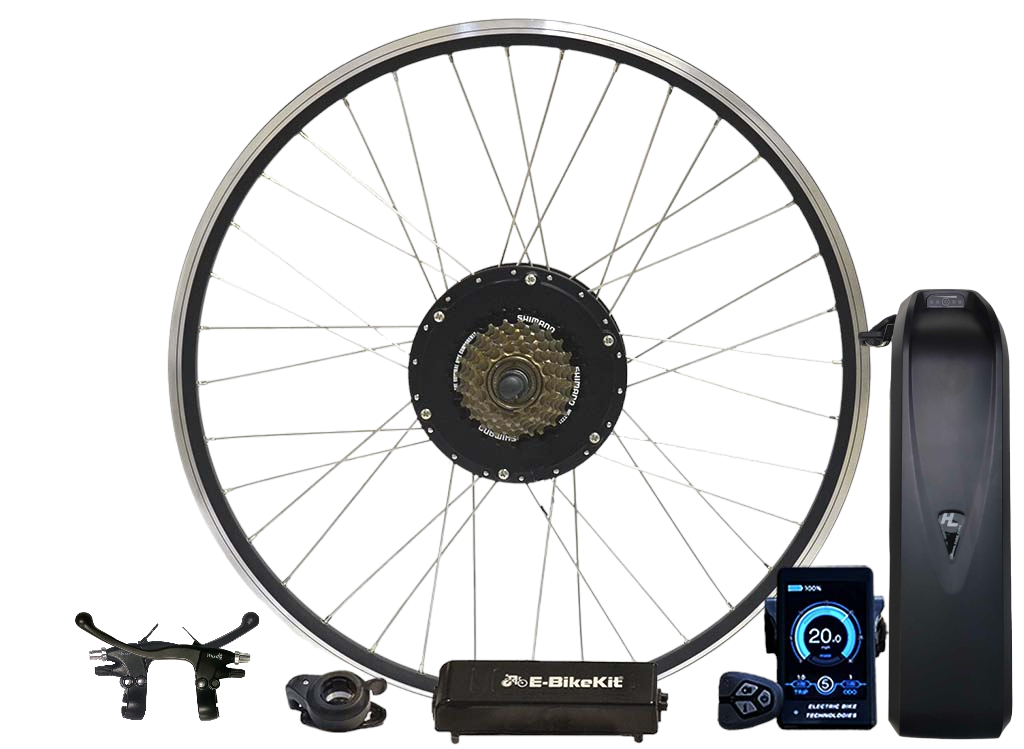

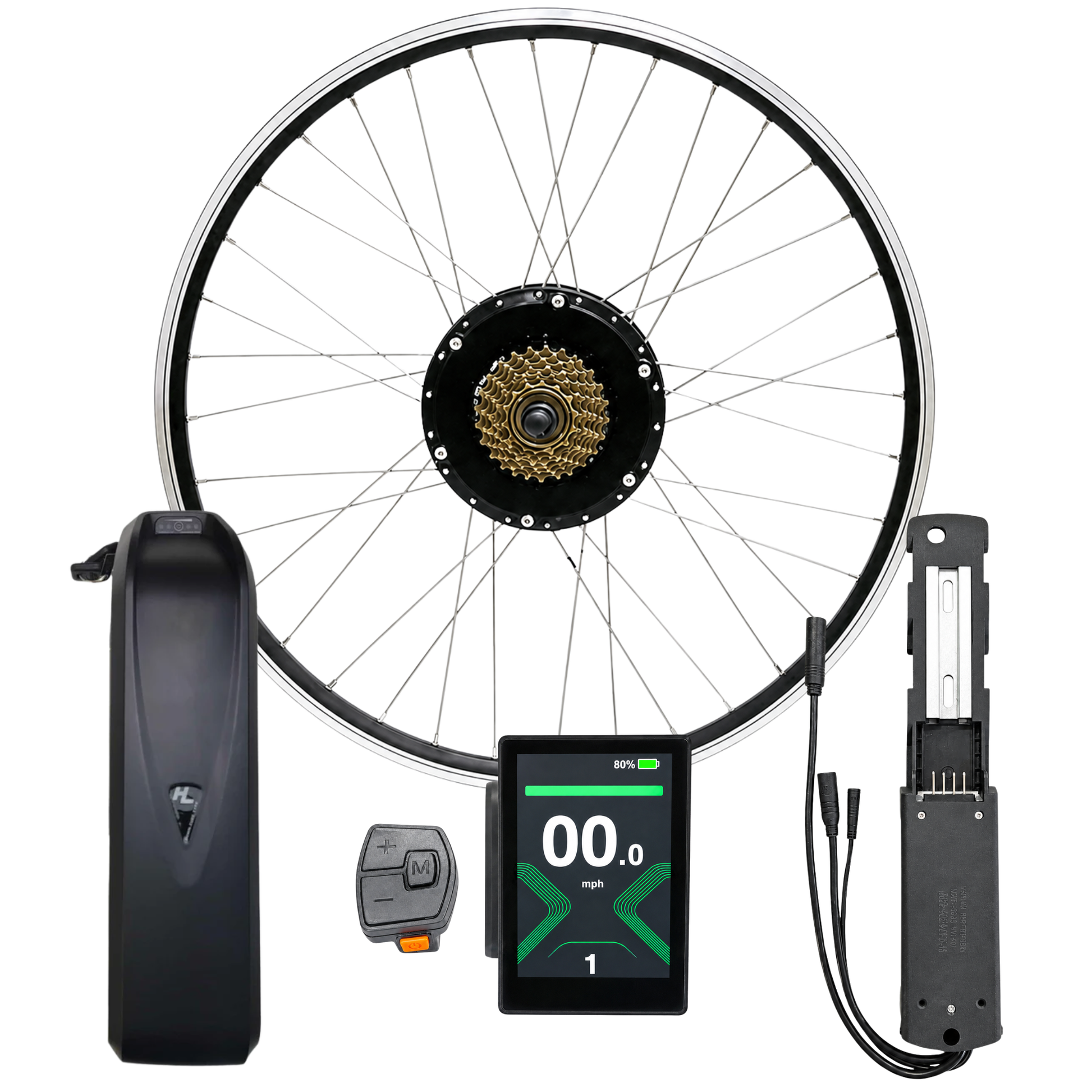

Catrike Conversion System Components:

• USA hand-built rear motor wheel in the selected 20″, 26″, or 700C size
• Selected freewheel installed when applicable
• Integrated SINET™ controller housed in the battery cradle

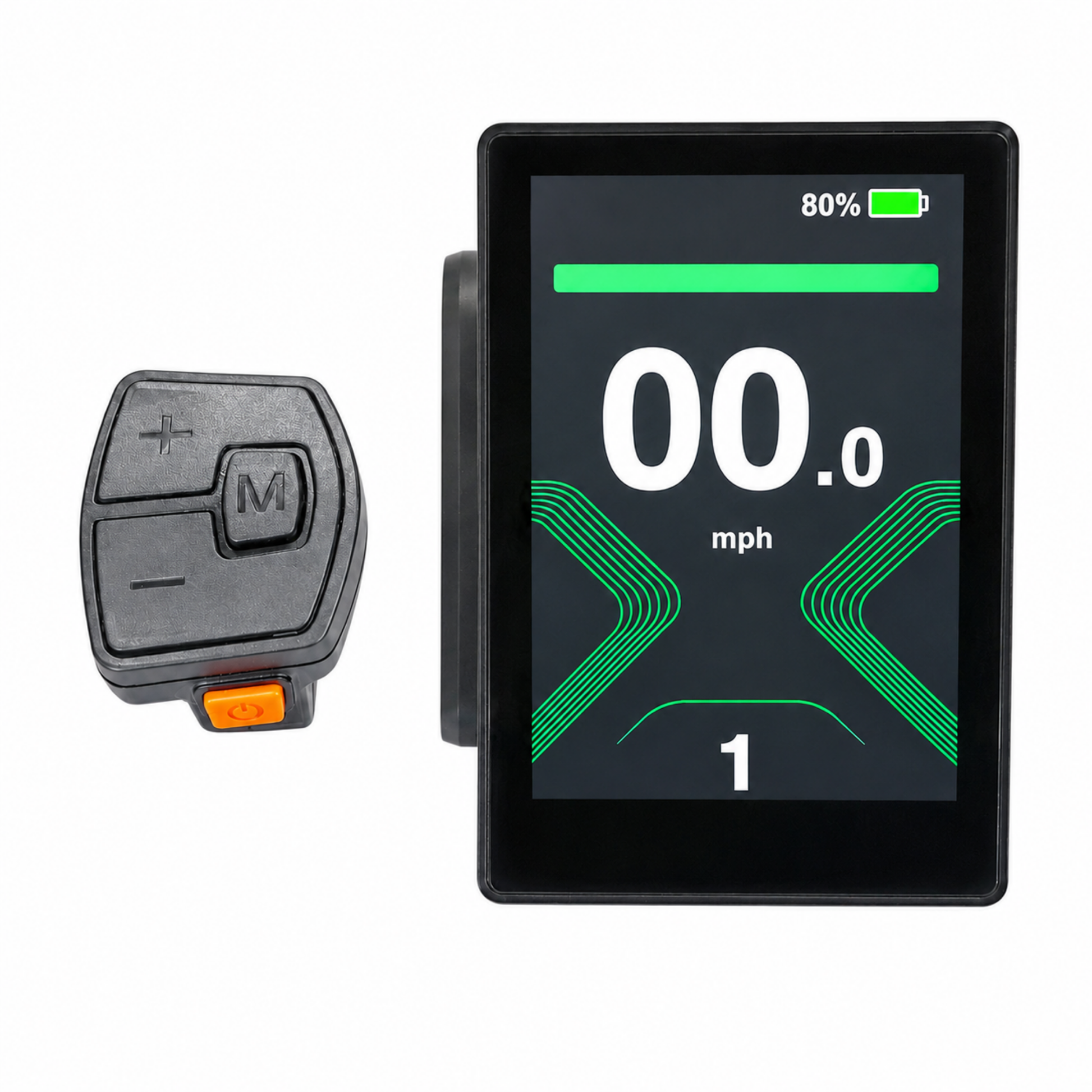

• 3.5″ color SINET™ LCD with USB charging port

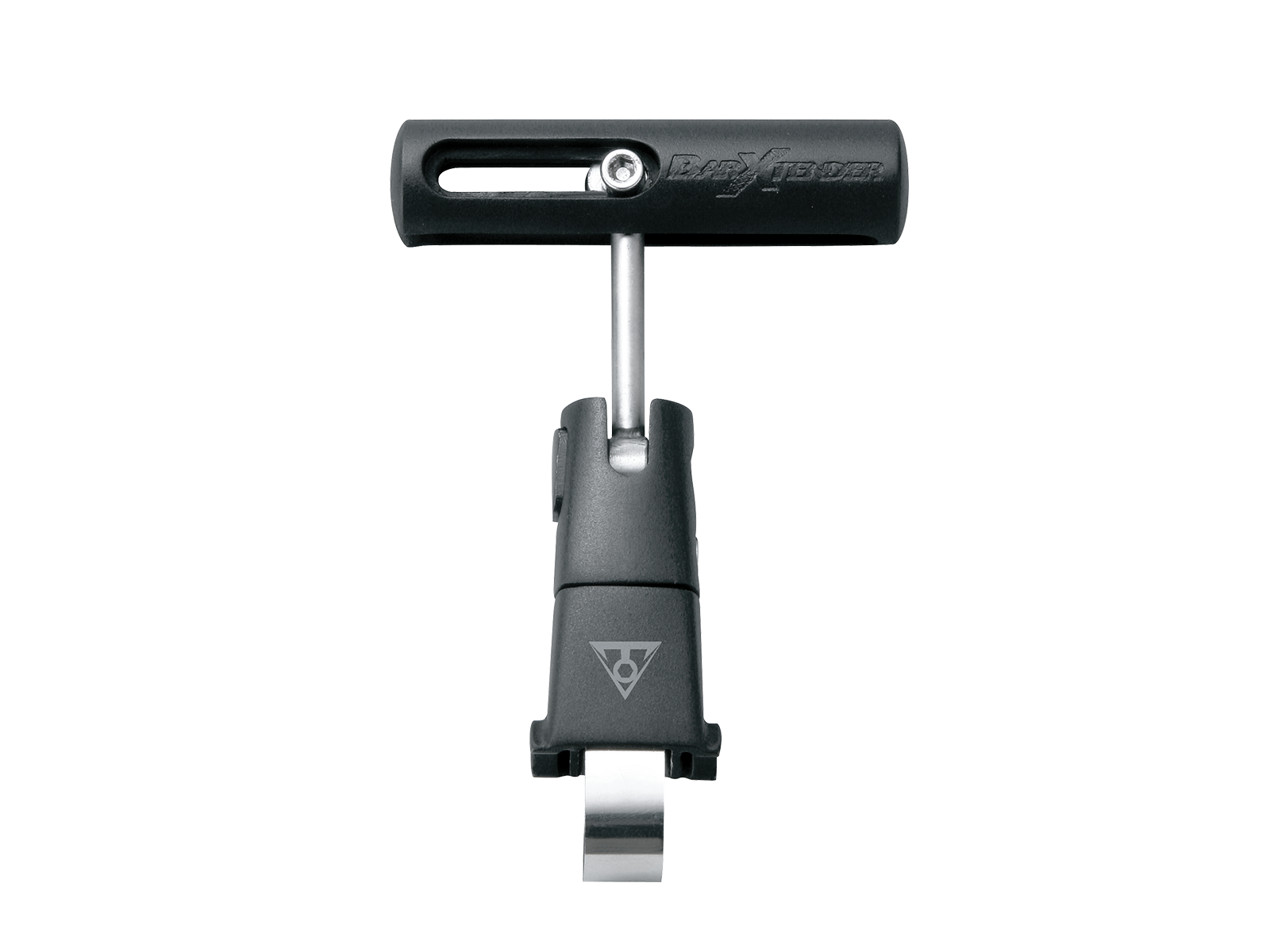

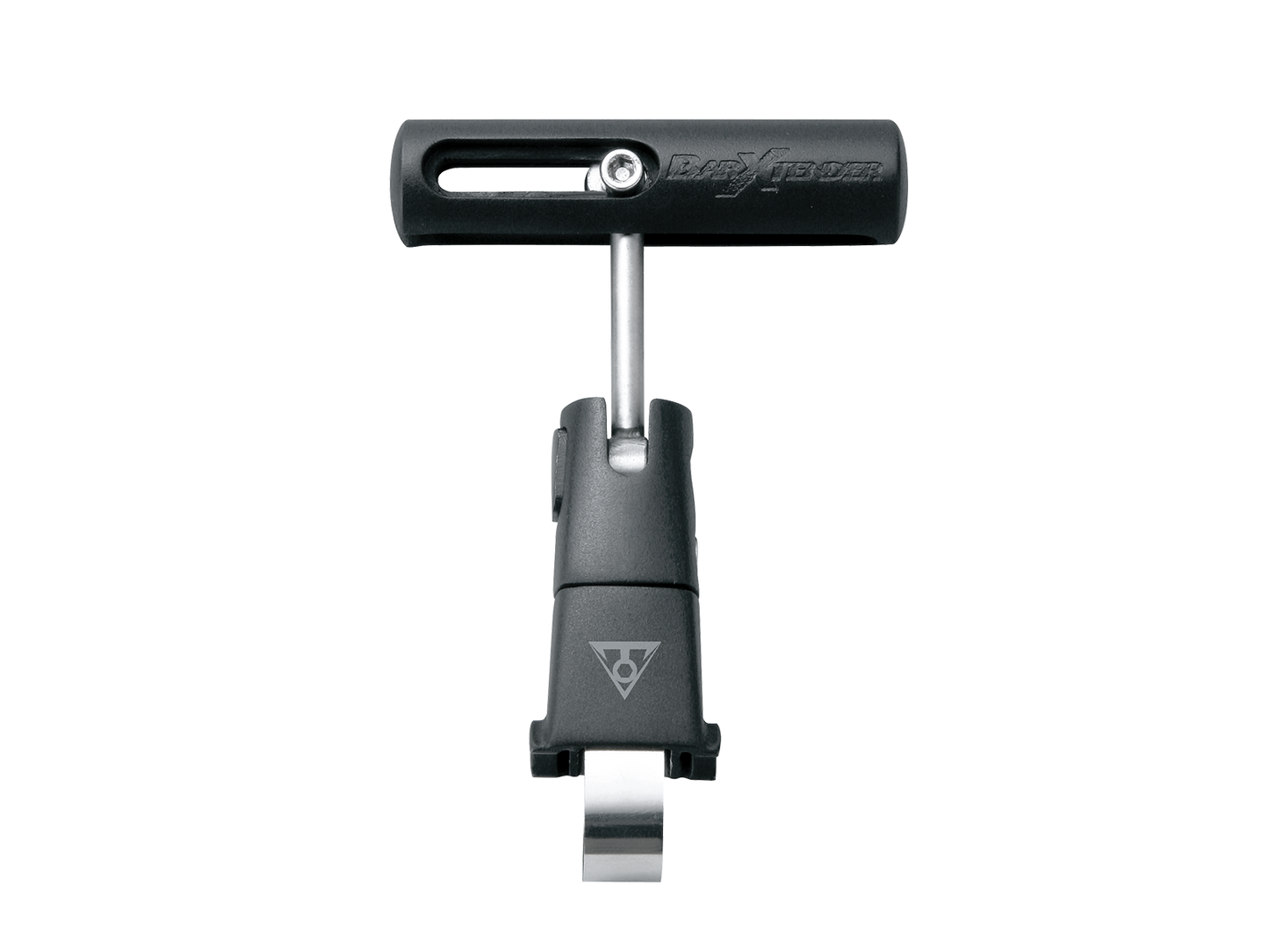

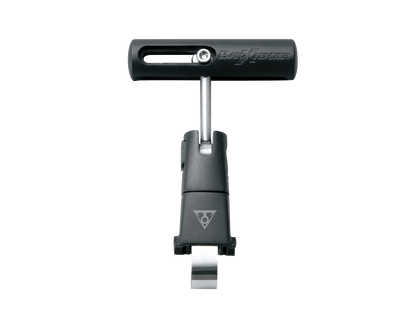

• Topeak Bar Extender for LCD mounting
• MTB bar-end for throttle placement clear of bar-end shifter cables

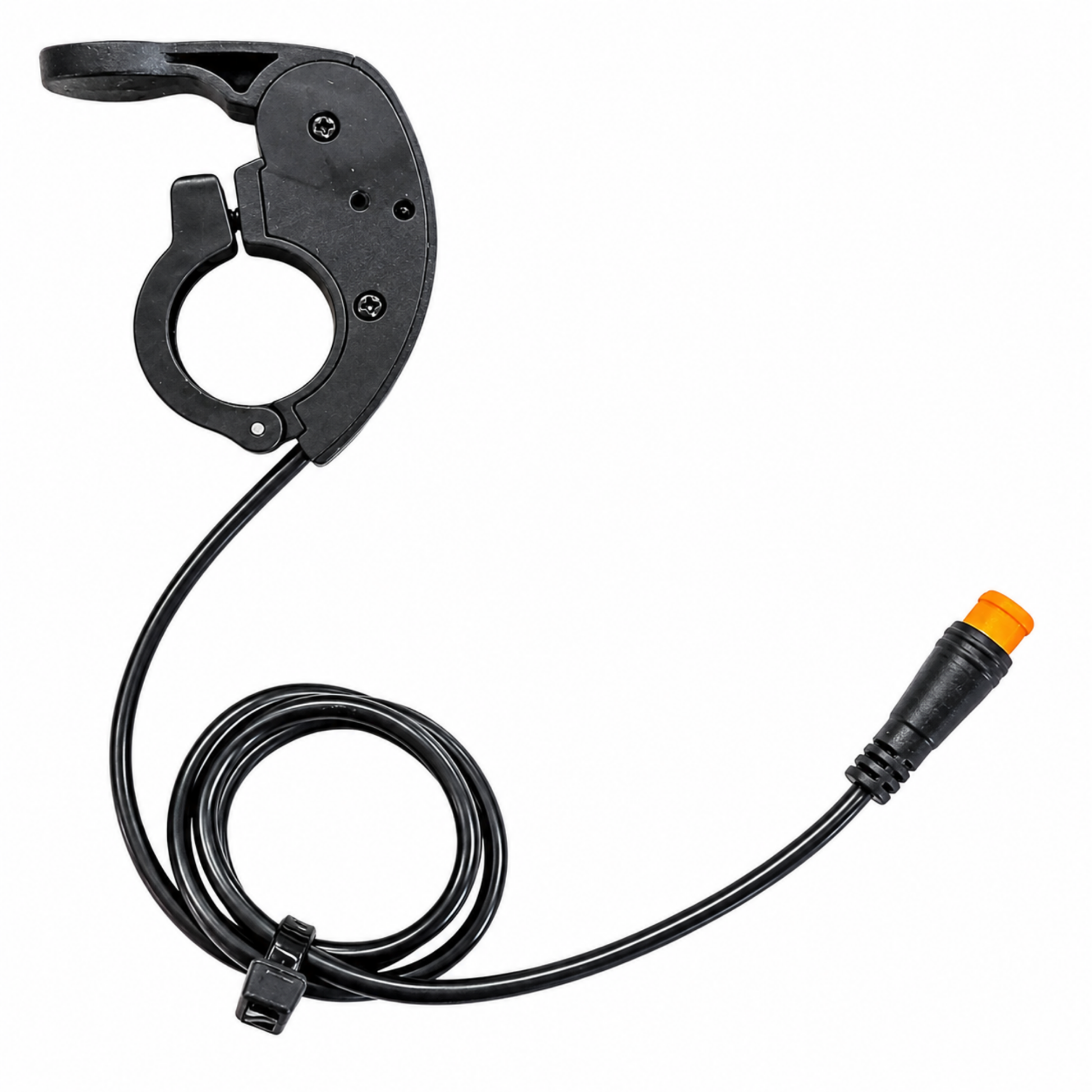

• Thumb throttle

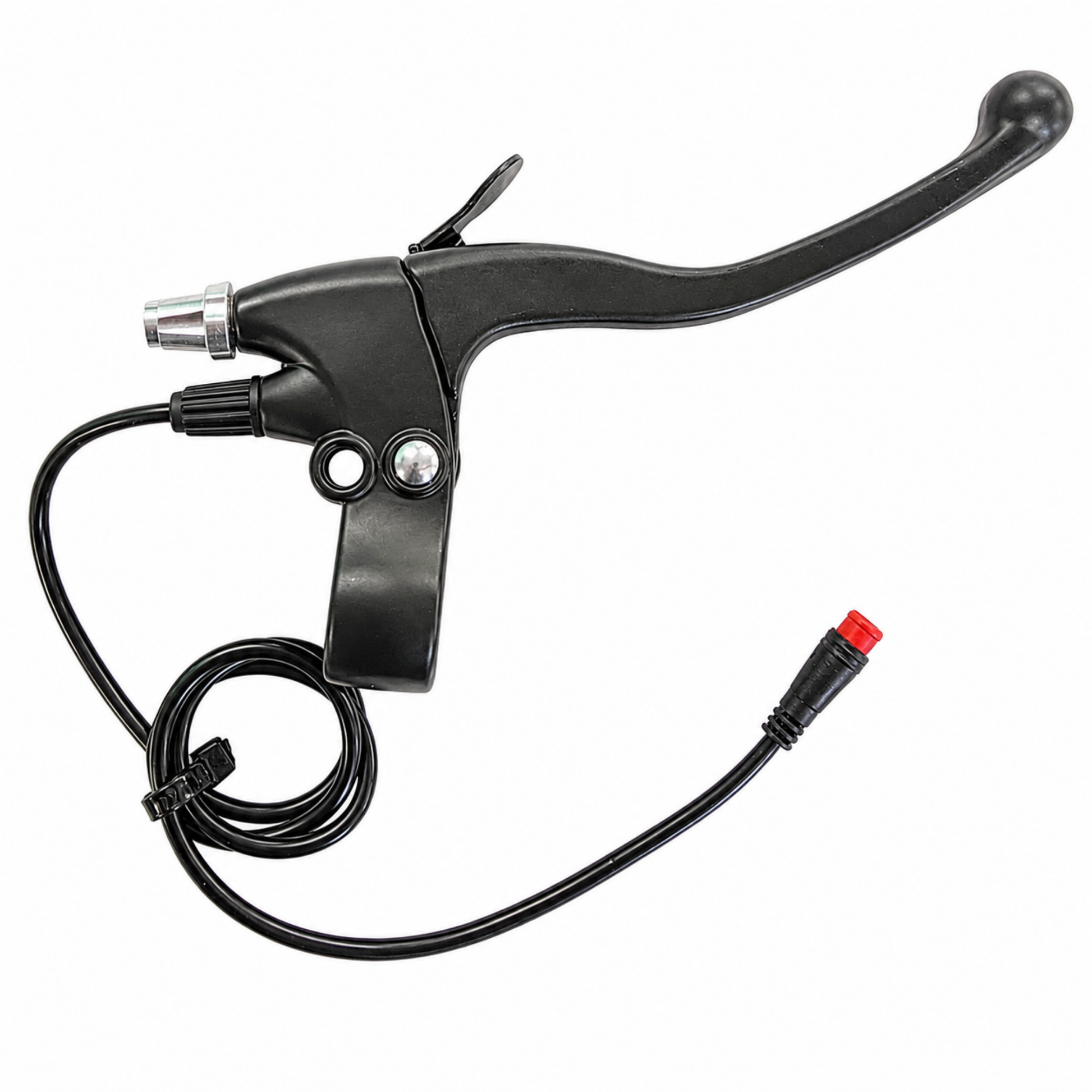

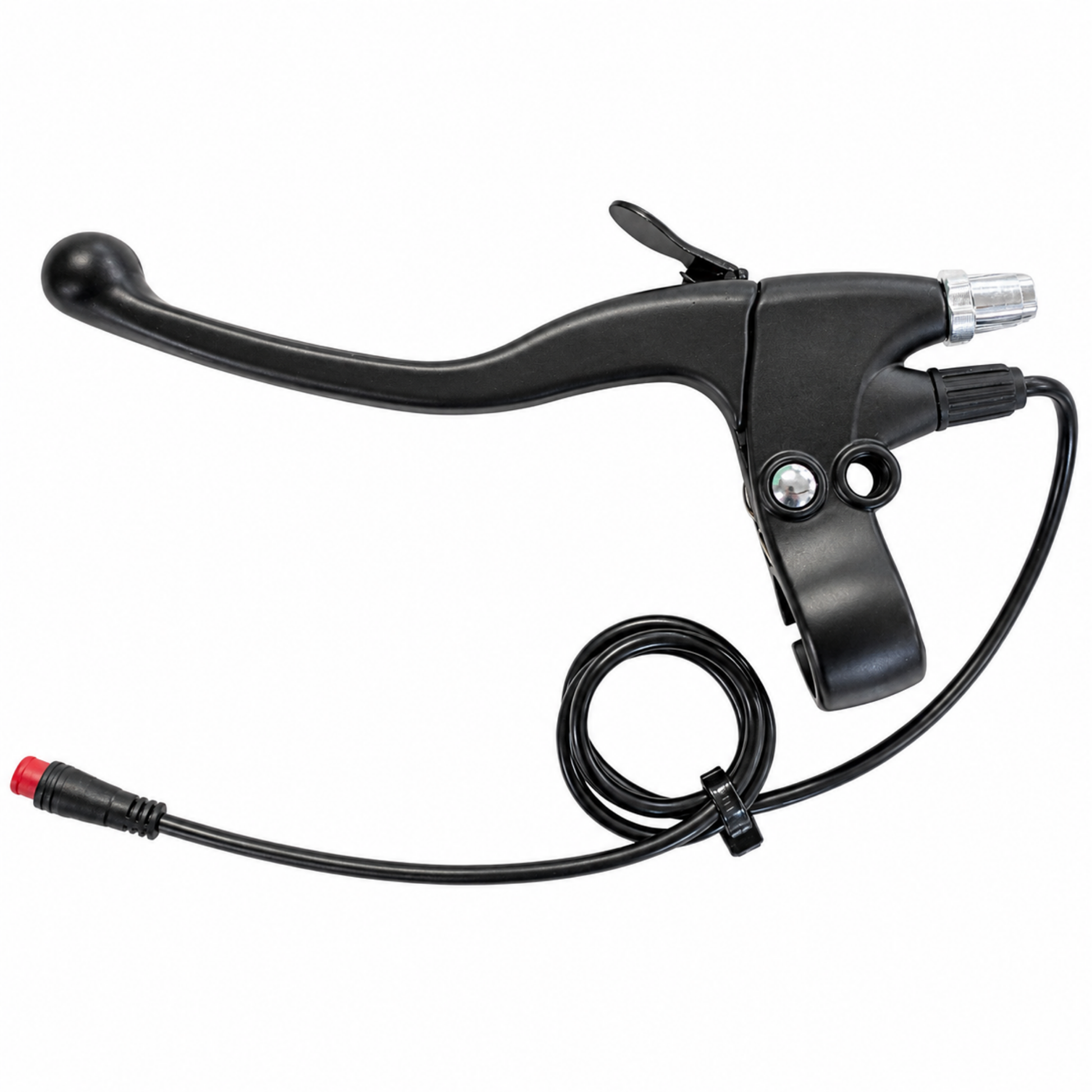

• Left and right locking e-brake levers with motor cutoff

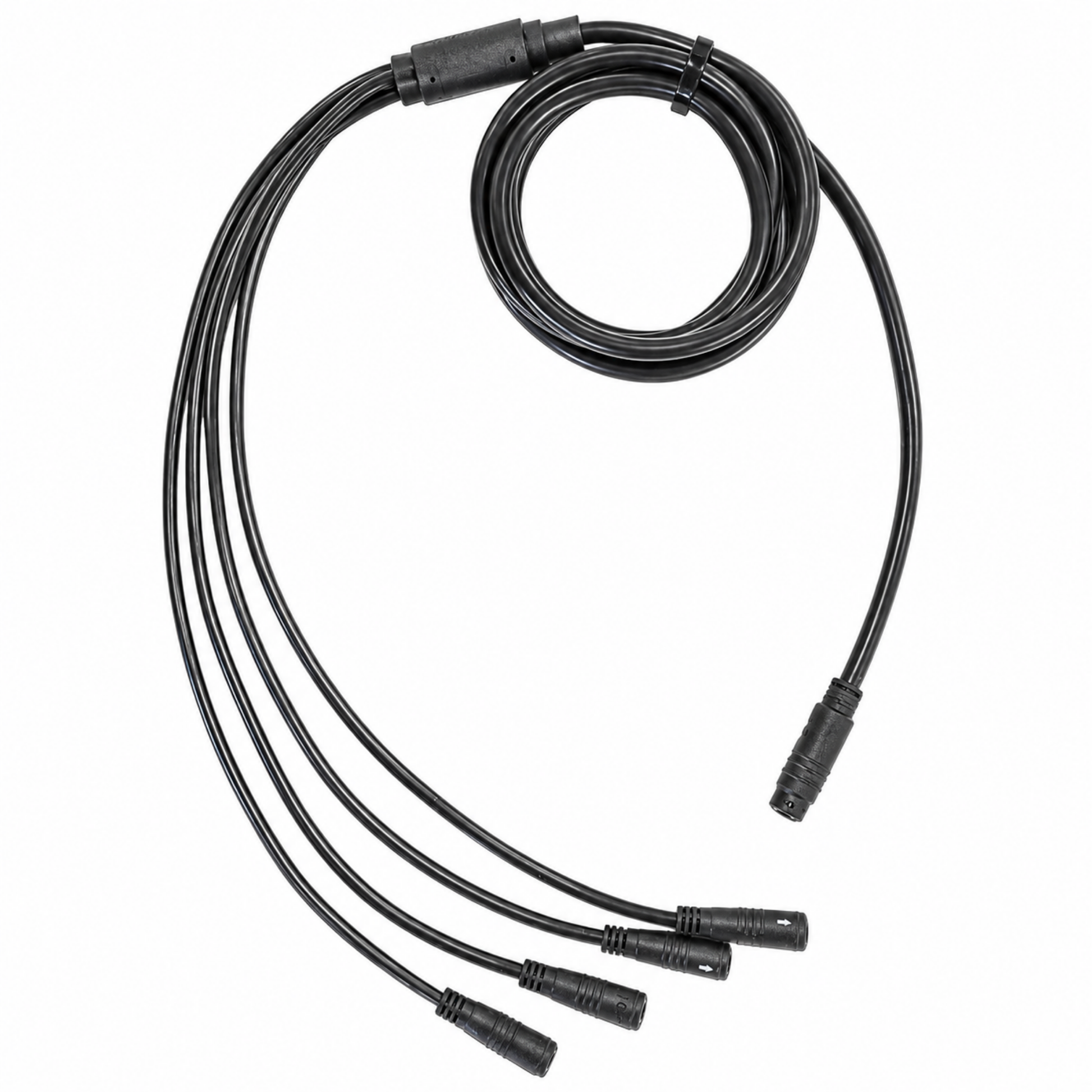

• Main SINET™ wiring harness

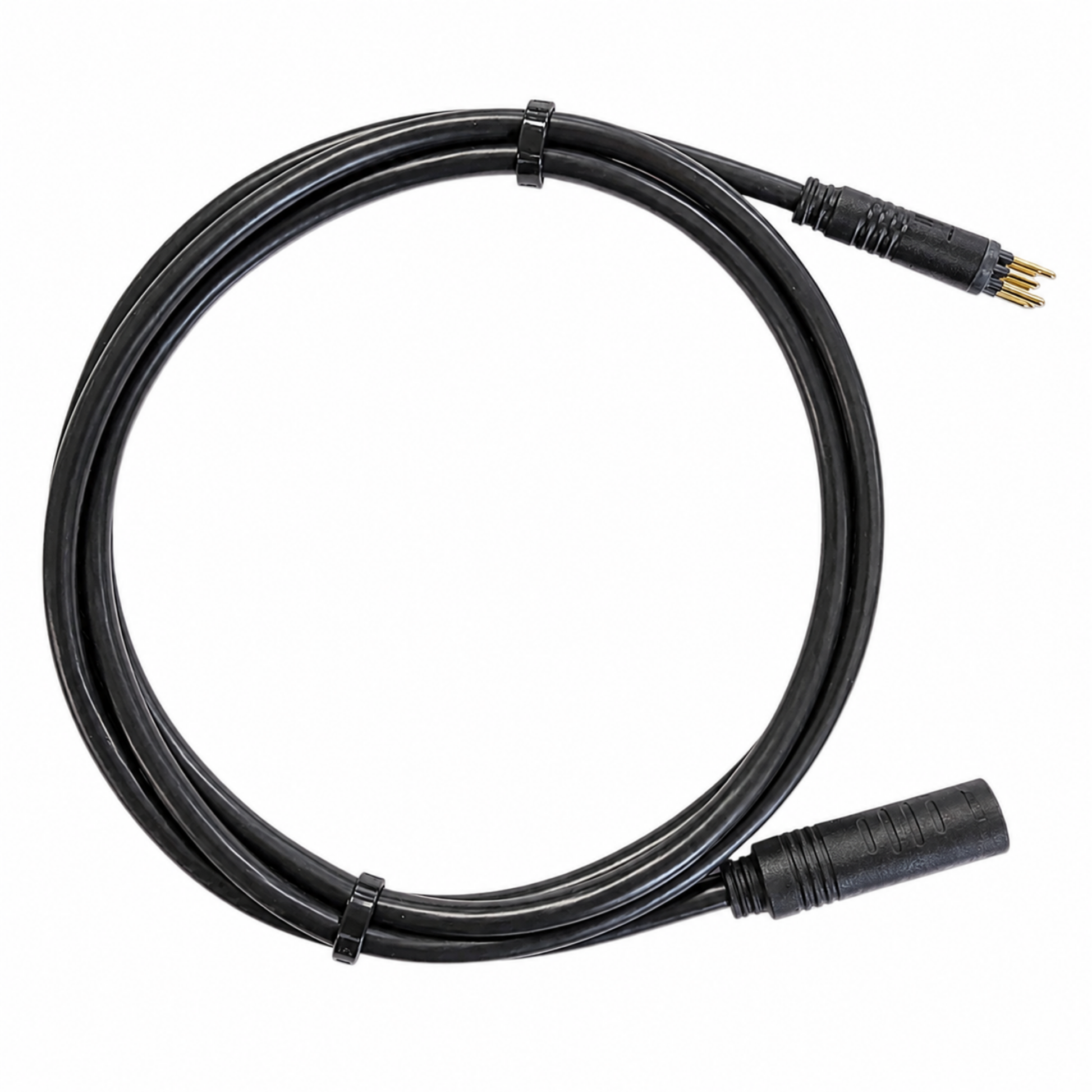

• Motor cable
• Pedal-assist extension cable for long-frame routing
• Torque arm
• C-washers, axle hardware, installation hardware, and zip ties
• 48V 15Ah lithium-ion battery
• 3A battery charger

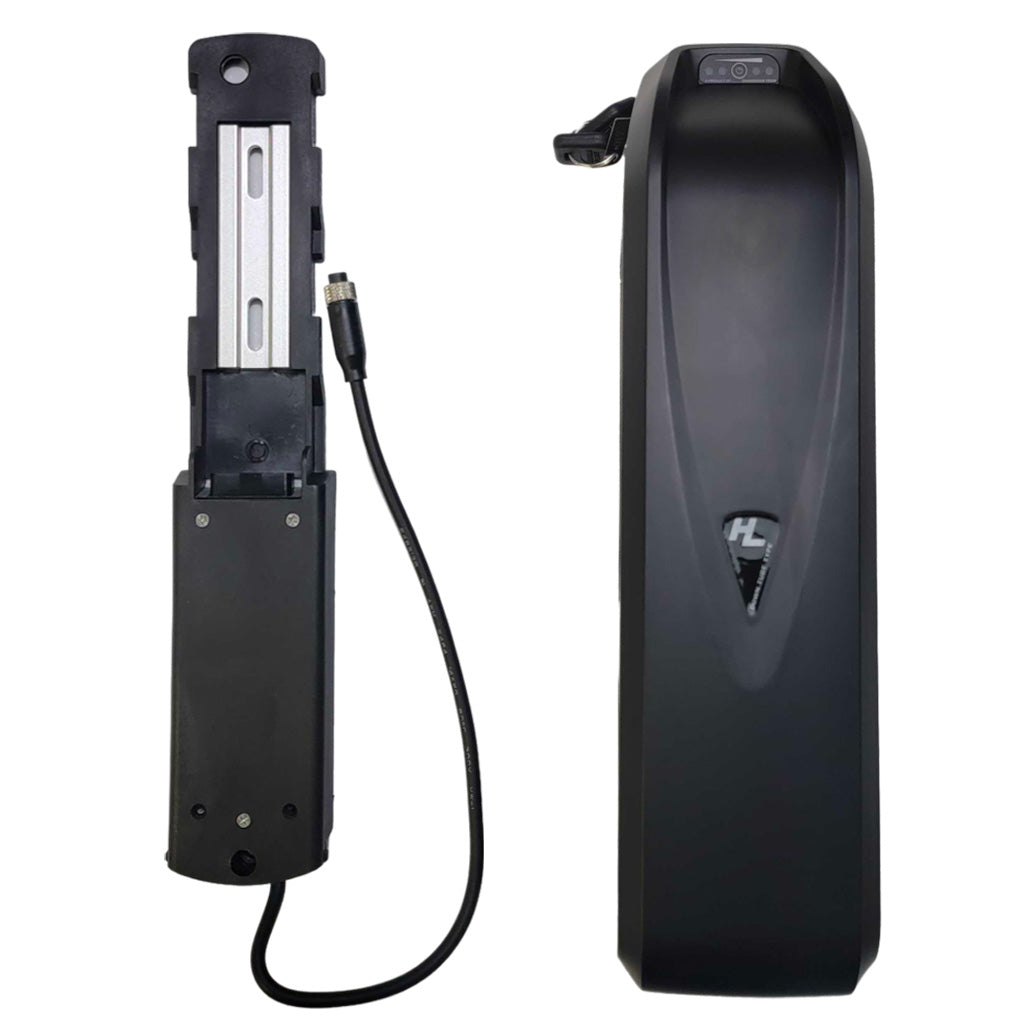

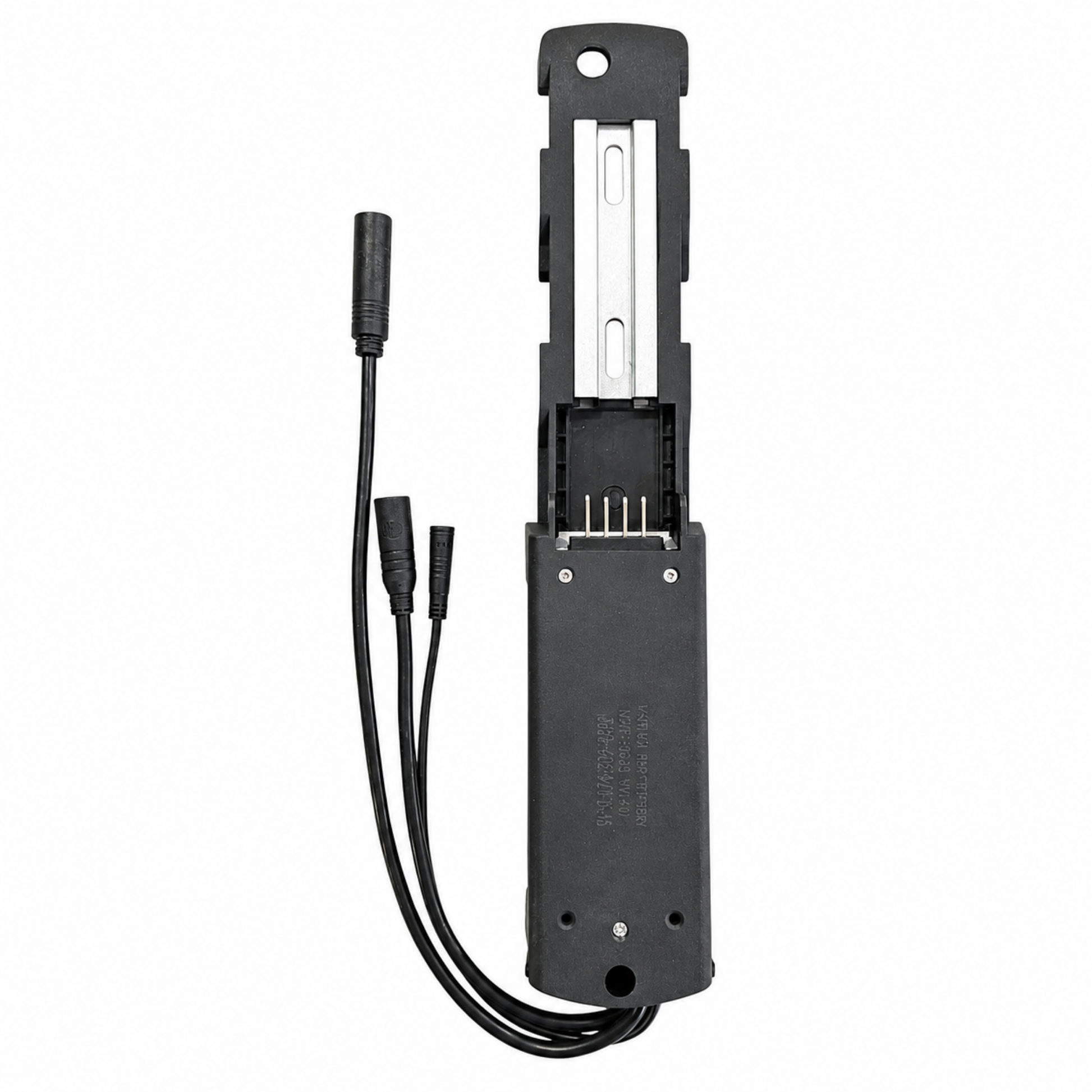

• Integrated-controller battery cradle
• Battery mounting hardware selected for the applicable frame diameter and mounting location

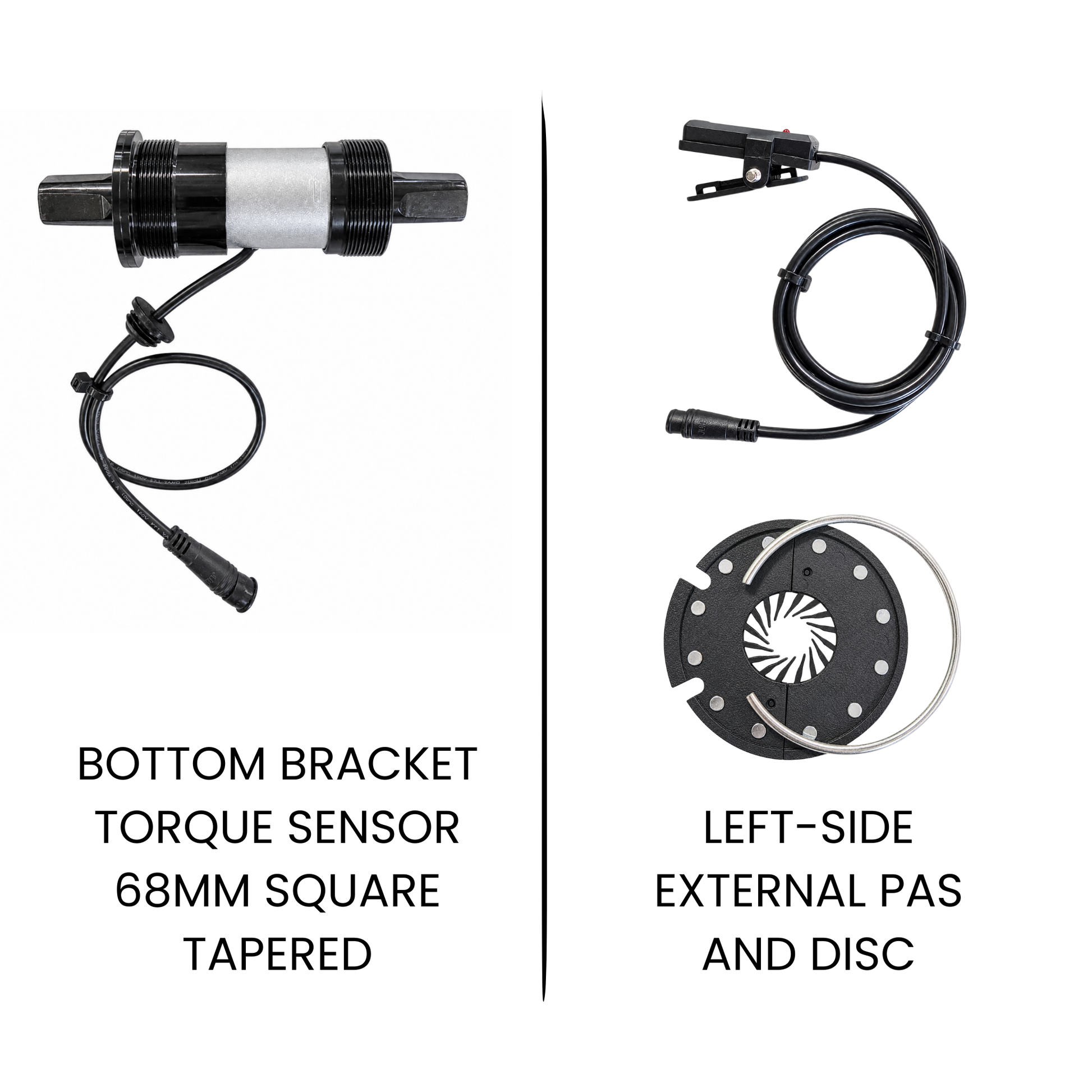

Pedal-Assist Selection:

• Cadence Sensor: Split-disc cadence sensor and pickup sensor
• Bottom Bracket Torque Sensor: 68 mm square-taper bottom bracket torque sensor with the required extension cable

The motor wheel includes a rim strip. Tire and tube are not included.

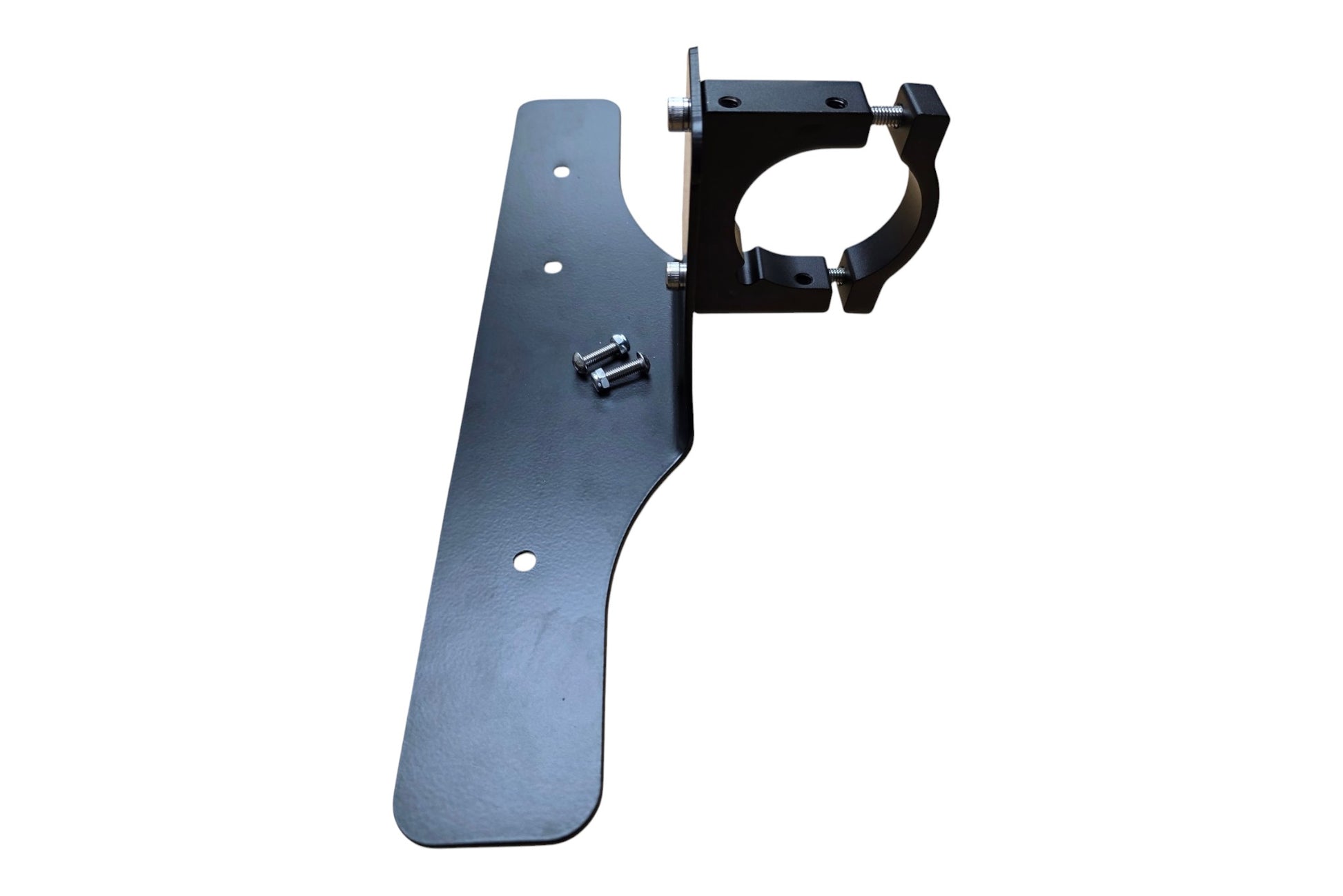

Battery Mount: A battery mount is included. Frame diameter and mounting location must be confirmed so the correct mounting solution can be supplied.

This Catrike system requires several selections so the rear motor wheel and drivetrain components can be configured correctly.

• Wheel Size: 20″, 26″, or 700C
• Freewheel: Select the freewheel required for the trike’s drivetrain
• Rear Dropout Spacing: Select the measured rear dropout spacing
• Pedal Assist: Cadence sensor or bottom bracket torque sensor

Wheel size does not change the price. Freewheel and rear dropout selections are required because Catrike models vary by year, drivetrain, and frame configuration.

The SINET™ system combines the controller, display, pedal-assist input, throttle, brake cutoffs, motor connection, and battery interface into one matched electrical platform.

• Integrated controller housed within the battery cradle
• 3.5″ color SINET™ LCD with clear system and ride information
• USB charging port built into the LCD
• Matched waterproof electrical connectors
• Cadence and torque-sensing pedal-assist compatibility
• Throttle-on-demand operation
• Motor cutoff through both locking e-brake levers
• Battery interface integrated directly into the controller-equipped cradle

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD quick-start guide for display operation, setup, programming, and system settings.

Download the SINET™ LCD Quick-Start Guide (PDF)

Motor Wheel

• Wheel Position: Rear
• Wheel Sizes: 20″, 26″, or 700C
• Construction: USA hand-built motor wheel
• Motor Type: Brushless internally geared rear hub motor
• Power: 500W nominal with higher peak output at 48V
• Maximum Torque: Approximately 84Nm at 48V
• Maximum Motor Speed: Approximately 320 RPM at 48V
• Approximate Top Speed: Varies by wheel size, programming, rider weight, terrain, and conditions
• Brake Compatibility: Disc-brake compatible motor
• Rear Dropout Spacing: Customer selection required
• Rear Axle Type: Standard slotted dropout only
• Freewheel: Customer selection required
• Motor Connector: Round 8-pin motor connector
• Motor Weight: Approximately 9.4 lb
• Rim Strip: Included
• Tire and Tube: Not included

Electrical System

• System Voltage: 48V
• Controller: Integrated SINET™ controller
• Controller Location: Battery cradle
• Display: 3.5″ color SINET™ LCD
• USB Charging Port: Included
• LCD Mounting: Topeak Bar Extender included
• Throttle: Thumb throttle
• Throttle Mounting: MTB bar-end included
• Brake Cutoffs: Left and right locking e-brake levers
• Torque Arm: Included
• Total Recommended Load: Approximately 300 lb, including trike, rider, and cargo

Pedal Assist

• Cadence Option: Split-disc cadence sensor
• Torque Option: 68 mm square-taper bottom bracket torque sensor with required extension cable

Every Catrike conversion system includes the 48V 15Ah lithium-ion battery, integrated-controller battery cradle, battery mounting hardware, and 3A charger.

• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Estimated Range: Approximately 15–45 miles
• Charger: 3A charger included
• Approximate Charge Time: Approximately 5 hours
• Maximum Charge Voltage: 54.6V
• Cell Structure: 18650, 13S4P
• Estimated Cycle Life: Approximately 500–800 cycles
• Battery Weight: Approximately 10.1 lb
• Certifications: UN38.3, MSDS, and UL-listed cells

Actual range varies based on rider weight, terrain, wheel size, speed, temperature, tire pressure, pedal input, assist level, throttle use, and total system load.

This conversion system is compatible with Catrike models using standard slotted rear dropouts.

Not Compatible With:

• Catrikes using rear thru-axles

General Compatibility Requirements:

• Standard slotted rear dropouts
• Compatible rear dropout spacing selected and confirmed
• Standard freewheel-compatible rear drivetrain
• Open rear dropouts rather than a rear thru-axle
• Compatible square-taper bottom bracket for the torque-sensor option
• Suitable frame location and diameter for the included battery mount

The bottom bracket torque sensor is designed for a 68 mm square-taper bottom bracket. Confirm bottom bracket compatibility before ordering the torque-sensor version.

Catrike models and production years vary. Contact us with the exact model, wheel size, drivetrain, rear dropout spacing, freewheel requirements, and frame configuration when compatibility is uncertain.

Older trikes, modified frames, aftermarket drivetrains, or nonstandard components may require additional installation work or parts.

The Catrike conversion system uses matched SINET™ components and connectors but requires correct wheel-size, freewheel, dropout-spacing, pedal-assist, and battery-mount selection.

• Confirm the selected wheel size matches the original trike configuration
• Confirm the selected rear dropout spacing before installing the motor wheel
• Confirm the selected freewheel matches the drivetrain and shifter
• Install the rear motor wheel and supplied torque arm
• Confirm correct axle seating, axle-nut torque, chain alignment, and derailleur adjustment
• Confirm disc rotor position and brake-caliper alignment when applicable
• Mount the integrated battery/controller cradle using the supplied battery mounting system
• Install the Topeak Bar Extender and mount the SINET™ LCD
• Install the MTB bar-end and position the thumb throttle clear of bar-end shifter cables
• Install the locking e-brake levers
• Install the selected cadence or bottom bracket torque sensor
• Route and secure the SINET™ wiring harness, motor cable, and sensor extension cable
• Verify brake cutoff, throttle, pedal assist, shifting, steering clearance, and cable routing before riding

Proper torque-arm installation, correct axle-nut torque, drivetrain alignment, secure battery mounting, and safe cable routing are essential for safe operation.

Professional bicycle-shop installation is recommended when the installer is not experienced with rear-wheel replacement, drivetrain setup, disc-brake alignment, electrical systems, torque arms, battery mounting, or bottom bracket service.

This Catrike conversion system has been installed successfully by dealers nationwide and provides a proven platform for compatible models when the correct wheel size, freewheel, rear dropout spacing, pedal-assist system, and battery mount are selected.

Dealer Support Commitment:

• Real-time installation support by phone, text, and email
• Direct access to system builders and wheel technicians
• Guidance on Catrike model compatibility
• Support selecting the correct wheel size, freewheel, and rear dropout spacing
• Guidance on cadence-sensor or torque-sensor compatibility
• Assistance with battery-mount sizing and frame diameter
• Support for drivetrain alignment, cable routing, and torque-arm placement
• Guidance on MTB bar-end and throttle placement around bar-end shifter cables
• Fast assistance with shop-floor technical questions

If you need model-specific guidance: Contact us with the Catrike model, model year, wheel size, drivetrain, freewheel, rear dropout spacing, and photos of the rear frame and crank area.

Our mission: Ensure every dealer delivers a clean, professional, and reliable Catrike conversion experience.
