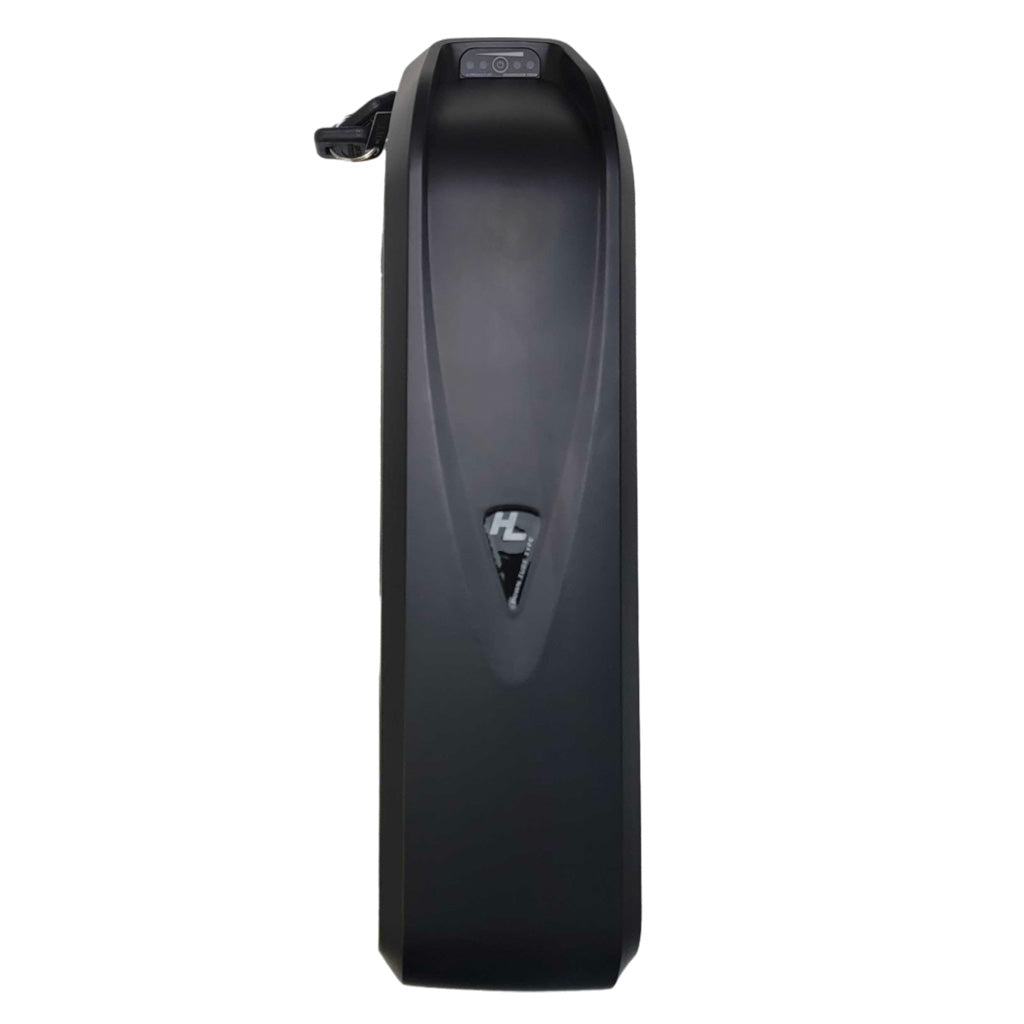

Battery - 48v15Ah Downtube

• Lithium battery w/ key-lock mounting plate
• Side-release design for easy removal

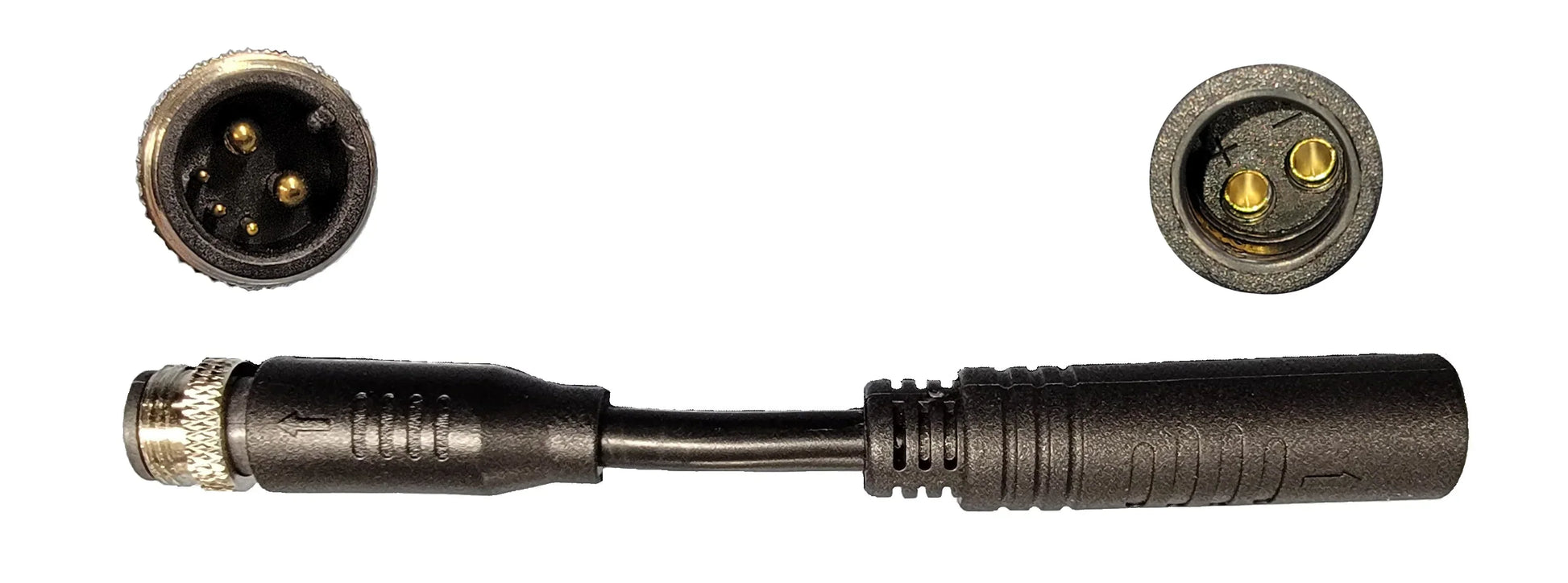

• 5-pin twist connector (optional 2-prong adapter)

48V 15Ah lithium-ion downtube battery pack designed for secure frame mounting and reliable power delivery. Includes a 3A smart charger. Estimated life cycle is 500–800 charge cycles.

• Top Speeds: Up to 26 mph (500W geared) / ~20 mph (500W direct drive & trike)
• Range: 15–30 miles (rider & terrain dependent)
• Charge Time: ~5 hours with 3A charger
• Nominal Voltage: 48V
• Nominal Capacity: 15Ah
• Energy: ~720Wh
• Dimensions: 14 × 3.5 × 5 in (356 × 89 × 127 mm)
• Total Weight: 10.1 lb (4.6 kg)
• Cell Assembly: 18650 – 3.6V – 13S4P
• Cycle Life: 500–800 cycles
• Max Continuous Discharge: 16A
• BMS Protection Current: 20A
• Discharge Cutoff Voltage: 42V
• Max Charge Voltage: 54.6V
• Operating Temp (Charge): 0°C–45°C
• Operating Temp (Discharge): –20°C–60°C
• Storage Temp: 0°C–40°C (ideal 15–25°C)
• Case Material: Plastic
• Warranty: 1 year

• 48V 15Ah downtube battery
• 3A smart charger
• Key-lock mounting plate
• 2-prong adapter (optional)
